Fanvil X210 High End Enterprise IP Phone Installation Guide

Packaging list

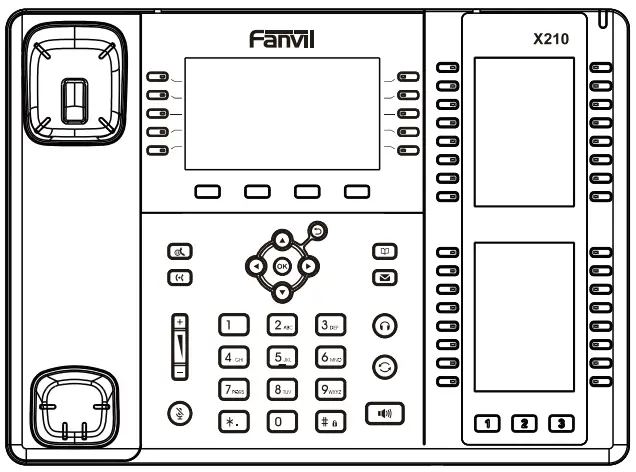

• IP Phone

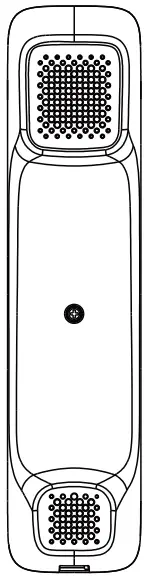

• Handset

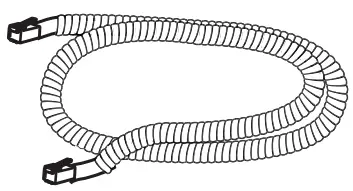

• Handset Cord

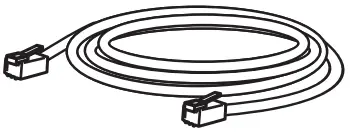

• Ethernet Cable

• Quick Installation Guide

• Stand

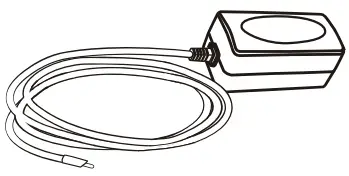

• Power Adapter (Optional)


Screen icon

• In hands-free mode
• In headset mode
• In handset mode
• Mute activated
• Silent mode
• Call is on hold
• Auto-answering activated
• Call forward activated
• Disable do not disturb (Blue)
• Do not disturb activated (Red)
• SIP hotspot activated
• VLAN activated
• VPN activated
• Bluetooth device paired connection
• New SMS
• New VM messages
• Voice quality level of call
• Keypad locked
• Forward call(s)
• Missed call(s)
• Received call(s)
• Dialed call(s)
• Internet connected
• Internet is disconnected
• No IP address
• Wireless network connected
• Wireless network disconnected
• Wireless network failure

Keys features

• Soft keys

• Message waiting indicator

• Left and right navigation keys, Return key Up navigation key, Shortcut to call log Down navigation key, Shortcut to Status OK key, Shortcut to Menu Return key, Go back to the previous directory

• Hold key, Hold/Resume the call

• Call transfer key

• Phonebook key

• In idle mode: activate/deactivate silent mode
  In communication mode: mute/un-mute a call

• In idle mode or during ringing: increase or decrease ringer volume
  In communication: increase or decrease handset, headset or hands-free volume

• Voice message key

• Headset key, Activate/deactivate Headset

• DSS keys, It can be set as line key/ function key/speed dial key, etc.

• Redial key, access to redial the last record

• Hand-free key, activate/deactivate hands free

• Page-Jump key, It can switch the vice screen DSS pages

• Long press to lock keypad. Enter PIN to unlock keypad (default 123)


Installation the device

Please follow the instructions in below picture to install the device.

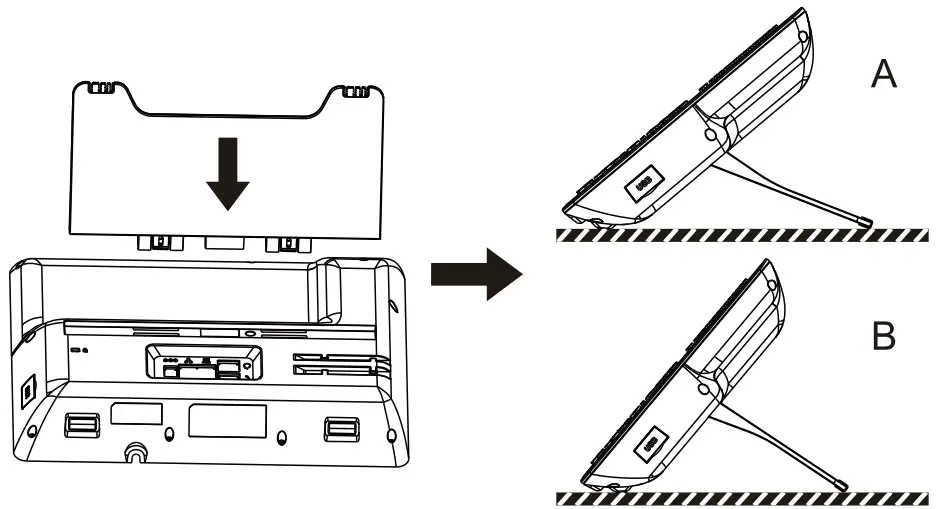

Bracket desktop installation

Connecting to the device

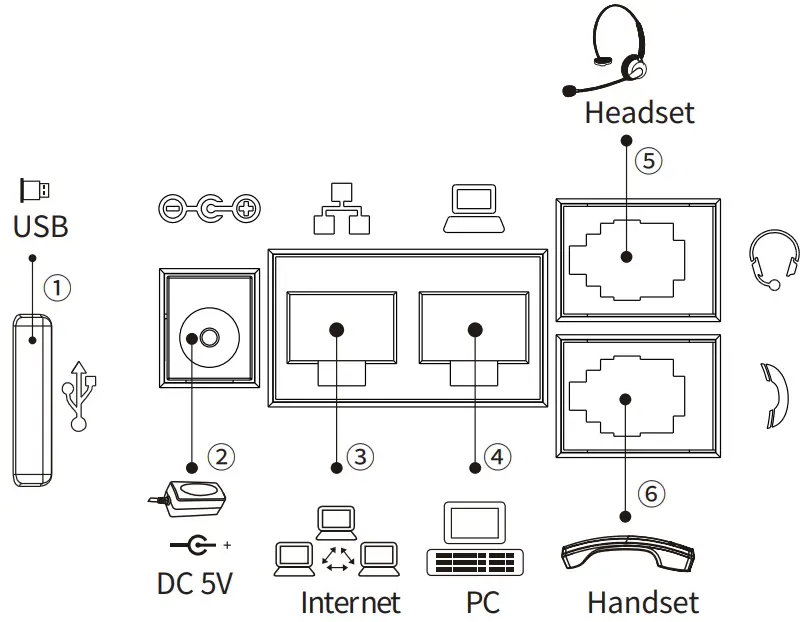

Please connect power adapter, network, PC, handset, and headset to the corresponding ports as described in below picture.

1. USB port: connect USB device (USB flash drive, WiFi dongle)
2. Power port: connect the power adapter.
3. Network port: connecting local area network or internet.
4. PC port: the network port connect to the computer.
5. Headset port: connect headset.
6. Handset port: connect IP Phone handset.


Configuration

Configuration via LCD menu of phone

1. Press Menu > Advanced (default password 123)
2. Select Network: To configure the Network Settings (IPv4/IPv6/IPv4&IPv6, DHCP/Static/PPPoE).
3. Select Accounts: To configure enable the account, fill the SIP server address, port, user name, password etc.
4. Save the configuration.

Configuration via web

1. Get the IP address from the phone: Press key, or Menu > Status > IPv4 / IPv6.
2. Login: Input the IP address in the web browser. The PC and phone should be in the same IP address segment (The default username and password are both ‘admin’.)
3. Configure: Select network/account etc, and fill the relevant content.
4. Save the configuration.

Language setting

1. Press Menu key > Basic > Language.
2. Select the desired language and press OK soft key.

Making a call

1. Pre-dialing: enter the phone number and pick up the handset.
2. Direct dialing: lift the handset and enter the phone number.
3. Handsfree: enter phone number and press or vice versa.
4. Headset: enter phone number and press or vice versa.
5. Designated line: press line key, enter phone number and press dial key

Accepting a call

1. Using the handset: pick up the handset.
2. Using the headset: press .
3. Using the handsfree: press .

Redial

• Press key, redial a call number

Call Mute

1. Press to Mute the microphone during the call.
2. Press again to un-mute the conversation.

Putting a call on hold

1. Press key or Hold soft key, caller is put on hold.
2. To retrieve the call press key or Resume soft key.
   Note: with more than one active call, select desired call with the navigator keys and use the corresponding soft key to hold or resume.

Call transfer

Attended transfer:

1. Press key or Xfer soft key during the active conversation, the call is put on hold.
2. Dial the second telephone number.
3. When the call is answered, then press key or Xfer soft key to complete the operation.

Blind transfer:

1. Press key or Xfer soft key during the active conversation, the call will be on hold.
2. Then enter the 2nd telephone number and press key or Xfer soft key

Call forward

1. Press Menu > Features > Call Forward.
2. Select the line, the type of forward, enter the destination number and status, and press OK soft key.

Call conference

1. Once in line with 1st caller, press Conference soft key, 1st caller is put on hold.
2. Then call the 2nd number.
3. After, 2nd call is established, press Conference soft key to set up the conference.

Programmable keys

1. You can configure shortcuts for the programmable keys.
2. Press Menu > Basic > Keyboard, select among the configurable items, and select your desired type and value, press OK key.

Do not disturb

1. Press DND soft key, and enable the device do not disturb mode.
2. Or press Menu > Features > DND, and select the Mode and Type, and press OK key.

Voice mail

1. To access your voice mailbox, press or Menu > Message > Voice Message, number of messages will be indicated if provided by your server or pbx.
2. Select the line and press Play to call.

Bluetooth

1. Press Menu > Basic > Bluetooth.
2. Press OK soft key to enter the bluetooth open interface. After opening, press Scan soft key to display the list of bluetooth scanned. Select any device and press connect.

WiFi

1. Plug the WiFi dongle. Press Menu > Basic > WLAN.
2. Press OK soft key to enter the WLAN open interface. After opening, press Scan soft key to display the list of Wi-Fi scanned.
3. Press Enter soft key to enter the available Network, select the wireless network, press the Connect soft key and enter the password to connect.

Call list

1. Press key or Menu > CallLog > Local Call Logs.
2. Scroll through the list using .
3. To dial an entry, press Dial soft key or pickup handset or press or .

Phonebook

Access Phonebook:

1. Press or Contact soft key or Menu > PhoneBook > Local Contacts.
2. Select All Contacts or other group.
3. To dial an entry, press Dial soft key or pickup handset or press or .

Add new entry:Add new entry:

1. Press Contact soft key, Press All Contacts or other group > Press Add.
2. Enter name and number and press OK soft key.
