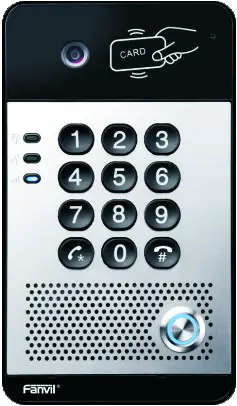

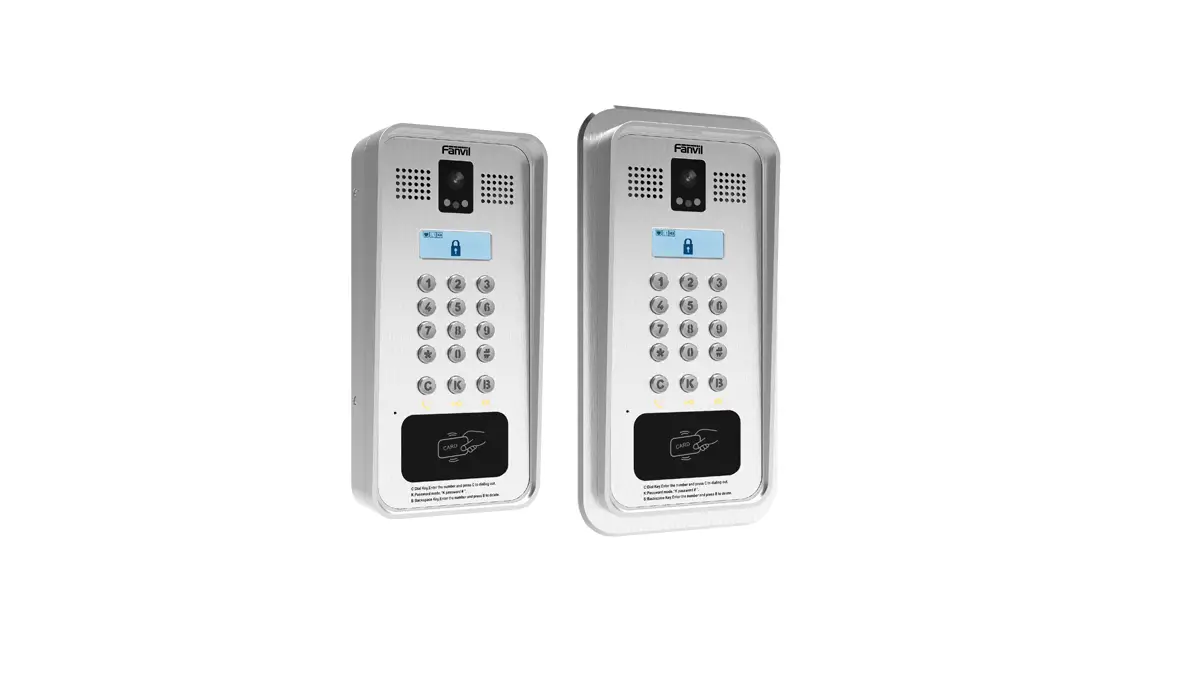

Fanvil IP Door Phone i30
Quick Installation Guide

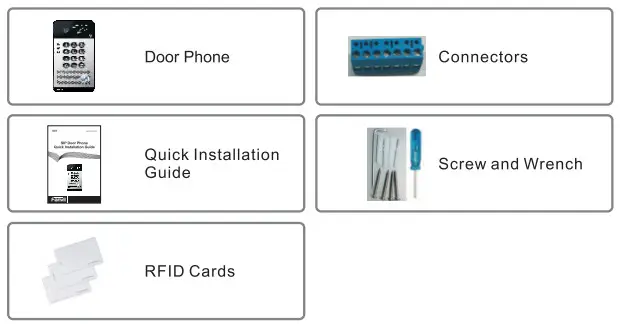

Package Contents

Physica Specifications

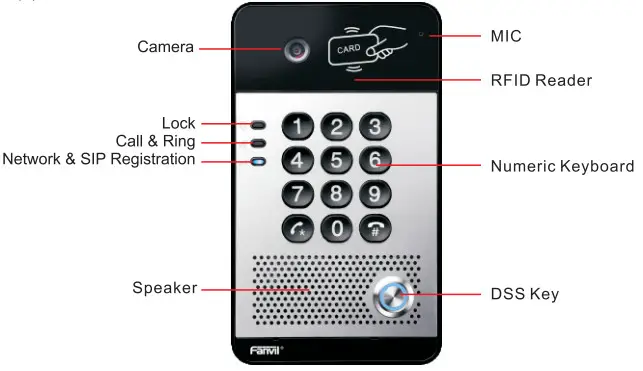

(1)Front Panel

Button Definition

LED Definition

LED	Status	Description
Lock	Steady Blue	Door unlocking
	off	Door locking
Call & Ring	Blinks per second	Call Hold or Ringing
	off	On-Hook
	Blinks every 3 seconds	The device in the issuing state
	Steady Blue	Online talking
Network & SIP Registration	Blinks per second	Network error
	off	The network is normal. SIP is not registered
	Blinks every 3 seconds	SIP Registration failed
	Steady Blue	SIP Registration succeeded

(2)Port Definition

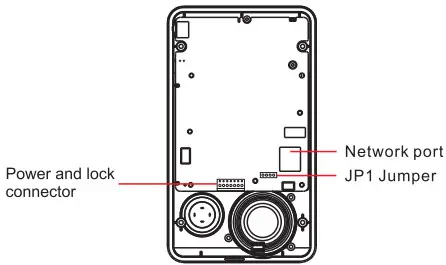

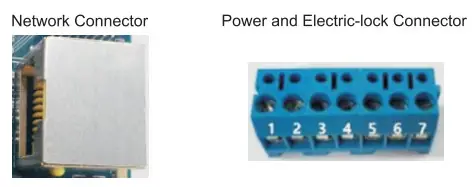

After removing the Back Panel of i30, there is one terminal block connector for power and lock control connection as shown in the picture below.

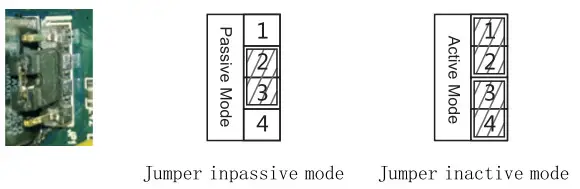

Jp1 Jumper,
There are two modes for power supply of electric-lock as shown in the picture below. (The default is “Passive Mode”).
Passive Mode: When the electric-lock starting current is more than 12V/500mA, need to use the external drive mode, the electric lock interface for short circuit output control. Active Mode: When the electric-lock starting current is less than 12V/500mA, can use the internal drive mode, the electric lock interface is 12V DC output.

Wiring instructions
NO: Normally Open Contact
COM: Common Contact
NC: Normally Close Contact

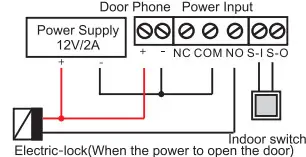

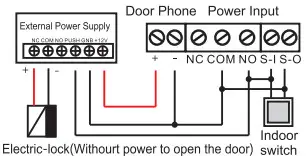

Driving Mode		Electric lock Mode		Jp1 Jumper	Connections
Active	Passive	No electricity when open	Electrify when open
√
√			√
	√	√
	√		√
	√	√

Installation

Step 1: Installation preparation
A. Check the following contents:
> Hex wrench x 1
> RJ45 plugs x 2 (1 spare)
> KA4 x 25mm screws x 4
> 25mm screw anchors x4
B. Tools that may be required:
> Hex wrench
> Phillips screwdriver (Ph2 or Ph3), hammer, RJ45 crimper
> Electric impact drill with a 6mm drill bit
Step 2: Drilling

A.Place the mounting template with dimensions on the surface of a wall in a desired flat position.
B.Use an electric drill to drill the 4 holes marked on the mounting template. It is recommended to drill about 30mm deep. Remove the template when finishing drilling.
C.Push or hammer screw anchors into the drilled holes.

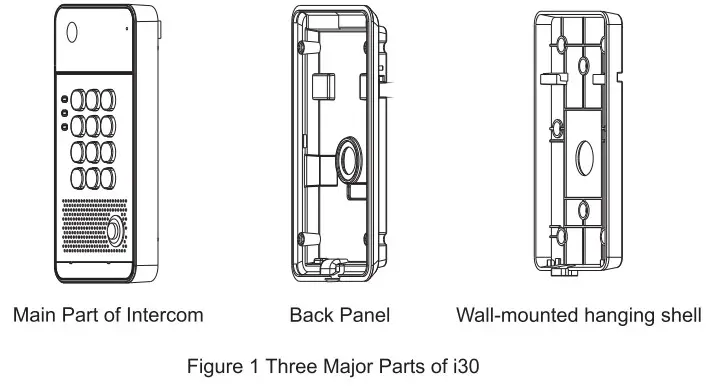

Step 3: Removing hanging shell

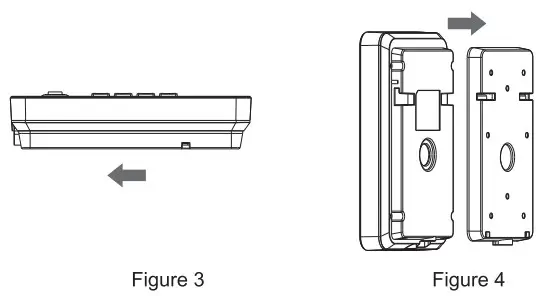

A. Remove the hanging shell in Figure 3 and Figure 4.

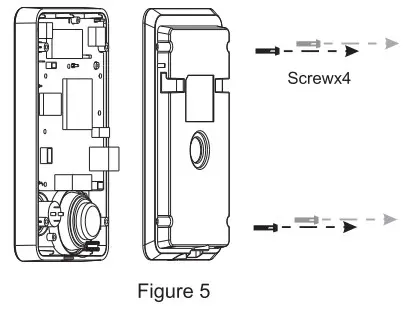

B. With Phillips screwdriver unpacks the Back Panel and the main part of intercom as shown in Figure 5.

Step 4: Hanging shell Fixing and Cabling

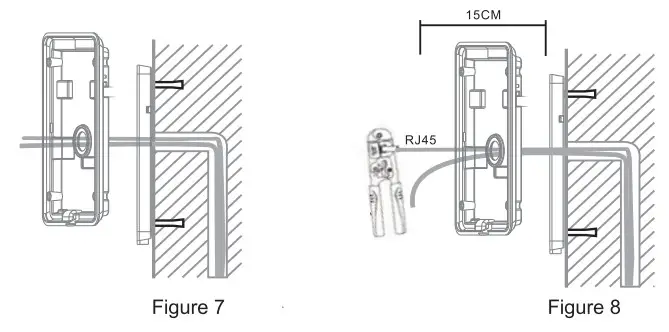

A. Select the hole for cable supply; cable length of 15cm to 20cm is recommended.
B. With 4 KA5 x 25mm screws, tighten the Wall-mounted hanging shell as shown in Figure 6.
Step 5: Connection line

A. Select the hole for cable supply.
B. Connect the cables of RJ45, power, and electric lock to the motherboard socket as mentioned in the connector’s description (refer to Section 2).
C. Test whether there is electricity by doing the following:
Press the tt button for 3 seconds to get the IP address of the intercom by voice.
Input access password or press the indoor switch to check the electric-lock installation.
Note: Do not proceed to mount until you have finished the electric checking.
Step 6: Mounting

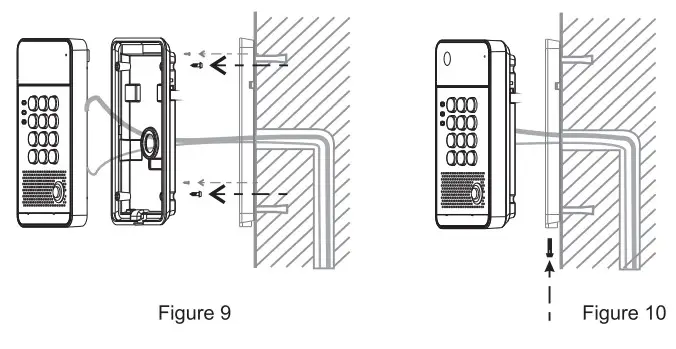

A. Use the 4 screws to tighten the main part of the intercom on the back panel as shown in Figure 9.
B. Push the device into the Wall-mounted hanging shell and tighten it with 1 screw as shown in Figure 10.
C. Make sure the screws have been tightened properly for a better waterproof effect.

Searching Door Phone

There are two methods as shown below to search the i30.
Method 1:

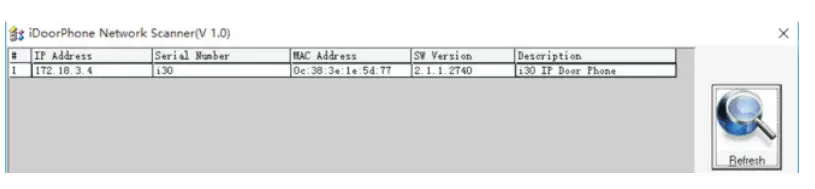

Open the door phone Network Scanner. Press the Refresh button to search the i30 and find the IP address.
(Download addresshttp://downloadanvil.com/tool/iDoorPhoneNetworkScannerexe )
Method 2:

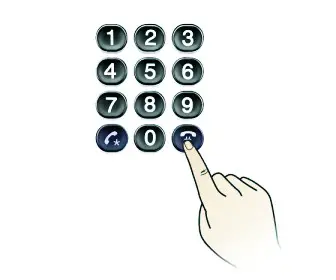

Press and hold the It” key for 3 seconds and the door phone will report the IP address by voice.

SIP Door Phone Setting

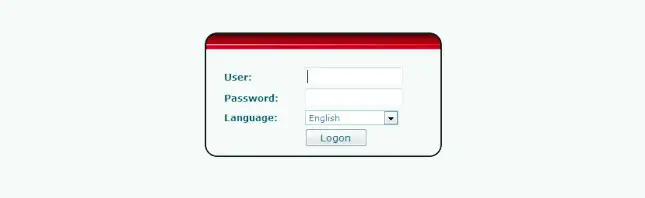

Step 1: Log in to the homepage of 130.

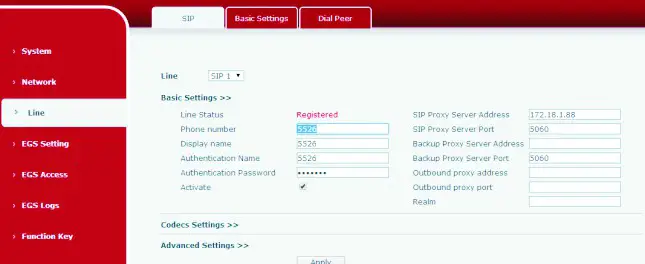

Step 2: Add the SIP account.
Set SIP server address, port, user name, password, and SIP user with assigned SIP account parameters.
Select “Activate”, and then click Apply to save this setting.

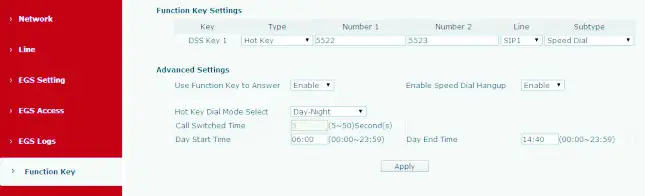

Step 3: Setting DSS key
Set the DSS key as shown below for a quick start. Click “Apply” to save this setting.
Type: Hot Key
Number 1: The DSS Key will dial to this Number 1.
Number 2: If Number 1 is unavailable, it will be forwarded to Number 2.
Line: Working line
Subtype: Speed dial

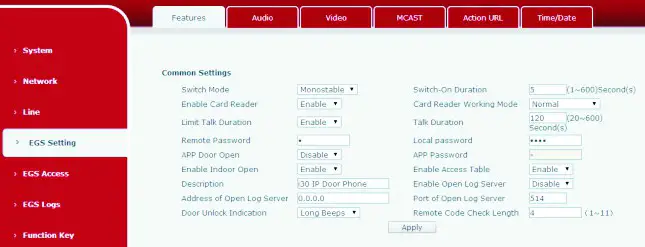

Step 4: Door Phone Setting
Door Unlocking Setting

Local

(1)Local Password

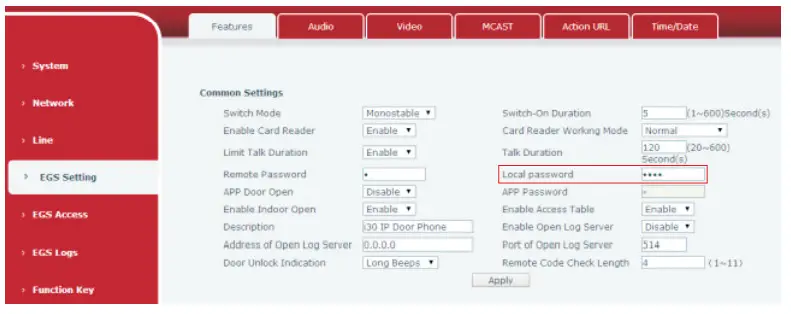

Step 1: Go to EGS Setting → Features→ Set Local Password (The default is “6789”).
Step 2: Use the device’s Numeric Keyboard to input the password and “#” key, and then the door will be unlocked. (2)Private Access Code

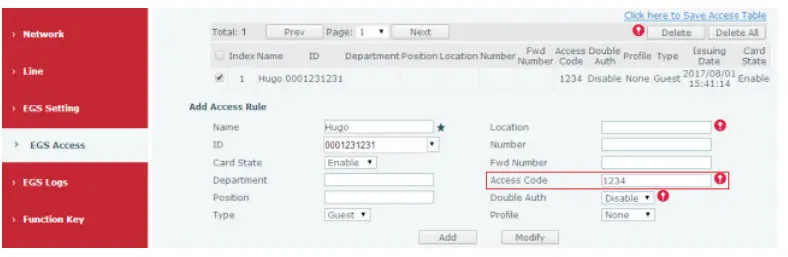

Step 1: Go to EGS Access → Access Rule → set Access Code.
Step 2: Use the device’s Numeric Keyboard to input the password and “#” key, and then the door will be unlocked.

Remote Password

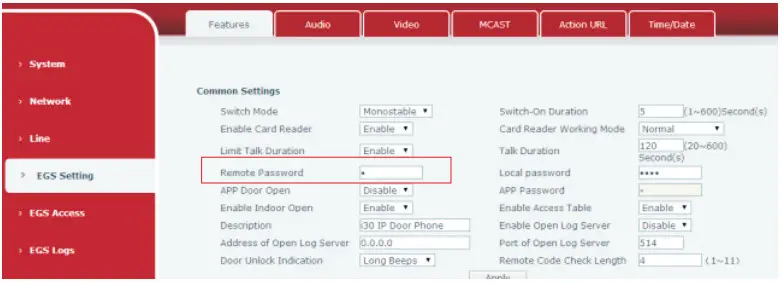

Step 1: Go to EGS Setting → Features →Set Remote Password (The default is “‘”).
Step 2: To answer the call made by the visitor via SIP phone, press the” key to unlock the door for the visitor.

RFID Card

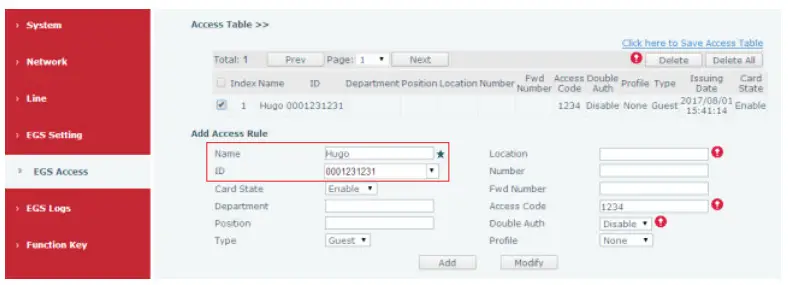

Step 1: Go to EGS Access Enter the Name and ID Number (Only Front 10 yards) Press Add to Access Table.
Step 2: Use pre-assigned RFID cards to unlock the door by touching the RFID area of the device.
