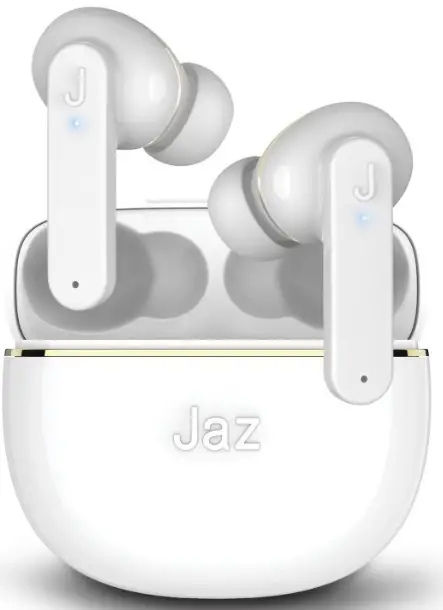

Jaz Wireless Stereo Earphones
Jaz Wireless Stereo Earphones
SPECIFICATION
- Wireless: V 5.0
- Sensivity: 98dB
- Working Range: 10m
- Speaker power: 20mW
- Radio frequency: 2.4GHz
- Impedance: 32Ω
- Frequency: 20Hz – 20kHz
- Distortion: ≤ 2%
- Battery earbuds: 35mAh
- Charging case: 400mAh
- Standby time: 100hours
- Charge time: 1.5hours
- Working time: 4 hours
INSTRUCTION MANUAL
Charging the earbuds
Insert the earbuds into the charging case, the LEDs will light up. Once charging is complete, the LEDs will turn off.
Charging the case
Insert the Type C connector of the supplied cable into the Type C port on the case and the other end into a USB port. The LED on the case will start flashing during charging.

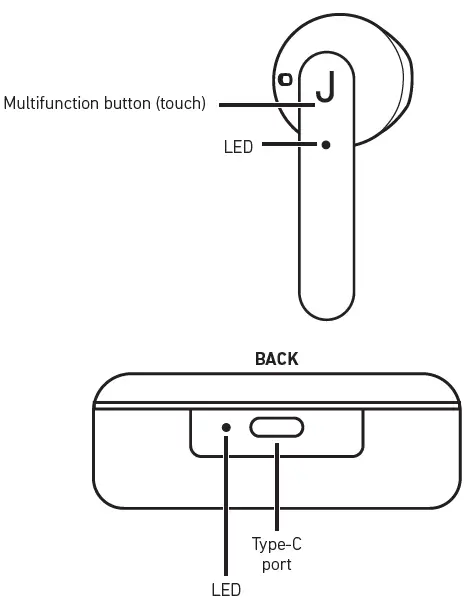

Powering on earbuds
Remove the earbuds from the charging case: they will automatically turn on and pair with each other, or press both MLF buttons on the earbuds for 5 seconds.
Turning off the earbuds
Insert the earbuds into the charging case: they will turn off automatically,
When the earbuds are not paired with a device and are out of the charging case, they will automatically turn off after 2 minutes, Or press the MLF button on one of the earphones for 5 seconds.
Pairing with a device
- Take the earbuds out of the charging case: they will automatically turn on and pair with each other.
- Turn on Bluetooth on the device and search for “ JAZ TWS CHANE’ “ in the list of available devices, then select it.
- After the first pairing with the device (if Bluetooth is turned on) the earbuds will automatically pair each time they are removed from the case.
Commands
| Command | Action | Button |
| Play/pause music | 1 tap | Left / right |
| Voice assistant | Hold | Left / right |
| Previous track | 3 taps | Left |
| Next track | 3 taps | Right |
| Answer call | 1 tap | Left / right |
| End call | 1 tap | Left / right |
| Reject incoming call | Hold | Left / right |
| Recall last number | 2 taps | Left / right |
If the two earbuds do not pair with each other and both LEDs are flashing, they need to be reset: press the MLF button on the earbuds twice in succession and place them back in the charging case.Remove the earbuds and wait until they are recognised and paired correctly.
