Jaz Rooki Wireless Tws Stereo Earphones User Manual

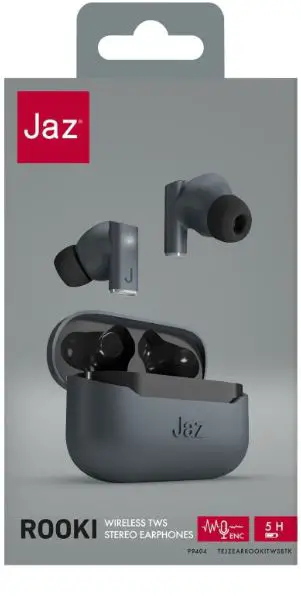

Jaz ROOKI Wireless TWS Stereo Earphones

FEATURES

SPECIFICATION

• Wireless: V 5.1
• Sensivity: 90dB
• Working range: 10m
• Speaker driver: 10mm
• Impedance: 32Ω
• Frequency: 20Hz – 20kHz
• Battery earbuds: 30mAh
• Charging case: 250mAh
• Charge time: 1.5 hours
• Working time: 5 hours
• Standby Time: 80 hours
• Touch control
• Type-C connector
  PRE: 6 mW max
  f: 2402 2480 MHz

Charging the earbuds

Insert the earbuds into the charging case, the LED will light up. When charging is complete, it will turn off.

Charging the case

Charging via cable
Plug the Type C connector of the supplied cable into the Type C port on the case and the other end into a USB port.
The LED on the case will flash and remain steady when charging is complete.

Turning on the earbuds
Take the earbuds out of the charging case, they will automatically turn on and pair with each other.
Or press both MLF buttons on the earbuds for 5 seconds,

Turning off the earbuds
When you put the TWS earphones into the case, they will turn off automatically.
Alternatively, press the MLF button on one of the earbuds for 5 seconds.

Pairing with devices

1. Take the earbuds out of the charging case: they will turn on and pair with each other automatically
2. Turn on Bluetooth on the device and search for “JAZ ROOKI” in the list of available devices, then select it.
3. After the first pairing with the device (if Bluetooth is turned on), the earbuds will automatically pair every time they are taken out of the case.


   Action	Command	Key
   Play/pause music	1 tap	Left / right
   Voice assistant	3 taps	Left / right
   Previous track	2 seconds	Left
   Next track	2 seconds	Right
   Answer a call	1 tap	Left / right
   End a call	1 tap	Left / right
   Reject a call	2 seconds	Left / right
   Recall last number	2 taps	Left / right



IMPORTATO E DISTRIBUITO DA:
Osbs

SBS spa- Via Circonvallazione s/n
28010 Miasino (No) – Italy
Made in China
2022 SBS SpA, Italy
[email protected]
