TEJZEARLOOPBTTWSB – TEJZEARLOOPBTTWSK
TEJZEARLOOPBTTWSR – TEJZEARLOOPBTTWSW

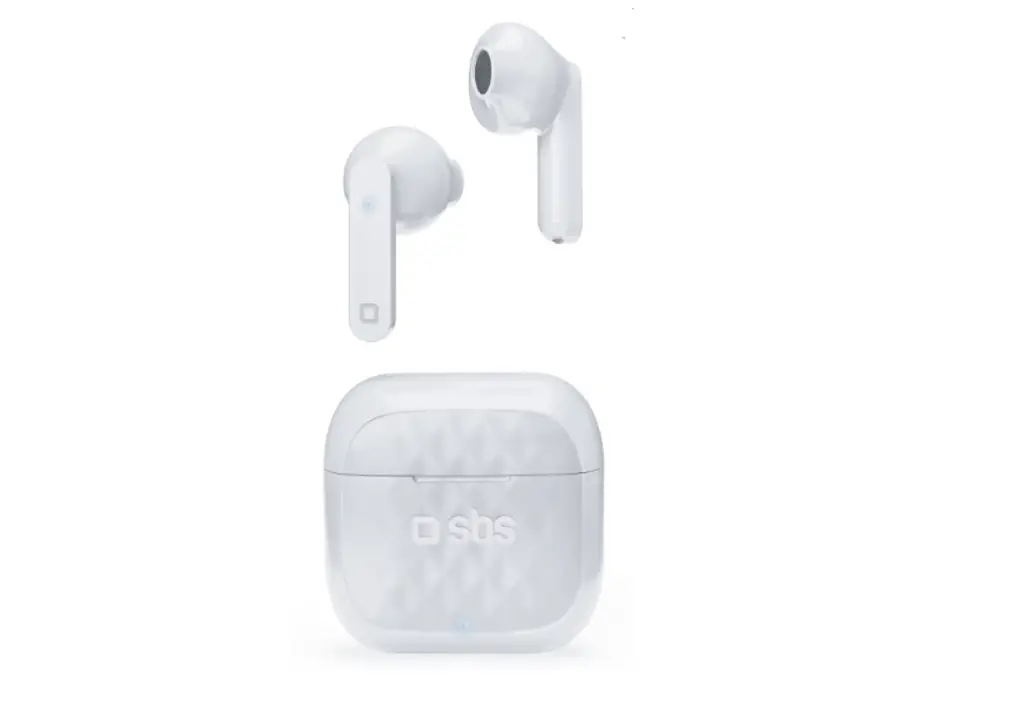

Wireless Stereo Earphones
TWS
SPECIFICATION
Wireless: V 5.0
Sensivity: 40dB
Working range: 10m
Speaker driver: 10mm
Impedance:16Ω
Frequency: 20Hz – 20kHz
Battery earbuds: 40mAh
Charging case: 400mAh
Standby time: 120hours
Charge time: 1.5hours
Working time: 5 hours
Per: 6 mitif maw
f: 2402 ÷ 2480 MEz
For other information please contact us at [email protected].
UK INSTRUCTION MANUAL
Charging the earphones
Insert the earphones into the charging case, the LEDs will light up. Once charging is complete, the LEDs will turn off.
Charging the Case
Charging via cable
Plug the Type C connector of the supplied cable into the Type C port of the case and the other end into a USB port. The 4 LEDs on the case will start to light up progressively until fully charged. Both the earphones and the cradle will charge simultaneously.
Charging via wireless cradle
Place the case on a 5W wireless charging cradle, the 4 LEDs will light up progressively until fully charged. Both the earphones and the cradle will charge simultaneously.
Turning the earphones on

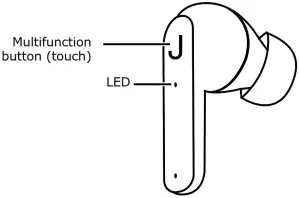

Take the earphones out of the charging case, they will automatically turn on and pair with each other. Or press both MLF buttons on the earphones for 5 seconds,
Turning the earphones off
Insert the earphones into the charging case, they will turn off automatically. Or press the MLF button on one of the earphones for 5 seconds.
Device pairing
1. Take the earphones out of the charging case – they will turn on and pair with each other automatically
2. Turn on the Bluetooth of the device and search the list of available devices for “JAZ LOOP”, then select it.
3. After the first pairing with the device (if Bluetooth is turned on) the earphones will automatically pair whenever they are taken out of the case.
| Command | Action | Button |
| Play/pause music | 1 touch | Left / right |
| Voice assistant | 4 seconds | Left / right |
| Previous track | 2 touches | Left |
| Next track | 2 touches | Right |
| Answering a call | 1 touch | Left / right |
| Ending a call | 1 touch | Left / right |
| Rejecting a call | 2 touches | Left / right |
| Recall last number | 4 touches | Left / right |
| Volume + | 3 touches | Left |
| Volume – | 3 touches | Right |
If the earphones are not paired with each other, 2 earphones will appear in the Bluetooth settings and the LEDs will continue to flash: put the earphones back in the case and close the lid.
By removing them, they will be paired with each other and can be connected to the device.
IMPORTATO E DISTRIBUITO DA:
SBS spa – Via Circonvallazione s/n
28010 Miasino ( No) – Italy
Made in China
TEJZEARLOOPBTTWS
Printed in China
c2021 SBS SPA. Italy
[email protected]
