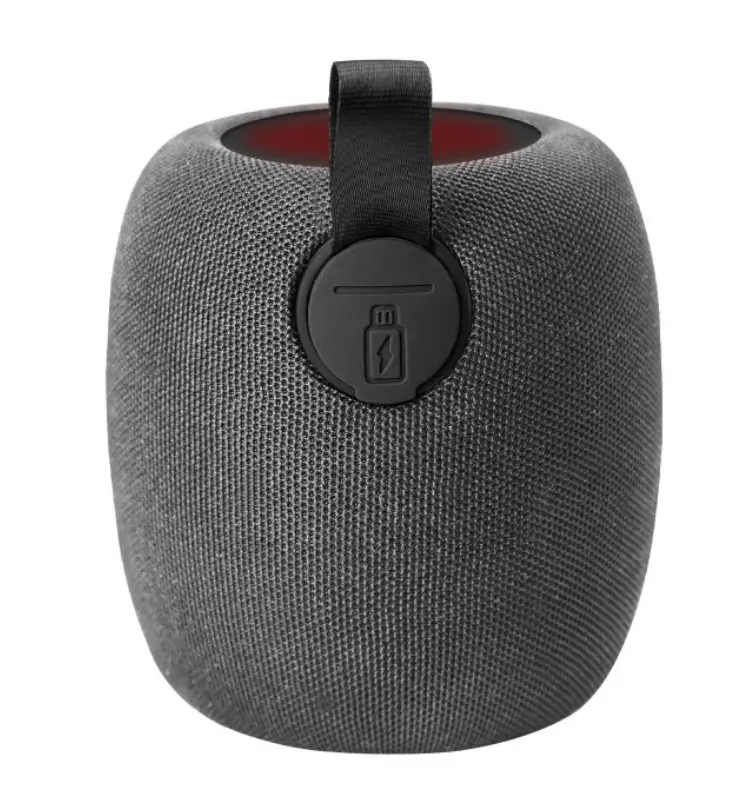

JAZ WIZARD 5 Wireless Speaker
SPECIFICATION
- Wireless: 5.0
- Working range: 10 m
- Power input: 5 V D.C. 1 A
- Speaker power: 5W
- Radiofrequency: 2.4GHz
- Impedence: 4Ω
- Frequency: 100 Hz-15 kHz
- Battery capacity: 1200mAh
- Standby time: 24 hours
- Charge time: 3 hours
- Working time: 6 hours
Main functions:
| FUNCTION | ACTION | LED |
| Power on: | To turn on the device when in off mode, hold
the button down for several seconds | red |
| Power off: | To turn off the device when on, hold the
button down for several seconds | – |
| Play – Pause | Press the | – |
| volume +/- adjustment button once | Turn the main button | – |
| Activate TWS mode | Press twice rapidly to activate/deactivate
(must be connected to a pair of speakers) | – |
| Recharging the battery | Connect the speaker to a micro USB charger | orange |
| Fully recharged | Disconnecting the speaker | green |
| Automatic turn-off connected | Leave inactive for 10 minutes | – |
| Automatic turn-off not connected | Leave inactive for 5 minutes | – |
For other informations please contact us at [email protected].
