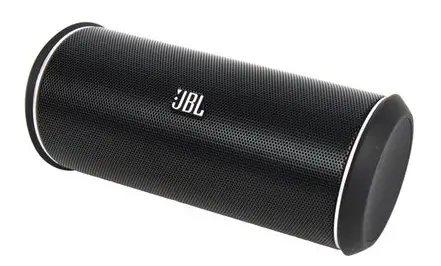

Jbl Flip 2 Wireless Bluetooth Speaker User Manual

JBL Flip 2 Wireless Bluetooth Speaker User Manual

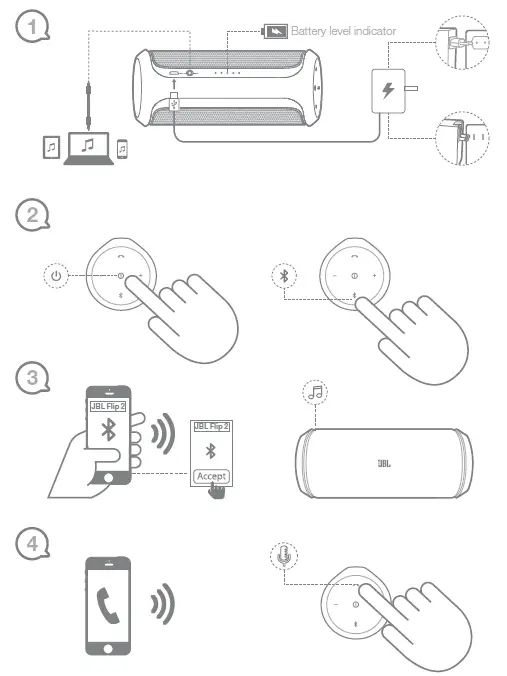

INSTRUCTIONS

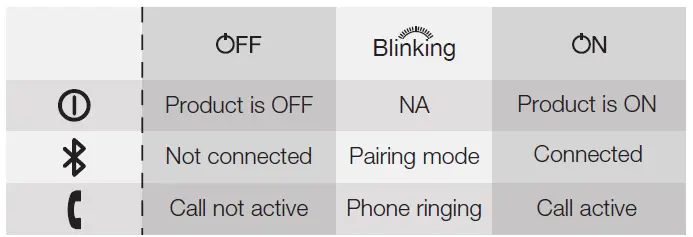

LED Behavior

SPECIFICATION

• Transducers: 1.5”(40mm)x2
• Amplifier power: 2x6w
• Frequency response: 100Hz – 20KHz
• Signal-to-noise ratio: 80dB(A-weight)
• Input connections: AUX_in and Bluetooth
• Listening time on battery up to 5 hours (varies by volume level and audio content)
• Battery charge time: 3 Hours for adapter
• Battery type: Lithium polymer, 3.7V, 2000mAH, 7.4Wh
• Dimensions (Dia x H): 65mm x 160mm
• Bluetooth transmitter frequency range: 2.402~2.480 GHz
• Bluetooth transmitter power: 0~4 dBm
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
