Jbl Flip6 Portable Bluetooth Speaker User Guide (+ PDF)

FLIP6
QUICK START GUIDE

Contents hide

6 Documents / Resources

6.1 References

7 Related Posts

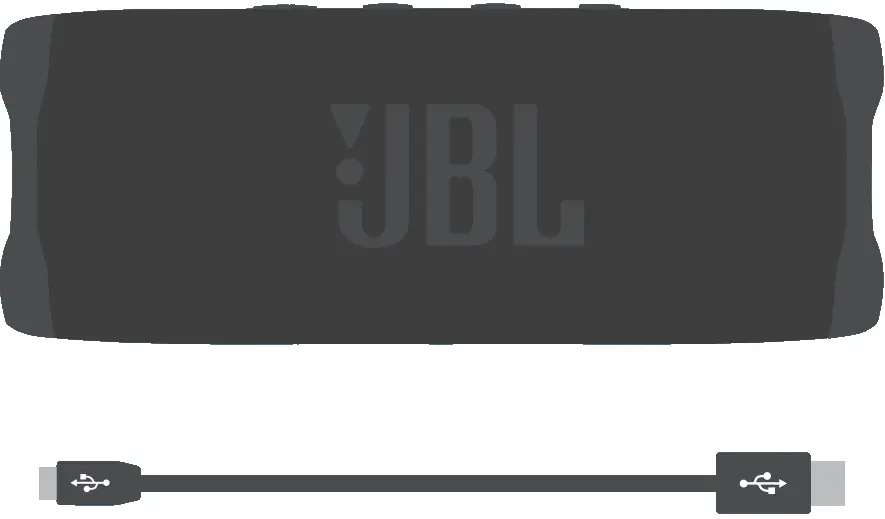

WHAT’S IN THE BOX

Bluetooth pairing

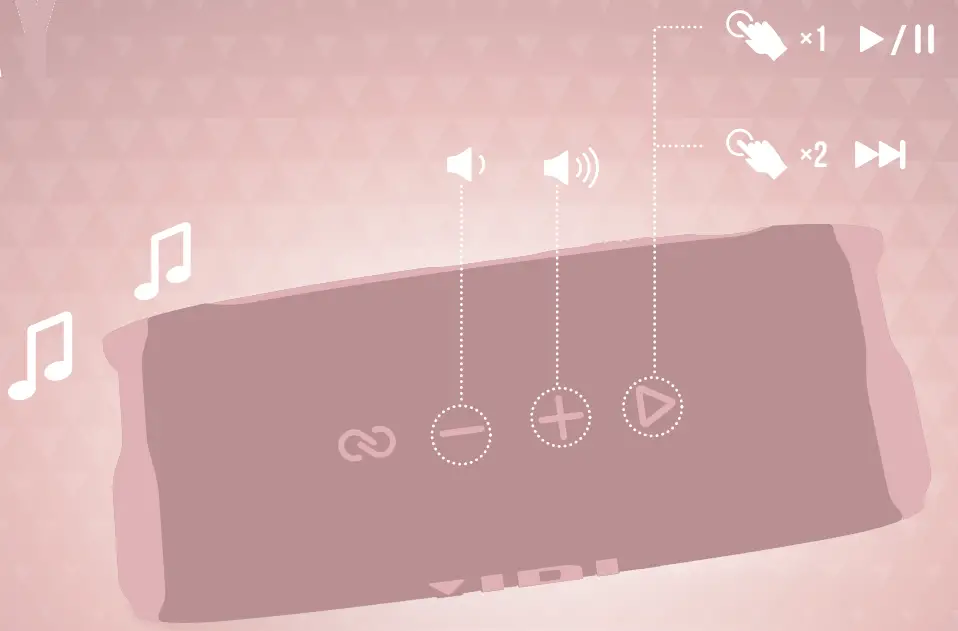

Play

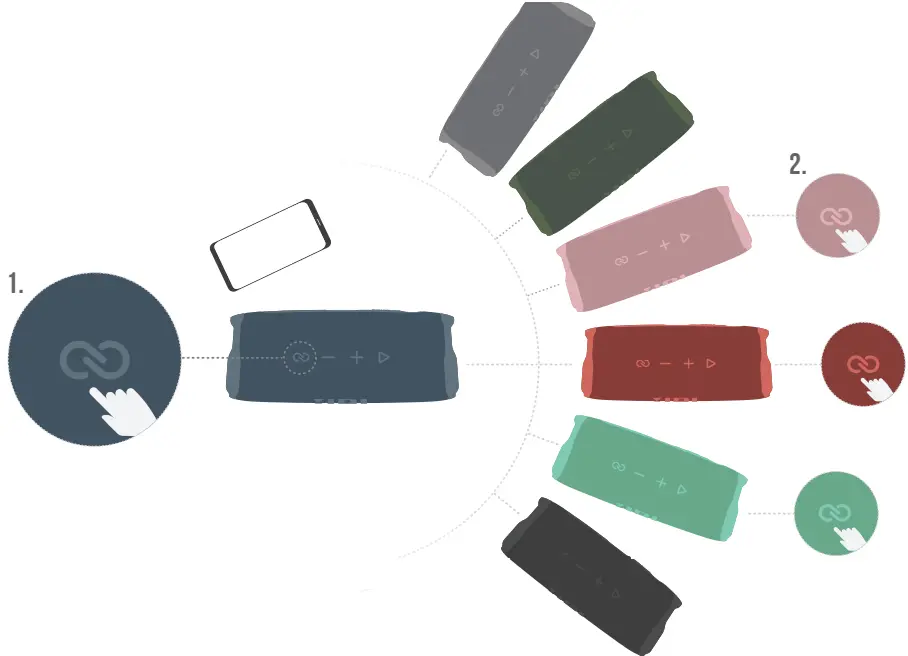

Partyboost

APP

JBL PORTABLE
Use the JBL PORTABLE app for speaker configuration and software upgrades.

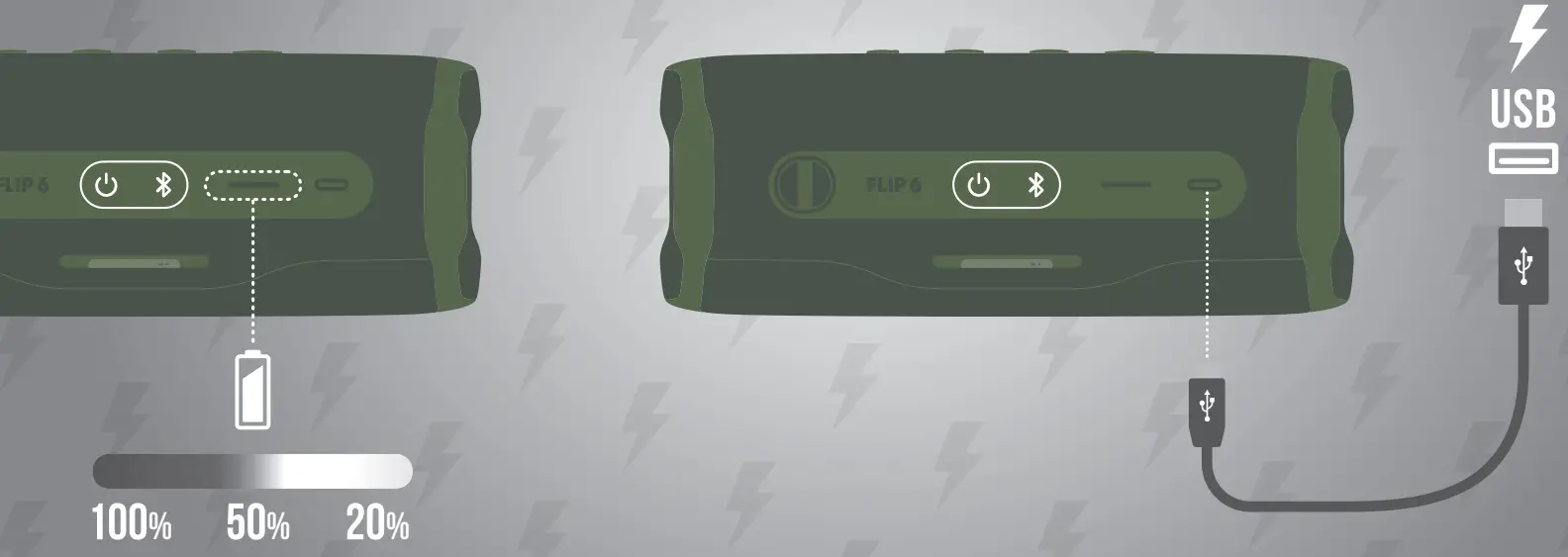

CHARGING

TECH SPEC

Transducers:	45 x 80 mm woofer / 1.75 x 3”, 16 mm tweeter / 0.6”
Output power:	20 W RMS for the woofer, 10 W RMS for the tweeter
Frequency response:	63 Hz – 20 kHz
Signal-to-noise ratio:	> 80 dB
Battery type:	Li-ion polymer 17.28 Wh (equivalent to 3.6 V / 4800 mAh)
Battery charge time:	2.5 hours (5 V / 3 A)
Music play time:	up to 12 hours (dependent on volume level and audio content)
Cable type:	USB – C charging cable
Cable length:	1.2 m / 47.2”
Bluetooth® version:	5.1
Bluetooth® profile:	A2DP 1.3, AVRCP 1.6
Bluetooth® transmitter frequency range:	2400 MHz – 2483.5 MHz
Bluetooth® transmitter power:	≤ 10 dBm (EIRP)
Bluetooth® transmitter modulation:	GFSK, π/4 DQPSK, 8DPSK
2.4GHz SRD frequency range:	2407 MHz – 2475 MHz
SRD transmitter power:	< 10 dBm (EIRP)
Product dimensions (W x H x D):	178 x 68 x 72 mm / 7.0 x 2.6 x 2.8”
Net weight:	0.55 kg / 1.21 lbs
Packaging dimensions (W x H x D):	216 x 106 x 99 mm / 8.5 x 4.2 x 3.9”
Gross weight:	0.92 kg / 2.05 lbs
Maximum operation temperature:	45 °C

To protect battery lifespan, fully charge at least once every 3 months. Battery life will vary due to usage patterns and environmental conditions.
Do not expose the JBL Flip 6 to liquids without removing the cable connection. Do not expose JBL Flip 6 to water while charging. It may result in permanent damage to the speaker or power source.
Chemicals and salt in your pool or the ocean can damage the waterproof seals or harm the connector surface over time if not rinsed off after use. After a liquid spill or is rinsed, do not charge your speaker until it’s completely dry and clean. Charging when wet might damage your speaker.
With USB-C charging protection, a reminder sound will alert you to unplug if the connector detects water, salt, or any other chemicals.
When using an external adapter, the output voltage/current of the external adapter should not exceed 5V/3A.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
