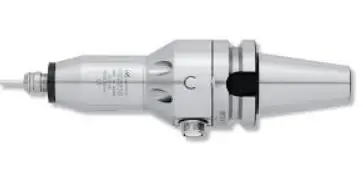

NAKANISHI HES510, HES810 Motor Spindles
Combination Example
「HES810 SERIES」
| Code No. | Model | Description | |
| 1 | 7879 | HES810-BT40 | Motor Spindle |
| 2 | 9248 | EMCD-810-4M | Motor Cord 4m |
| 3 | 8421 | E3000 | E3000 Controller |
| 4 | 4504 | AL-C1204 | Air line kit |
| 5 | 91440 | CHA-4.0 | Collet ø4.0mm |
「HES510 SERIES」
| Code No. | Model | Description | |
| 1 | 7891 | HES510-BT40 | Motor Spindle |
| 2 | 9248 | EMCD-810-4M | Motor Cord 4m |
| 3 | 8421 | E3000 | E3000 Controller |
| 4 | 4504 | AL-C1204 | Air line kit |
| 5 | 91540 | CHK-4.0 | Collet ø4.0mm |
Safety function
HES810 / 510 have a motor cord with the Emergency connector.
In case the machine spindle rotates by accident, the Emergency connector disconnects by itself to minimize the damage both the machine and controller.
80,000min-1 Motor Spindle

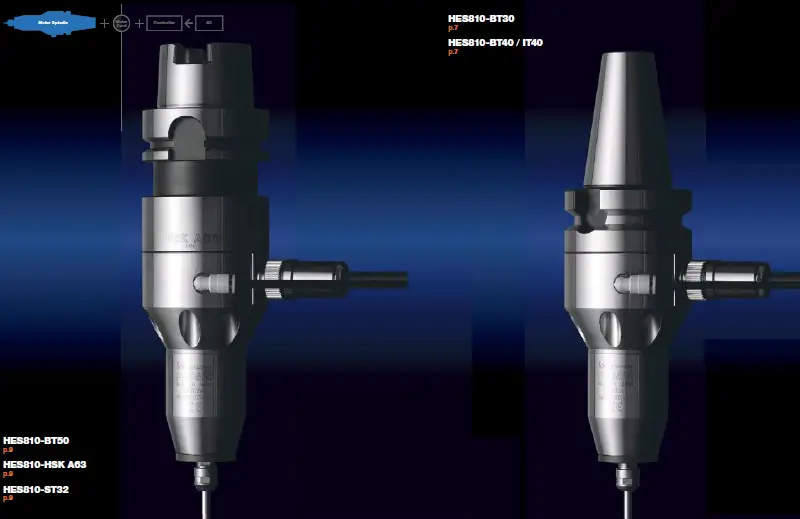

HES810-BT30
| Max. power | Speed Range | Spindle Accuracy | Weight |
| 350W | 20,000～80,000min-1 ※Recommended motor speed：50,000～80,000min-1 | Within 1μm | 2.0kg |
| Standard Accessories | Collet nut（CHN-A）/ Wrench（8×5）・（9×11）：1pc. each | ||
| Options | Collet（CHA Group）：ø0.5 ～ ø4.0㎜ p.21 | ||
| Motor cord : Length 4m（9248）, 6m（9249）, 8m（9250） Provided with ø4.0㎜ Air cooling hose | |||

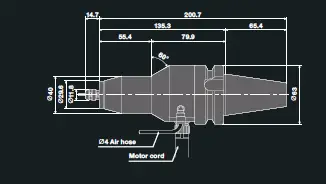

HES810-BT40
| Max. power | Speed Range | Spindle Accuracy | Weight |
| 350W | 20,000～80,000min-1 ※Recommended motor speed：50,000～80,000min-1 | Within 1μm | 2.2kg |
| Standard Accessories | Collet nut（CHN-A）/ Wrench（8×5）・（9×11）：1pc. each | ||
| Options | Collet（CHA Group）：ø0.5 ～ ø4.0㎜ p.21 | ||
| Motor cord : Length 4m（9248）, 6m（9249）, 8m（9250） Provided with ø4.0㎜ Air cooling hose | |||

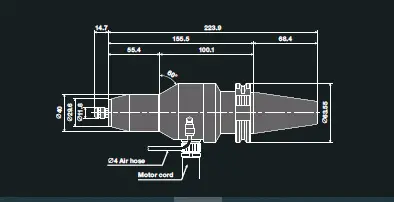

HES810-IT40
| Max. power | Speed Range | Spindle Accuracy | Weight |
| 350W | 20,000～80,000min-1 ※Recommended motor speed：50,000～80,000min-1 | Within 1μm | 2.4kg |
| Standard Accessories | Collet nut（CHN-A）/ Wrench（8×5）・（9×11）：1pc. each | ||
| Options | Collet（CHA Group）：ø0.5 ～ ø4.0㎜ p.21 | ||
| Motor cord : Length 4m（9248）, 6m（9249）, 8m（9250） Provided with ø4.0㎜ Air cooling hose | |||

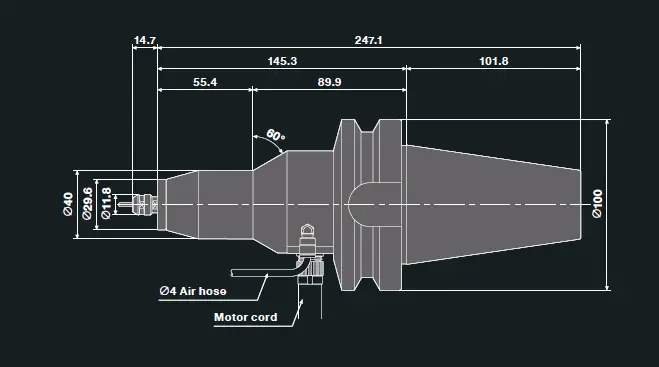

HES810-BT50
| Max. power | Speed Range | Spindle Accuracy | Weight |
| 350W | 20,000～80,000min-1 ※Recommended motor speed：50,000～80,000min-1 | Within 1μm | 4.9kg |
| Standard Accessories | Collet nut（CHN-A）/ Wrench（8×5）・（9×11）：1pc. each | ||
| Options | Collet（CHA Group）: ø0.5 ～ ø4.0㎜ p.21 | ||
| Motor cord : Length 4m（9248）, 6m（9249）, 8m（9250） Provided with ø4.0㎜ Air cooling hose | |||

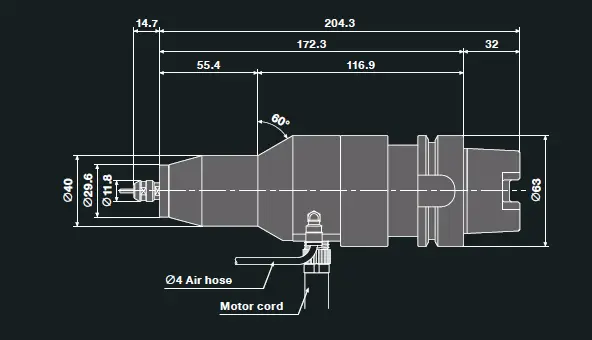

HES810-HSK A63
| Max. power | Speed Range | Spindle Accuracy | Weight |
| 350W | 20,000～80,000min-1 ※Recommended motor speed：50,000～80,000min-1 | Within 1μm | 2.6kg |
| Standard Accessories | Collet nut（CHN-A）/ Wrench（8×5）・（9×11）：1pc. each | ||
| Options | Collet（CHA Group）：ø0.5 ～ ø4.0㎜ p.21 | ||
| Motor cord : Length 4m（9248）, 6m（9249）, 8m（9250） Provided with ø4.0㎜ Air cooling hose | |||

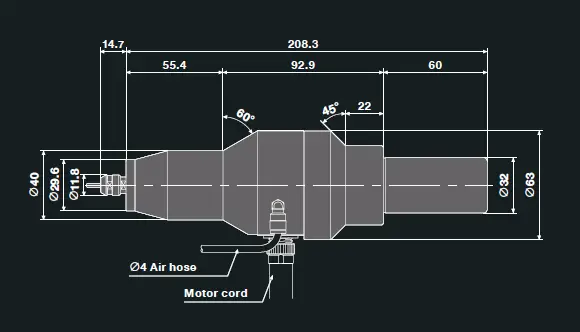

HES810-ST32
| Max. power | Speed Range | Spindle Accuracy | Weight |
| 350W | 20,000～80,000min-1 ※Recommended motor speed：50,000～80,000min-1 | Within 1μm | 2.3kg |
| Standard Accessories | Collet nut（CHN-A）/ Wrench（8×5）・（9×11）：1pc. each | ||
| Options | Collet（CHA Group）：ø0.5 ～ ø4.0㎜ p.21 | ||
| Motor cord : Length 4m（9248）, 6m（9249）, 8m（9250） Provided with ø4.0㎜ Air cooling hose | |||
50,000min-1 Motor Spindle

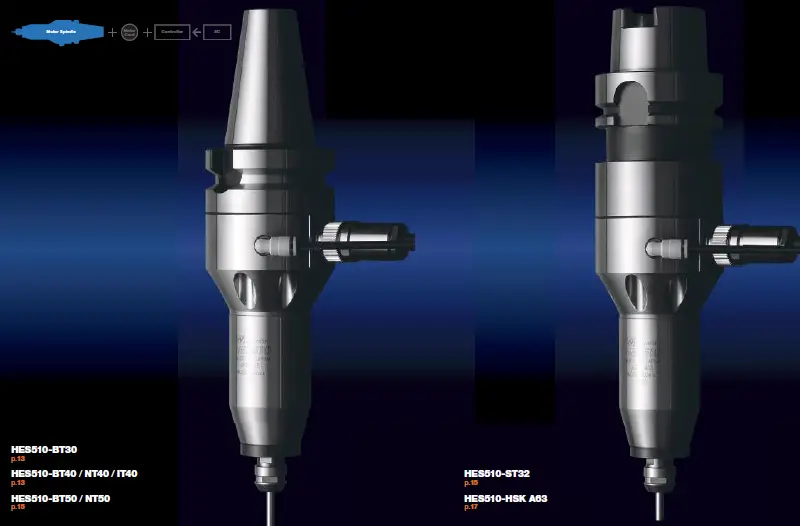

HES510-BT30
| Max. power | Speed Range | Spindle Accuracy | Weight |
| 340W | 5,000～50,000min-1 | Within 1μm | 2.2kg |
| Standard Accessories | Collet nut（K-265）/ Wrench（12×14）：2pcs. | ||
| Options | Collet（CHK Group）：ø0.5 ～ ø6.35㎜ p.21 | ||
| Motor cord : Length 4m（9248）, 6m（9249）, 8m（9250） Provided with ø4.0㎜ Air cooling hose | |||

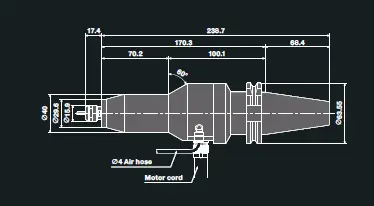

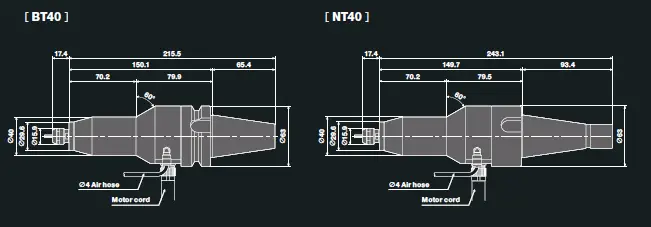

HES510-BT40 / NT40（M）
| Max. power | Speed Range | Spindle Accuracy | Weight |
| 340W | 5,000～50,000min-1 | Within 1μm | BT40 : 2.3kg NT4（0 M）: 2.4kg |
| Standard Accessories | Collet nut（K-265）/ Wrench（12×14）：2pcs. | ||
| Options | Collet（CHK Group）: ø0.5 ～ ø6.35㎜ p.21 | ||
| Motor cord : Length 4m（9248）, 6m（9249）, 8m（9250） Provided with ø4.0㎜ Air cooling hose | |||

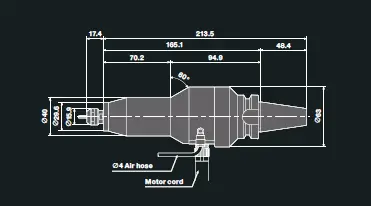

HES510-IT40
| Max. power | Speed Range | Spindle Accuracy | Weight |
| 340W | 5,000～50,000min-1 | Within 1μm | 2.6kg |
| Standard Accessories | Collet nut（K-265）/ Wrench（12×14）：2pcs. | ||
| Options | Collet（CHK Group）: ø0.5 ～ ø6.35㎜ p.21 | ||
| Motor cord : Length 4m（9248）, 6m（9249）, 8m（9250） Provided with ø4.0㎜ Air cooling hose | |||

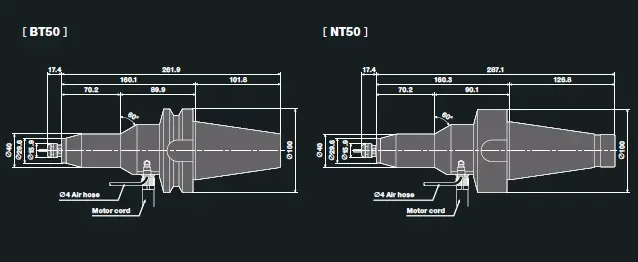

HES510-BT50 / NT50
| Max. power | Speed Range | Spindle Accuracy | Weight |
| 340W | 5,000～50,000min-1 | Within 1μm | 2.6kg |
| Standard Accessories | Collet nut（K-265）/ Wrench（12×14）：2pcs. | ||
| Options | Collet（CHK Group）: ø0.5 ～ ø6.35㎜ p.21 | ||
| Motor cord : Length 4m（9248）, 6m（9249）, 8m（9250） Provided with ø4.0㎜ Air cooling hose | |||

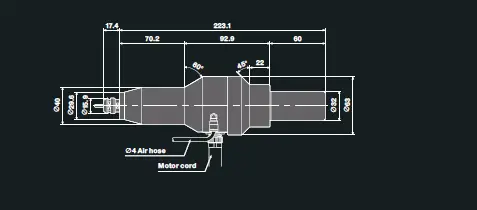

HES510-ST32
| Max. power | Speed Range | Spindle Accuracy | Weight |
| 340W | 5,000～50,000min-1 | Within 1μm | BT50 : 5.0kg NT50 : 5.4kg |
| Standard Accessories | Collet nut（K-265）/ Wrench（12×14）：2pcs. | ||
| Options | Collet（CHK Group）：ø0.5 ～ ø6.35㎜ p.21 | ||
| Motor cord : Length 4m（9248）, 6m（9249）, 8m（9250） Provided with ø4.0㎜ Air cooling hose | |||

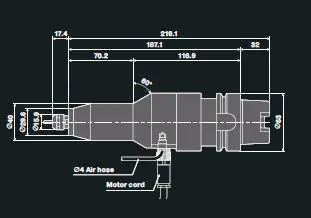

HES510-HSK A63
| Max. power | Speed Range | Spindle Accuracy | Weight |
| 340W | 5,000～50,000min-1 | Within 1μm | 2.4kg |
| Standard Accessories | Collet nut（K-265）/ Wrench（12×14）：2pcs. | ||
| Options | Collet（CHK Group）：ø0.5 ～ ø6.35㎜ p.21 | ||
| Motor cord : Length 4m（9248）, 6m（9249）, 8m（9250） Provided with ø4.0㎜ Air cooling hose | |||

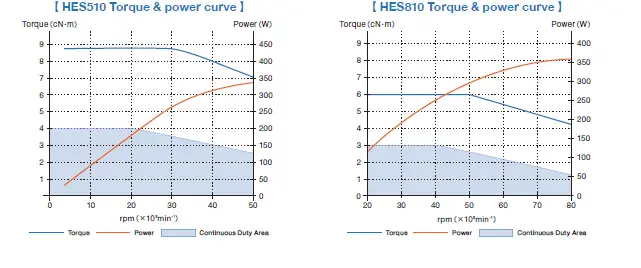

HES510、 HES810 Torque & power
| Max. power | Speed Range | Spindle Accuracy | Weight |
| 340W | 5,000～50,000min-1 | Within 1μm | 2.7kg |
| Standard Accessories | Collet nut（K-265）/ Wrench（12×14）：2pcs. | ||
| Options | Collet（CHK Group）：ø0.5 ～ ø6.35㎜ p.21 | ||
| Motor cord : Length 4m（9248）, 6m（9249）, 8m（9250） Provided with ø4.0㎜ Air cooling hose | |||

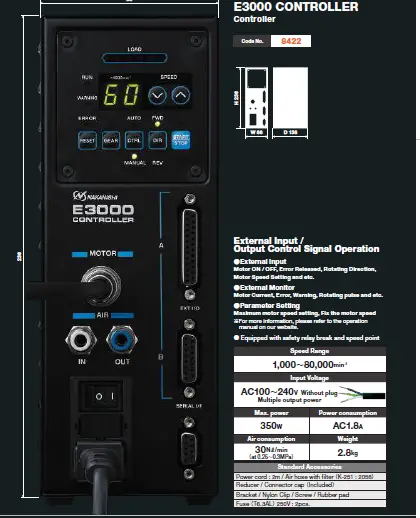

E3000 Controller
| Max. power | Speed Range | Spindle Accuracy | Weight |
| 340W | 5,000～50,000min-1 | Within 1μm | 2.7kg |
| Standard Accessories | Collet nut（K-265）/ Wrench（12×14）：2pcs. | ||
| Options | Collet（CHK Group）：ø0.5 ～ ø6.35㎜ p.21 | ||
| Motor cord : Length 4m（9248）, 6m（9249）, 8m（9250） Provided with ø4.0㎜ Air cooling hose | |||
Accessories
| Collet | Code No. | Model | I.D. | Compatible model |
| 15.5 I.D. 3
∅1.0 and over I.D. 16
∅0.5～∅0.9
Collet CHA Group | 91494 | CHA-3.0AA | ø3.0AA ※ |
HES810
※ High precision type AA （Run-out Accuracy within 2 μm） |
| 91496 | CHA-3.175AA | ø3.175AA ※ | ||
| 91495 | CHA-4.0AA | ø4.0AA ※ | ||
| 91492 | CHA-2.35 | ø2.35 | ||
| 91430 | CHA-3.0 | ø3.0 | ||
| 91493 | CHA-3.175 | ø3.175 | ||
| 91440 | CHA-4.0 | ø4.0 | ||
|
－ |
CHA-□□ | ø0.5,ø0.6,ø0.7,ø0.8,ø0.9 | ||
| ø1.1,ø1.2,ø1.3,ø1.4,ø1.7,ø1.8,ø1.9 ø2.1,ø2.2,ø2.3,ø2.4,ø2.6,ø2.7,ø2.8,ø2.9 ø3.1,ø3.2,ø3.3,ø3.4,ø3.6,ø3.7,ø3.8,ø3.9 | ||||
| ø1.0,ø1.5,ø2.0,ø2.5,ø3.5 | ||||
| ø1.6 | ||||
|
21 I.D. 3
∅1.0 and over
19 I.D.
∅0.5～∅0.9
Collet CHK Group | 91597 | CHK-3.0AA | ø3.0AA ※ |
HES510
※ High precision type AA （Run-out Accuracy within 2 μm） |
| 91598 | CHK-3.175AA | ø3.175AA ※ | ||
| 91599 | CHK-4.0AA | ø4.0AA ※ | ||
| 91600 | CHK-6.0AA | ø6.0AA ※ | ||
| 91601 | CHK-6.35AA | ø6.35AA ※ | ||
| 91592 | CHK-2.35 | ø2.35 | ||
| 91530 | CHK-3.0 | ø3.0 | ||
| 91593 | CHK-3.175 | ø3.175 | ||
| 91540 | CHK-4.0 | ø4.0 | ||
| 91560 | CHK-6.0 | ø6.0 | ||
| 91596 | CHK-6.35 | ø6.35 | ||
|
－ |
CHK-□□ | ø0.5,ø0.6,ø0.7,ø0.8,ø0.9 | ||
| ø1.0,ø1.5,ø2.0,ø2.5,ø3.5,ø4.5,ø4.76,ø5.5 | ||||
| ø1.1,ø1.2,ø1.3,ø1.4,ø1.7,ø1.8,ø1.9 ø2.1,ø2.2,ø2.3,ø2.4,ø2.6,ø2.7,ø2.8,ø2.9 ø3.1,ø3.2,ø3.3,ø3.4,ø3.6,ø3.7,ø3.8,ø3.9 ø4.1,ø4.2,ø4.3,ø4.4,ø4.6,ø4.7,ø4.8,ø4.9 ø5.1,ø5.2,ø5.3,ø5.4,ø5.6,ø5.7,ø5.8,ø5.9 | ||||
| ø1.6,ø5.0 |
