H-259, H-347, H-408

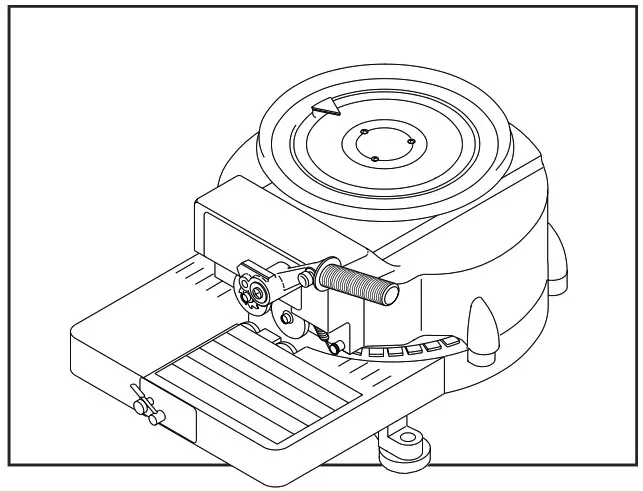

STENCIL MACHINE
1-800-295-5510
uline.com

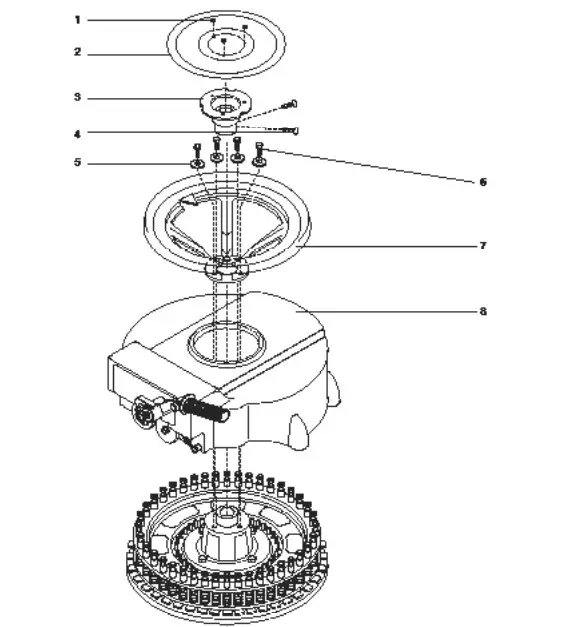

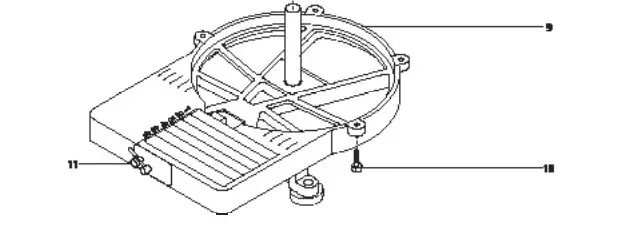

STENCIL MACHINE ASSEMBLY
STENCIL MACHINE ASSEMBLY PARTS
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Screw. Phillips Truss Head | 5 | ———— | RP32A |
| 2 | Dial Blank, Manual | 1 | 11-408-DIAL | RP32 |
| 3 | Holder. Dial | 1 | ———— | RPO8 |
| 4 | Screw, Set Square Head | 5 | ———— | RPO8B |
| 5 | Washer | 5 | ———— | RP1503C |
| 6 | Screw, Cap Head Hex | 5 | ———— | RPO4A |
| 7 | Wheel Assembly, Hand | 1 | H-408-RPO7X | RPO7X |
| 8 | Hood (1/4″, 1/2″, 3/4′) | 1 | ———— | RP02-SHQ |
| 8 | Hood (11 | 1 | ———— | RP02-R |
| 9 | Base, Shalt and Plate (1/2″) | 1 | ———— | RPO1X-H |
| 9 | Base, Shalt and Plate (3/4″) | 1 | ———— | RPO1X-S |
| 9 | Base, with Center Shaft (1″) | 1 | ———— | RPO1X-R |
| 9 | Base, Shalt and Plate (1/41 | 1 | ———— | RPO1X-Q |
| 10 | Cap, Hex Head (1/4″, 1/2′, 3/4″) | 5 | ———— | RPO1A-SHQ |
| 10 | Cap, Hex Head (1″) | 5 | ———— | RPO1A-R |
| 11 | Spacing Button | 2 | H-347-45 | RP45 |

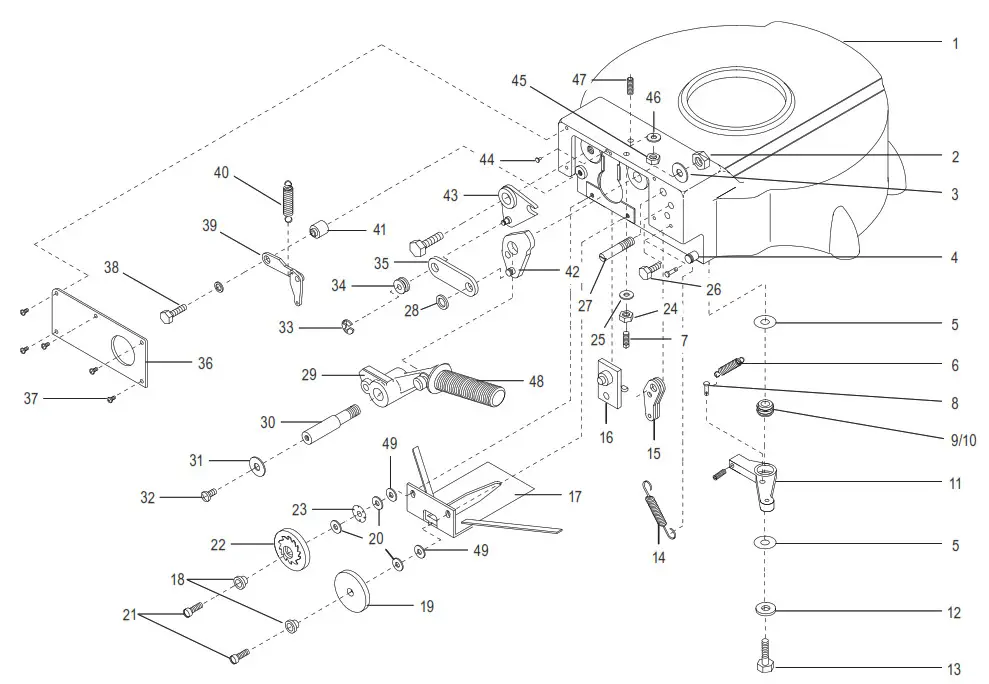

FRONT ASSEMBLY
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Hood (1/4″, 1/2″, 3/4″) | 1 | ————- | RP02-SHQ |
| 1 | Hood (1″) | 1 | ————- | RP02-R |
| 2 | Nut, Hex | 5 | H-259-22A | RP22A |
| 3 | Washer, Lock Internal Tooth | 5 | H-259-22B | RP22B |
| 4 | Stud, Spring | 1 | H-347-STDSPR | RP37 |
| 5 | Washer | 5 | ————- | RP35SW |
| 6 | Spring, Centering Arm | 2 | H-347-SCA | RP3OS |
| 7 | Screw, Set Square Head | 5 | ————- | RP47 |
| 8 | Pin, Release Button | 1 | ————- | RP18B |
| 9 | Arm Liner, Assembly Centering | 1 | H-259-35A | RP35A |
| 10 | 0-Ring | 5 | H-259-35B | RP35B |
| 11 | Arm Assembly, Centering (1/4″, 1/2″, 3/4″) | 1 | ————- | RP30X-SHQ |
| 11 | Arm Assembly, Centering (1″) | 1 | H-259-30XSHQ | RP30X-R |
| 12 | Washer | 5 | ————- | RP35W |
| 13 | Screw, Cap Hex Head | 5 | ————- | RPO9A |
| 14 | Spring, Handle | 1 | H-259-RP37S | RP37S |
| 15 | Rocker Assembly, Centering | 1 | ————- | RP28 |
| 16 | Plunger Assembly | 1 | ————- | RP31 |
| 17 | Stripper Assembly (1/4″, 1/2″, 3/4″, 1″) | 1 | ————- | RP33 |
| 18 | Bushing, Feed Wheel | 4 | H-259-RP23A | RP23A |
| 19 | Wheel, Feed Right | 5 | H-259-23R | RP23R |
| 20 | Washer, Feed Wheel | 5 | H-408-RP23W | RP23W |
| 21 | Screw, Slot Flat Head | 5 | ————- | RP38 |
| 22 | Wheel Assembly, Feed Left (1/4″) | 1 | H-259-231LBQ | RP23LB-Q |
| 22 | Wheel Assembly, Feed Left (1/2″) | 1 | H-347-RP23LB | RP23LB-H |
| 22 | Wheel Assembly, Feed Left (3/4″) | 1 | H-259-RP23LB | RP23LB-S |
| 22 | Wheel Assembly, Feed Left (1″) | 1 | H-259-23LBR | RP23LB-R |
| 23 | Washer, Sprag Spring | 5 | ————- | RP1611-AR |
| 24 | Nut | 1 | ————- | RP47A |
| 25 | Washer, Lock Integral Tooth | 1 | ————- | RP47B |
| 26 | Stop, Spacing | 2 | H-259-RP44 | RP44 |
| 27 | Stud, Centering Rocker | 1 | ————- | RP29 |
| 28 | Washer, Link Pin Right | 5 | ————- | RP13A |
| 29 | Handle, Assembly Operating (1/4″, 1/2″, 3/4″, 1″) | 1 | H-259-HANDLE | RP20X-R |
| 30 | Shaft Handle | 1 | H-259-22 | RP22 |
| 31 | Washer, Lock Internal Tooth | 5 | H-259-21 | RP21 |
| 32 | Screw, Phillips Pan Head | 5 | H-259-06C | RPO6C-R |
| 33 | Ring, Lock | 5 | H-259-RP3157 | RP3157 |
| 34 | Follower, Spacing Cam | 2 | H-259-RP24 | RP24 |
| 35 | Link (1/4″, 1/2″, 3/4″) | 1 | ————- | RP12-SHQ |
| 35 | Link (1″ Machine) | 1 | ————- | RP12-R |
| 36 | Cover Plate, Front | 1 | ————- | RP43 |
| 37 | Screw, Phillips Pan Head | 5 | ————- | RP43A |
| 38 | Screw, Cap Hex Head | 5 | ————- | RP36B |
| 39 | Cam Assembly, Spacing (1/4″) | 1 | ————- | RP25-Q |
| 39 | Cam Assembly, Spacing (1/2″) | 1 | H-347-RP25H | RP25-H |
| 39 | Cam Assembly, Spacing (3/4″) | 1 | ————- | RP25-S |
| 39 | Cam Assembly, Spacing (1″) | 1 | H-259-RP25R | RP25-R |
| 40 | Spring, Spacing Finger | 2 | H-259-RP25S | RP25S |
| 41 | Bushing, Spacing Cam | 2 | H-347-RP-36 | RP36 |
| 42 | Cam Assembly, Centering | 1 | ————- | RP10 |
| 43 | Rocker Assembly | 1 | ————- | RP14 |
| 44 | Stud, Spring Spacing | 5 | ————- | RP25E |
| 45 | Nut, Hex Jam | 5 | ————- | RP47A |
| 46 | Washer, Lock Integral Tooth | 5 | ————- | RP47B |
| 47 | Screw, Set (1/4″, 1/2″, 3/4″) | 5 | ————- | RP48-SHQ |
| 47 | Screw, Set (1″) | 5 | ————- | RP48-R |
| 48 | Grip, Handle 7/8″ Flangeless | 1 | H-259-GRIP | RP27944 |
| 49 | Washer | 5 | ————- | RPTC19 |

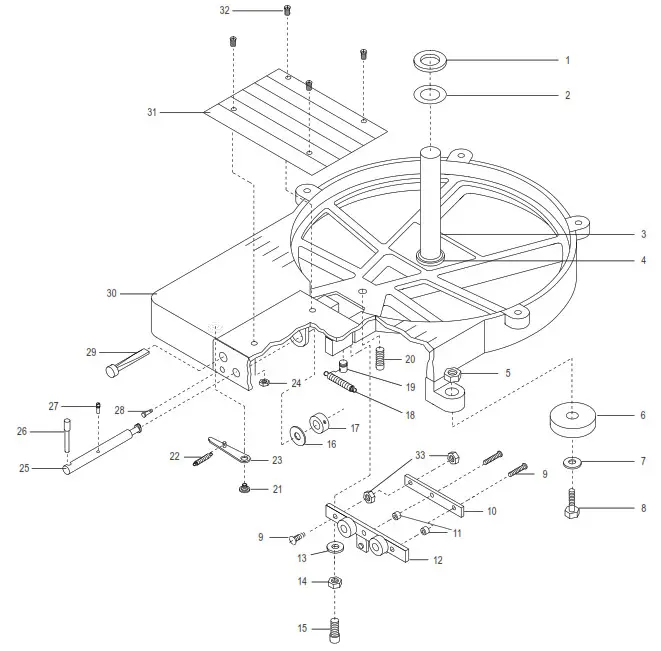

BASE ASSEMBLY
BASE ASSEMBLY PARTS
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Washer | 5 | ————- | RP19W2 |
| 2 | Washer | 5 | ————- | RP19W1 |
| 3 | Shaft, Center (1/4°, 1/2″, 3/4″, 1″) | 1 | ————- | RP33101 |
| 4 | Wick, Center Shaft 011 | 5 | ————- | RP19A |
| 5 | Nut | 5 | ————- | RP51N |
| 6 | Foot, Rubber | 1 | ————- | RP77 |
| 7 | Washer | 5 | ————- | RP1503C |
| 8 | Screw. Cap Hex Head | 5 | ————- | RPI503B |
| 9 | Screw, Round Head Slotted | 5 | ————- | RP15G |
| 10 | Bar, Adjustment | 1 | ————- | RP15C |
| 11 | Spacer | 5 | ————- | RP15D |
| 12 | Roller Assembly, Lower Feed | 1 | H-259-RP15 | RP15 |
| 13 | Washer, Lock Internal Tooth | 1 | ————- | RP38B |
| 14 | Nut | 5 | ————- | RP38A |
| 15 | Screw, Slotted | 5 | ————- | RP38 |
| 16 | Washer | 5 | ————- | RP16W |
| 17 | Collar, Spring Stud | 5 | ————- | RP16E |
| 18 | Spring, Lower Feed Roll | 2 | H-259-RLSPRG | RP16S |
| 19 | Stud, Spring | 2 | ————- | RP16D |
| 20 | Screw, Set Socket Flat | 5 | ————- | RP42 |
| 21 | Screw, Stop Pawl | 1 | H-347-RP18A | RP18A |
| 22 | Spring, Release Button | 2 | H-347-RP175 | RP17S |
| 23 | Pawl, Stop | 1 | H-347-RPI8 | RPI8 |
| 24 | Nut, Hex Jam | 5 | H-347-RPOID | RPOID-SHQ |
| 25 | Shaft Assembly, Eccentric (1/4°, 1/2″, 3/4″) | 1 | H-347-RPI6 | RP16-SHQ |
| 25 | Shaft Assembly, Eccentric (1″) | 1 | H-259-SHAFTA | RPM |
| 26 | Cap, Eccentric Shaft Handle | 5 | H-347-RP16G | RP16G |
| 27 | Eccentric Shaft Stop Pin | 2 | H-347-RP16A | RP16A |
| 28 | Release Button Pin | 1 | H-347-RP186 | RP186 |
| 29 | Button, Release Shaft | 1 | H-259-SHAFT | RP17 |
| 30 | Base, with Shaft and Plate (1/4″) | 1 | ————- | RPOIX-Q |
| 30 | Base, with Shaft and Plate (1/2″) | 1 | ————- | RPM X-H |
| 30 | Base, with Shaft and Plate (3/4″) | 1 | ————- | RPOI X-S |
| 30 | Base, with Center Shaft (1″) | 1 | ————- | RPOIX-R |
| 31 | Plate, Table (1/4″) | 1 | ————- | RPOIPL-Q |
| 31 | Plate, Table (1/21 | 1 | ————- | RPOIPL-H |
| 31 | Plate, Table (3/4″) | 1 | ————- | RPOIPL-S |
| 32 | Screw, Phillips Flathead (1/4″, 1/2″, 3/41 | 5 | ————- | RPJ500-0011-008 |
| 33 | Nut, Hex Jam | 5 | ————————– | RP15N |
STENCIL MACHINE

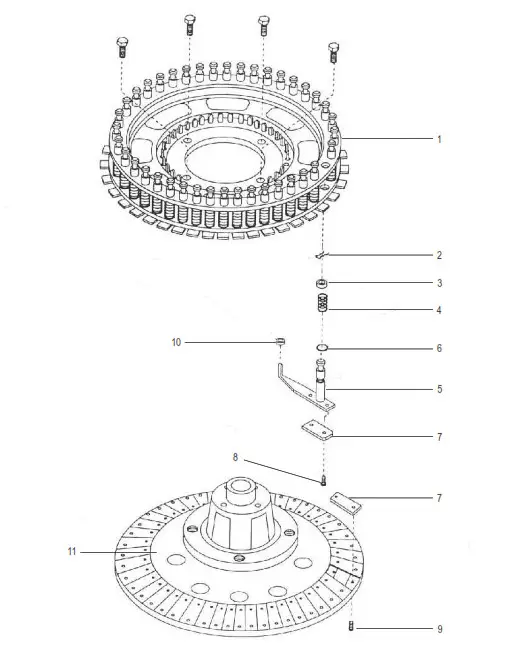

CARRIAGE ASSEMBLY
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Carrier, Punch (1/4″, 1/2″, 3/4″) | 1 | ————- | RPO4-SHQ |
| 1 | Carrier, Punch (1″) | 1 | ————- | RPO4-R |
| 2 | Retainer, Spring | 5 | ————- | RP27 |
| 3 | Washer, Felt (1/4″, 1/2″, 3/4″) | 5 | ————- | RP78-SHQ |
| 3 | Washer, Felt (1″) | 5 | ————- | RP78-R |
| 4 | Spring, Punch (1/4″, 1/2″, 3/4″) | 5 | ————- | RP26S-SHQ |
| 4 | Spring, Punch (1″) | 5 | ————- | RP26S-R |
| 5 | Holder, Punch and Shank Assembly (1/4″, 1/2″, 3/4″) | 1 | H-347-PSA | RPO5X-SHQ |
| 5 | Holder, Punch and Shank Assembly (1″) | 1 | ————- | RPOSX-R |
| 6 | Washer, Rubber (1/4″, 1/2″, 3/4″) | 5 | ————- | RP26W-SHQ |
| 6 | Washer, Rubber (1″) | 5 | ————- | RP26W-R |
| 7 | Punch and Die-Set of 40 1/4″ Characters | 1 | ————- | RPQ5DP |
| 7 | Punch and Die-Set of 40 1/2″ Characters | 1 | H-347-DIESET | RPH5DP |
| 7 | Punch and Die-Set of 40 3/4″ Characters | 1 | H-408-API | RPS5DP |
| 7 | Punch and Die-Set of 40 1″ Characters | 1 | ————- | RPRSDP |
| 8 | Screw, Punch (1/4″, 1/2″, 3/4″) | 5 | ————- | RPO6B-SHQ |
| 8 | Screw, Punch (1″) | 5 | ————- | RPO6B-R |
| 9 | Screw, Die (1/4″, 1/2″, 3/4″) | 5 | ————- | RPO6C-SHQ |
| 9 | Screw, Die (1″) | 5 | ————- | RPO6C-R |
| 10 | Washer, Felt | 5 | ————- | RP79 |
| 11 | Carrier, Die (1/4″, 1/2″, 3/4″) | 1 | ————- | RP03-SHQ |
| 11 | Carrier, Die (1″) | 1 | ————- | RP03-R |
0621 PH-259
