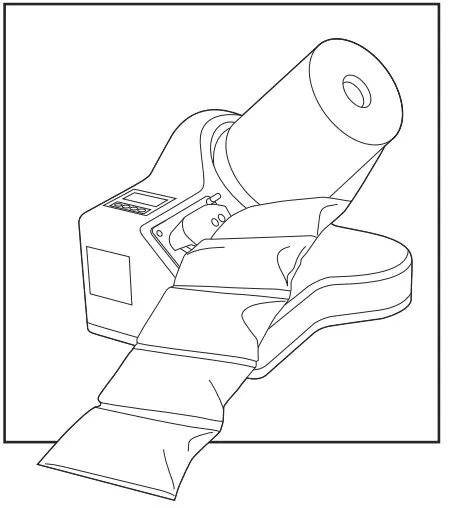

H-7241 AIR CUSHION MACHINE
1-800-295-5510
uline.com

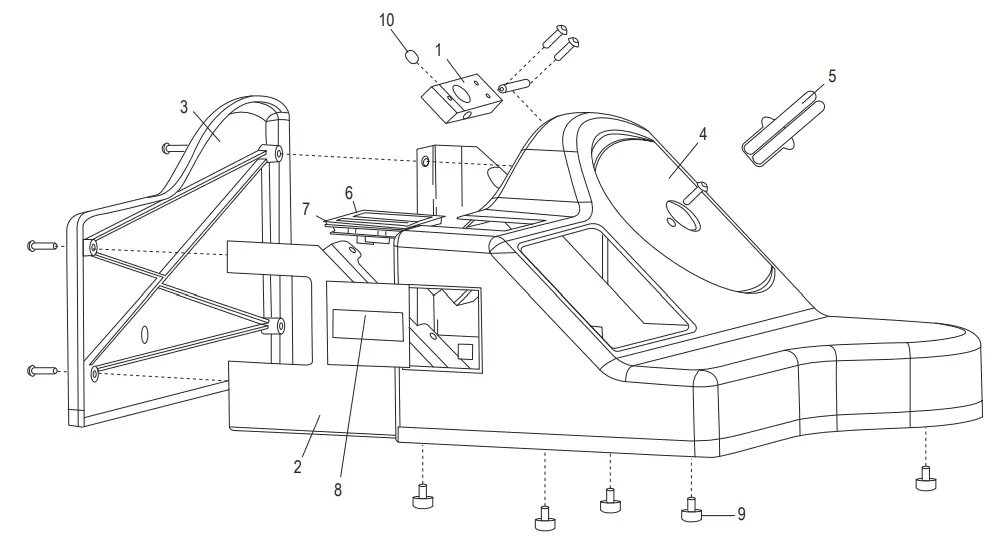

HOUSING
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO |
| 1 | Mounting Strip | 1 | ————- | 002-xs000-13 |
| 2 | Mounting Plate | 1 | ———— | 003-xs000-11 |
| 3 | Rear Panel | 1 | ———– | 056-xs000-32 |
| 4 | Main Housing | 1 | ———— | 056-xs000-33 |
| 5 | Guide Bar | 1 | H-7241-GBAR | 531664 |
| 6 | UI Panel Holder | 1 | ———– | 056-xs000-34 |
| 7 | UI Panel Cover | 1 | ———– | 056-xs000-35 |
| 8 | UI Panel Blind | 1 | ———– | 056-xs000-36 |
| 9 | Rubber Foot | 5 | H-7241-FEET | demper 15-8 M5x10 |
| 10 | Spring Ball +A61 | 1 | ———– | gn614-8-KU |
| Bottom Plate (Not Shown) | 1 | ———– | 003-xs000-07 | |
| Cover Plate (Not Shown) | 1 | ———– | 003-xs000-08 | |
| Main Unit Box (Incl. Electronics) (Not Shown) | 1 | ———– | ———– | |
| Display (Not Shown) | 1 | H-7241-DISP | ———– |

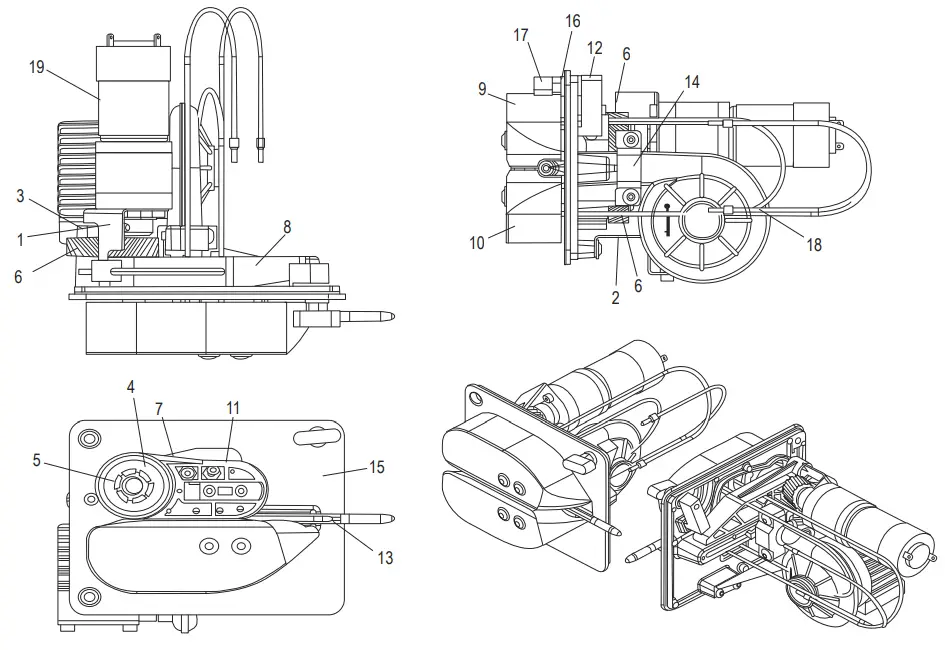

DRIVE & SEAL UNIT
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO |
| 1 | Bracket | 1 | ———- | 003xs000-10 |
| 2 | Bracket | 1 | ———- | 003-xs000-13 |
| 3 | Shouldered Bolt | 1 | ———- | 009-xs000-01 |
| 4 | Drive Wheel | 2 | ———- | 020-xs000-01 |
| 5 | Upper Drive Shaft | 1 | ———- | 027-xs000-02 |
| 6 | Gear Wheels | 4 | ———- | nl-xs000-01 |
| 7 | Teflon Belt | 2 | H-7241-TBELT | 054-xs000-04 |
| 8 | Bearing Strip | 1 | ———- | 056-xs000-19 |
| 9 | Upper Cover Plate | 1 | ———- | 056-xs000-25 |
| 10 | Lower Cover Plate | 1 | ———- | 056-xs000-24 |
| 11 | Sealblock | 1 | ———- | 056-xs000-26 |
| 12 | Locking Device | 1 | ———- | 056-xs000-29 |
| 13 | Injector/Blade | 1 | H-7241-INJCT | 056-xs000-43 |
| 14 | Alr Injector Cover | 1 | ———- | 056-xs000-37 |
DRIVE & SEAL UNIT CONTINUED
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO |
| 15 | Front Plate | 1 | ———– | 056-xs000-28 |
| 16 | Slide Bearing | 1 | ———– | 8061000002 |
| 17 | Knob | 1 | ———– | gn-432-25-m6 |
| 18 | Blower | 1 | ———– | U85HL-024KM-A |
| 19 | Drive Motor | 1 | ———– | e192-24-49-6 |
| Shouldered Bolt (Not Shown) | 1 | ———– | 009-xs000-02 | |
| Lower Drive Shaft (Not Shown) | 1 | ———– | 027-xs000-09 | |
| Pressure Pin (Not Shown) | 1 | ———– | 056-xs000-21 | |
| Ball Bearing for Sealing Unit (Not Shown) | 4 | ———– | 6800-2z | |
| Sealing Block Spring (Not Shown) | 2 | ———– | d-117-c | |
| Pressure Pin Spring (Not Shown) | 1 | ———– | d-173-f | |
| Magnet (Not Shown) | 1 | ———– | Q-15-04-04-MN |

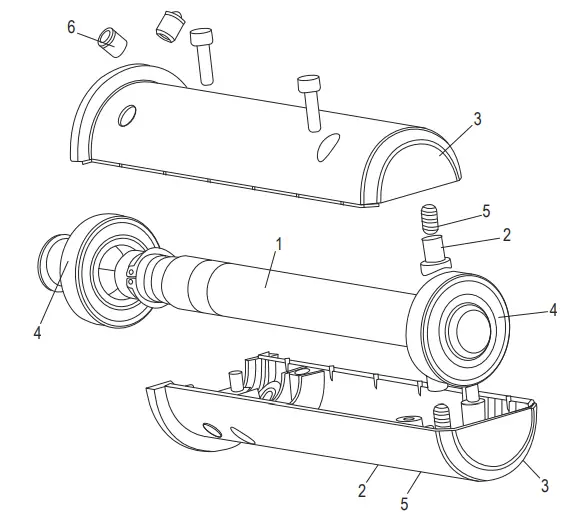

FOIL SHAFT
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO |
| 1 | Foil Shaft | 1 | ———– | 027-xs000-01 |
| 2 | Brake Shaft | 1 | ———– | 051-xs000-01 |
| 3 | Shaft Film Cover (2 Pc Pro Machine Needed) | 2 | ———– | 056-xs000-02 |
| 4 | A+ Mini-MV/MCh Ball Bearing | 2 | ———– | 6004 zz |
| 5 | A+ GTI-XL Spring | 1 | ———– | d-180 W |
| 6 | Ball (Spring-) | 4 | ———– | gn614-8-KU |
| 0-Ring 48.0 x 4.0 (Not Shown) | — | ———– | ———– | |
| Complete Unit (All Parts, Assembled As Shown) | 1 | H-7241-MNDRL | 117-xs000-03 |
ELECTRONICS
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO |
| Drive Cable (Not Shown) | 1 | ———— | 054-mp000-04 | |
| Connection Cable (Not Shown) | 2 | ———— | 054-xs000-05 | |
| Sealing Block Cable (Not Shown) | 1 | ———— | 054-xs000-06 | |
| Connector 2P (Not Shown) | 1 | ———— | 2P PC4/2-ST-7.62 20A | |
| Connector 2P (Not Shown) | 1 | ———— | 2P WR-TBL 351;5.08 Male | |
| Connector 7P (Not Shown) | 1 | ———— | 7P WR-TBL 351;5.08 Male | |
| Cable CT (Not Shown) | 1 | ———— | ———— |
WEAR PARTS
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO |
| Injector/Blade (Not Shown) | 1 | H-7241-INJCT | NL-xs000-02 | |
| Teflon Belt (Not Shown) | 2 | H-7241-TBELT | 054-xs000-04 | |
| Maintenance Kit, Black (Not Shown) •Teflon Belt (2) •Injector/Blade (1) •Allen Wrench (1) | 1 | H-7243 | no-xs000-03 | |
| Spacing Gauge | —- | H-7241-SPACE | 056-xs000-41 |
0421 PH-7241
