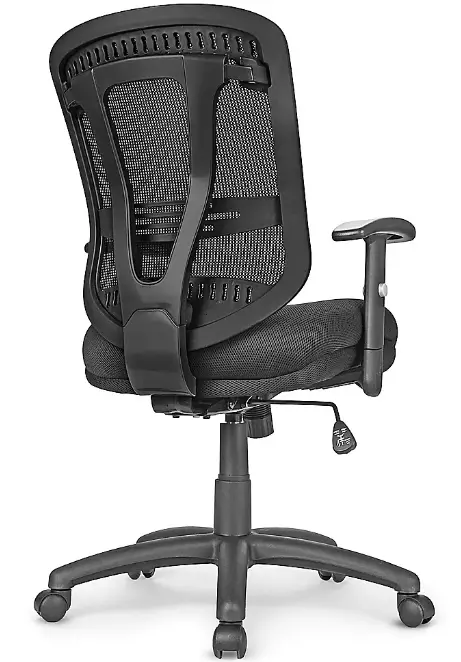

ULINE H-4114 Deluxe Mesh Task Chair
TOOL NEEDED
- Allen Wrench (included)

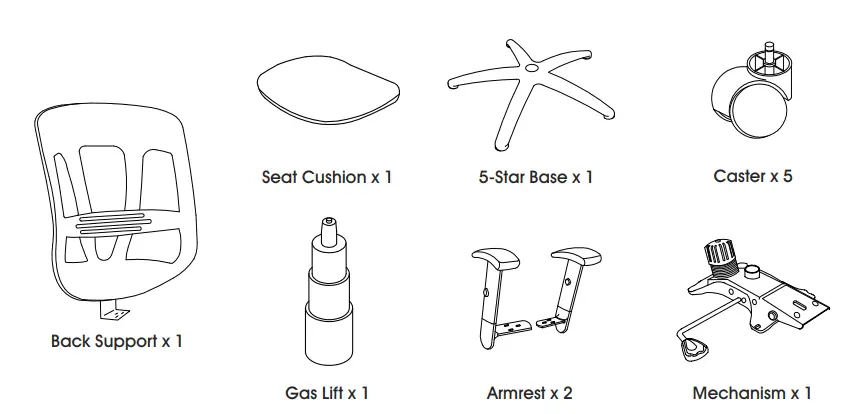

PARTS

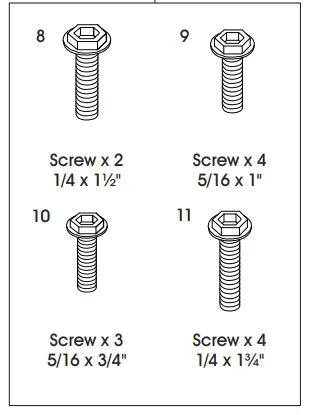

Hardware Kit
ASSEMBLY

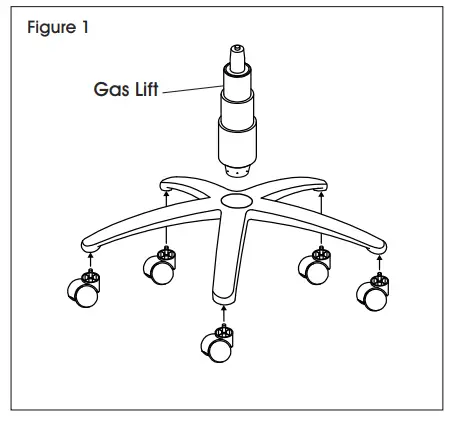

- Insert casters into the legs of the five-star base. Turn the base upright. Insert gas lift into the center of the base. (See Figure 1)

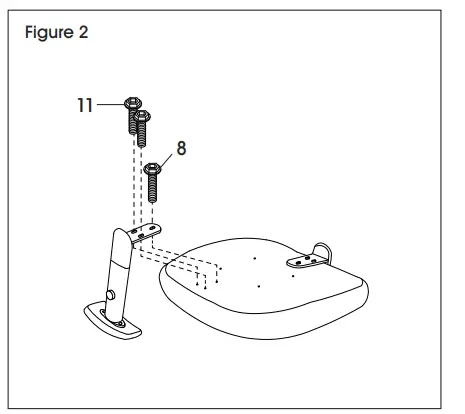

- Align the armrest with holes on the bottom of the seat cushion. Use one 1/4 x 1⁄” screw (8) and two 1/4 x 1⁄” screws (11) to attach. Repeat on the opposite side. (See Figure 2)
NOTE: Use an Allen wrench to tighten all screws

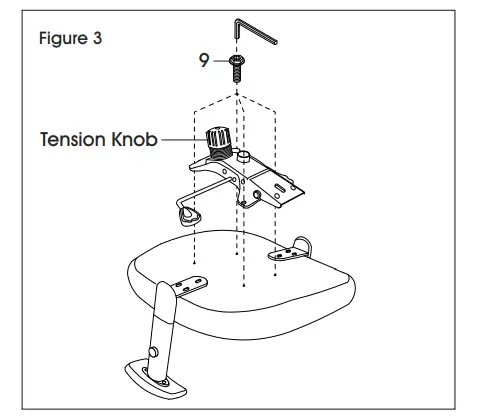

- Align mechanism with holes on the bottom of the seat cushion with tension knob facing the front of the seat. Use four 5/16 x 1″ screws (9) to attach. (See Figure 3)

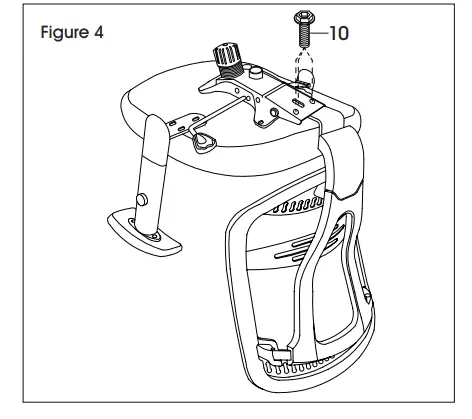

- Position back support in the slot between the bottom of the seat cushion and the mechanism. Align holes and use three 5/16 x 3/4″ screws (10) to attach back support to the mechanism. (See Figure 4)

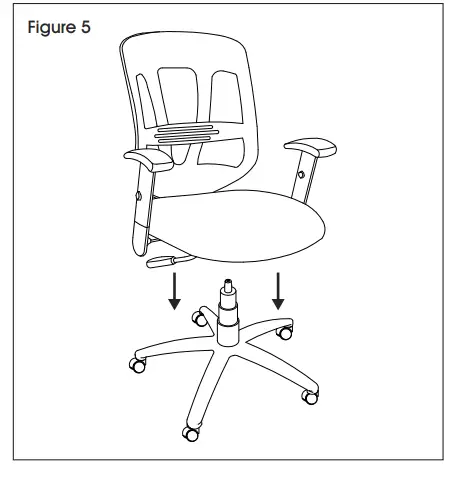

- Slowly lower the chair assembly onto the gas lift. Press down on the seat cushion to secure it in place. (See Figure 5)

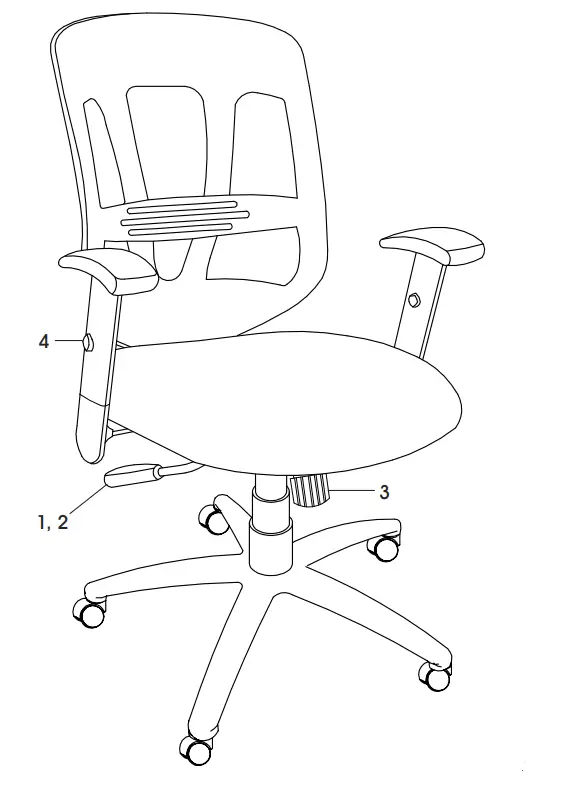

CHAIR ADJUSTMENTS
- Seat Height Adjustment – To raise seat height, lift lever up with little to no weight on the seat. To lower seat height, lift lever up while sitting.
- Upright Tilt Lock – To lock chair in an upright position, push the lever in toward the center of the seat. To restore tilt, pull lever out. Chair has synchro-tilt; the back tilts at a two-to-one ratio to the seat angle.
- Tilt Tension – To increase tilt tension, turn knob clockwise. To decrease tilt tension, turn knob counterclockwise.
- Armrest Height Adjustment – To adjust arm height, press the button on the side of each armrest and move the armrest up or down
