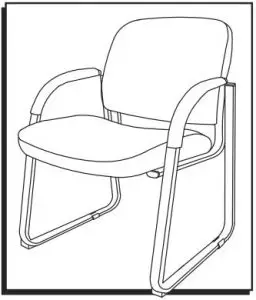

ULINE H-7820/H-9128 Sled Base Chair With Armrests-Big And Tall Installation Guide
1-800-295-5510
uline.com
TOOL NEEDED

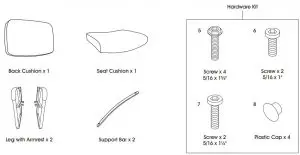

PARTS
ASSEMBLY

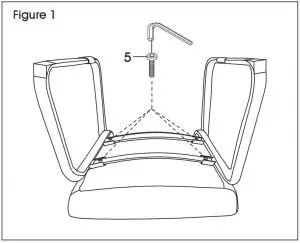

- Align leg mounting brackets with holes on bottom of seat cushion. Insert support bars into mounting brackets and use two 5/16 x 15/8” screws (5) to loosely secure. Repeat on opposite side. (See Figure 1)
NOTE: Do not tighten screws until assembly is complete.
NOTE: Do not tighten screws until assembly is complete.
2. Align back cushion with mounting holes. Use one 5/16 x 1″ screw (6) in top hole and one 5/16 x 11/4” screw (7) in bottom hole to loosely secure. Repeat on opposite side. (See Figure 2)
NOTE: Use Allen wrench to tighten all screws.
3. Insert plastic caps (8) in holes on back cushion to cover screws. (See Figure 2)
Read More About This Manual & Download PDF:
