Uline Deluxe Mesh Chair Instructions

ULINE Deluxe Mesh Chair

TOOL NEEDED

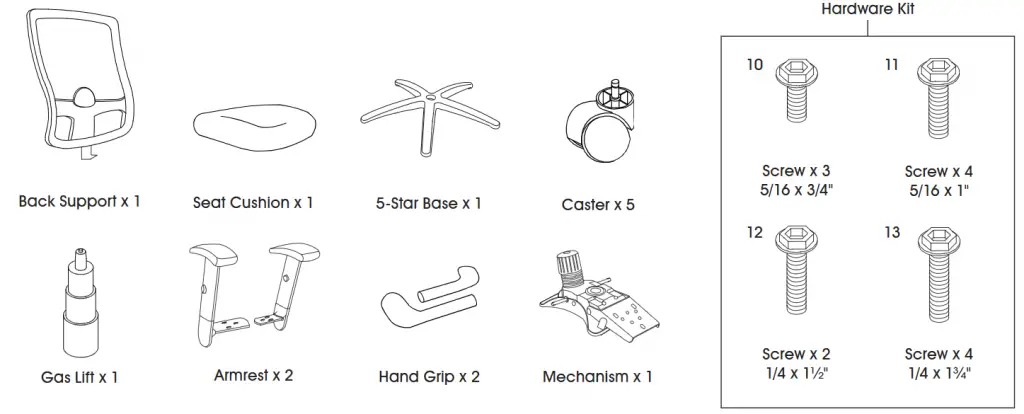

PARTS

ASSEMBLY

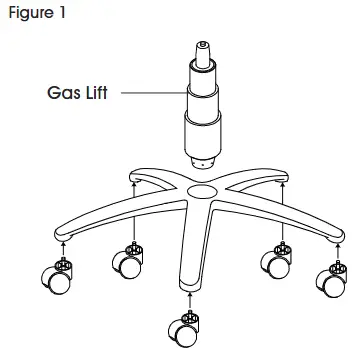

1. Insert casters into legs of five-star base. Turn base upright. Insert gas lift into center of base. (See Figure 1)

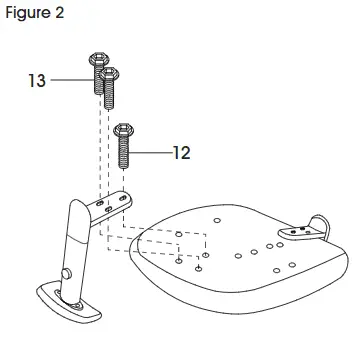

2. Align armrest with holes on bottom of seat cushion. Use one 1/4 x 1/” screw (12) and two 1/4 x 1/” screws (13) to attach. Repeat on opposite side. (See Figure 2)
   NOTE: Use Allen wrench to tighten all screws

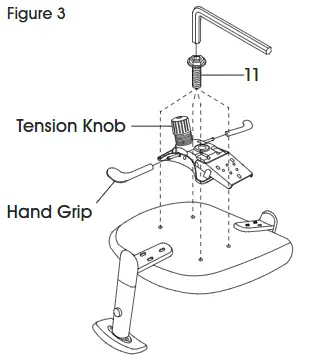

3. Align mechanism with holes on bottom of seat cushion with tension knob facing the front of seat. Use four 5/16 x 1″ screws (11) to attach. (See Figure 3)
4. Attach hand grips to levers on mechanism. (See Figure 3)

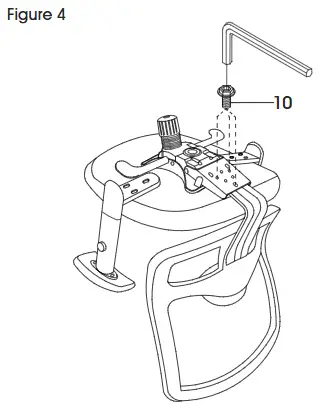

5. Position back support in slot between bottom of seat cushion and mechanism holes and use three 5/16 x 3/4″ screws (10) to attach back support to mechanism. (See Figure 4)

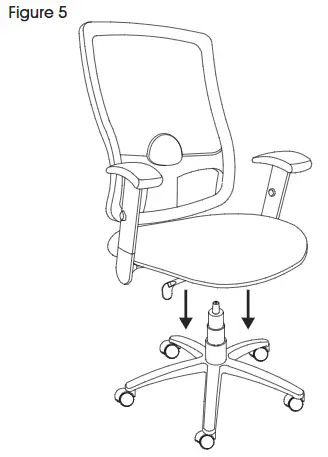

6. Slowly lower chair assembly onto the gas lift. Press down on seat cushion to secure in place. (See Figure 5)
