H-6675

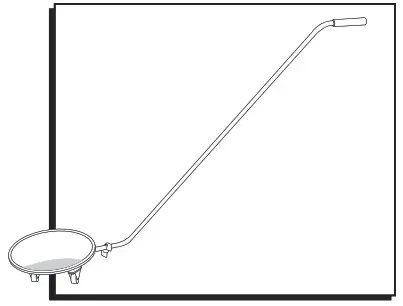

12″ DELUXE INSPECTION MIRROR
1-800-295-5510
uline.com

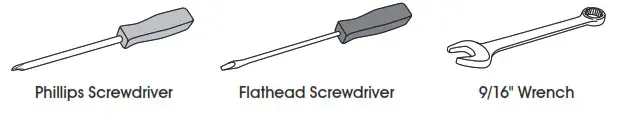

TOOLS NEEDED

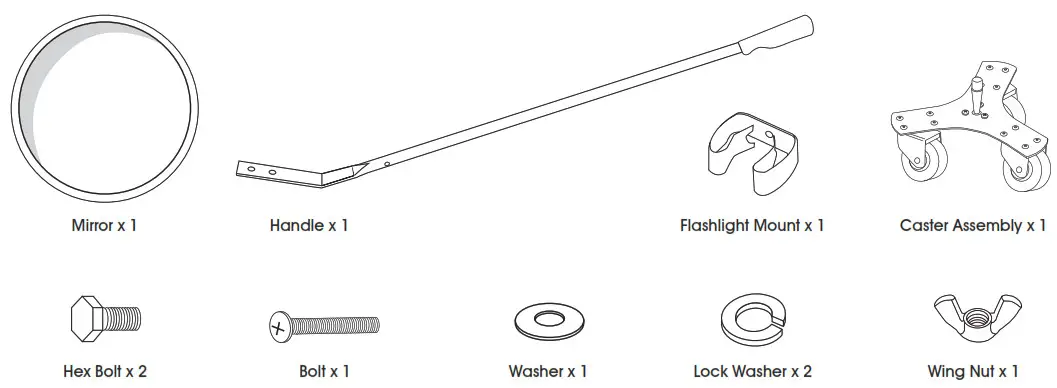

PARTS INCLUDED
ASSEMBLY INSTRUCTIONS

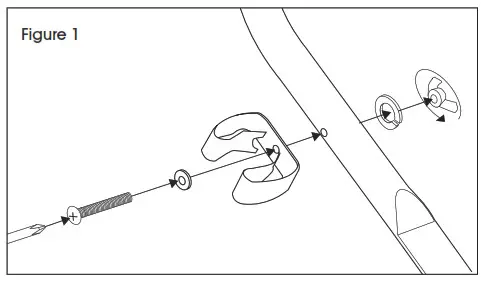

- Install flashlight mount to handle as shown. (See Figure 1)
NOTE: Flashlight is not included with the inspection mirror. Fig

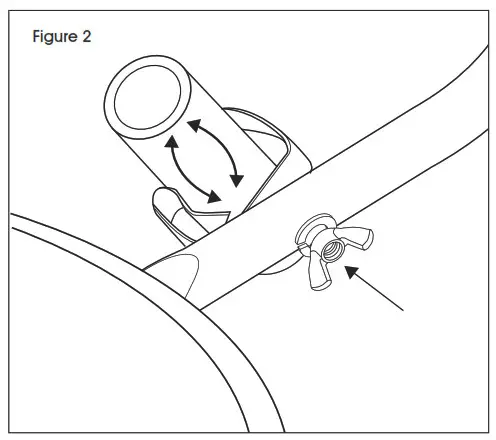

- To adjust flashlight angle, loosen assembly’s wing nut, adjust angle and re-tighten wing nut. (See Figure 2)

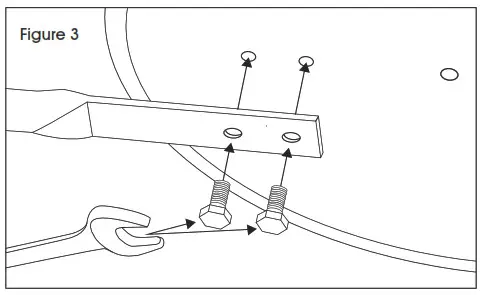

- Attach handle to mirror using included hex bolts and 9/16″ wrench. (See Figure 3)

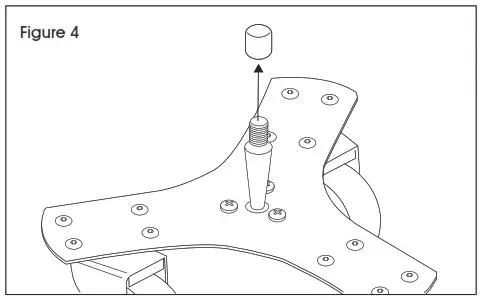

- Remove protective cover on center bolt of caster assembly. (See Figure 4)

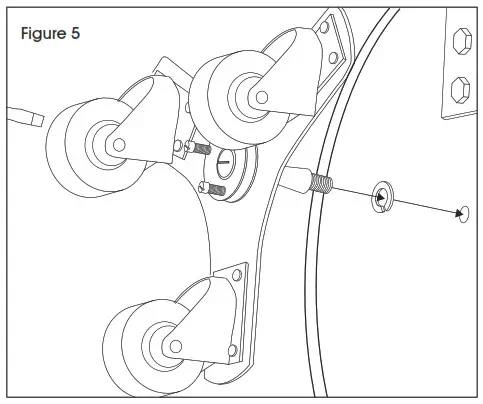

- With included lock washer placed onto center assembly center bolt, tighten caster assembly to threaded hole in center of mirror back. Use flathead screwdriver as necessary. (See Figure 5)
NOTE: Flashlight is not included with the inspection mirror. Fig
MAINTENANCE
To clean mirror, use a mild glass cleaner and a soft cloth.
WARNING! Do not use any cleaner containing ammonia, as this could damage the mirror.
