Kogan Kamn32ucfla 32-inch Uhd Curved Gaming Monitor User Guide (+ PDF)

USER GUIDE

32″ UHD CURVED GAMING MONITOR
3840×2160 60Hz
KAMN32UCFLA

Contents hide

8 GAMEPLUS & RGB RANGE

9 SPECIFICATIONS

10 Documents / Resources

11 Related Posts

SAFETY & WARNINGS

Read all instructions before using the appliance and retain for reference.
This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them.
Do not insert any object or spray any liquid into the vents.
Avoid placing the monitor near heaters, stoves, ﬁreplaces or other sources of heat, as well as in rooms lacking adequate ventilation.
Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged and may injure nearby people.
Unplug the monitor if it is not going to be used for an extended period.
Do not place heavy objects on the monitor, its power cord or any connected cable.
Do not open the back panel of the monitor, as it contains a high-voltage current even when not plugged in.
There is a polarizer layer (not a protective ﬁlm) on the surface of the screen. Do not peel it off, or the product may be damaged and the warranty will be invalid.

The terms HDMI and HDMI High-Deﬁnition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

COMPONENTS

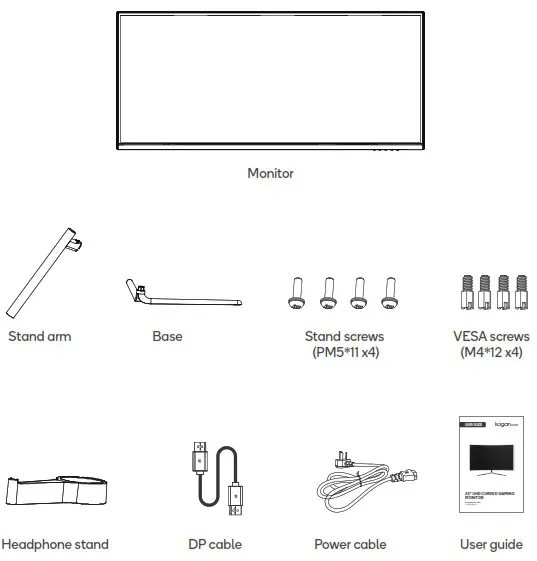

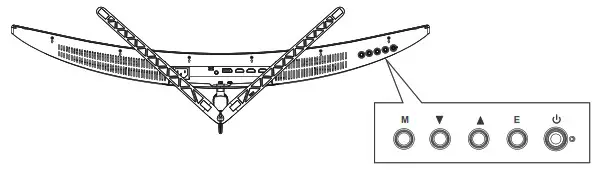

OVERVIEW

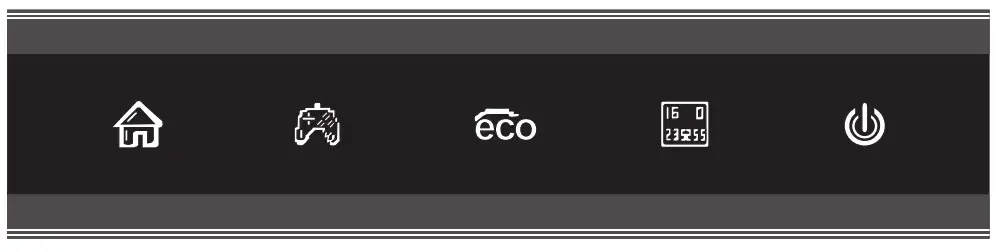

M	Function
Button	Menu button: Conﬁrm/call up the main menu.
	Down button: Move down in the menu/quickly enter the GamePlus.
	Up button: Move up in the menu/quickly enter the ECO.
E	Exit button: Exit/return to the previous menu/quickly enter the RGB Range.
	Power button: Turn on/o the monitor.

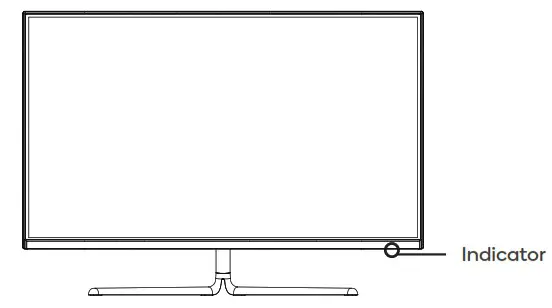

Indicator

Indicator	Status
Solid Blue	Power is on and the monitor operating normally.
Flashing Blue	No video input signal or the monitor is in standby. Ensure your computer is turned on and operates normally and check that all video cables are fully plugged in and/or connected to the monitor.

ASSEMBLY

Open the carton, remove the stand arm, base and headphone stand. Leave the monitor in foam.

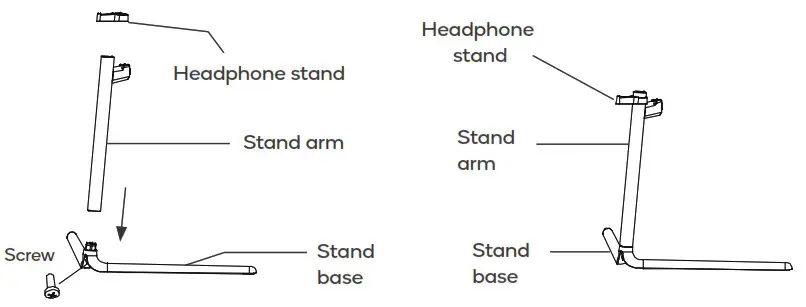

Secure the stand arm to the base using one of the screws.
Attach the headphone stand to the stand arm.
Remove the bottom half of the protective foam from the monitor.

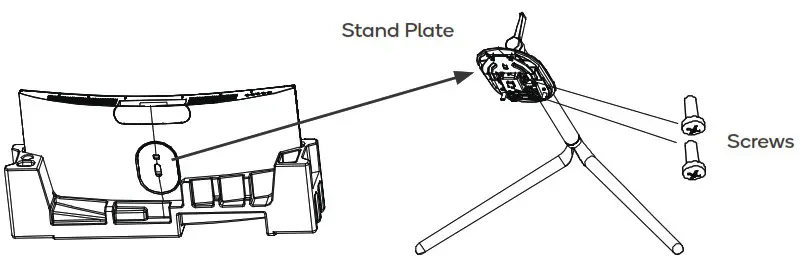

Press the quick-release button and remove the stand plate then attach it to the stand assembly using two screws.
Note:
When handling the monitor, do not pinch the screen with your hand to avoid damaging the display.
Attach the stand plate and stand assembly back onto the rear of the monitor.
Remove the remaining protective foam and stand the monitor upright.

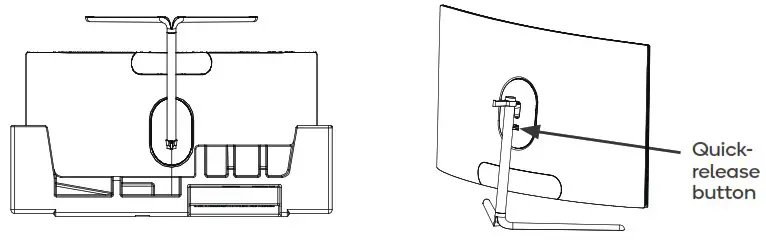

Note: To remove the stand from the monitor, slide the quick-release button-up and pull the stand assembly outwards.

VESA MOUNT

VESA mounting pattern 75x 75mm, screw size M4.
Note: VESA mount or mounting accessories are not included.

Open the box, take out the monitor with protection foam attached, and gently place it on a desktop or table. Ensure all components are removed from the foam covering.

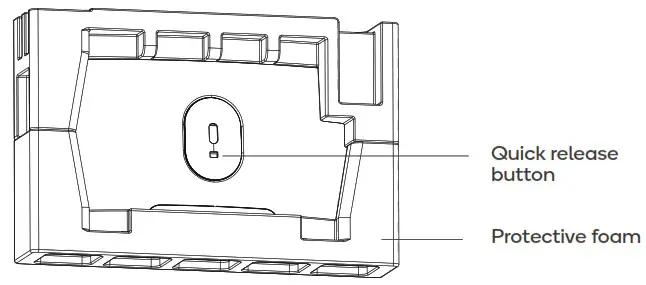

Press the quick-release button to remove the stand plate.
If the monitor is already attached to the stand, remove the stand before proceeding with VESA mount assembly.

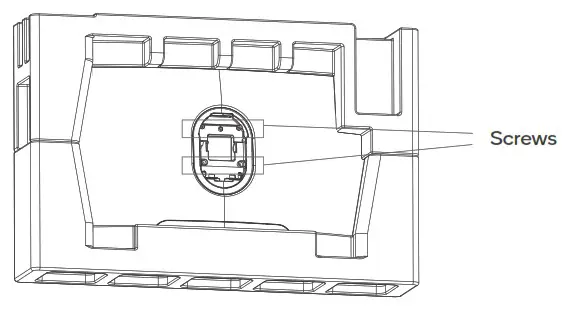

Remove the four screws from the rear case. Do not remove the monitor from the foam at this stage.

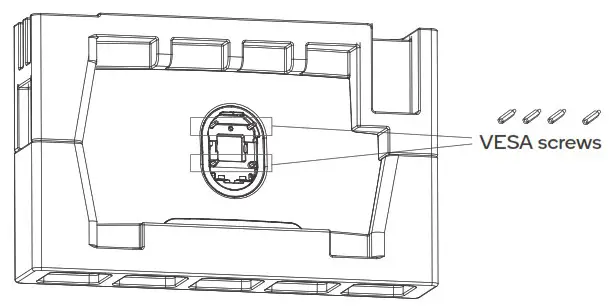

Remove the four VESA screws from the accessory bag and attach them to the rear casing.
During hanging of the product, do not pinch the screen with your hand to avoid damaging the screen.

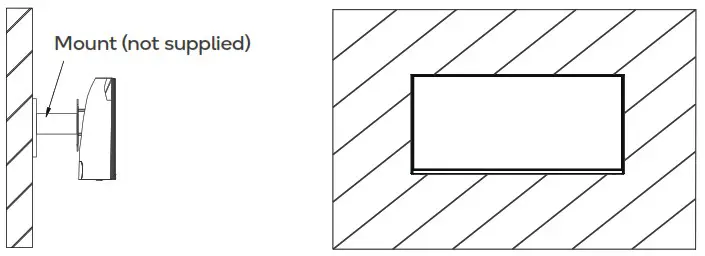

Instructions for attaching to the speciﬁc wall mount will be included with the mount.

Notes: To prevent the monitor on the mount from failing, please install it ﬁrmly and protect it fully. Do not place or hang any object on the mount. Ensure the height of the mount is less than 2 meters.

CONNECTIVITY

Power Cable

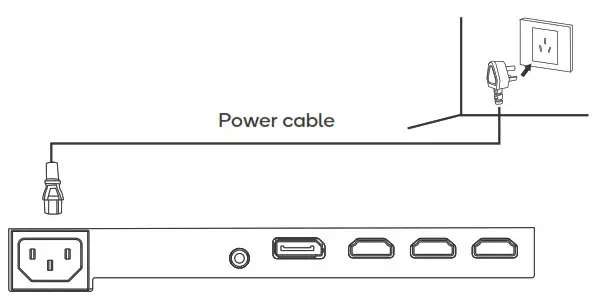

Connect the included power cable to the monitor power port and then connect the other end to a power outlet.

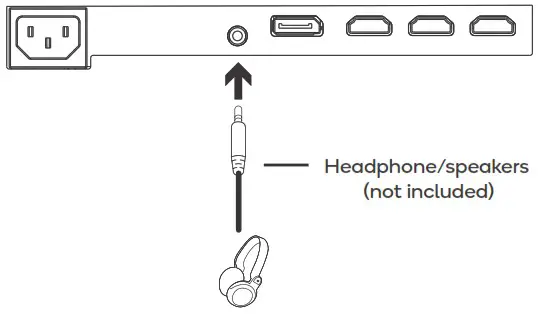

Audio Out
Connect an audio output device (speakers, headphone etc.) to the 3.5mm audio port on the monitor.

HDMI

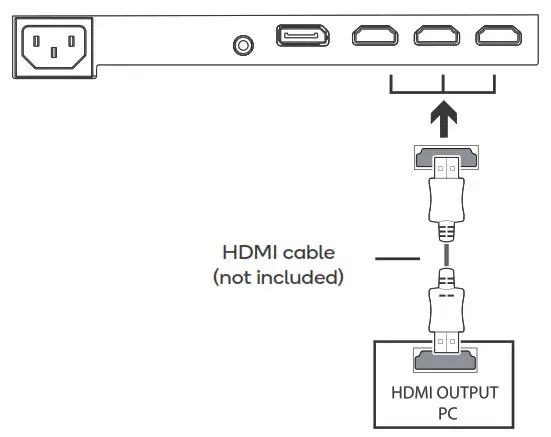

Connect an HDMI cable from the computer’s display output to the monitor’s display input.

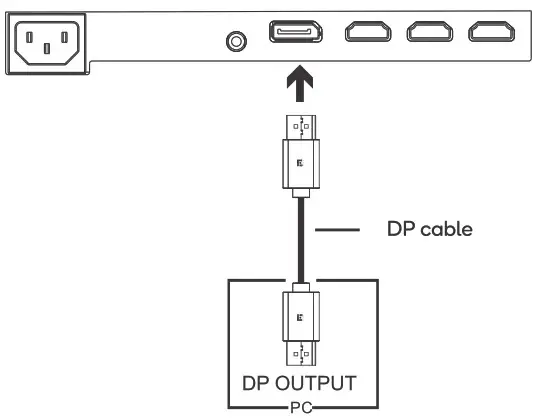

DisplayPort
Use the supplied DP cable to connect the computer’s display output to the monitor’s display input.

OPERATION

Connect the monitor to your input device via HDMI or DP.
Connect the power cable to your monitor and then connect the other end directly to a power socket.
Use the power button to turn the monitor on.

On-Screen Display (OSD)
The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on the screen after turning on the monitor and pressing the (M) button. When using the monitor for the ﬁrst time, it will conﬁgure optimal settings automatically.

Press one of the buttons (M , , , E , ) to activate the browser screen.
Press (M) to enter the OSD screen.
Press up and down ( / ) buttons to browse the functions.
With the desired function highlighted, press (M) button to enter the sub-menu.
Press up and down ( /) buttons to browse sub-menus, then press (M) button to conﬁrm the desired function.
Press up and down ( / ) buttons to highlight an option, then press (M) button to conﬁrm the settings and exit the current menu.
Press (E) button to exit the menu screen.

List of Functions

Main Menu	Sub Menu	Option
Input Source	DP
	HDMI1(2.0)
	HDMI2(1A)
	HDMI3(1.4)
Brightness/ Contrast	Brightness	0-100
	Buckeye{	0-100
	Contrast	0-100
	DCR	On/Cl
Color Setting	Gamma	LEI/2.0/22/2.4/26
	Picture Mode	Sbyndard/Photo/Movie/Ciarne/FPS/RTS
	Color Temperature	Warm/CooVUSER
	Low Blue Light	0-100
	Hue	0-100
	Saturation	0-100
Picture Quality Setting	Sharpness	0-100
	Response Time	Off/High/MIddle/Low
	Noise Resolution	Off/High/Middle/Low
	Super Resolution	Off/High/Middle/Low
	Dynornic Luminous Control	orilar
Disploy	Aspect Ratio	Wide Screen/4:3/1:VAuto
Disploy	Led Mode	Normal/OR/Flicker
Audio	Mute	On/Off
	Volume	0-100
	Audi:. Source	Auto Source/DP/HOMIVHDMI2/HDM13
Multi-Wridow	Multi-Window	OR/PIP Mode/PBP 21Mn
	Sub Wing Input	DP/HDMIVHDMI2HDMI3
	pip sere	Small/Medium/Large
	PIP Position	TopRight/TopLeft/BottomRight/Bottomleft
	Swap
50	Language	English/ 简体中文/ 한국어/РУССКИЙ/Español/ 日本語/Français
	051) H-Position	0-100
	050 V-Position	0-100
	050 Transparency	0-100
	OSD Time Out	5-100
	OSD Rotation	NorrnoV90/180/ 270
Other	DP Version	DPLVDF12
	Adaptive Sync	On/Off
	HOR	On/Off/Auto-Detect
	Reset	None

GAMEPLUS & RGB RANGE

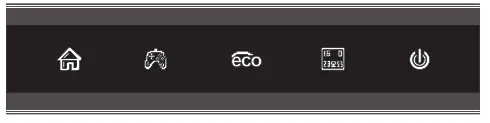

Press any of the buttons (M , , , E , ) to activate the navigation window.
Press button to switch GamePlus modes. According to the needs of your game, choose the corresponding game icon. These game icons are primarily designed to optimize your aim during shooting games, though they can be used for other scenarios.

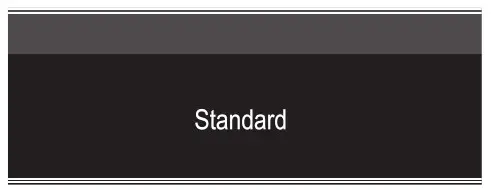

Press button to switch between multiple Picture modes, among which the standard mode is suitable for most activities.

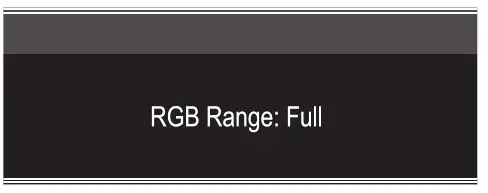

Press E to switch color gamut mode between “Limited” and “Full” when optimal conﬁguration is used.

SPECIFICATIONS

Screen Size		32 inch
Aspect Ratio		16:09
Viewing Angle		178°(H) / 178°(V)
Pixel Pitch		0.18159(H) x 0.18159(V)
Contrast Ratio		3000:1
Display Color		16.7M
Resolution		3840×2160
Refresh Rate		60Hz
Power Input		100-240V- 50/60Hz 1.5A The standard voltage and power supply may vary with countries, please refer to the label at the back of the product.
Product Dimentions		Without base: 712.6 x 113.3 x 422.8mm / approx. 6.02kg
		With base: 712.6 x 226.5 x505.6mm / approx. 7.07kg
Tilting Angle		Forward titling : 5°±2° Backward tilting : 15°±2°
Height Range		N/A
Rotation Angle		N/A
Vertical Angle		N/A
Environmental Conditions	Action	Temperature: 0°C- 40°C (32°F -104°F) Humidity: 10%-90% RH (non-condensing)
	Stora ge	Temperature: -20°- 60° (-4°F -140°F) Humidity: 5%-95% RH (non-condensing)

Need more information?
We hope that this user guide has given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
