Kogan Kamn34fxqulb 34 Inch Curved Ultrawide Hdr Gaming Monitor User Guide (+ PDF)

Unplug the monitor before cleaning it with a slightly damp, clean cloth.
Wiping the screen once it has been turned off with a dry microfibre cloth is recommended.
Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.
This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them.
Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat, as well as in rooms lacking in adequate ventilation.
Do not insert any objects or spray any liquids into the vents.
Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged and may injure nearby people.
Unplug the monitor if it is not going to be used for an extended period.
Do not place heavy objects on the monitor, its power cord or any connected cables.
Do not open the back panel of the monitor, as it contains a high-voltage current even when not plugged in.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Components

A. Monitor
B. Stand Stem
C. Stand Base
D. Cable Clip
E. PM5*11mm Screws ( x 4 )
F. VESA connectors x 4 (35mm+7mm)
G. Power Cable
H. DP Cable (1.5m)
I. User Guide

Overview

Monitor Controls

M Menu Button: Press to display the OSD menu or enter sub-menus.
Down Button: Press to move down in the menus.
Up Button: Press to move up in the menus.
E Exit Button: Press to exit.
Power Button: Press to turn the monitor on/off.
LED Indicator: Change colors to indicate status.

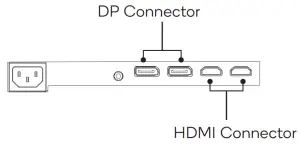

Monitor Ports
Power Connector: Insert the power cable to supply power to the monitor.
Audio Output: Insert one end of the Audio cable into the computer’s Audio output to receive the Audio signals from your monitor
DP Connector: Insert one end of the DP cable into the computer’s DP output and connect the other end to the monitor’s DP port.
HDMI Connector: Insert one end of the HDMI cable into the computer’s HDMI output and connect the other end to the monitor’s HDMI port.

Stand Assembly

Keep the foam underneath the monitor before attaching the stand.

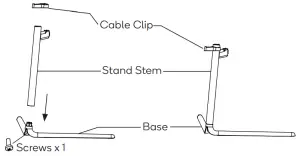

Open the package, take out the product with foam still attached, and gently place it on a desktop or table. Then take out the stem, cable clip, and base, use the screwdriver (not included) and one screw to fasten base to the stem.
Remove the foam covering the bottom of the monitor, then remove the converter on the back of monitor. Then use two screws to fasten converter onto the stem.
Attached the converter with stem and base back onto the back of monitor, Then remove the remaining foam on monitor and stand it on desktop. Press the button to remove the montior from the bracket and easily unmount it.

Make sure the monitor is laid on a flat surface before removing the stand.

Wall Mounting

Open the package, take out the product with foam still attached, and gently place it on a desktop or table. Remove the extra parts and the foam covering the back of the monitor. Press the release button to remove the stand plate. If the monitor was already attached to the stand, remove the stand.

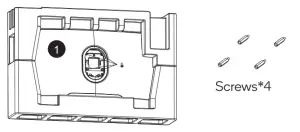

Remove the original screws x4 (①) from the opening in the back of the monitor.

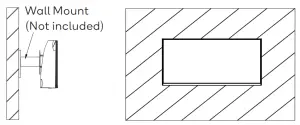

Follow the directions received with your mount, stand, or accessory and install the monitor on the wall or fixture as desired. Remember to use the included 4 screws when mounting the monitor. Refer to the image (②) for correct screw placement.

Do not discard the original screws. These may be needed for future use.
Follow the directions received with your mount, stand, or accessory and install the monitor on the wall or fixture as desired.

Connectivity

Power Cable

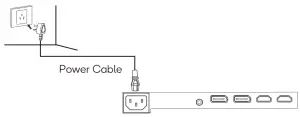

Connect the included power cable to the power connector, and then plug the other end into power outlet

Earphones

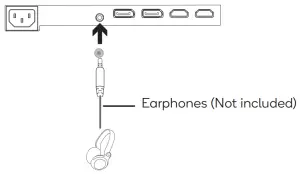

Plug in your earphones to receive audio signals from your monitor. If your earphones are connected to the monitor and audio devices are connected to your computer at the same time, the audio devices will not produce sound. Earphones and other audio devices not included.

DP

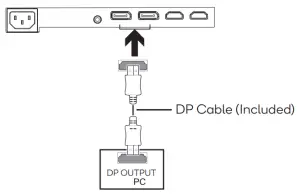

In order for the monitor to receive DP signals from the computer, use the DP cable to connect the monitor to the computer.

HDMI

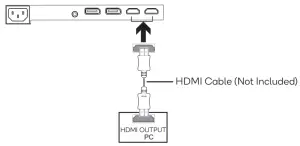

In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to connect the monitor to the computer.

Connectivity

Basic Operation

Insert one end of the DP cable into your PC’s graphics card. A HDMI cable may also be used. A HDMI cables is not included.

Connect the other end of the cable to the corresponding connector on your monitor.
Connect the power cable to your monitor then connect the other end to your power source. It is recommended that you use a surge protector with adequate voltage if a wall outlet cannot be reached directly.
Locate the power button on the monitor and press it to turn the monitor on.

Indicator Light

Solid blue light indicates power is on and the monitor is operating normally. Flashing blue light indicates no video source. no horizontal or vertical signal has been detected. Please ensure your computer is on and all video cables are fully inserted and/or connected.

Operation

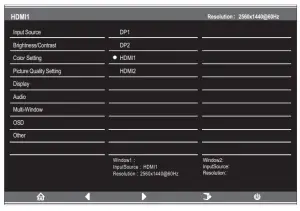

The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the M button.

When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer’s configuration and parts etc.

Press any one of the buttons ( ) to activate the navigation window.
Press to enter the OSD menu.
Press or to browse functions.
- Highlight the desired function, then press M to enter the sub-menu.
- Press or to browse sub-menus, then press M to highlight the desired function.
- Press or to highlight an option, then press M to confirm the settings and exit the current screen.
Press E to exit the current screen.

List of Functions

Main Menu	Sub-Menu	Options	Description
Input Source	DP 1 ; DP 2	NONE	Switch to DP signal input
Input Source	HDMI 1 ; HDMI 2	NONE	Switch to HDMI signal input
Brightness/ Contrast	Brightness	0~100	Adjust display brightness
	Blacklevel	0~100	Adjust display blacklevel
	Contrast	0~100	Adjust display contrast
	DCR	On	Turn on DCR function
	DCR	Off	Turn off DCR function
Color Setting	Gamma	Gamma 1.8	Set Gamma add-in
		Gamma 2.0
		Gamma 2.2
		Gamma 2.4
		Gamma 2.6
	Picture Mode	Standard, Photo, Movie, Game, FPS, RTS	Set visual mode according to activity
	Color Temperature	Warm, Cool, User	Select color temperature
	Low Blue Light	0~100	Set blue light filtering level
	Hue	0~100	Adjust hue levels
	Saturation	0~100	Adjust saturation levels
Picture Quality Setting	Sharpness	0~100	Set display sharpness
	Response Time	Off, High, Middle, Low	Turn On/Off the response time of the monitor
	Noise Reduction	Off, High, Middle, Low	Reduce the interference of image noise caused by signal source interference
	Dynamic Luminous Control	On, Off	Compensate for gray scale display screen and strengthen the expression of gray scale
	MPRT	Off	/
Display	Aspect Ratio	Wide Screen, 4:3, 1:1, Auto	Select on-screen aspect ratio
Display	LedMode	Flicker, Normal, Off	Switch LED modes / turn LEDs on/off

Audio	Mute	On, Off	Turn mute mode on/off
	Volume	0-100	Adjust audio volume
	Audio Source	DP 1 ; DP 2 ; HDMI 1; HDMI 2	Select audio signal input via HDMI or DP
Multi- Window	Multi-Window	Off, PIP Mode, PBP 2Win	Select PIP/PBP modes according to the number of input signals etc.
	Sub Win2 Input	DP 1, DP 2, HDMI1, HDMI2	Select according to input signal for PIP/ PBP mode
	PIP Size	Small, Medium, Large	Adjust the PIP/PBP window size
	PIP Position	Top Right, Top Left, Bottom Right, Bottom Left	Adjust the PIP/PBP window position
	Swap	NONE , 简体中⽂，	Swap the PIP/PBP signal sources
OSD	Language	English	Set OSD language
	OSD H-Position	0-100	Adjust the OSD’s horizontal position
	OSD V-Position	0-100	Adjust the OSD’s vertical position
	OSD Transparency	0-100	Set the OSD’s overall transparency
	OSD Time Out	5-100	Set how long the OSD remains open after non-use
	OSD Rotation	Normal, 90, 180, 270	When the user fl ips the display, this function can also flip the OSD to achieve the best display angle
Other	DP Version	DP1.1, DP1.2，DP1.4
	Adaptive-Sync	On, Off	Turn the Adaptive-Sync function on/off
	HDR	Off, On, Auto Detect	Turn the HDR mode on/off
	Reset	None	Reset monitor configurations

ECO Modes and Gameplus Switching

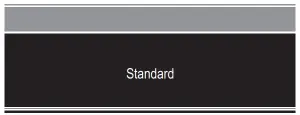

Press any one of the buttons to activate the navigation window.
Press button to switch Gameplus modes. According to the needs of your game, choose the corresponding game icon. These game icons are primarily designed to optimize your aim during shooting games, though they can be used for other scenarios.
Press button to switch ECO modes. These modes include Standard, Text, Movie, Game, FPS, and RTS and can be used to optimize settings according to your activity. Standard mode is suitable for most activities.

Specifications

Model	KAMN34FXQULB
Screen Size	34″
Aspect Ratio	21:9
Backlight	E-LED
Brightness	400cd/m
Panel	VA
Resolution	3440×1440
Refresh Rate	144Hz
Response Time	5ms(GTG)
Viewing Angle	178 (H) / 178 (V)
Contrast Ratio	4000:1
VESA Mounting	75×75
Colours	16.7M
Adaptive Sync	YES
Signal Input	DP2, HDMI2.02
Power	AC 100-240V~ 50/60Hz 2.0A

Audio
Speakers	YES
Audio Out	YES

Accessories
Power Cable	YES
DP Cable	YES

Additional Functions
Low Blue Light	YES
Flicker Free	YES

Physical Dimensions
Dimensions (w / Stand )	808.65×454.19×225.58(mm)
Dimensions (w / o Stand )	808.65×363.33×123.12(mm)
Net Weight	7.02kg
Gross Weight	8.96kg
