Kogan Kamn27f24sb 27-inch Curved Full Hd 240hz Freesync Gaming Monitor User Guide

27″ CURVED FULL HD 240HZ FREESYNC
GAMING MONITOR (1920 x 1080)
KAM N27F24SB

SAFETY & WARNINGS

• Read all instructions before using the appliance and retain for reference.
• Unplug the monitor before cleaning it.
• Use a clean, slightly dampened cloth to wipe the main monitor body.
• To clean the screen, turn it off unplug it and wait for it to cool completely, then wipe it with a dry micro-fibre cloth.
• Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.
• This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them.
• Do not insert any object or spray any liquid into the vents.
• Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat, as well as in rooms lacking adequate ventilation.
• Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged and may injure nearby people.
• Unplug the monitor if it is not going to be used for an extended period.
• Do not place heavy objects on the monitor, its power cord or any connected cable.
• Do not open the back panel of the monitor, as it contains a high-voltage current even when not plugged in.

The terms HDMI and HDMI High-Definition Multimedia Interface the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

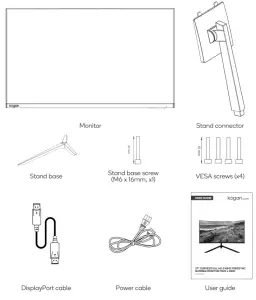

COMPONENTS

OVERVIEW

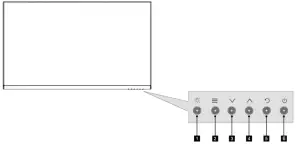

Monitor Controls

1. Backlight button	Press to turn the display backlight on/off.
2. Menu button	Press to display the OSD menu or enter sub-menus.
3. Down button	Press to move down in the menu.
4. Up button	Press to move up in the menu.
5. Exit button	Press to exit the menu.
6.  Power button	Press to turn the monitor ON/OFF.

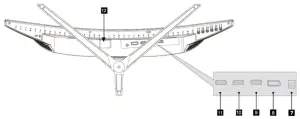

Monitor Ports

STAND ASSEMBLY

WARNING: The panel of the monitor is fragile. Keep the foam underneath the monitor screen while assembling the stand.

1. Carefully remove the monitor, stand  connector and stand base from the  box.

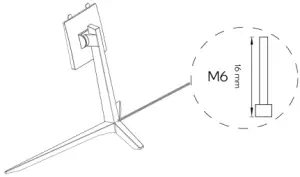

2. Attach the stand base to the stand connector using the M6 screw provided.

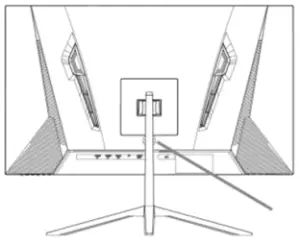

3. Insert the connection block into the back cabinet and push down until firmly connected.

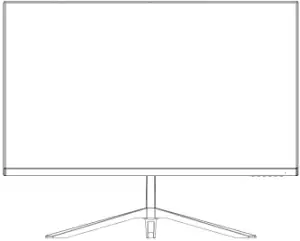

4. Lift monitor up straight and remove the bottom foam. Stand the monitor up on the installed base.


VESA MOUNT

VESA mounting pattern 100 x 100mm, screw size M4.
Note: VESA mount or mounting accessories are NOT included.

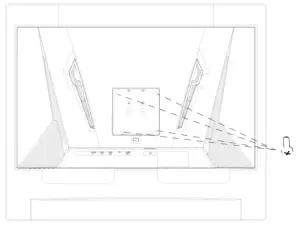

1. Open the box, take out the monitor with protection form attached and gently place it on a desktop or table. Remove the extra parts and the foam covering the back of the monitor. Press the release button to remove the stand plate. If the monitor was already attached to the stand, remove the stand.

2. Assemble the mount as per the instructions provided with the mount.


CONNECTIVITY

Power cable

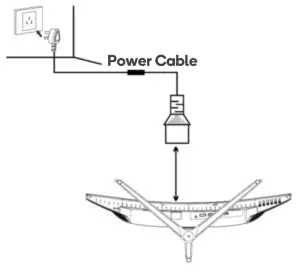

Connect the included power cable to the monitor power port, then connect the other end to a power outlet.

Earphones (Audio Out)

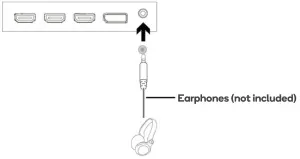

Earphones, headphones or other audio devices can be connected to the 3.5mm output on the monitor. The monitor may need to be set as the PC’s default sound output device

HDMI
In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to connect the monitor to the computer.

DisplayPort

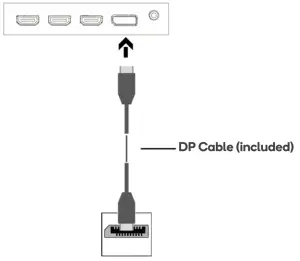

In order for the monitor to receive DisplayPort signals from the computer, use the DisplayPort cable to connect the monitor to the computer.

OPERATION

1. Connect the monitor to the input device via HDMI or DisplayPort.
2. Connect the power cable to the monitor, then connect the other end directly to a power socket.
3. Use the power button to turn the monitor on.

FreeSync

• In order to use this feature, ensure your hardware has FreeSync capability and the graphics drivers are fully up to date.
• After connecting, you may receive a prompt to enable the feature on your If you do not receive the prompt, you may need to enable the function in your graphics card menu.
• See your graphics card manufacturer’s documentation for instructions on how to turn on and/or enable FreeSync.

Indicator light

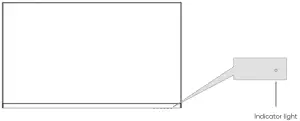

The indicator light will illuminate green when the monitor is powered on.

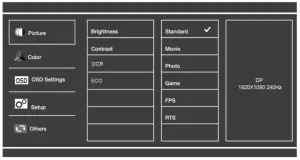

The On-Screen Display (OSD) Menu moy be used to adjust your monitor’s settings and appears on the screen after turning on the monitor and pressing the ” ” button.

When using the monitor for the first time, it will configure optimal settings automatically.

1. Press ” ” to activate the navigation window.

2. Press ” ” to enter the OSD menu.

3. Press ”  ” or ” ” to browse functions.
   With the desired function highlighted, press ” ” to enter the sub-menu.
   Press ”  ” or ” ”  to browse sub-menus, then press ”   ” to highlight the desired function.
   Press ”   ” or ”  ” to highlight on option, then press ”  ” to confirm the settings and exit the current screen.
4. Press” ” to exit the current screen.

Refer to the following pages for a detailed list of the OW menu functions.

ECO MODES & GAMEPLUS SWITCHING

1. Press button to switch Gameplus modes. These overlay icons are primarily designed to assist aim during FPS games, though they can be used for other scenarios.

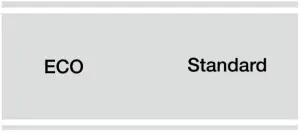

2. Press button to switch ECO modes. These modes include Standard, Text, Movie, Game, FPS and RTS and can be used to optimise settings according to your activity. Standard mode is suitable for most activities.


SPECIFICATIONS

NOTES

Need more information?
We hope that this user guide has given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product, as well as any additional assistance you may require,
head online to help.kogan.com
