SAFETY & WARNINGS
- Read all instructions before using the appliance and retain them for reference.
- This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them.
- Do not insert any object or spray any liquid into the vents.
- Avoid placing the monitor near heaters, stoves, fireplaces, or other sources of heat, as well as in rooms lacking adequate ventilation.
- Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged and may injure nearby people.
- Unplug the monitor if it is not going to be used for an extended period.
- Do not place heavy objects on the monitor, its power cord, or any connected cable.
- Do not open the back panel of the monitor, as it contains a high-voltage current even when not plugged in.
The terms HDMI and HDMI High-Definition Multimedia Interface and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

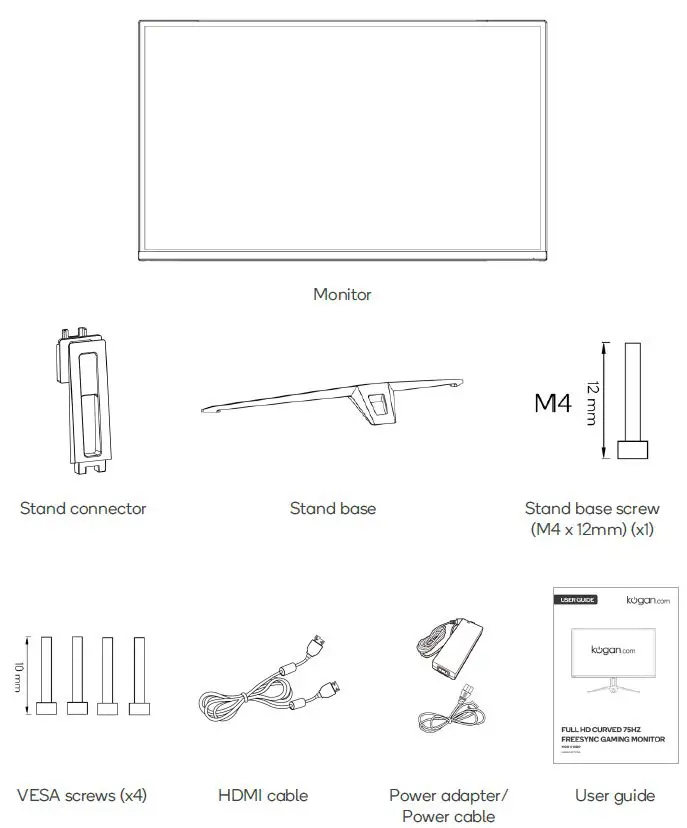

COMPONENTS
OVERVIEW

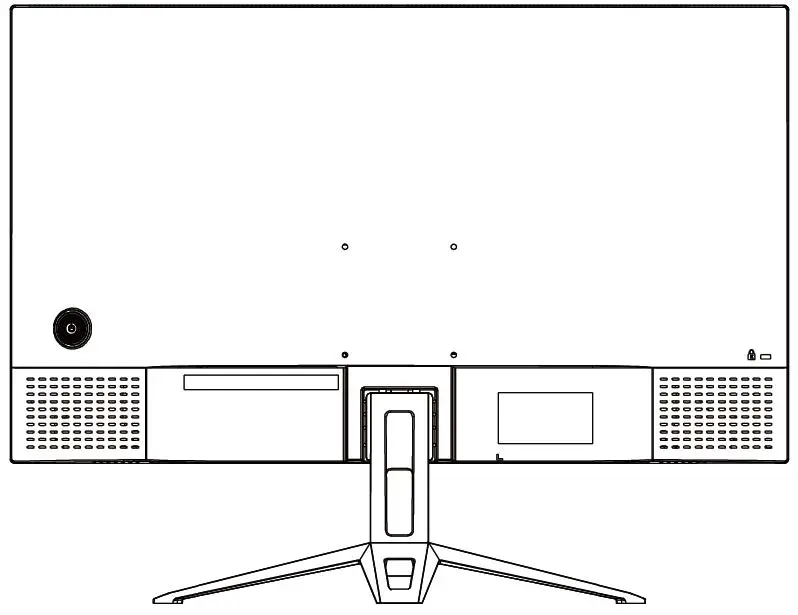

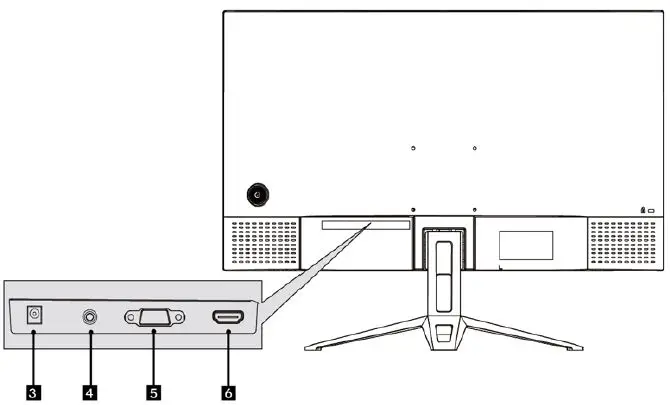

Monitor Ports
| 3 | Power input (DC 12V) |
| 4 | Audio In |
| 5 | VGA connector |
| 6 | HDMI connector |
ASSEMBLY
Assembling with stand
WARNING: Panel is fragile. Keep the foam underneath the monitor while assembling the stand.
- Carefully remove the monitor from the packaging with foam attached and place it face down on a soft cloth spread across a stable surface such as a table.

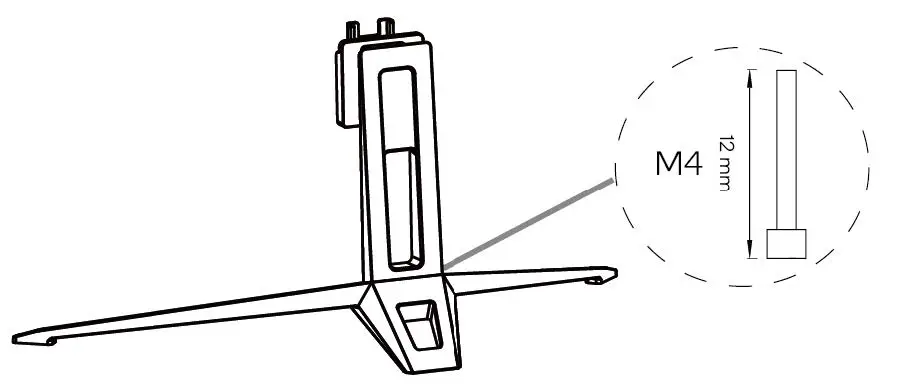

- Attach the stand base to the stand connector using the M4 screw provided.

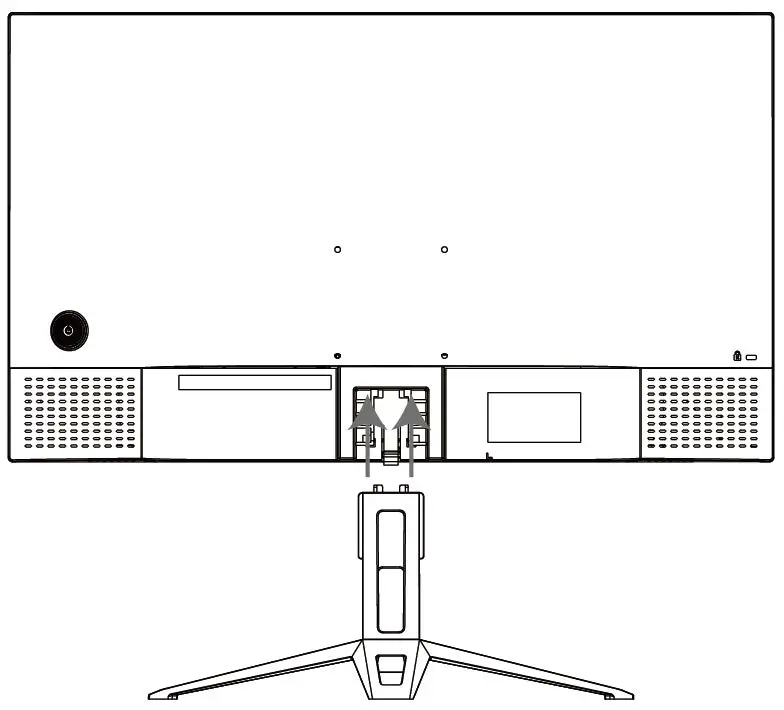

- Insert the top of the stand connector into the rear of the monitor and push down until firmly connected.
- Lift the monitor up straight and remove the bottom foam. Stand the monitor up on the installed base
Assembling with VESA Mount

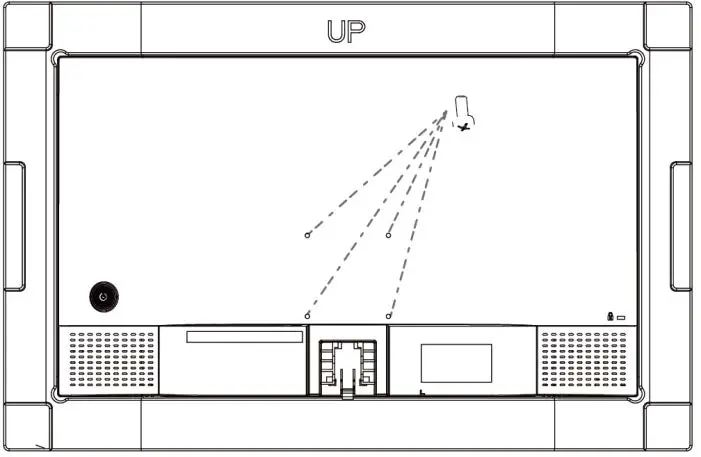

VESA mounting pattern 75 x 75mm, screw size M4.
Note: VESA mount or mounting accessories are not included.

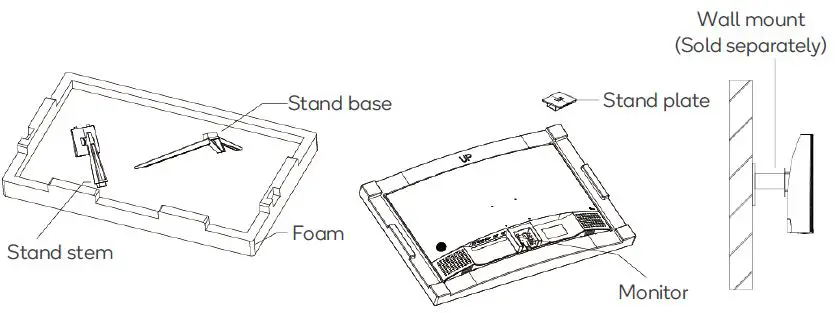

Open the box, take out the monitor with the protection form attached, and gently place it on a desktop or table. Ensure all components are removed from the foam covering. Press the release button to remove the stand plate.
If the monitor is already attached to the stand, remove the stand before proceeding with VESA mount assembly.
Instructions for attaching to the specific wall mount will be included with the mount.
CONNECTIVITY

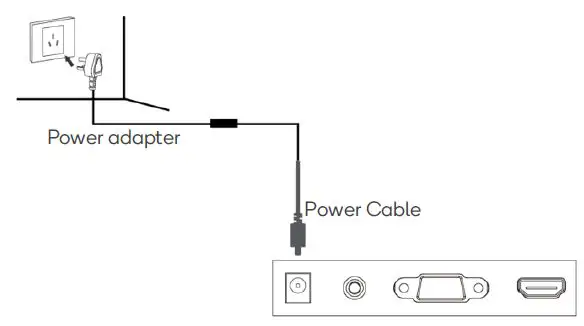

Power Cable
Connect the included power cable to the monitor power port and then connect the other end to a power outlet.

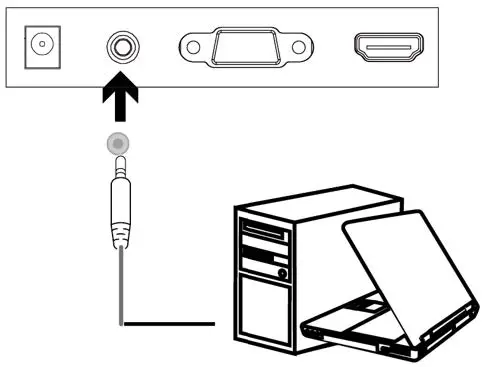

Audio In
Connect an audio cable to the 3.5mm audio port on the monitor (Audio In) and the 3.5mm audio port on your computer.
HDMI

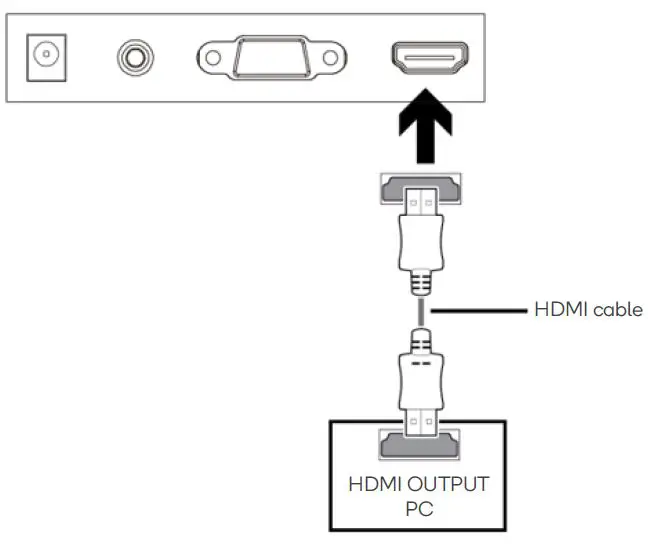

Connect an HDMI cable from the computer’s display output to the monitor’s display input.
VGA

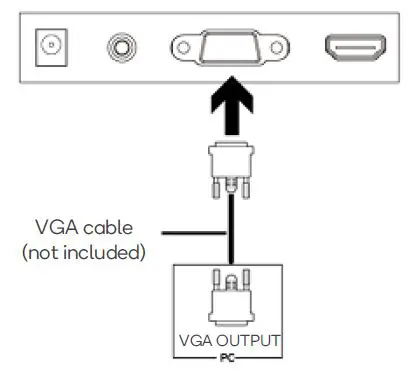

Connect a VGA cable from the computer’s display output to the monitor’s display input.
OPERATION
- Connect the monitor to your input device via HDMI or VGA.
- Connect the power cable to your monitor and then connect the other end directly to a power socket.
- Use the power button to turn the monitor on.
FreeSync
- The feature is disabled by default when setting a 75Hz refresh rate.
- In order to use this feature, ensure your hardware has FreeSync capability and the graphics drivers are fully up to.
- After connecting, you may receive a prompt to enable the feature on your computer. If you do not receive the prompt, you may need to enable the function in your graphics card menu.
- See your graphics card manufacturer’s documentation for instructions on how to turn on and/or enable FreeSync.

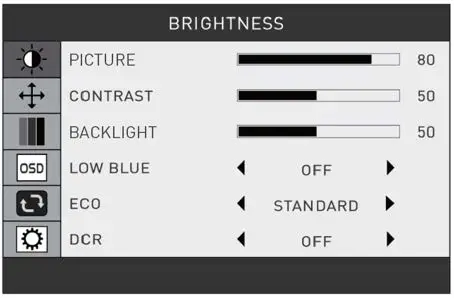

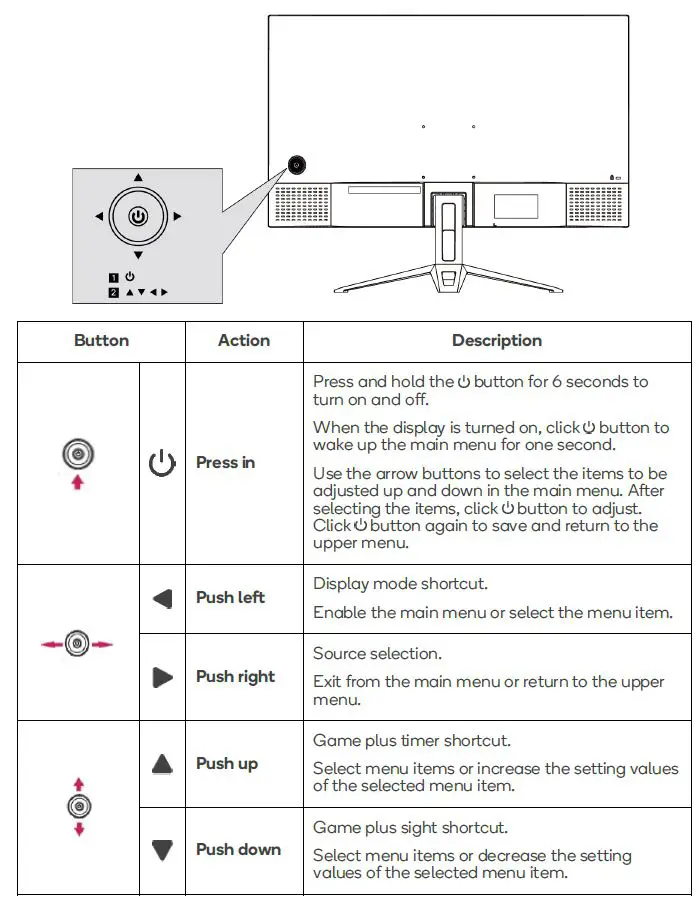

The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on the screen after turning on the monitor and pressing the button. When using the monitor for the first time, it will configure optimal settings automatically.
- Press the right button to open the navigation window.
- Press up and down ( / ) buttons to browse functions. With the desired function highlighted, press the right button to enter the sub-menu.Press up and down ( / ) buttons to browse sub-menus, then press the button to highlight the desired function. Press the up and down ( / ) buttons to highlight an option, then press the button to confirm the settings and exit the current screen.
- Press the left button to exit the current screen.
List of Functions
| Main Menu | Sub Menu | Option | Description |
|
Brightness | Picture | ~0-100 | Adjust display brightness |
| Contrast | ~0-100 | Adjust display contrast | |
| Blacklight | ~0-100 | Adjust display Blacklight | |
| Low blue | On | Enable/disable blue light reduction | |
| Off | |||
| ECO | STANDARD/TEXT/ GAME/MOVIE/ FPS/RTS | Preset colour modes | |
| DCR | On | Enable/disable dynamic contrast ratio | |
| Off | |||
|
Image | Horizontal position | ~0-100 | Adjust video display area left to right (VGA only) |
| Vertical position | ~0-100 | Adjust video display area up and down (VGA only) | |
| Clock | ~0-100 | Adjust display Clock | |
| Phase | ~0-100 | Adjust display Phase | |
| Aspect | Wide (16:9), 4:3 | Adjust display Phase Aspect | |
| FreeSync | On/Off | Adjust display FreeSync On/Off | |
|
Colours | Warm mode | Red/green/blue | Adjust red/green/blue levels |
| Cool mode | Red/green/blue | Adjust red/green/blue levels | |
| User mode | Red/green/blue | Adjust red/green/blue levels | |
| HDR mode | On/Off | Enable or disable HDR mode |
|
OSD Setting Reset |
Language | English, 简体中文, 한국어, Русский, Español, Deutsch, Italiano, Français, Portugues, Turkce, Polski, Nederlands |
Set OSD language |
| OSDH-Position | ~0-100 | Adjust OSD horizontal position | |
| OSD V- Position | ~0-100 | Adjust OSD vertical position | |
| OSD Transparency | ~0-100 | Set OSD overall transparency | |
| OSD Time Out | 5~60 | Set how long the OSD remains open after last input | |
|
Reset | Image | None | Restore VGA image defaults |
| Colour | None | Automatically configure VGA colour settings | |
| Reset | None | Restore factory defaults | |
| Power down | On | Enable/disable Power down function | |
| Off | |||
|
Misc | Time count | 10-90min | Adjust Time count |
| Signal source | VGA/HDMI | Adjust input source | |
| Mute | On | Enable or disable monitor speaker output | |
| Off | |||
| Volume | ~0-100 | Adjust monitor speaker volume |
Eco Modes & Game plus Switching

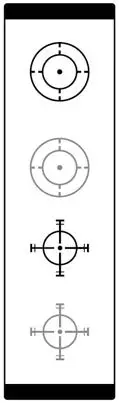

Press the down button to switch Game plus modes. These overlay icons are primarily Eco Modes & Game plus Switchin designed to assist aim during FPS games, though they can be used for other scenarios.
Press left button to switch ECO modes. These modes include Standard, Text, Game, Movie, FPS and RTS and can be used to optimise settings according to your activity. Standard mode is suitable for most activities.
SPECIFICATIONS
| Aspect ratio | 16:9 |
| Brightness | 250cd/ m² (Typ.) |
| Panel | VA |
| Resolution | 1920×1080 |
| Refresh rate | 75Hz |
| Response time | 20ms |
| Viewing angle | ≥178°(H) / 178°(V) |
| Contrast ratio | 3000:1 |
| VESA mounting | 75x75mm |
| Colours | 16.7M |
| Signal input | HDMI1. 4 x 1, VGA x 1 |
| Power | DC12V 3A |
| Audio | |
| Speakers | Yes |
| Audio In | Yes |
| Accessories | |
| Power cable | Yes |
| HDMI Cable | Yes |
| Additional functions | |
| Low Blue Light | Yes |
| Flicker Free | Yes |
| Physical dimensions | |
| Dimensions (w. Stand) | 537.15 x 412.6 x 169.5mm |
| Dimensions (w/o Stand) | 537.15 x 315.97 x 67.6mm |
| Net weight | 3.0kg |
| Gross weight | 4.3kg |
CLEANING & CARE
- Unplug the monitor before cleaning it.
- Use a clean, slightly dampened cloth to wipe the main monitor body.
- To clean the screen: Turn the monitor off, unplug it and wait for it to cool completely, then wipe it with a dry microfiber cloth.
- Do not use cleaning alcohol, ammonia-based liquids, or other harsh cleaners.
Need more information?
We hope that this user guide has given you the assistance needed for a simple setup.
For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
