USER GUIDE

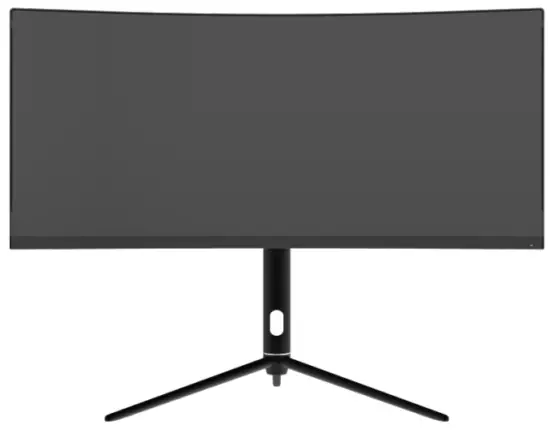

30″ CURVED ULTRAWIDE GAMING MONITOR
(2560 x 1080, 1500r, 200Hz, 21:9)
KAMN30FXULA
SAFETY & WARNINGS
- Read all instructions before using the appliance and retain this user guide for future reference.
- Unplug the monitor before cleaning it.
- Use a clean, slightly-dampened cloth to wipe the main monitor body.
- To clean the screen: turn it off, unplug it and wait for it to cool completely.then wipe it with a dry microfibre cloth.
- Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.
- This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them.
- Do not insert any object or spray any liquid into the vents.
- Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat, as well as in rooms lacking adequate ventilation.
- Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged and may injure nearby people.
- Unplug the monitor if it is not going to be used for an extended period.
- Do not place heavy objects on the monitor, its power cord or any connected cable.
- Do not open the back panel of the monitor, as it contains a high-voltage current even when not plugged in.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
COMPONENTS
OVERVIEW
Controls
- Power button
- RGB Range/Exit
- LED light effect/Down
- Menu/Enter
- GamePlus Mode/Up

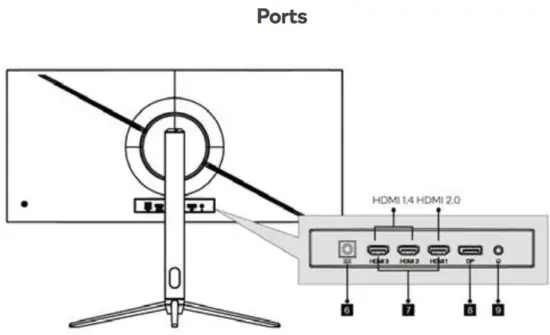

- Power Input
- HDMI Input
- DisplayPort Input
- Audio Output
ASSEMBLY

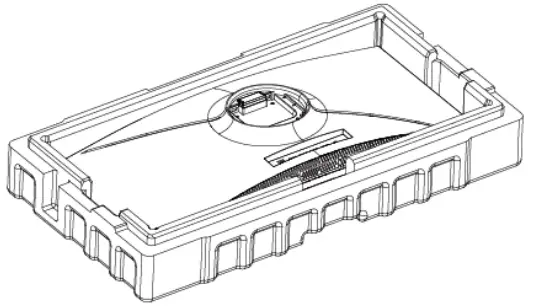

Before disposing of any packaging, place all items on a soft, clean and flat surface to ensure all components are accounted for.
WARNING: The panel of the monitor is fragile. Keep the foam underneath the monitor screen while assembling the stand.
Installing the Stand Base

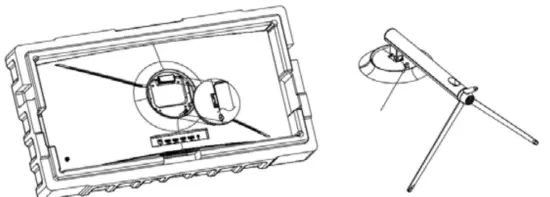

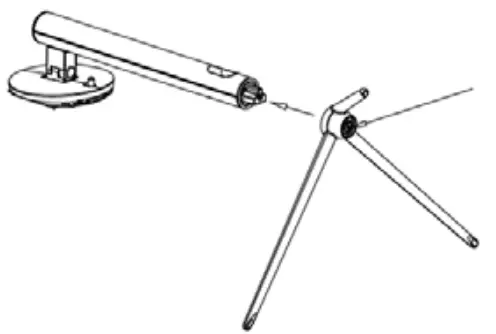

- Lay the monitor screen facing down on a table with the monitor still resting on the packing foam. Attach the display base and attach it to the display neck. While the neck is attached to the base, insert, and tighten the base screws to the underside of the base.
- Open the packing foam with the monitor resting facing downwards. Take the assembled stand piece and insert it headfirst into the circular opening on the back of the monitor. Once it is inserted press downwards on the neck until you hear a ‘click’ sound.
VESA MOUNT

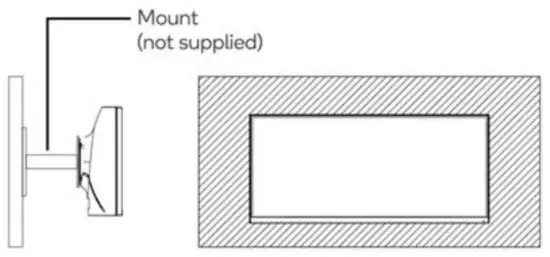

Follow the steps below to install onto a monitor arm or wall mount (not included)
- Lay the monitor screen facing down on a table with the monitor still resting on the packing foam.

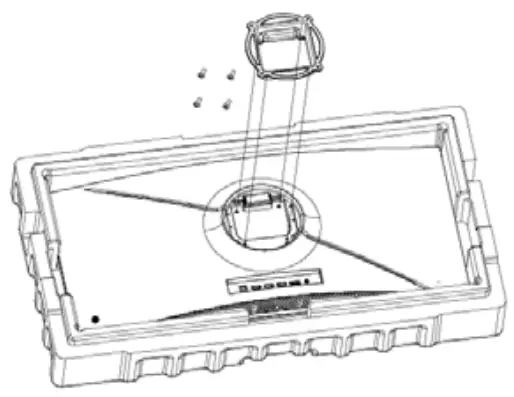

- With the circular indentation now open to you, remove the four screws installed on the back of the monitor.
- Install the provided VESA connectors to the back of the monitor.
- With the VESA connectors installed, the monitor is ready to be wall mounted. The mounting pattern is 75mm x 75mm.
CONNECTIVITY

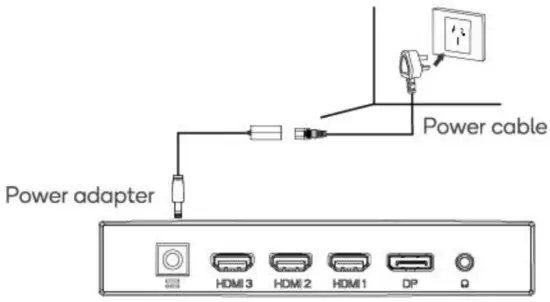

Power
- Connect the included power cable to the monitor power port.
- Connect the power cable to the power adapter.
- Connect the power adapter to the power outlet.
Audio

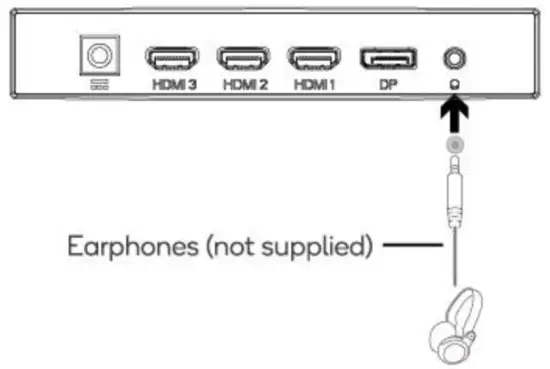

Plug in your earphones to receive audio signals from your monitor. If your earphones are connected to the monitor and audio devices are connected to your computer at the same time, the audio devices will not produce sound. Earphones and other audio devices not included.
HDMI
In order for the monitor to receive HDMI signals from the computer, use a HDMI cable to connect the monitor to the computer.

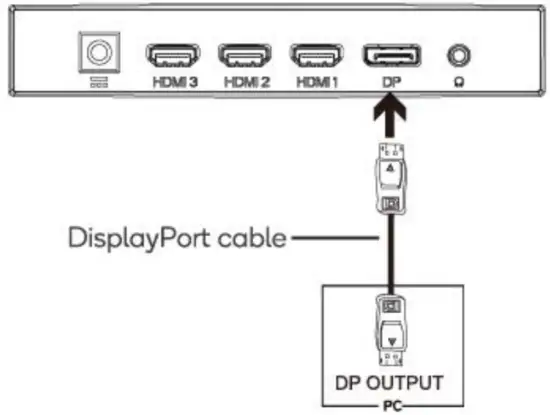

DisplayPort
In order for the monitor to receive DisplayPort signals from the computer, use the DisplayPort cable to connect the monitor to the computer.
OPERATION
- Connect the monitor to the input device via HDMI or DisplayPort.
- Connect the power cable to the monitor, then connect the other end directly to a power socket.
- Use the power button to turn the monitor on.
Indicator Light
Solid Blue light: Power is on and the monitor is operating normally.
Flashing Blue light: No video source. No horizontal or vertical signal detected. Please ensure your computer is on and all video cables are fully inserted and/or connected.
The On-Screen Display (OSD)

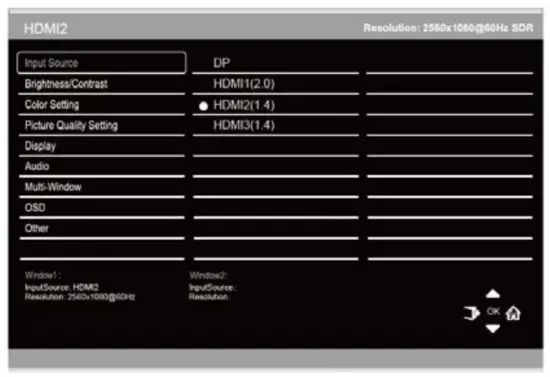

The OSD menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the Right button.
When using the monitor for the first time, settings will automatically adjust to optimal parameters according to your computer’s configuration and parts etc.
- The monitor includes one touch options to access common settings.
- Press Right to enter the OSD menu.
- Press Up or Down to browse functions. Highlight the desired function, then press Right to enter the sub-menu. Press Up or Down to browse sub-menus, then press Right to highlight the desired function. Press Up or Down to highlight an option, then press Right to confirm the settings and exit the current screen.
- Press Left to exit the current screen.
List of Functions
| Main Menu | Sub-Menu | Options | Description |
| Input Source | DP | NONE | Switch to DP signal input |
| HDMI 1(2.0) | NONE | Switch to HDMI signal input | |
| HDMI 20.4) | |||
| HDMI 30.4) | |||
| Brightness/ Contrast | Brightness | 0-100 | Adjust display brightness |
| Black level | 0-100 | Adjust display black level | |
| Contrast | 0-100 | Adjust display contrast | |
| DCR | On | Turn on DCR function | |
| Off | Turn off DCR function | ||
| Color Setting | Gamma | 1.8 | |
| 2.0 | Set Gamma add-in | ||
| 2.2 | |||
| 2.4 | |||
| 2.6 | |||
| Picture Mode | Standard, Photo, Movie, Game, FPS, RTS | Set visual mode according to activity | |
| Color Temperature | Warm, Cool, USER | Select color temperature | |
| Low Blue Light | 0-100 | Set blue light filtering level | |
| Hue | 0-100 | Adjust hue levels | |
| Saturation | 0-100 | Adjust saturation levels | |
| Picture Quality | Sharpness | 0-100 | Set display sharpness |
| Setting | Response Time | Off, High, Middle, Low | Turn On/Off the response time of the monitor |
| Noise Reduction | Off, High, Middle, Low | Reduce the interference of image noise caused by signal source interference. | |
| Super Resolution | Off, High, Middle, Low | When the resolution of the display screen is low, this function can be turned on toenhance the image resolution. | |
| Dynamic Luminous Control | On, Off | Compensate for gray scale display screen and strengthen the expression of gray scale. | |
| MPRT | On, Off | Moving Picture Response Time | |
| Display | Aspect Ratio | Wide Screen, 4:3, 1:1, Auto | Select on-screen aspect ratio |
| Audio | Mute | On, Off | Turn mute mode on/off |
| Volume | 0-100 | Adjust audio volume | |
| Audio Source | Auto Source, HDMI1, HDMI2, HDMI3, DP | Select audio signal input via HDMI or DP | |
| Multi-Window | Multi-Window | Off, PIP Mode, PBP 2Win | Select PIP/PBP modes according to the number of input signals etc. |
| Sub Win2 Input | DP, HDMI 1, HDMI 2, HDMI 3, | Select according to input signal for PIP/PBP mode | |
| PIP Size | Small, Medium, Large | Adjust the PIP/PBP window size |
| PIP Position | TopRight, Top Left, Bottom Right, Bottom Left | Adjust the PIP/PBP window position | |
| Swap | NONE | Swap the PIP/PBP signal sources | |
| OSD | Language | English | Set OSD language |
| OSD H-Position | 0-100 | Adjust the OSD’s horizontal position | |
| OSD V-Position | 0-100 | Adjust the OSD’s vertical position | |
| OSD Transparency | 0-100 | Set the OSD’s overall transparency | |
| OSD Time Out | 5-100 | Set how long the OSD remains open after non-use | |
| OSD Rotation | Normal, 90,180, 270 | When the user fl ips the display, this function can also fl ip the OSD to achieve the best display angle | |
| Other | DP Version | DP1.1, DP1.2 | |
| Adaptive Sync | On, Off | Turn the Adaptive Sync function on/off | |
| HDR | Off, On, Auto Detect | Turn the HDR mode on/off | |
| Reset | None | Reset monitor configurations |
ECO MODES & GAMEPLUS

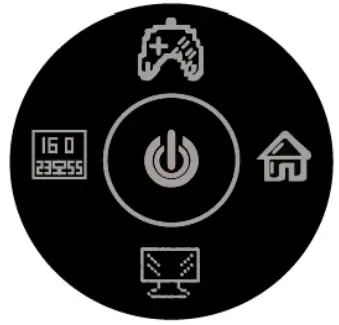

- Press any button to activate OSD guidance.

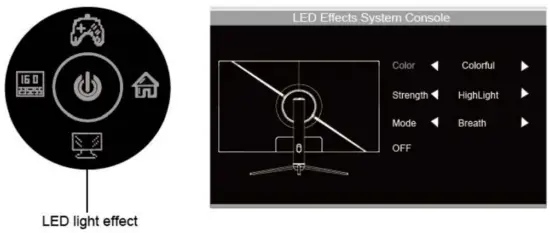

- Press Down to enter LED light effect system console.
- There are options for Color, Strength, Mode.

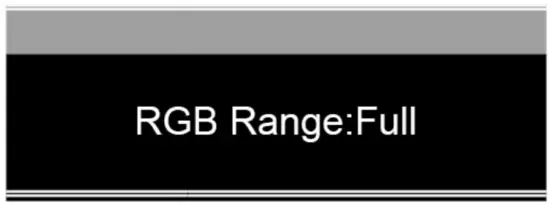

- Press Left button to switch colour gamuts mode between “Limited & Full”.
Gameplus
Press Up button to switch Gameplus modes. According to the needs of your game, choose the corresponding game icon. These game icons are primarily designed to optimize your aim during shooting games, though they can be used for other scenarios.
SPECIFICATIONS
| Model | KAMN30FXULA |
| Screen Size | 30″ |
| Aspect Ratio | 21:09 |
| Backlight | E-LED |
| Brightness | 350cd/m² |
| Panel | VA |
| Resolution | 2560×1080 |
| Refresh Rate | 200Hz |
| Response Time | 4ms |
| Viewing Angle | 178°(H) / 178°(V) (Ty p. ) |
| Contrast Ratio | 3000:01:00 |
| VESA Mounting | 75×75 |
| Colours | 16.7M |
| Adaptive Sync | YES |
| Signal Input | DPx1, HDMI2.0x1, HDMI1.4×2 |
| Power | DC 19V  3.42A |
| Audio | |
| Speakers | NO |
| Audio Out | YES |
| Accessories | |
| Power Cable | YES |
| Power Adapter | YES |
| DP Cable | YES |
| Additional Functions | |
| Low Blue Light | YES |
| Flicker Free | YES |
| Physical Dimensions | |
| Dimensions (with Stand) | 701.1×269.3×536.3 (mm) |
| Dimensions (w/o Stand) | 701.1×121.7×317.6 (mm) |
| Net Weight | 6.31kg |
| Gross Weight | 9.14kg |
Need more information?
We hope that this user guide has given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
