USER GUIDE
kogan.com

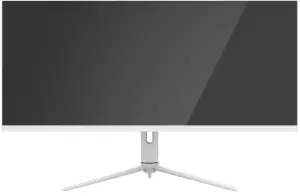

40″ WQHD IPS ULTRAWIDE HDR GAMING MONITOR
3440 X 1440, 144HZ KAMN40XQUCLA
SAFETY & WARNINGS
- Read all instructions before using the appliance and retain them for reference.
- Do not open the back panel of the monitor, as it contains a high-voltage current even when not plugged in.
- Avoid placing the monitor near heaters, stoves, fireplaces, or other sources of heat, as well as in rooms lacking adequate ventilation.
- Do not place heavy objects on the monitor, its power cord, or any connected cable.
- Unplug the monitor if it is not going to be used for an extended period.
- This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them.
- Do not insert any object or spray any liquid into the vents.
- Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged and may injure nearby people.
- Unplug the monitor before cleaning it.
- Use a clean, slightly dampened cloth to wipe the main monitor body.
- To clean the screen: turn it off, unplug it and wait for it to cool completely, then wipe it with a dry microfibre cloth.
- Do not use cleaning alcohol, ammonia-based liquids, or other harsh cleaners.
The terms HDMI and HDMI High-Definition Multimedia Interface and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

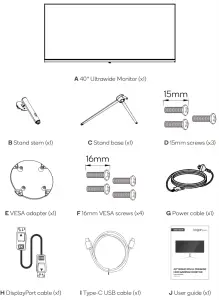

COMPONENTS
OVERVIEW

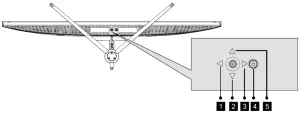

Controls
 | Left button (scene mode switching) |
 | Down button (LED effects) |
 | Down button (LED effects) |
 | Power On/Off |
 | Up button (display crosshairs) |
Ports
| 6. HDMI port 7 .DisplayPort port 8 .Type-C USB port 9. Audio out (3.15mm) port 10. AC power input |

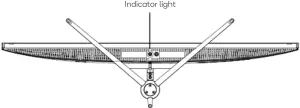

Indicator Light
| Light | Status |
| Solid blue | The power is on and the monitor is operating normally. |
| Flashing red | No video source.no horizontal or vertical signal has been detected. Please ensure your computer is on and all video cables are fully inserted and/or connected. |
STAND ASSEMBLY

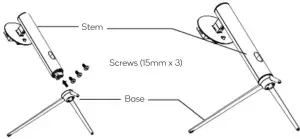

Step 1: Attach the Stand stem (B) to the Stand base (C) with x3 15mm screws (D). Use a screwdriver (not supplied) to secure the screws.
Step 2: Place the monitor (A) face down on the flat foam. Insert the stand assembly to the back of the monitor.
Step 3: Use both hands to stand the assembled monitor on a flat desktop.
VESA MOUNT ASSEMBLY
Step 1: Remove the monitor from the packaging, keeping the protective foam attached. Gently place it face-down on a flat surface and remove the upper foam.
Step 2: Place the VESA adapter (E) over the opening at the back of the monitor. Using a screwdriver, secure the VESA adapter to the monitor with x4 16mm screws (F).
Step 3: The monitor is now ready to be attached to a wall-mounting bracket or monitors mount (not supplied). For wall mounting instructions, follow the user guide supplied with the wall mount.
Note: Wall mount or mounting accessories are not included.
CONNECTIVITY

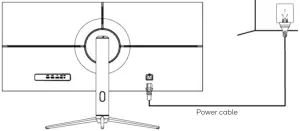

Power input
Connect the included power cable (G) to the power input, then plug the other end into a wall outlet and turn it on.

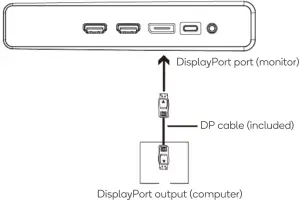

DisplayPort connection
For the monitor to receive DisplayPort signals from the computer, use the supplied DisplayPort cable (H) to connect the monitor to the computer.
HDMI connection
For the monitor to receive HDMI signals from the computer, use an HDMI cable (not supplied) to connect the monitor to the computer.

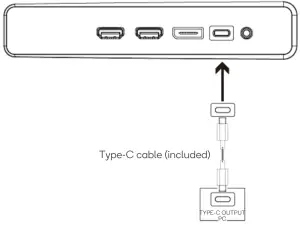

Type-C USB connection
Connect to this monitor from your compatible computer using a Type-C USB cable (included) to receive a high-quality digital video signal.

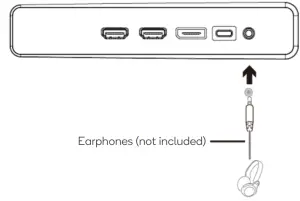

Earphones
Plugin your earphones to receive audio signals from your monitor. If your earphones are connected to the monitor and audio devices are connected to your computer the same time, the audio devices will not produce sound. Earphones and other audio devices are not included.

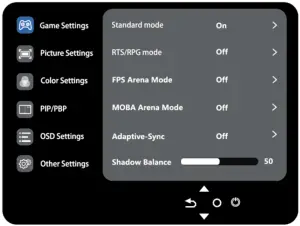

SETTINGS
To open the On-Screen Display (OSD) menu, press the right button (
/ ) while the monitor is powered on. Here you will find all adjustable options for your monitor’s settings. When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer’s configuration.
Press up and down buttons ( and ) to browse functions.
Select the desired function and press the right button (►/ 0 ) to enter the submenu.
Press or browse the submenu and then press the right button ( ► /0 ) to confirm the selection of the desired function.
Press or select an option, then press the right button (► /0 ) to confirm the settings and exit the current menu.
Press the left button () to exit the menu interface.
List of Functions
| Main Menu | Sub-Menu | Options | Description |
| Game Settings | Standard Mode | On, Off | Turn the game standard mode on/off |
| RTS/RPG Mode | On, Off | Turn the game RTS/RPG mode on/off | |
| FPS Arena Mode | On, Off | Turn the game FPS arena mode on/off | |
| MOBA Arena Mode | On, Off | Turn the game MOBA arena mode on/off | |
| Adaptive-Sync | On, Off | Turn the Adaptive-Sync function on/off | |
| Shadow Balance | 0-100 | Adjust the Shadow balance of the monitor | |
| Response Time | OFF, Normal, Fast, Ultrafast | Adjust response time | |
| Refresh Rate | On, Off, Position (Top Right, Top Left, Bottom Right, Bottom Left) | Turn the Refresh Rate function on/off | |
| Game Crosshair | Off, Crosshair 1, Crosshair 2, Crosshair 3, Crosshair 4, Crosshair 5, Crosshair 6 | Set the game crosshairs | |
| Game Time | Off.15:00, 30:00, 45:00, 60:00, Position (Top Right, Top Left, Bottom Right, Bottom Left) | Adjust Game Time |
| Dynamic Brightness | Off, Normal, Expert, Elaboration | Adjust display dynamic brightness | |
| HDR | Off, HDR Standard, HDR Movie, HDR RTS/RPG, HDR FPS | Adjust the HDR mode | |
| MPRT | On, Off | Moving Picture Response Time | |
| Ambient Lighting | Led Bar (Colour, Strength, Mode, Front Colour, Rear Colour) | Adjust the backlight mode settings | |
| Physical Super View | On, Off, Position | Set the physical super view | |
|
Picture Settings | Brightness | 0~100 | Adjust display brightness |
| Contrast | 0~100 | Adjust display contrast | |
| DCR | On, Off | Turn the DCR function on/off | |
| Contextual Model | Off, Movie Mode, Reading Mode, Night Mode, Care Eyes Mode | Adjust display Contextual model | |
| Low Blue Light | 0~100 | Set blue light filtering level | |
| Sharpness | 0~100 | Set display sharpness | |
| Gamma | 1.8, 2.0, 2.2, 2.4, 2.6, S. curve | Set Gamma add-in | |
| Aspect Ratio | Wide Screen, 1:1, 4:3, Auto | Select an on-screen aspect ratio |
| Colour Settings | Warm | On, Off | Turn on/off warm colours temperature |
| Cool | On, Off | Turn on/off cool colours temperature | |
| User 1 | On, Off | Turn on/off user 1 colours temperature | |
| User 2 | On, Off | Turn on/off user 2 colours temperature | |
| User 3 | On, Off | Turn on/off user 3 colours temperature | |
| Hue | R, G, B, C, M, Y | Adjust hue levels | |
| Saturation | R, G, B, C, M, Y | Adjust saturation levels | |
| PIP/PBP | PIP/PBP Mode | Off, PIP Mode, PBP 2Win 1:1, PBP 2Win 2:1, PBP 2Win 1:2 | Swap the PIP/PBP mode |
| Sub-Signal Source | Auto, Type-C, DP, HDMI 1, HDMI 2 | Select audio signal input via HDMI or DP or Type-C | |
| Audio Source | Type-C, DP, HDMI 1, HDMI 2 | Select audio signal input via HDMI or DP or Type-C | |
| PIP Position | Top Right, Top Left, Bottom Right, Bottom Left | Freely adjust the sub-screen position. | |
| PIP Size | Small, Medium, Large | Resize the PIP window | |
| Window Swap | NONE | ain and sub-screen channel swap |
| OSD Settings | Language | Portugues do Brasil, | Set OSD language |
| OSD Time Out | 5~100 | Set how long the OSD stays on | |
| OSD H-Position | 0~100 | Adjust the OSD’s horizontal position | |
| OSD V-Position | 0~100 | Adjust the OSD’s vertical position | |
| OSD Transparency | 0~5 | Set the OSD’s overall transparency | |
| OSD Rotation | Normal, 90, 180, 270 | When the user flips the display, this function can also flip the OSD to achieve the best display angle | |
| OSD Lock | On, Off | Turn on/off the OSD lock | |
| Hotkey1 Setting | Brightness, Contrast, Volume, Mute, Shadow Balance, Game Crosshair, Refresh Rate, Game Time, Contextual Model, PIP/PBP Mode, Input Signal, Dynamic Brightness, Physical Super View, HDR, Ambient Lighting | Adjust Hotkey1, 2, 3 Setting | |
| Hotkey2 Setting | |||
| Hotkey3 Setting |
| Other Settings | Input Signal | Auto, Type-C, DP, HDMI 1, HDMI 2, Auto | Switch display signal input |
| Volume | 0~100 | Adjust audio volume | |
| Mute | On, Off | Turn mute mode on/off | |
| Auto Power | On, Off | Turn Auto power mode on/off | |
| Eyeshield Remind | On, Off | Turn Eyeshield Remind mode on/off | |
| Reset | No | Reset monitor configurations | |
| Information | Input Source, Resolution, Mode, HDR Ver, SN | The display part of the monitor information. |
SPECIFICATIONS
| Screen Size | 40″ |
| Aspect Ratio | 21:9 |
| Backlight | E-LED |
| Brightness | 400 cd/m²(Typ.) / 400 cd/m² (Min.) |
| Panel | IPS |
| Resolution | 3440 x 1440 |
| Refresh Rate | 144 Hz |
| Response Time | OD 5ms |
| Viewing Angle | ≥178° (H) / 178° (V) |
| Contrast Ratio | 1200: 1 |
| VESA Mounting | 75 x 75 |
| Colours | 16.7 M |
| Adaptive-Sync | YES |
| Signal Input | DP1.4 (x1), HDMI2.0 (x2), USB Type-C (x1) |
| Power | AC 100-240V~ 50/60Hz 3.0A |
| Audio | |
| Built-in speakers | YES |
| Audio out | YES |
| Additional Functions | |
| Low Blue Light | YES |
| Physical Dimensions | |
| Dimensions (with stand) | 944.1 x 596.4 x 286.8 (mm) |
| Dimensions (without stand) | 944.1 x 418.3 x 82.4 (mm) |
| Net Weight | 10.98 kg |
| Gross Weight | 14.38 kg |
Need more information?
We hope that this user guide has given you the assistance needed for a simple setup. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
