Lg 34wq60c 34 Inch Curved Ultrawide Qhd Ips Hdr 10 Monitor User Guide

Lg 34wq60c 34 Inch Curved Ultrawide Qhd Ips Hdr 10 Monitor User Guide

LG - LogoLED LCD Monitor
34WQ60C
34BQ60QCLG 34WQ60C 34 Inch Curved UltraWide QHD IPS HDR 10 Monitor

34WQ60C 34 Inch Curved UltraWide QHD IPS HDR 10 Monitor

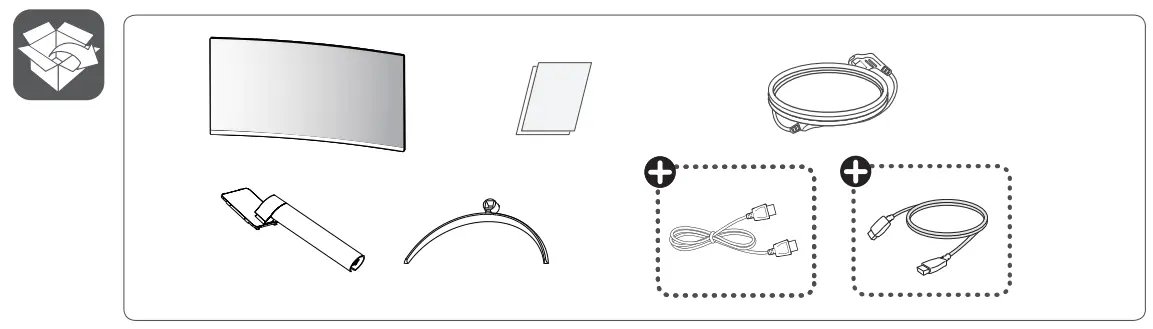

LG 34WQ60C 34 Inch Curved UltraWide QHD IPS HDR 10 Monitor - Figure

Depending on country

LG 34WQ60C 34 Inch Curved UltraWide QHD IPS HDR 10 Monitor - Bar Code(2208-REV01)printed in china

LG 34WQ60C 34 Inch Curved UltraWide QHD IPS HDR 10 Monitor - Icon 1 – For EPEAT (EPEAT applied model) Spare parts are available for 5 years after the end of production. Spare parts include base assembly, adapter and cables.
It may differ by model, you can get the more information by visiting to this website: https://figparts.com/
LG 34WQ60C 34 Inch Curved UltraWide QHD IPS HDR 10 Monitor - Icon 1 Quick Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
LG 34WQ60C 34 Inch Curved UltraWide QHD IPS HDR 10 Monitor - Icon 2 It is recommended that use the supplied components.
LG 34WQ60C 34 Inch Curved UltraWide QHD IPS HDR 10 Monitor - Iconwww.lg.com
You can download manuals from the LGE website.

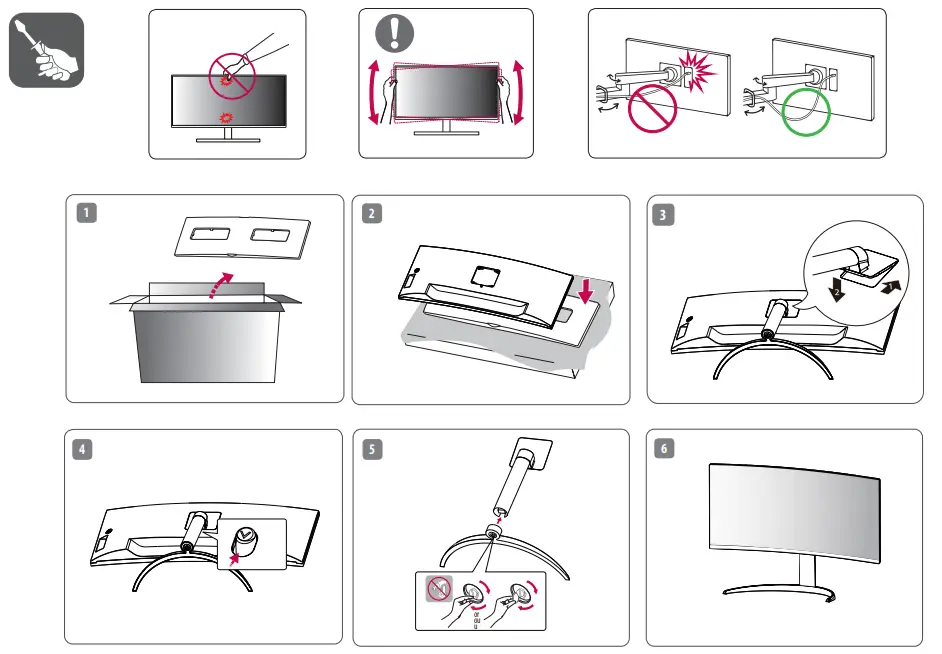

LG 34WQ60C 34 Inch Curved UltraWide QHD IPS HDR 10 Monitor - Figure 1

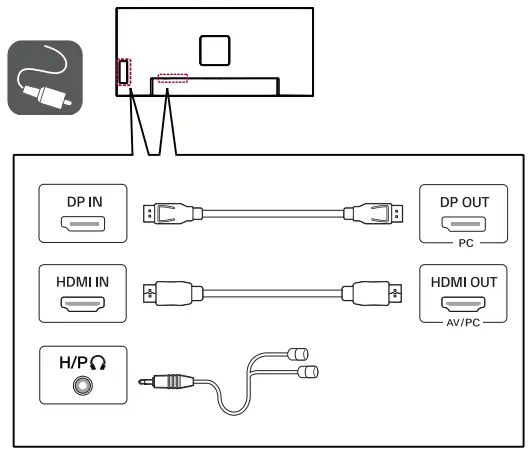

LG 34WQ60C 34 Inch Curved UltraWide QHD IPS HDR 10 Monitor - Figure 2

  • LG 34WQ60C 34 Inch Curved UltraWide QHD IPS HDR 10 Monitor - Icon 1 Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
  • Make sure to use the supplied cable. Otherwise, this may cause the device to malfunction.

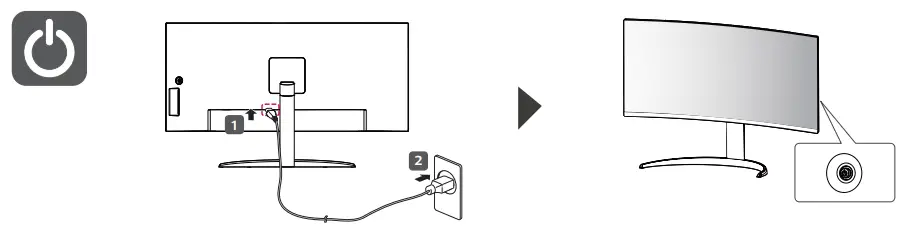

LG 34WQ60C 34 Inch Curved UltraWide QHD IPS HDR 10 Monitor - Figure 3

LG 34WQ60C 34 Inch Curved UltraWide QHD IPS HDR 10 Monitor - Icon 3 Dimensions (Width x Height x Depth)WeightRecommend ResolutionVertical Frequency
With StandWithout StandWith StandWithout Stand3440 x 1440HDMI lt 50 Hz HDMI 2.0: 60 Hz DisplayPort: 60 Hz
816.7 x 484.6 x 223.3 (mm)
32.1 x 19.0 x 8.7 (inches)
816.7 x 364.4 x 83.6 (mm)
32.1 x 14.3 x 3.2 (inches)
6.9 kg
15.2(lbs)
5.9 kg
13.0(Ibs)

LG - Logo

References

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
