USER GUIDE

32 QHD IPS 165HZ FREESYNC HDR GAMING MONITOR
(2560 x 1440)
KAMN32RT1SA

SAFETY & WARNINGS

• Read all instructions before using this monitor, and retain this user guide for future reference.
• Unplug the monitor before cleaning it.
• Use a clean, slightly dampened cloth to wipe the main monitor body.
• To clean the screen, turn it off unplug it, and wait for it to cool completely, then wipe it with a dry microfiber cloth.
• Do not use cleaning alcohol, ammonia-based liquids, or other harsh cleaners.
• This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them.
• Do not insert any object or spray any liquid into the vents.
• Avoid placing the monitor near heaters, stoves, fireplaces, or other sources of heat, as well as in rooms lacking adequate ventilation.
• Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged and may injure nearby people.
• Unplug the monitor if it is not going to be used for an extended period.
• Do not place heavy objects on the monitor, its power cord or any connected cable.
• Do not open the back panel of the monitor, as it contains a high-voltage current even when not plugged in.

The terms HDMI and HDMI High-Definition Multimedia Interface and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

COMPONENTS

Monitor

Stand connector	Stand base	Stand base screw (M6 x 16mm) (x1)	VESA screws (x4)	DisplayPort cable	Power cable	User guide

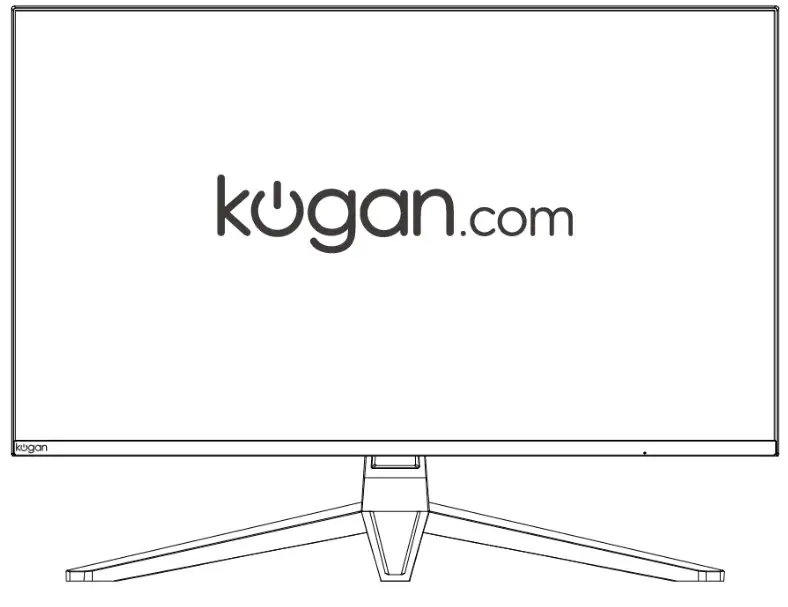

OVERVIEW

STAND ASSEMBLY

WARNING: The panel of the monitor is fragile. Keep the foam underneath the monitor screen while assembling the stand.

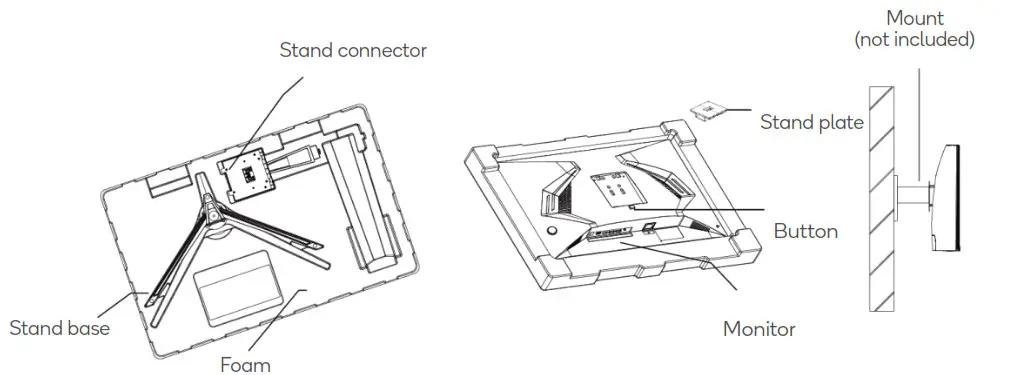

1.  Carefully remove the monitor, stand connector and stand base from the box.

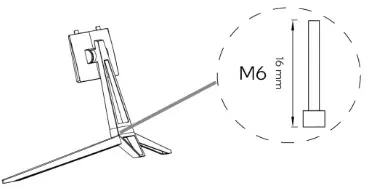

2. Attach the stand base to the stand connector using the M6 screw provided.

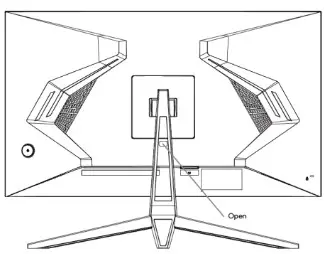

3. Insert the connection block into the back cabinet and push down until firmly connected.

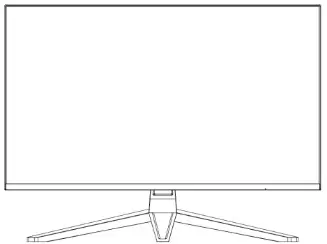

4. Lift the monitor up straight and remove the bottom foam. Stand the monitor up on the installed base.

VESA MOUNT

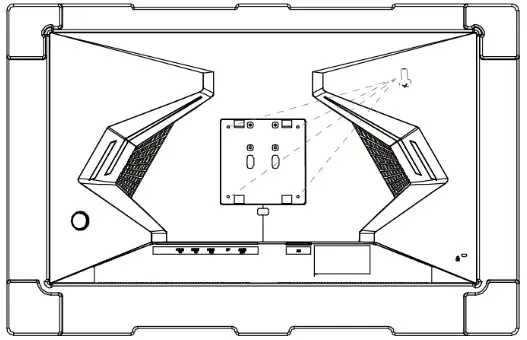

VESA mounting pattern is 100 x 100mm, screw size M4.
Note: VESA mount or mounting accessories are NOT included.

1. Open the box, remove the monitor with the protection foam attached, and gently place it on a desktop or table.
2.  Remove the foam covering the back of the monitor and all additional components from the packaging. Press the release button to remove the stand plate. If the monitor was already attached to the stand, remove the stand.

3. Follow the Mount Assembly Instructions as provided with the mount.

CONNECTIVITY

Power cable

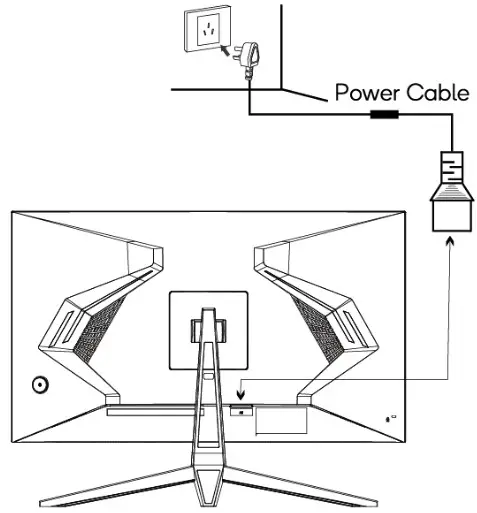

Connect the included power cable to the monitor power port, then connect the other end to a power outlet.

Earphones (Audio Out)

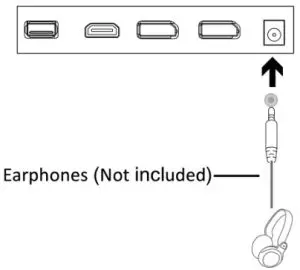

Connect an audio cable to the 3.5mm audio port on the monitor (Audio In) and the 3.5mm audio port on your computer.
Note: The monitor may need to be set as the PC’s default sound output device.

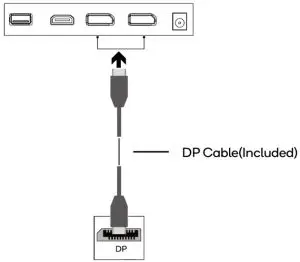

DisplayPort
In order for the monitor to receive DisplayPort signals from the computer, use the DisplayPort cable to connect the monitor to the computer.

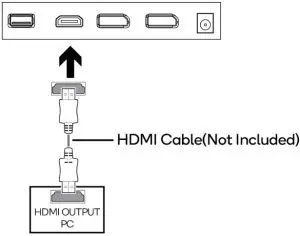

HDMI
In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to connect the monitor to the computer.

USB

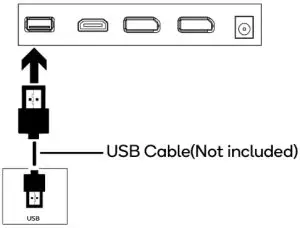

In order to update the software, use a USB cable to connect the monitor to the computer.

OPERATION

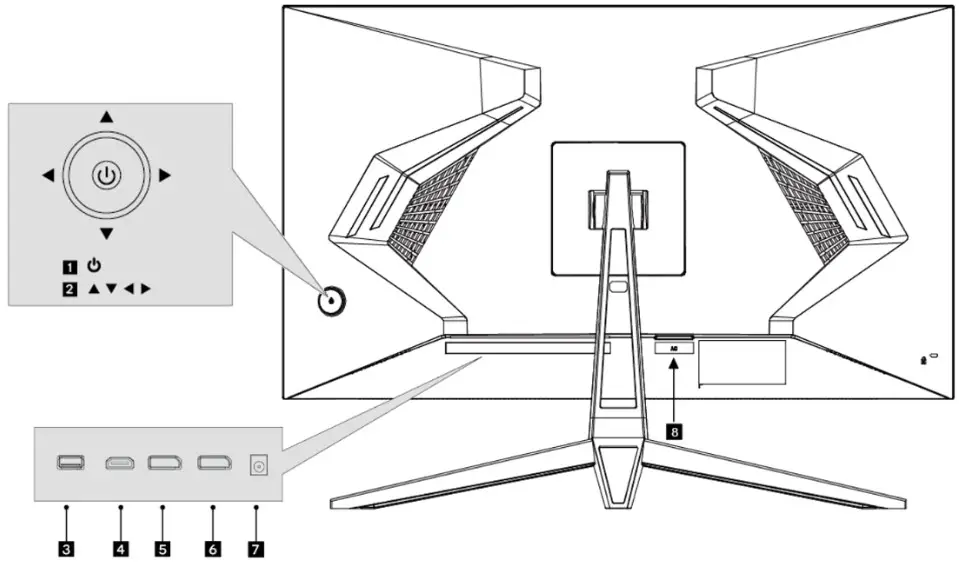

Monitor Control

You can easily control the functions of the monitor by pressing the Power button or moving it left/right ( / ) with your finger.

Button		Action	Description
		Press in	Press and hold for 6 seconds to turn the monitor on/off.  When the display is turned on, press to wake up the main menu for one second.  Press to confirm menu selections.
		Push left	Enable the main menu or select the menu item.
		Push right	Exit from the main menu or return to the upper menu.
		Push up	Select menu items or increase the setting values of the selected menu item.
		Push down	Select menu items or decrease the setting values of the selected menu item.

Shortcuts:

• Source menu: Press RIGHT twice to access the signal source selection menu, use the directional buttons to select the desired source, and press Power to confirm.
• Display mode menu: Press LEFT twice to access the display mode menu, use the directional buttons to select the desired display mode, and press Power to confirm.
• Game plus timer menu: Press the UP twice to access the Game plus timer menu. Select the desired timing length and press Power to confirm.
• Game plus sight menu: Press DOWN twice to access the Game plus sight menu. Select the desired sight and press Power to confirm.

FreeSync

• In order to use this feature, ensure your hardware has FreeSync capability and the graphics drivers are fully up to date.
• After connecting, you may receive a prompt to enable the feature on your computer. If you do not receive the prompt, you may need to enable the function inyour graphics card menu.
• See your graphics card manufacturer’s documentation for instructions on how to turn on and/or enable FreeSync.

Display settings

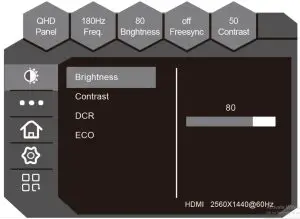

When first using this monitor it will automatically configure the optimal display settings. The On-Screen Display (OSD) Menu can be used to adjust your monitor’s display settings to your liking. To access the OSD:

1. Press the direction button Right to activate the navigation window.

2. Press the Power button to enter the OSD menu.

3. Press the direction buttons Up and Down to navigate functions.
4. With the desired function highlighted, press the direction button Right to enter the submenu.
5. After making your desired adjustments press the Power button to confirm the settings and exit the current screen.
6. Press the direction button Left to exit the current screen.
7. Refer to the following pages for a detailed list of the OSD menu functions.
Refer to the following pages for a detailed list of the OSD menu functions.

Menu	Sub-menu	Options	Description
	Brightness	-0-100	Adjust display brightness
	Contrast	-0-100	Adjust display contrast
	DCR	On / Off	Turns dynamic contrast ratio on/off
	ECO	Standard, Photo. Game, Movie, FPS, RTS	Preset color modes
	Colour Temperature User	Normal	Select color temperature mode or allow manual color configuration in User mode
		Warm
		Cool
	Red	-0-100	Adjust the red value (User mode only)
	Green	-0-100	Adjust the green value (User mode only)
	Blue	-0-100	Adjust the blue value (User mode only)
	Language	English.	Set OSD language
	H-Position	0-100	Adjust OSD horizontal position
	OSD V-Position	0-100	Adjust OSD vertical position
	OSD Transparency	0-100	Set OSD overall transparency
	OSD Time Out	0-100	Set how long the OSD remains open after last input
	Input Source	Auto Source / DP1 / DP2 / HDMI	Select input source or allow manual selection
	Mute	On / Off	Enable/disable monitor speaker output
	Volume	0-100	Adjust monitor speaker volume
	Source	DP1/ DP2 / HDM I	ti-Window, this When Open Multi-Window, the option allows you to choose audio sources from different sources.
	Reset	/	Restore factory defaults
	Firmware Update	/	When Open Multi-Window, this option allows you to choose an audio source from different sources.

DISPLAY MODES & GAME PLUS

Display modes
Press the Power button to the left to switch between the preset display modes. These modes include Standard, Text, Movie, Game, FPS, and RTS. These modes are designed to optimize settings according to your activity. Standard mode is suitable for most activities.

Game plus

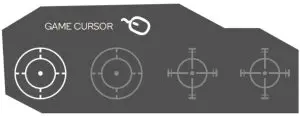

Press the Power button downwards to switch Game plus modes. These overlay icons are primarily designed to assist aim during first-person shooter games.

SPECIFICATIONS
