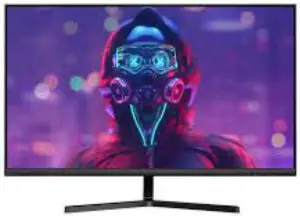

Kogan Kamn24fxsa 24 Full Hd 165hz Freesync Ganing Monitor User Guide

kogan KAMN24FXSA 24 Full HD 165Hz Freesync Ganing Monitor User Guide

SAFETY & WARNINGS

• Read all instructions before using the appliance and retain for reference.
• Unplug the monitor before cleaning it.
• Use a clean, slightly dampened cloth to wipe the main monitor body.
• To clean the screen, turn it off, unplug it and wait for it to cool completely before wiping it with a dry micro-fibre cloth.
• Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.
• This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them.
• Do not insert any object or spray any liquid into the vents.
• Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat, as well as in rooms lacking adequate ventilation.
• Do not position the monitor in unsafe locations. If the monitor falls, it may bedamaged and may injure nearby people.
• Unplug the monitor if it is not going to be used for an extended period.
• Do not place heavy objects on the monitor, its power cord or any connected cable.
• Do not open the back panel of the monitor, as it contains a high-voltage current even when not plugged in.

The terms HDMI and HDMI High-Definition Multimedia Interface and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

COMPONENTS

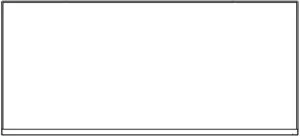

• Monitor

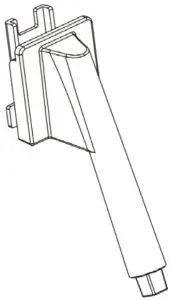

• Stand connector

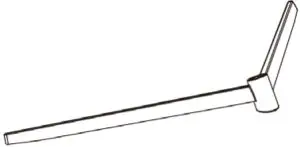

• Stand base

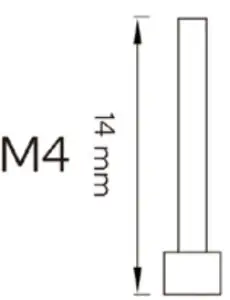

• Stand base screw M4 x 14mm) (x1)

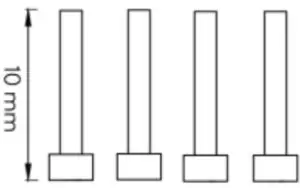

• VESA screws (x4)

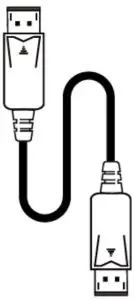

• Display Port cable

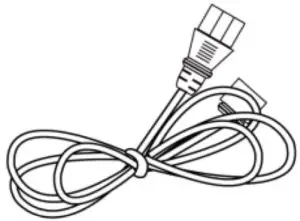

• Power cable

• User guide


OVERVIEW

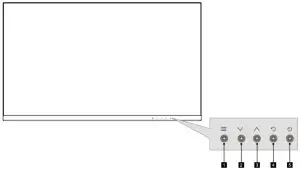

Monitor Controls

1. Menu:  Press to display the OSD menu or enter sub-menus.
2. Down:  Press to move down in the menu.
3. Up:  Press to move up in the menu.
4. Exit:  Press to exit the menu.
5. Standby:  Press to turn the monitor on/off.

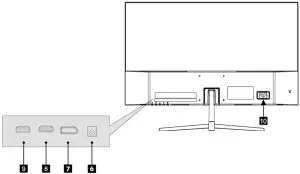

   Monitor Ports

6. Audio out (3.5mm)
7. DisplayPort (1.2)
8. HDMI 1 (2.0)
9. HDMI 2 (1.4)
10. Power port

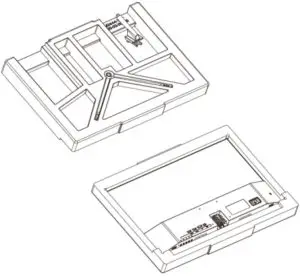

STAND ASSEMBLY

WARNING: The panel of the monitor is fragile. Keep the foam underneath the monitor screen while assembling the stand.

1. Carefully remove the monitor, stand connector and stand base from the box. Read through the full assembly instructions to ensure you have everything before discarding the box.

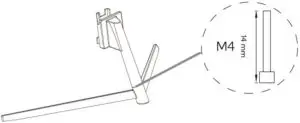

2. Attach the stand base to the stand connector using the M6 screw provided.

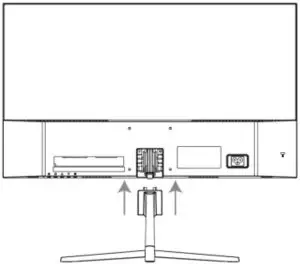

3. Insert the connection block into the back cabinet and push down until firmly connected.

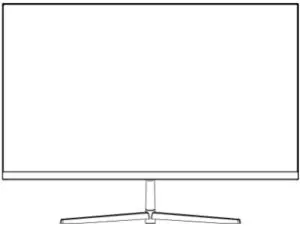

4. Lift monitor up straight and remove the bottom foam. Stand the monitor up on the installed base.

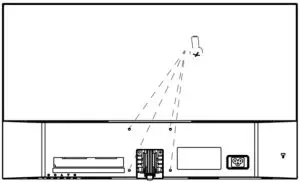

VESA MOUNT

VESA mounting pattern 75 x 75mm, screw size M4

Note: VESA mount or mounting accessories are not included.

1. Open the box and remove the monitor with protection form attached, and gently place it on a desktop or table. Remove the extra parts and the foam covering the back of the monitor. Press the release button to remove the stand plate. If the monitor was already attached to the stand, remove the stand.

2. Assemble the mount as per the instructions provided with the mount.


CONNECTIVITY

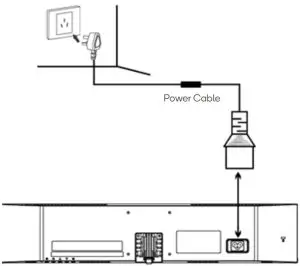

Power cable

Connect the included power cable to the monitor power port and then connect the other end to an electrical outlet.

Earphones (Audio Out)

Earphones, headphones or other audio devices can be connected to the 3.5mm output on the monitor. The monitor may need to be set as the PC’s default sound output device.

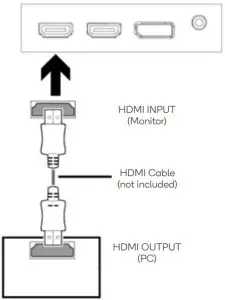

HDMI

For the monitor to receive HDMI signals from the computer, use a HDMI cable to connect the monitor to the computer.

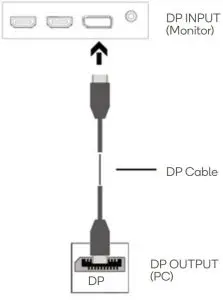

DisplayPort

For the monitor to receive DisplayPort signals from the computer, use the DisplayPort cable to connect the monitor to the computer.

OPERATION

1. Connect the monitor to the input device via HDMI or DisplayPort.
2. Connect the power cable to the monitor and then connect the other end directly to an electrical outlet. Turn the power on.
3. Use the Standby button to turn the monitor on.

FreeSync

• To use this feature, ensure your hardware has FreeSync capability and the graphicsdrivers are fully up to date.
• After connecting, you may receive a prompt to enable the feature on your computer. If you do not receive the prompt, you may need to enable  the function in your graphics card menu.
• See your graphics card manufacturer’s documentation for instructions on how to turn on and/or enable FreeSync.

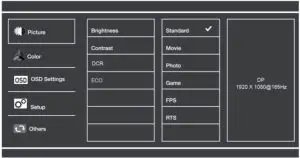

The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on the screen after turning on the monitor and pressing the “ ” button.

When using the monitor for the first time, it will configure optimal settings automatically.

1. Press “ ” to activate the navigation window.

2. Press “ ” to enter the OSD menu.

3. Press “ ” or “  ” to browse functions.
   With the desired function highlighted, press “ ” to enter the sub-menu. Press “ ” or “ ” to browse sub-menus, then press “ ” to highlight the desired function.
   Press “ ” or “ ” to highlight an option, then press “ ” to confirm the settings and exit the current screen.
4. Press “ ” to exit the current screen.

Refer to the following pages for a detailed list of the OSD menu functions.

ECO MODES & GAMEPLUS SWITCHING

1. Press button to switch Gameplus modes. These overlay icons are primarily designed to assist aim during FPS games, though they can be used for other scenarios.

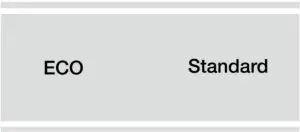

2. Press button to switch ECO modes. These modes include Standard, Text, Movie, Game, FPS and RTS and can be used to optimise settings according to your activity. Standard mode is suitable for most activities.


SPECIFICATIONS

General

• Screen size 24
• Aspect ratio 16:9
• Brightness 250cd/m² (typical)
• Panel IPS
• Resolution 1920 x 1080
• Refresh rate 165Hz
• Response time 5ms with Overdrive enabled (11ms typical)
• Viewing angle ≥178°(H) / 178°(V)
• Contrast ratio 1500:1
• VESA mounting 75 x 75mm
• Colours 16.7M
• Signal input HDMI 1 2.0 HDMI 2 1.4 DisplayPort 1.2
• Power AC 100-240V ~50/60Hz 1.1A

Audio

• Speakers YES
• Audio out YES

Accessories

• Power cable YES
• DisplayPort Cable YES

Additional functions

• Low Blue Light YES
• Flicker Free YES

Physical dimensions

• Dimensions (w. Stand) 538.97 x 151.31 x 400.14 (mm)
• Dimensions (w/oStand) 538.97 x 40.25 x 320.97 (mm)
• Net weight 2.75kg
• Gross weight 4.20kg

Customer Support

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product, as well as any additional assistance  you may require,head online to help.kogan.com
