Kogan Kamn27f7ta 27" Fhd Ips Freesync Frameless Monitor User Guide

27″ FHD IPS FREESYNC FRAMELESS MONITOR
75Hz (1920 x 1080)
KAMN27F7TA

SAFETY & WARNINGS

Read all instructions before using the appliance and retain for reference.

• Unplug the monitor before cleaning it with a slightly damp, clean cloth.
• Wiping the screen once it has been turned off with a dry microfiber cloth is recommended.
• Do not use cleaning alcohol or ammonia-based liquids or other harsh cleaners.
• This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them.
• Avoid placing the monitor near heaters, stoves, fireplaces, or other sources of heat, as well as in rooms lacking inadequate ventilation.
• Do not insert any objects or spray any liquids into the vents.
• Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged or cause injury.
• If not used for an extended period, unplug the monitor.
• Do not place heavy objects on the monitor, its power cord, or any connected cables.
• Do not open the back panel of the monitor, as it contains a high-voltage current even when not plugged in.

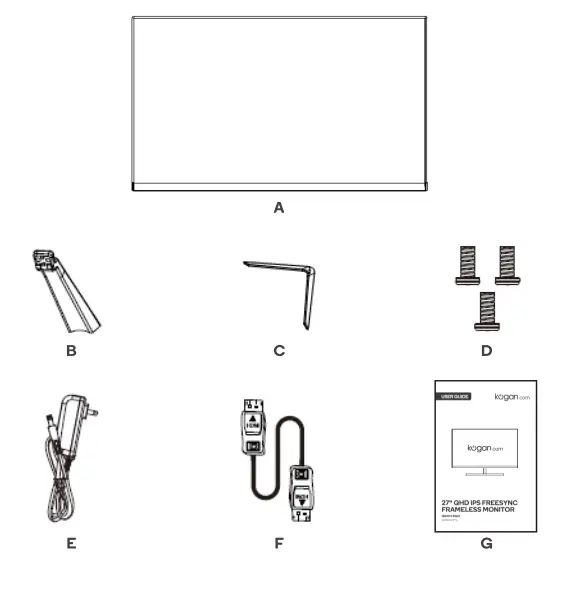

OVERVIEW

ASSEMBLY

Built-in stand

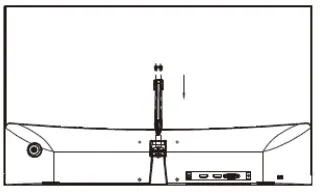

1. Lay the monitor on a cloth with the LCD panel facing down, to prevent the LCD panel from being damaged. Install the bracket body to the stand base with screws.

2. Fix the stand base to the stand body by tightening the screw.

3. Attach the cover plate by pressing it onto the stand body.

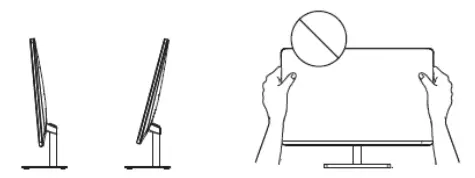

Angle adjustment

The viewing angle of the built-in stand con be adjusted forward5 or backward15° ft comfortable viewing experience
Notes:

• The above illustrations are for reference only
• Take care not to touch the screen area when the of the adiusting angle monitor,

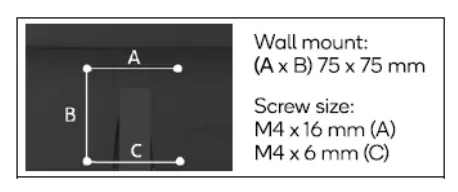

VESA mount

Before installing this monitor on desk or wold mount, choke sure to detach the stand
Consult a professional technician for wall mount installations. K0gon OOepts no liability for installations did not perform b professional technician ventilation install
To ensure sufficient the monitor at least 10em away from the wall and about of space at each love of IO cm side the monitor,

1. Please cloth a clean, dry, and lint-free on a fat, stable surface
2. Gently lay the monitor on the cloth with the LCD screen facing down
3. identify the four wot mounting screw holes on the back of the monitor wall
4. install the mounting bracket (not supplied) on the back of the monitor and  attach the monitor to wall  the according to the mounting bracket’s instructions
5. Make sure that all screws (not supplied ore tightened and  secured properly

Notes:

• Ensure the wall mounting bracket and screws conform to VESA standards.
• For more information, refer to the user manual for the wall mounting bracket.

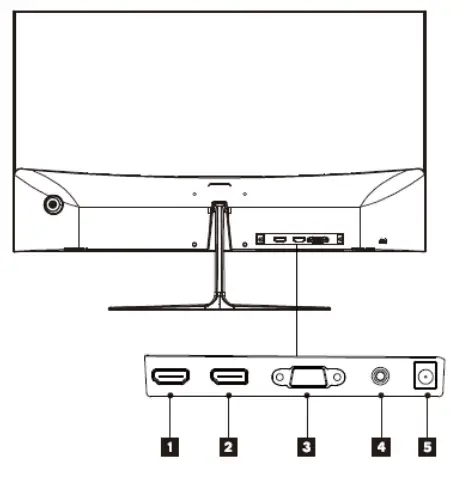

CONNECTIVITY

Turn off the PC and the monitor before connecting them.

1. HDMI
   Connect an HDMI cable from your PC to the monitor.

2. DisplayPort
   Connect a DisplayPort cable from your PC to the monitor.

3. VGA
   In order for the monitor to receive VGA signals from the computer, use a VGA cable to connect the monitor to the computer.

4. 3.5mm Audio Out
   Earphones or speakers can be connected to receive sound output from your monitor.
   Note that the sound output on your PC must be set to the monitor.

5. power Cable
   Connect the included power cable to the monitor power port, then connect the other end into a power outlet.


OPERATION

Setup

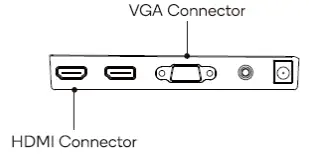

1. Connect your PC to the monitor using the included HDMI cable

2. Connect the power cable to your monitor then connect the other end to your power source. It is recommended that you use a surge protector with adequate voltage if a wall outlet cannot be reached directly.
3. Locate the power button on the monitor and press it to turn the monitor on.

FreeSync
The feature itself is on by default when setting a 5Hz refresh rate. In order to use this feature, note you must have hardware with FreeSync capability, an HDMI cable, and the latest graphic drivers.
Connect to the monitor using a cable. After connecting, you may receive a prompt to enable the feature on your computer. If you do not receive the prompt, you may need to
enable the function in your graphics card menu. See your graphics card manufacturer’s HDMI documentation for instructions on how to turn on and/or enable FreeSync.
Controls

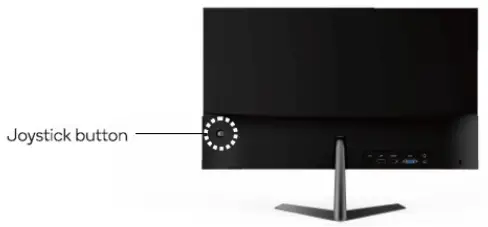

You can easily control the functions of the monitor by pressing the joystick button or moving it left/right(◄/►) with your finger.

Button		Action	Description
		Press in	Turn the monitor on/off. The below table shows the  monitor status as indicated by the  light  located on the joystick button:
			Light	Status
			Blue	Power on
			Red	Standby mode/ No signal
			No light	Power off
	◄	Push left	Enable the main menu or select the menu item.
	►	Push right	Exit from the main menu or return to the upper menu.
		Push up	Select menu items or increase the setting values of the selected menu item.
		Pushdown	Select menu items or decrease the setting values of the selected menu item.

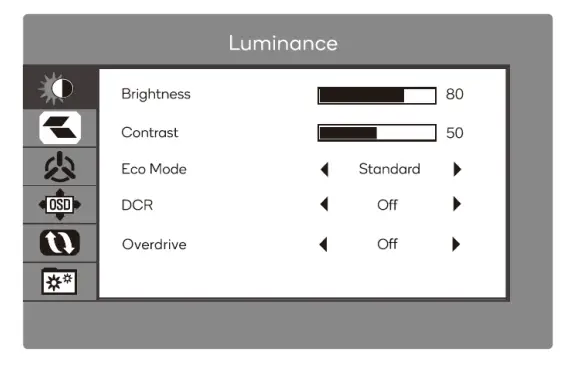

OD menu

1. To view the OSD menu, press◄ left on the joystick.
2. Use the joystick directions( ) to configure options.
3. To return to the previous menu to set other menu items, press right►.
4. Press right ► to exit the OSD menu.

SPECIFICATIONS

Model	KAMN27F7TA
Screen Size	27″
Aspect Ratio	16:9
Backlight	E-LED
Brightness	250cd/m2
Panel	IPS
Resolution	1920 x 1080
Refresh Rate	75Hz
Response Time	5ms
Viewing Angle	≥178°(H) / 178°(V)
Contrast Ratio	1000:1
VESA Mounting	75 x 75mm
Colors	16.7M
Freesync	YES
Signal Input	VGA (x1), DP (x1), HDMI1.4 (x1)
Power	DC 12V 3A
Audio
Speakers	NO
Audio Out	YES
Accessories
Adapter	YES  4.8kg
HDMI Cable	YES
Additional Functions
Low Blue Light	YES
Flicker-Free	YES
Physical Dimensions
Dimensions (w. Stand)	613.3 x 163 x 444.6 mm
Dimensions (w/o Stand)	613.3 x 36.5 x 358.7 mm
Net Weight	3.6
Gross Weight	4.8kg

NOTES

Need more information?
We hope that this user guide has given you the assistance needed for a simple setup.
For the most up-to-date guide for your product.
as well as any additional assistance you may require,
head online to help.kogan.com
