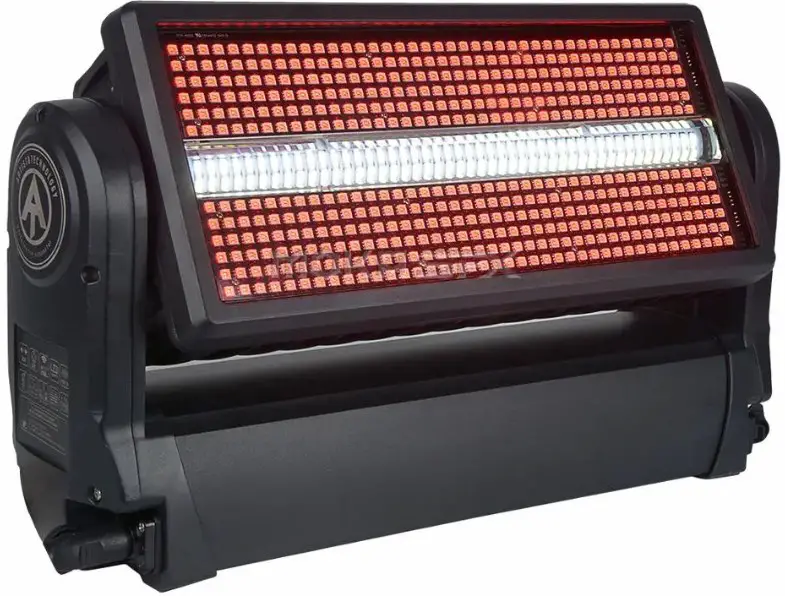

DRAGON STAGE S-1000Pro Strobe LED Strobe Wash Outdoor Moving Light User Manual

This product manual contains important information about the safe installationanduse of this projector. Please read and follow these instructions carefully and keepthis manual in a safe place for future reference.

Office Info: Tel: +86-20-86024036/+8613503023507
Address: C2 Building,Eleven Industry Garden,Xiqi,Yagang,Shijing Town, Baiyun District, Guangzhou, China

STATEMENT

The product has well capability and intact packing when leave factory. All oftheuser should comply with warning item and manual, any misuse causeof thedamages are not included in our guarantee, and also can not be responsibleforanymalfunction & problem owing to ignore the manual.

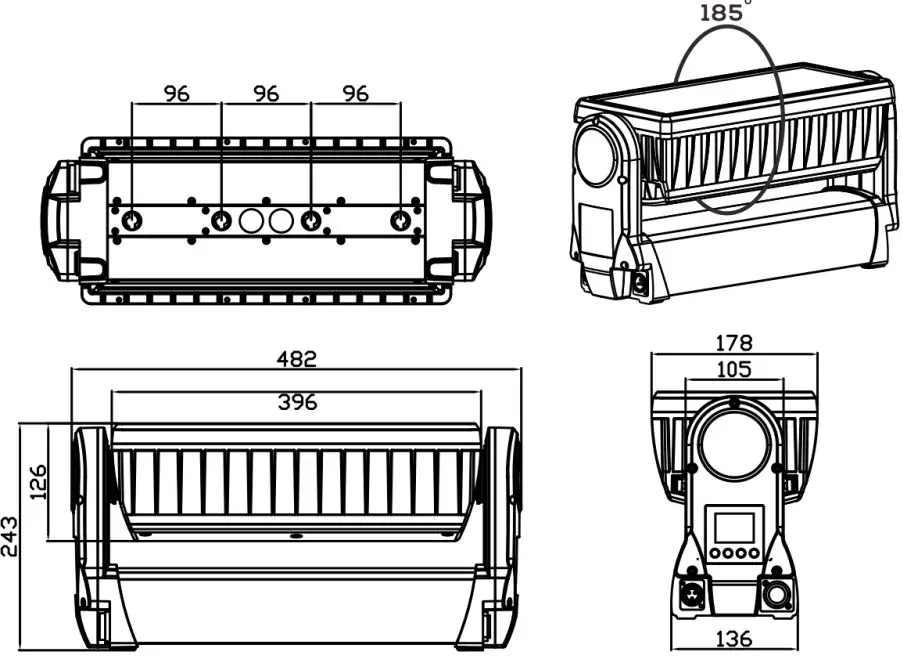

Dimension

Safety Informations

WARNING! Read the safety precautions in this sectionbeforeunpacking, installing, powering or operating this product.

This luminaries are multi-environmental fixtures with an IP-ratingof 65, intendedforprofessional use only. They are not suitable for household use.

Review the following safety precautions carefully before installingor operatingthefixture. This fixture must be installed in accordance with the applicableinstallationcode by a person familiar with the construction and operation of thefixtureandthehazards involved.

Preventing electric shock

WARNING! Risk of electric shock

• Always power off/unplug the fixture before removing any covers.
• Ensure that the power is turned off when connecting the fixturetotheACmainssupply.
• Ensure that the fixture is electrically connected to earth (ground).
• Do not apply power if the fixture is in any way damaged.
• Do not immerse the fixture in water or liquid.

Preventing burns and fire

WARNING! Take measures to prevent burns and fire.

• Install in a location that prevents accidental contact with thefixture.
• Install only in a well-ventilated space.
• Install at least 0.3 m (12 in.) away from objects to be illuminated.
• Install only in accordance with applicable building codes.
• Ensure a minimum clearance of 0.1 m (4 in.) around the coolingfans.
• Do not paint, cover or modify the fixture.
• Keep all flammable materials away from the fixture.
• Allow the fixture to cool for 15 minutes after operation, beforetouchingit.
• CAUTION: Exterior surface temperature after 5 min. operation=45°C(113°F).Steady state = 60 °C (140 °F).

Avoid personal injury

WARNING! Take measure to prevent personal injury

• Do not look directly at the light source from close range.
• Take precautions to prevent injury due to falls when workingat height.
• For permanent installation, ensure that the fixture is securelyfastenedtoaload-bearing surface with suitable corrosion-resistant hardware.
• For temporary installation with clamps, ensure that the quarter-turnfastenersare turned fully and secured with a suitable safety cable. Thecablemustbeapproved for a safe working load (SWL) of 10 times the weight of thefixture,and it must have a minimum gauge of 3 mm.

Preparing for installation

Unpack the fixture and inspect it to ensure that it has not been damaged during transport.

The fixture is shipped with two quarter-turn brackets, that can beusedtomountthefixture at elevation.

The fixture is IP65-rated, and is designed for use in wet locations. This means that it is protected from:

• Dust, to the degree that dust cannot enter the fixture in sufficient quantitiesasto interfere with its operation.
• Lower pressure jets of water from any direction.

When selecting a location for the fixture, ensure that:

• It is situated away from public thoroughfares and protectedfromcontactwithpeople.
• It is not immersed in water or exposed to high-pressure water jets.
• It has adequate ventilation.

Installation

The fixture may be installed in any orientation, but if installedhorizontallywithadownward beam-angle, water can potentially pool in the fan wells. Under normal operation the moisture will evaporate. However, in locations withhighrainfall,youmay wish to fabricate a rain shield above the fixture, or modify the position and orientation of the fixture to minimize pooling.

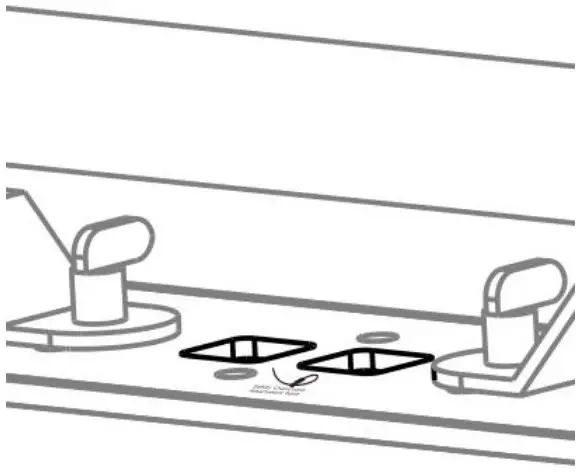

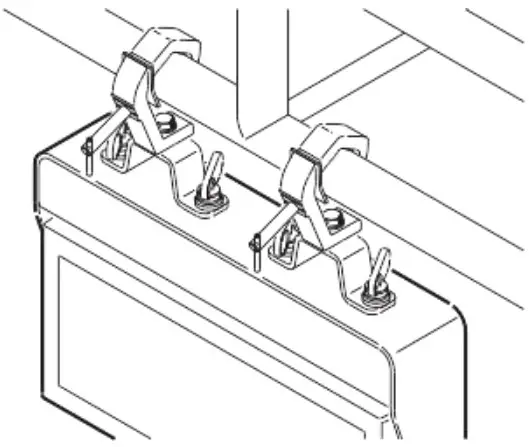

Two quarter-turn brackets are supplied withthefixtureifitisto be flown above the ground. Rig the fixturetoa supp or to trussor structure using the supplied brackets and suitable clamps.

fixture.

Connecting AC Power

The fixture can operate on any 100–240 V, 50/60Hz AC mains power supply. It draws
approximately 2 amps at full power. For permanent installation, have a qualified electrician wire the mains cable directly to a suitable branch circuit.

The junction’s ingress protection (IP) rating must besuitable for the location.

For temporary installation, the mains cable may be fitted with a grounded connector intended for exterior use.

When installing standard type C circuit breakers there will be nolimitationsduetothe fixture in-rush current. Due to the nominal current of the fixture, ensurethatnomore than:

4 fixtures are connected through the same type C, 10A circuit breaker. 7 fixtures are connected through the same type C, 16A circuit breaker. The fixture must be grounded/earthed and be able to be isolatedfromACpower.The AC power supply must incorporate a fuse or circuit breaker for fault protection. After connecting the fixture to power, run the on-board test, usingthe“FixtureText”menu, to ensure that the fixture and each LED are functioning correctly. See“Control menu” on page 13.

CAUTION: Do not open the fixture to replace the supplied power cable, orconnectthe fixture to an electrical dimmer system, as this can damage it.

Configuring the fixture

Set up the fixture using the control panel and LCD display at thearmsideofthefixture.

Navigate the menus and options using the arrow buttons and select items using the Enter button. The options available are listed in “Control menu” onpage13.After powering on, the display shows the currently selected operating mode and other information.

The fixture is set by default to be controlled in DMX mode

Master/Slave configuration
You can set a fixture to operate as master fixture to another fixture(whichthenbecomes a slave fixture), or an entire group of fixtures (which thenbecomesslavefixtures). The assigned slave fixture(s) will mimic the settings of themasterfixture.Use the “Auto Program -> Auto Color / Auto Fade” menu to set your fixtureasmaster fixture, then other fixtures set to DMX mode as slave fixture.

Setting a static color manually
The fixture can be configured to display a predefined and static color usingthe“Manual Color” (see “Control menu” on page 13). It may suit your needs when you without a DMX controller to do the color mixing.

Using stand-alone operation
Stand-alone operation is where the fixture is not connected to a control device,butispreprogrammed with 2 modes (Auto Color, Auto Fade), that play continuously in a loop, the run speed of “Auto Color”, “Auto Fade” are adjustable. To define a stand-alone program, use the “Auto Program” menus (see“Controlmenu” on page 13).

Connecting to a DMX control device

The fixture is controllable using a DMX control device and it canbeconnectedusinga DMX cable.

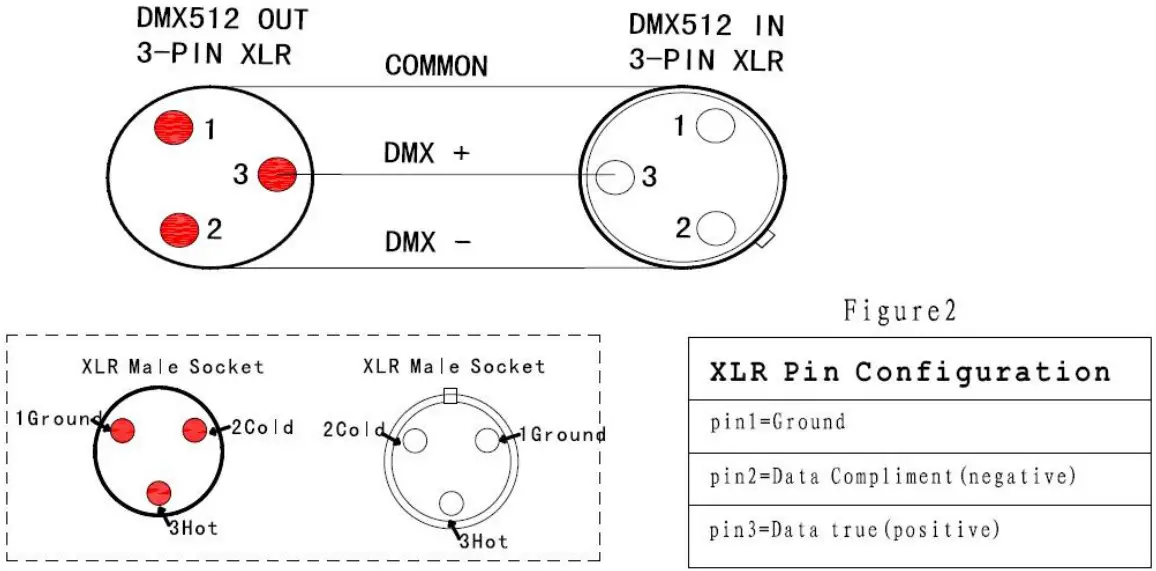

If using a cabled DMX system, connect the DMX in cable (with male3-pinXLRplug)and out cable (with female 3-pin XLR plug) to the DMX data link. TerminatetheDMXout cable of the last fixture in the data link. For outdoor installations, useonlyIP-rated XLR connectors suitable for outdoor use.

The DMX512 is widely used in intelligent lighting control, with a DMX512controller.connect several lights together, DMX in and DMX out, 3 pin XLRconnectors:Pin1:GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

Configuring the fixture for DMX control

About DMX
The fixture can be controlled using signals sent by a DMX controller onanumber of channels (which varies depending on the DMX mode that has beenset). The first channel used to receive data from a DMX control deviceis knownastheDMX start address. Each fixture must have a DMX start address set. Forexample,ifa fixture has a DMX address of 10 and it is in 4-channel DMX mode, thenituseschannels 10, 11,12 and 13. The following fixture in the DMX chaincouldthenbesetto a DMX address of 14. If two or more DMX fixtures of the same typehavethesameDMX address, then they will mimic each other’s behaviour. Incorrect settingswillresult in unpredictable responses to the lighting controller.

Setting the DMX address
The DMX address can be seen on the main screen. To change theaddresssetting,press the up arrow to increase the address, or the down arrowtodecreasethesetting. When the desired address is displayed, press Enter to savethesetting.

Note that channel spacing is determined by the DMX mode. See the “DMX protocols” on page 11 for specific DMX control values.

Setting the DMX mode
Using the “DMX Channel Mode” menu available fromthe control panel, specifytheDMX mode that provides the fixture controls that you require, confirm chosen mode by pressing ‘Enter’.

Cleaning

To maintain optimal performance, regular cleaning is essential. Cleaningscheduleswill vary depending on the operating environment, and the installationshouldtherefore be checked at frequent intervals within the first fewweeksof operationtosee whether cleaning is necessary. This procedure will allowyoutoassesscleaningrequirements in your par- ticular situation. Clean the fixture usingasoft clothdampened with a solution of water and a mild detergent. Do not useproductsthatcontain solvents, abrasives or caustic agents for cleaning, as they cancausedamageto both hardware, cables and connectors

DMX protocols

Configuring DMX is described “Setting the DMX mode” on page 10.

7 Channel mode

14 Channel mode

5Reserved    6   Beam Macro0-157Plate Red0-2558Plate Green0-2559Plate Blue0-25510Plate Strobe0-9   11   Plate Macro0-412Plate Macro Color0-25513Plate Macro Speed0-25514Reserved0-255

15 Channel mode

12Plate Macro Color0-25513Plate Macro Speed0-25514Tilt Speed0-25515Dimmer Speed0-255

42 Channel mode

43 Channel mode

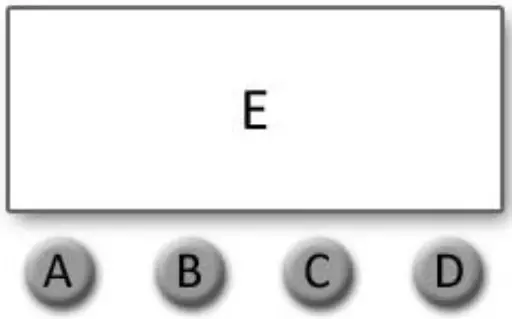

Control menu

A. MENU
B. UP
C. DOWN
D. CANFIRM
E. DIGIAL DISPLAY WINDOW

Display:

MENU To select the programming functions (press tounlockscreen)
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions

Set DMX Address:

1. Press “MENU” to unlock screen, then select the “DMXAddress”andpress “ENTER“.
2. Showing “Set DMX Address 001″, Press the “UP or DOWN” keyto increase or decrease the DMX address value.
3. Press “ENTER” to save and Exit, Press “Cancel” does not saveandExit

Language (EnglishDisplayNormalBacklightONDMX FailBlackoutFactorySettingsNO  System InfoRDM UID

Specification

Strobe Panel LEDs

LED Type: 5050 0.6W RGB 3in1 LEDs
LED Count: 480
LED Colors: RGB
LED Segments: 8 (2 x 4)

Strobe Tube LEDs

LED Type: 3535 5W 6500K LEDs
LED Count: 144
LED Colors: Cool-White
LED Segments: 4

Movement

Resolution: 8-16 Bit
Position Feedback: yes
Tilt (Degrees): 185°

Control

Control Modes: 7CH / 14CH / 15CH/42CH/43CH
Display: Illuminated graphic LCD
Protocol: USITT DMX-512, RDM
RDM: Bidirectional communication
Wireless DMX: 2.4 GHz W-DMX™ (optional)
Cooling: Temperature controlled, overheating protection

Effects

Dimmer: 0-100% electronic
Shutter: electronic, max. 20 Hz
Internal Effects: LED Macro Effects

Connectors

Signal connection: Seetronic IP65 XLR 5-Pin or 3-Pin In/Out
Power Input: Seetronic powerCON TRUE1 In/Out

Operating Condtions

Mains voltage: 100-240V AC / 50-60Hz
Power: 1000W
Maximum ambient temperature: -30°C / 86°F, 50°C / 122°F
Operating Position: any
Water proof grade: IP65

Mounting Options

Standing: Rubber feet
Hanging: Omega-Bracket
Safety wire attachment: foldout eyelets

Shipping

Single fixture: cardboard (inner and outer cartons)
Tourpack: 4-way Flight Case

Housing Colors

Standard colors: black

Dimensions & Weight

Length: 482 mm / 18.9 in
Width: 178 mm / 9.0 in
Height (head horizontal): 243 mm / 9.5 in

Weight

N.W: 10 kg
G.W: 12.5 kg
