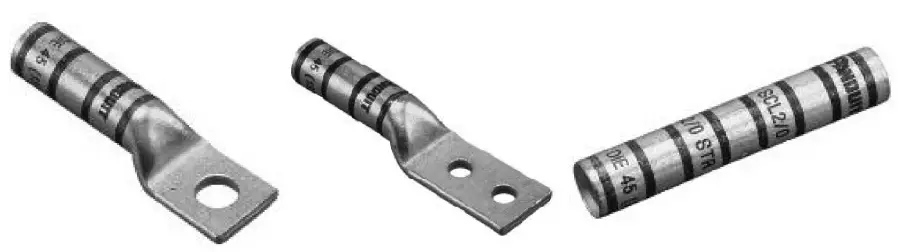

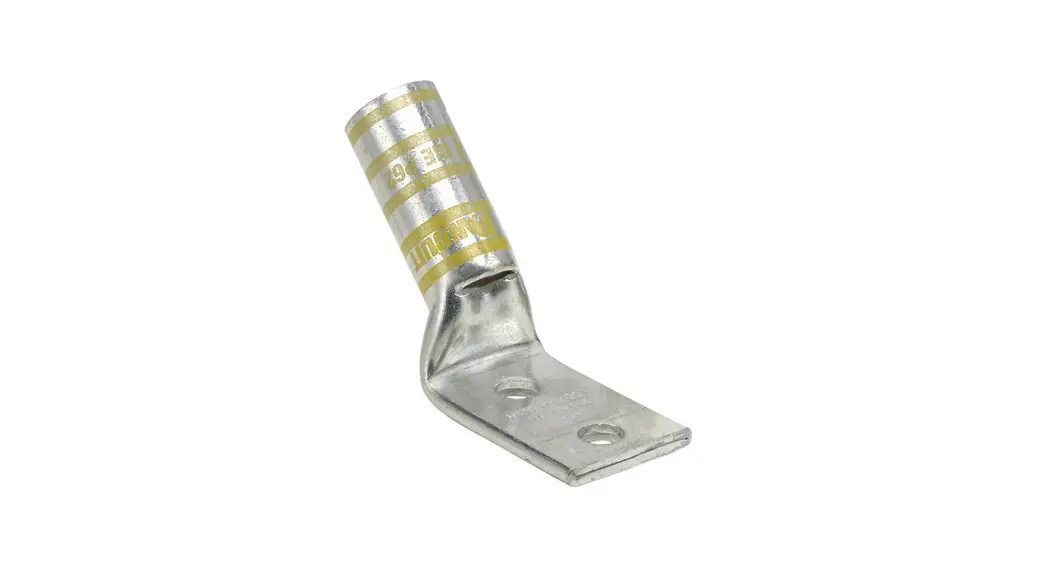

COPPER COMPRESSION CONNECTORS
C Panduit Corp. 2021
INSTALLATION INSTRUCTIONS
T-PMPI-62-PC
COPPER COMPRESSION CONNECTOR INSTALLATION
- Use a connector marked for the wire size and wire material to be used. NEVER use a copper connector on aluminum wire.
- Strip wire insulation to approximate length shown on tool chart. DO NOT nick or ring the conductor
- Clean the wire.
- Insert stripped wire into connector until the wire stops.
- Using installation tooling shown on other side, insert connector in die and crimp between color bands or knurl markings. REQUIRED NUMBER OF COMPRESSIONS SHOWN IN ( ).
- After crimping, inspect for sharp edges, flash or burrs and remove if present.
HEAT SHRINK INSULATION INSTRUCTION
- Refer to Panduit catalog or www.panduit.com for heat shrink material information, tubing size, voltage rating, and shrink temperature.
- Cut tubing to length allowing insulation coverage as desired. Allow a minimum of 1-1/2″ inch overlap on wire insulation.
- Shrink with a standard propane torch or heat gun. MOVING FROM CRIMPED PORTION OF CONNECTOR TOWARD INSULATED WIRE. Adhesive flow at ends indicate shrinkage complete.
*Heat shrink insulation, blank tongues, & non-plated lugs not tested by TELCORDIA.
For Technical Support: www.panduit.com/resources/install_maintain.asp

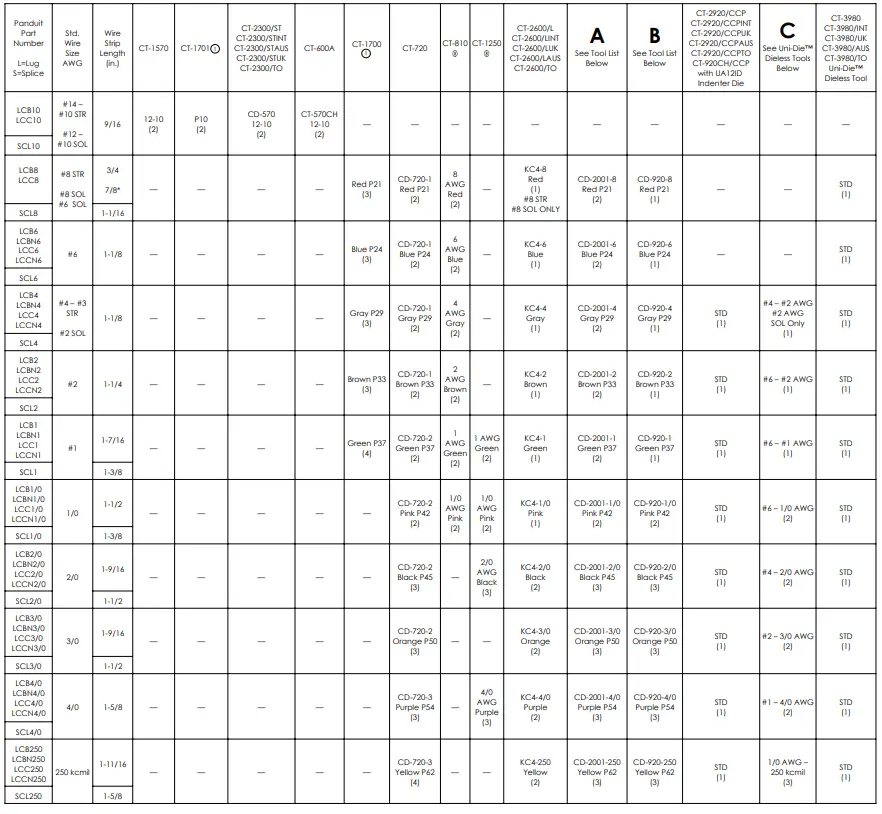

Tool Chart for Compression Connectors Type LCB, LCC, LCP, and SCL with Copper Cable
| Panduit Part NumberL=Lug S=Splice | Std. Wire Size AWG | Wire trip Length in.) | CT-720 | CT-2600/L CT-0/LINT CT-0/LUK CT-0/LAUS CT-600/TO | ASee Tool List Below | BSee Tool List Below | CT-2920/CCP CT-2920/CCPINT CT-2920/CCPUK CT-2920/CCPAUS CT-2920/CCPTO CT-920CH/CCP with UA12IDIndenterDie | CSee Uni-ie™Dieless Tools Below | CT-3980 CT-3980/INT CT-3980/UK CT-3980/AUS CT-3980/TOUni-Die™DielessTool |
| LCB300 LCBN300 LCC300 LCCN300 | 300 kcmil | 2-5/16 | CD-720-4White P66 (4) | KC4-300White (2) | CD-2001-300White P66 (3) | CD-920-300White P66 (3) | STD (1) | 2/0 AWG –300 kcmil(3) | STD (1) |
| SCL300 | 2 | ||||||||
| LCB350 LCBN350 LCC350 LCCN350 | 350 kcmil | 2-5/16 | CD-720-5Red P714) | — | CD-2001-350Red P71 (3) | CD-920-350Red P71 (3) | STD (1) | 3/0 AWG –350 kcmil(3) | STD (1) |
| SCL350 | 2 | ||||||||
| LCB400 LCBN400 LCC400 LCCN400 | 400 kcmil | 2-3/8 | CD-720-6Blue P76 (4) |
— | CD-2001-400Blue P76 (4) | CD-920-400Blue P76 (3) | STD (1) | 4/0 AWG –400 kcmil(3) | STD (1) |
| SCL400 | 2-1/8 | ||||||||
| LCB500 LCBN500 LCC500 LCCN500 LCP500 | 500 kcmil | 2-9/16 | CD-720-7Brown P87 (4) | — | CD-2001-500Brown P87 (4) | CD-920-500Brown P87 (3) | STD (1) | 4/0 AWG –500 kcmil(3) | STD (1) |
| SCL500 | 2-1/4 | ||||||||
| LCB600 LCBN600 LCC600 LCCN600 | 600 kcmil | 2-3/4 | — | — | ***KC22-600BGreen (4) | CD-920-600Green P94 (4) | STD (1) | 250 –600kcmil (3) | STD (1) |
| SCL600 | |||||||||
| LCB750 LCBN750 LCC750 LCCN750 LCP750 | 750kcmil | 2-15/16 | — | — | — | CD-920-750 CD-940-750 4Black P106 (4) | STD (1) | 500 – 750kcmil (3) | — |
| SCL750 | 2-7/8 | ||||||||
| LCB800 LCBN800 LCC800 LCCN800 | 800 kcmil | 3 | — | — | — | CD-940-800 4Orange P107 (4) | — | — | — |
| LCB1000 LCBN1000 LCC1000 LCCN1000 LCP1000 | 1000 kcmil | 3-1/16 | — | — | — | CD-940-1000 4White P125 (4) | — | — | — |
| SCL1000 | 3 | ||||||||
| LCB1250 LCC1250 LCP1250 | 1250 kcmil | 3-3/8 | — | — | — | CD-940-1250 4Yellow P140 (4) | — | — | — |
| Panduit Part Number L=Lug S=Splice | Std. Wire Size AWG | Wire Strip Length (in.) | B See Tool List Below | Burndy Tool Y60B |
| LCB1500 | CD-940-1500 4 | Burndy Die | ||
| LCC1500 | 1500 kcmil | 3-3/8 | Green P150 | L46RT |
| LCP1500 | (4) | (3) | ||
| LCB2000 | Burndy Die | |||
| LCC2000 | 2000 kcmil | 3-5/8 | — | L48RT |
| LCP2000 | (4) |
- The crimp die pockets are integrated into the tool frame.
- CD-920 dies can be used with CT-940CH and CT-2940 tools with die adapter
- CD-940 dies to be used exclusively with CT-940CH series and CT-2940 series tools
- Maximum size: 500 kcmil lugs and 250 kcmil splices.
- Maximum size: 250 kcmil lugs and splices. No extended wire range.
- Rotate gauge selector to the indicated gauge setting
- Maximum size: 600 kcmil lugs and splices.
* LCC8-12 wire strip length is 7/8″
*** KC22-600B crimp die for used with CT-3001/ST and CT-3001/CCP series tools.
A CT-2001, CT-2001/L, CT-2001/LE, CT-2002, CT-2002/L, CT-3001, CT-3001/E, CT-3001/ST, CT-3001/STINT, CT-3001/STUK, CT3001/STAUS, CT-3001/TO, CT-3001/CCP, CT-3001/CCPINT, CT-3001/CCPUK, CT-3001/CCPAUS,
CT-3001/CCPTO
B CT-920, CT-920/CV, CT-920CH, CT-920CH/CV, CT-920CH/CCP, CT-930, CT-930CH, CT-930LPCH 9 , CT-940CH/BJO 3 , CT-2920, CT-2920/CCP, CT-2920/CCPINT, CT-2920/CCPUK, CT-2920/CCPAUS, CT-2920/CCPTO, CT-2930, CT-2930/L, CT2930/LE, CT-2931, CT-2931/ST, CT-2931/STINT, CT-2931/STUK, CT-2931/STAUS, CT-2931/TO, CT-2931/STCV, CT-2931/STCVINT, CT-2931/STCVUK, CT-2931/STCVAUS, CT-2931/CVTO, CT-2940 3 , CT-2940/L 3 , CT-2940/LE 3
C CT-980, CT-980CH, CT-980LPCH 6 , CT-2950 5 , CT-2980, CT-2980/L, CT-2980/LE, CT-2980/ST, CT-2980/STINT, CT-2980/STUK, CT2980/STAUS, CT-2980/TO, CT-2981, Extended Wire Range
