PANDUIT STM2S8-C0 Super-Grip Cable Ties and Cable Tie Mounts
Super-Grip™ Cable Ties and Mounts are designed to withstand rough installation practices that occur in MRO and construction projects. Super-Grip™ Cable Ties provide superior bundle tightness, excellent tensile strength, and flexibility. Super-Grip™ Cable Ties resist lateral movement on the bundle because they are more flexible and can be installed tighter. Super-Grip™ Cable Tie Mounts are available in a wide variety of styles to maximize application flexibility. The Super-Grip™ product line expands the Panduit cable tie and accessory offering, the most comprehensive bundling solution available.

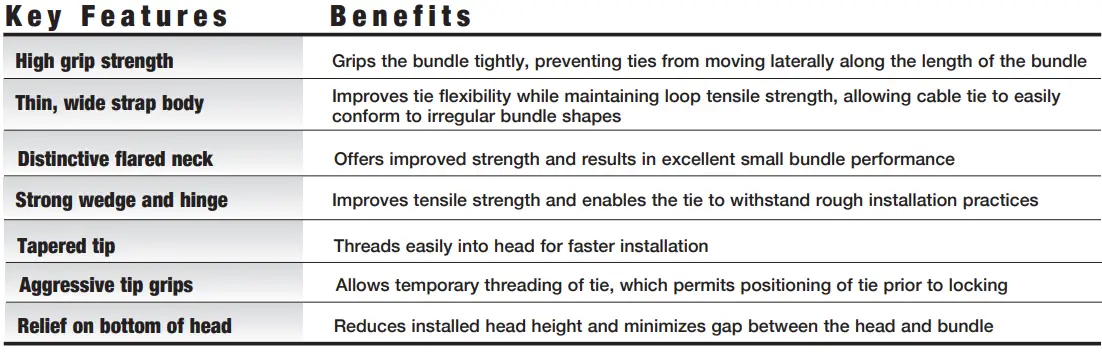

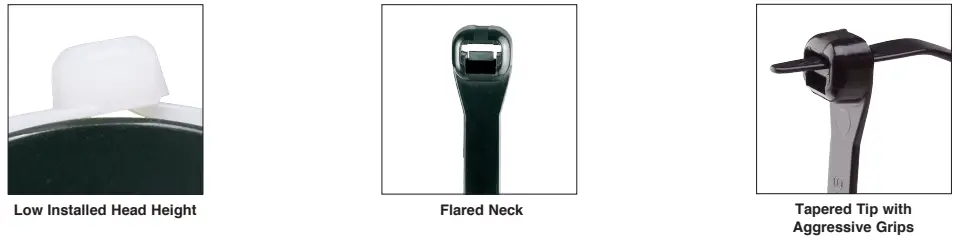

Cable Ties

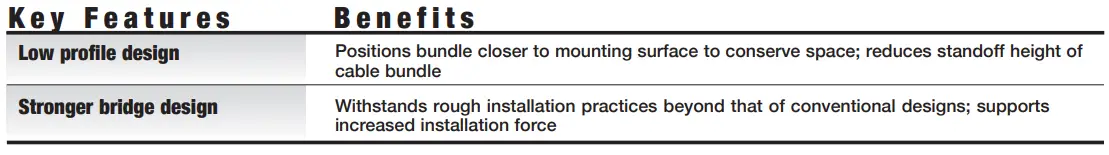

Cable Tie Mounts
Ordering Information
Cable Ties
| Cable Ties Part Number |
Material |
Length In. (mm) |
Width In. (mm) |
Thickness In. (mm) | Max. Bundle Diameter In. (mm) |
Min. Loop Tensile Strength Lbs. (N) |
Recommended Tools | Packaging | ||||
|
Standard |
Bulk | Std. Pkg. Qty. | Std. Ctn. Qty. | Bulk Pkg. Qty. | Bulk Ctn. Qty. | |||||||
| SG100M-C | — | Nylon 6.6 | 4.2 (106) | 0.118 (3.0) | 0.038 (1.0) | 0.9 (23) | 18 (80) | GTS-E, GS2B-E, PTS, PPTS, STS2 | 100 | 1000 | — | — |
| SG100M-C0 | SG100M-M0 | Weather Resistant Nylon 6.6 | 4.2 (106) | 0.118 (3.0) | 0.038 (1.0) | 0.9 (23) | 18 (80) | 100 | 1000 | 1000 | 50000 | |
| SG150I-C | — | Nylon 6.6 | 6.2 (157) | 0.168 (4.3) | 0.040 (1.0) | 1.50 (38) | 40 (178) | GTS-E, GS2B-E, PTS, PPTS, STS2 | 100 | 1000 | — | — |
| SG150I-C0 | SG150I-M0 | Weather Resistant Nylon 6.6 | 6.2 (157) | 0.168 (4.3) | 0.040 (1.0) | 1.50 (38) | 40 (178) | 100 | 1000 | 1000 | 20000 | |
| SG200S-C | — | Nylon 6.6 | 8.3 (211) | 0.225 (5.7) | 0.046 (1.2) | 2.00 (51) | 50 (222) | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2 | 100 | 1000 | — | — |
| SG200S-C0 | SG200S-M0 | Weather Resistant Nylon 6.6 | 8.3 (211) | 0.225 (5.7) | 0.046 (1.2) | 2.00 (51) | 50 (222) | 100 | 1000 | 1000 | 10000 | |
| SG250S-C0 | — | Weather Resistant Nylon 6.6 | 10.4 (264) | 0.225 (5.7) | 0.050 (1.3) | 2.60 (66) | 75 (334) |
GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2 | 100 | 1000 | — | — |
| SG300S-C | — | Nylon 6.6 | 12.4 (315) | 0.225 (5.7) | 0.050 (1.3) | 3.20 (81) | 75 (334) | 100 | 1000 | — | — | |
| SG300S-C0 | SG300S-M0 | Weather Resistant Nylon 6.6 | 12.4 (315) | 0.225 (5.7) | 0.050 (1.3) | 3.20 (81) | 75 (334) | 100 | 1000 | 1000 | 10000 | |
| — | SG300S-M30 | Heat Stabilized Nylon 6.6 | 12.4 (315) | 0.225 (5.7) | 0.050 (1.3) | 3.20 (81) | 75 (334) | — | — | 1000 | 10000 | |
| SG370S-C0 | SG370S-M0 | Weather Resistant Nylon 6.6 | 15.3 (389) | 0.225 (5.7) | 0.052 (1.3) | 4.20 (107) | 75 (334) | 100 | 1000 | 1000 | 5000 | |
| SG350LH-L | — | Nylon 6.6 | 15.3 (389) | 0.330 (8.4) | 0.064 (1.6) | 4.13 (105) | 120 (534) | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH | 50 | 500 | 250 | 2500 |
| SG350LH-L0 | — | Weather Resistant Nylon 6.6 | 15.3 (389) | 0.330 (8.4) | 0.064 (1.6) | 4.13 (105) | 120 (534) | 50 | 500 | — | — | |
| SG450H-L0 | SG450H-C0 | Weather Resistant Nylon 6.6 | 18.6 (471) | 0.380 (9.7) | 0.068 (1.7) | 5.20 (132) | 175 (778) | GS4EH-E, PTH, STH2, ST3EH GTH-E, GS4H-E, | 50 | 500 | 100 | 2000 |

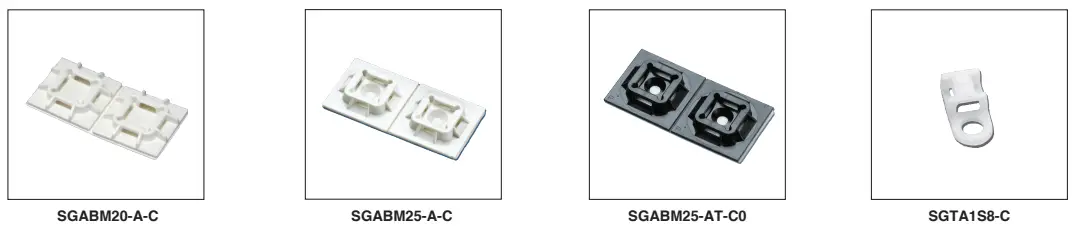

Adhesive Backed Mounts
Adhesive Backed Mounts|
Part Number |
Material |
Used With Cable Ties | Length In. (mm) | Width In. (mm) |
Mounting Method | Std. Pkg. Qty. | Std. Ctn. Qty. |
| SGABM20-A-C | Nylon 6.6 | SG100M, SG150I | 0.75 (19.0) | 0.75 (19.0) | Rubber Based Adhesive | 100 | 500 |
| SGABM20-AT-C0 | Weather Resistant Nylon 6.6 | SG100M, SG150I | 0.75 (19.0) | 0.75 (19.0) | Acrylic Based Adhesive | 100 | 500 |
| SGABM25-A-C | Nylon 6.6 | SG100M, SG150I, SG200S, SG250S, SG300S, SG370S | 1.00 (25.4) | 1.00 (25.4) | Rubber Based Adhesive | 100 | 1000 |
| SGABM25-AT-C0 | Weather Resistant Nylon 6.6 | SG100M, SG150I, SG200S, SG250S, SG300S, SG370S | 1.00 (25.4) | 1.00 (25.4) | Acrylic Based Adhesive | 100 | 1000 |
| SGABM25-S6-C | Nylon 6.6 | SG100M, SG150I, SG200S, SG250S, SG300S, SG370S | 1.00 (25.4) | 1.00 (25.4) | #6 (M3) Screw | 100 | 1000 |
| SGABM25-S6-C0 | Weather Resistant Nylon 6.6 | SG100M, SG150I, SG200S, SG250S, SG300S, SG370S | 1.00 (25.4) | 1.00 (25.4) | #6 (M3) Screw | 100 | 1000 |
| SGABM30-A-C | Nylon 6.6 | SG100M, SG150I, SG200S, SG250S, SG300S, SG370S | 1.12 (28.5) | 1.12 (28.5) | Rubber Based Adhesive | 100 | 500 |
| SGABM30-AT-C0 | Weather Resistant Nylon 6.6 | SG100M, SG150I, SG200S, SG250S, SG300S, SG370S | 1.12 (28.5) | 1.12 (28.5) | Acrylic Based Adhesive | 100 | 500 |
| SGABM40-A-L | Nylon 6.6 | SG100M, SG150I, SG200S, SG250S, SG300S, SG370S, SG350LH, SG450H | 1.50 (38.1) | 1.50 (38.1) | Rubber Based Adhesive | 50 | 500 |
| SGABM50-A-L | Nylon 6.6 | SG100M, SG150I, SG200S, SG250S, SG300S, SG370S, SG350LH, SG450H | 2.00 (50.8) | 2.00 (50.8) | Rubber Based Adhesive | 50 | 500 |
Screw Applied Tie Anchor Mounts
|
Part Number |
Material |
Used With Cable Ties | Length In. (mm) | Width In. (mm) |
Mounting Method | Std. Pkg. Qty. | Std. Ctn. Qty. |
| SGTA1S8-C | Nylon 6.6 | SG100M, SG150I, SG200S, SG250S, SG300S, SG370S | 0.80 (20.3) | 0.37 (9.4) | #8 (M4) Screw | 100 | 500 |
| SGTA1S8-C0 | Weather Resistant Nylon 6.6 | SG100M, SG150I, SG200S, SG250S, SG300S, SG370S | 0.80 (20.3) | 0.37 (9.4) | #8 (M4) Screw | 100 | 500 |

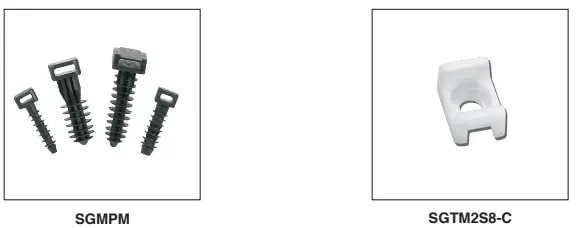

Masonry Push Mounts
|
Part Number |
Material |
Used With Cable Ties | Grip Length In. (mm) | Hole Diameter In. (mm) |
Mounting Method | Std. Pkg. Qty. | Std. Ctn. Qty. |
| SGMPMS19-C0 | SG100M, SG150I, | 0.95 | 0.187 | 100 | 500 | ||
| SG200S, SG250S, SG300S, SG370S | (24.1) | (5.0) | |||||
| SGMPMS25-C0 | Impact Modified Weather Resistant Nylon 6.6 | SG100M, SG150I, SG200S, SG250S, SG300S, SG370S | 0.97 (24.6) | 0.250 (6.4) | Tree Barb | 100 | 500 |
| SGMPMH38-L0 | SG100M, SG150I, | 1.2 | 0.375 | 50 | 500 | ||
| SG200S, SG250S, SG300S, SG370S, SG350LH, SG450H | (30.5) | (10.0) |
Screw Applied Tie Mounts
|
Part Number |
Material |
Used With Cable Ties |
Length In. (mm) |
Width In. (mm) |
Mounting Method |
Std. Pkg. Qty. |
Std. Ctn. Qty. |
| SGTM1S6-C | Nylon 6.6 | SG100M | 0.51 (13.0) | 0.38 (9.7) | #6 (M3) Screw | 100 | 500 |
| SGTM1S6-C0 | Weather Resistant Nylon 6.6 | SG100M | 0.51 (13.0) | 0.38 (9.7) | #6 (M3) Screw | 100 | 500 |
| SGTM2S8-C | Nylon 6.6 | SG100M, SG150I, SG200S, SG250S, SG300S, SG370S | 0.66 (16.7) | 0.48 (12.2) | #8 (M4) Screw | 100 | 500 |
| SGTM2S8-C0 | Weather Resistant Nylon 6.6 | SG100M, SG150I, SG200S, SG250S, SG300S, SG370S | 0.66 (16.7) | 0.48 (12.2) | #8 (M4) Screw | 100 | 500 |
| SGTM3S10-C | Nylon 6.6 | SG100M, SG150I, SG200S, SG250S, SG300S, SG370S, SG350LH | 0.91 (23.1) | 0.61 (15.4) | #10 (M5) Screw | 100 | 500 |
| SGTM3S10-C0 | Weather Resistant Nylon 6.6 | SG100M, SG150I, SG200S, SG250S, SG300S, SG370S, SG350LH | 0.91 (23.1) | 0.61 (15.4) | #10 (M5) Screw | 100 | 500 |
