PANDUIT T-PMPI-289-PC Direct Burial Compression Connectors

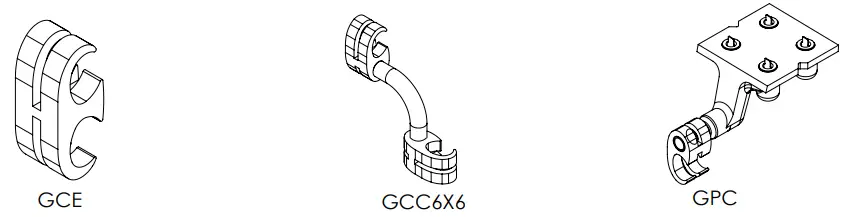

Parts

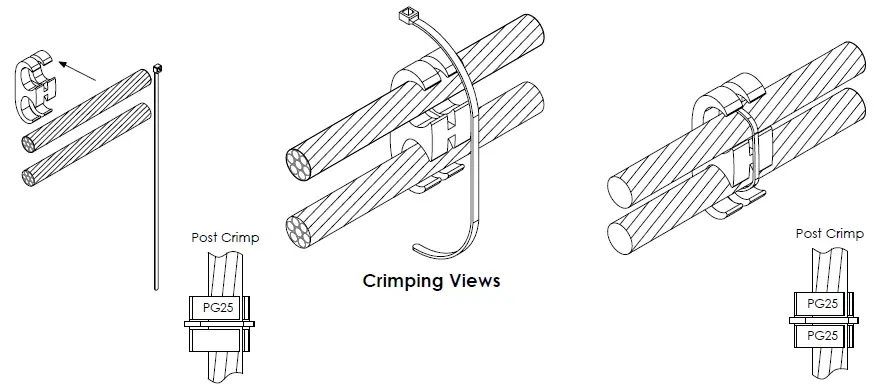

Views using Cable Ties

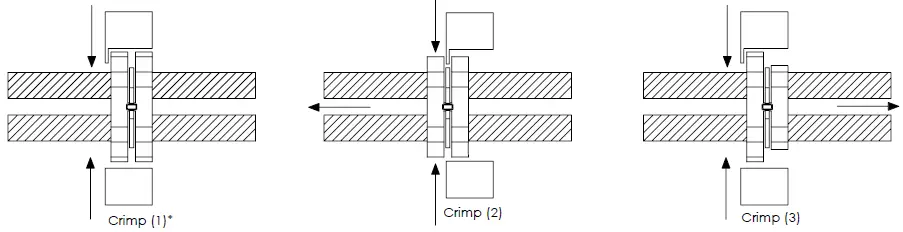

Crimping Views
One crimp meets IEEE 837 for part numbers GCE1/0-1/0 and GCE6X61/0-1/0. IEEE837 – 2014: GCE500-250 and GCE250-250 for wire to wire terminations larger than 2/0 AWG require two connectors with 1.5″ spacing between connectors unless connecting to a ground rod or rebar. GCC6X6250-250 max wire size limited to 2/0 AWG on one of the connector elements. GCC6X6500-250 max wire size limited to 2/0 awg on connector element B. GCE500-500 is only with 3 crimps.
