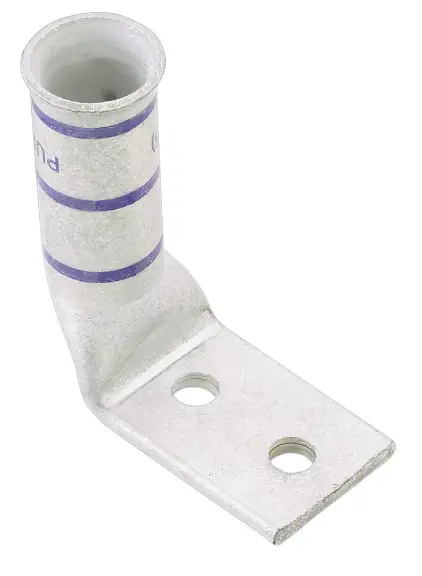

PANDUIT Heat Shrink Insulation Copper Compression Connector

COPPER COMPRESSION CONNECTOR INSTALLATION

1. .Use a connector marked for the wire size and wire material to be used. NEVER Use a copper connector on aluminum wire.
2. Strip wire insulation to approximate length shown on tool chart. DO NOT nick or ring the condUctor sfrands.
3. Clean the wire.
4. Insert stripped wire into connector until the wire stops.
5. Use tool chart on reverse side of this sheet to: a) select crimp tool to terminate part, b) select crimp die lisfed under fool selection by matching crimp die color Code and die index number or crimp die To color bdnds and dle indexX number marked on connecfor C) Nofe number of crimps fo be placed in connector is shown in () next to die color code and die index number in tool chart. d) Crimp ConnecTOr by placing first crimp in barrel near tne Tongue of tne lUg or wire stop in the splice and place sUCCessive crimps in the barel of the connector working towards the wire entry. Evenly space crimps on barel of the Connector using barrel stripes as a guide. Barrel sfripes do nof designate the number of crimps fo be placed in barrel of fhe connector.
6. After crimping, inspect for sharp edges, flash or burrs and remove if present.

HEAT SHRINK INSULATION INSTRUCTION

1. Refer to Panduit catalog or www.panduit.com for heat shrink material information, fubing size, voltage rafting, and shrink temperature.
2. Cut tubing to length allowing insulation coverage as desired. Allowa minimum of 1-1/2″ inch overlap on wire insulation.
3. Shrink with a standard propane torch or heatgun, MOVING FROM CRIMPED PORTION OF CONNECTOR TOWARD INSULATED WIRE. Adhesive flow af ends indicate shrinkage complete.

Tool Chart for Compression Connectors
Types LCAX, LCAXN, LCDX, LCDXN, LCEX, LCJX, and SCSX with Copper Cable

• the crimp die pockets are infegrafed info the fool frame. CD-920 dies can be Used with CT-940CH and CT-2940 tools with die adapter SCSX Parts Only
• LCDXN8 to only be used with #8 STR wire
• CT-3001/ST, CT-3001/STINT, CT-3001/STUK, CT-3001/STAUS, CT-3001/TO
  CT-2001, CT-2001/L, CT-2001/LE, CT-2002, CT-2002/L, CT-3001, CT-3001/E,, CT-3001/CCP, CT-3001/CCPINT, CT-3001/CCPUK, CT 3001/CCPAUS, CT-3001/CPTO
• CT-920, CT-920/CV, CT-920CH, CT-920CH/CV, CT-920CH/CCP, CT-930, CT-930CH, CT-940CH, CT-2920, CT-2920/CCP, CT-2920/CCPINT, CT 2920/CCPUK, CT-2920/CCPAUS, CI-2920/CCPTO, CT-2930, CT-2930/L, CT2930/LE, CT-2931, CT-2931/ST, CT-2931/STINT, CT-2931/STUK,
• CT-2931/STAUS, CT-2931/TO, CT-2931/STCV, CT-2931/STCVINT, CT-2931/STCVUK, CT-2931/STCVAUS, CT-2931/CVTO, CT-29409, CT-2940/LO, CT-2940/LE®, CT-2940/STO, CT-2940/STINTO, CT-2940/STUKO, CT-2940/STAUS, CT-2940/TO0

Tool Chart for Compression Connectors Types LCAX, LCAXN, LCDX, LCDXN, LCEX, LCJX, and SCSX with Copper Cable

• The crimp die pockets are integrated into the tool frame.
• CD-920 dies can be Used with CT-940CH and CT-2940 tools with die adapter.
• CD-940 dies to be used exclusively with CI-940CH and CT-2940 series tools.
• SCSX Parts Only
• +SCSX4/0 Not UL Listed with Class M Wire.
• CT-3001/ST, CT-3001/STINT, CT-3001/STUK, CT-3001/STAUS, CT-3001/TO CT-2001, CI-2001/L, CT-2001/LE, CT-2002, C-2002/L, CT-3001, CT-3001/E,, CT-3001/CCP, CT-3001/CCPINT, CT-3001/CCPUK, CT-3001/cCPAUS,
• CT-3001/CCPTO CT-920, CT-920/CV, CT-920CH, CT-920CH/CV, CT-920CH/CCP, CT-930, CT-930CH, CT-940CHO, CT-2920, CT-2920/CCP, CT-2920/CCPINT,
• CT-2920/CCPUK, CT-2920/CCPAUS, CT-2920/CCPTO, CT-2930, CT-2930/L, CT2930/LE, CT-2931, CT-2931/ST, CT-2931/STINT, CT-2931/STUK, CT-2931/STAUS, CT-2931/TO, CT-2931/STCV, CT-2931/STCVINT, CT-2931/STCVUK, CT-2931/STCVAUS, CT-2931/CVTO, CT-2940, CT-2940/L0, CT-2940/LE®, CT-2940/ST9, CT-2940/STINTO, CT-2940/STUK®, CT-2940/STAUS9, CT-2940/TO9

For Instructions in Local Languages and Technical Support:
www.panduit.com/resources/install maintain.asp

E-mail:
[email protected]

Fax:
708-444-6993
