Instruction Manual
TT3.1
| U0/U (U)m kV |  mm2 |  |
| 18/30 (36) kV | 10-400 | 10-400 |
| 12/20 (24) kV | ||
| 6/10 (12) kV |
 | SSM83.3 | 1 x 360 mm | 6 |  | PEM-TT3_1 | 1 |

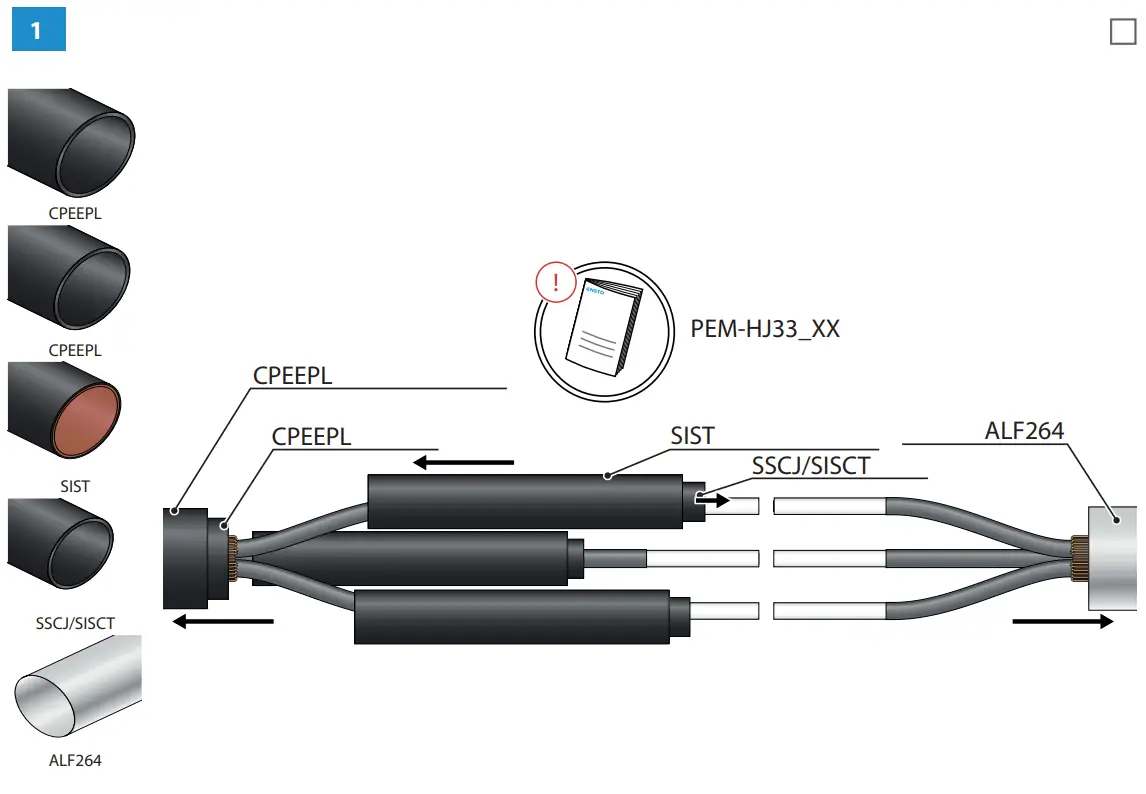

 | ALF264 | 1800 mm | 1 |
PEM-TT3_1
Revision B 2021-11-01
NOTE REGARDING TT3.1 KIT!

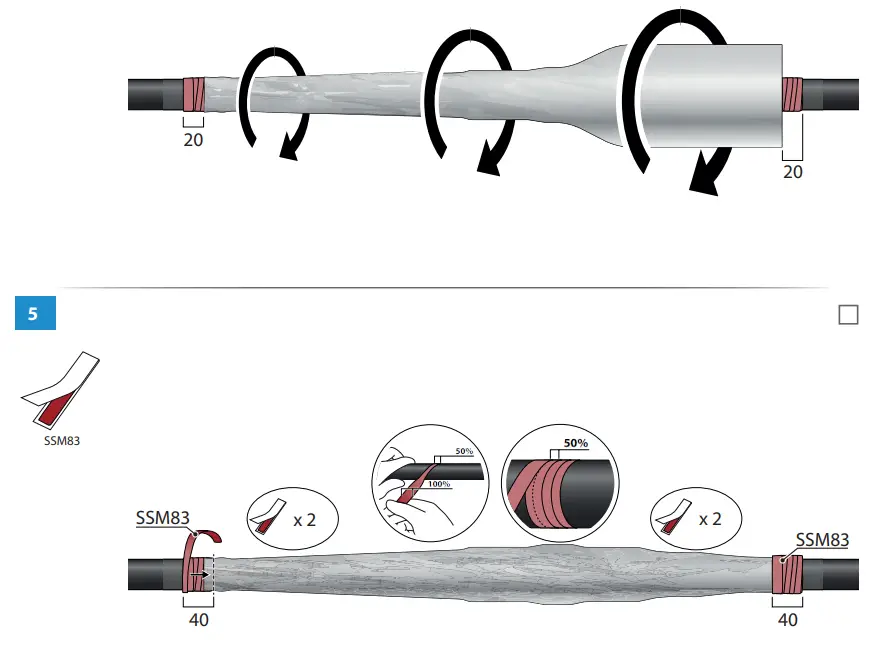

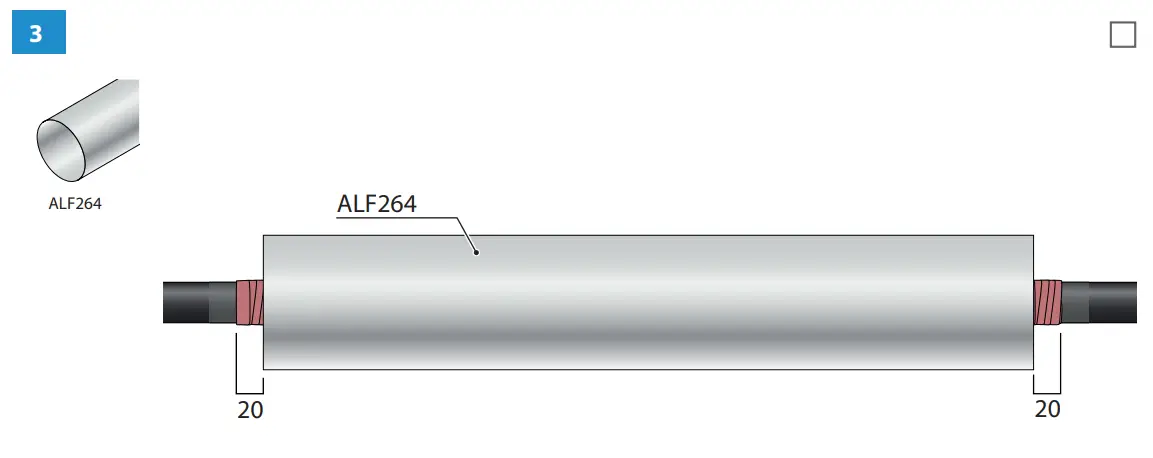

TAKE CARE THAT YOU DON’T MELT THE AL/PE FOIL TUBE WHEN SHRINKING THE FIRST SEALING TUBE. SSM83 SEALING MASTIC CAN BE WRAPPED ON THE FOIL AT THE TUBE END FOR PROTECTION.
PEM-TT3_1
2021-11-01
Revision B
