ENSTO HIT1.1205L Heat Shrink Indoor Term Instruction Manual

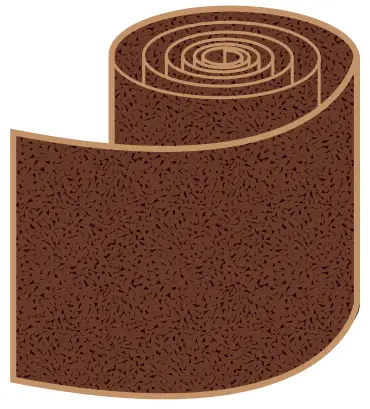

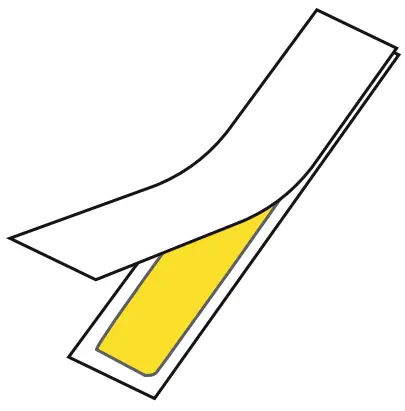

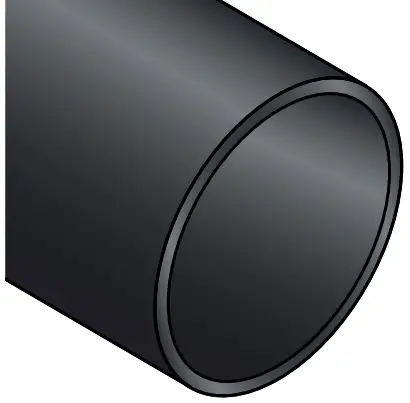

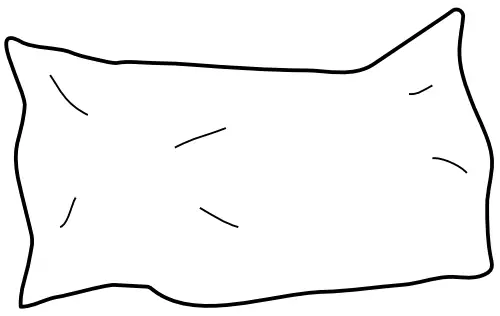

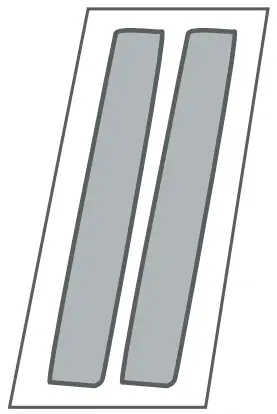

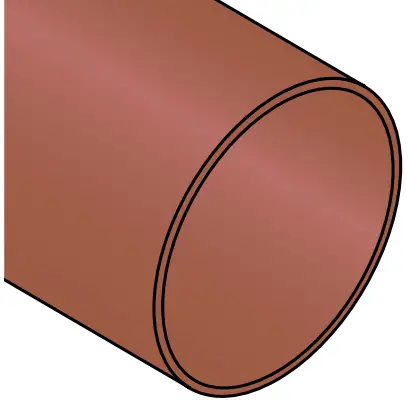

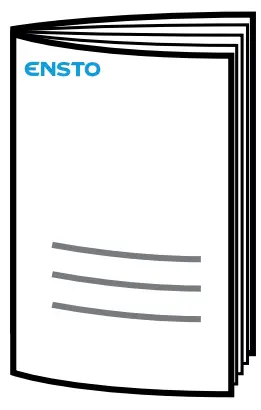

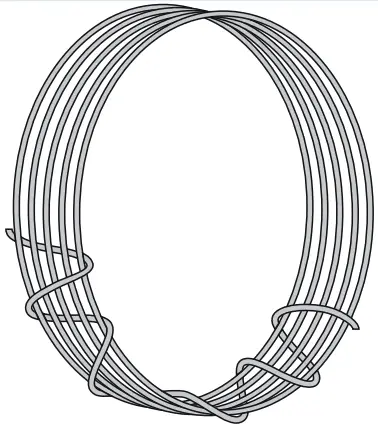

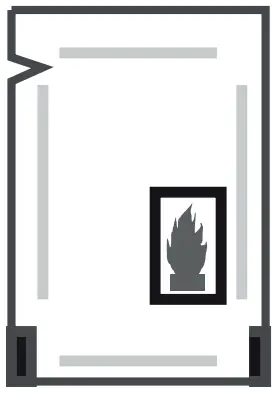

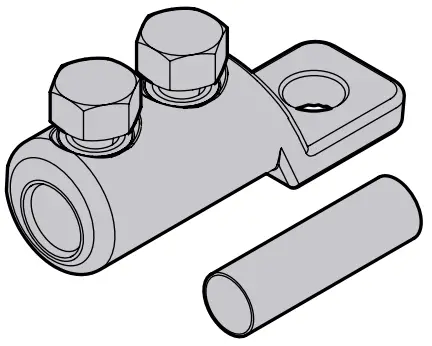

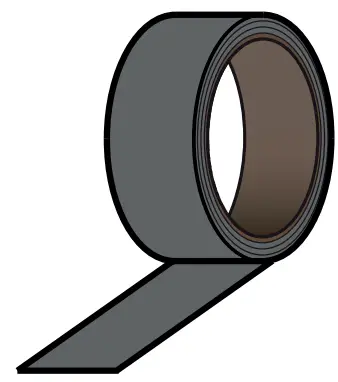

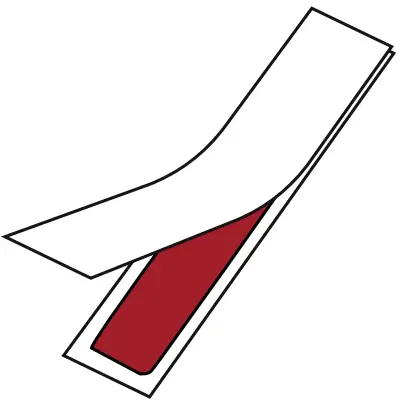

Package Contents
 | SATH30 | 360 mm | 3 |
 | SSCT30 | 90 mm | 3 |

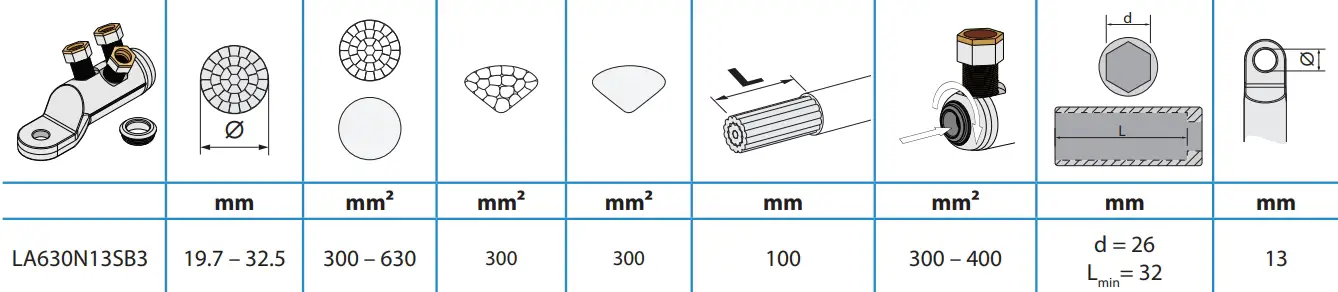

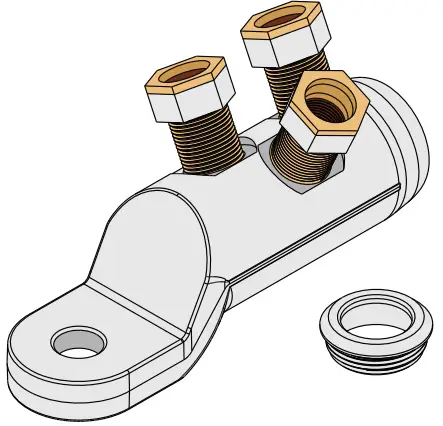

 | LA630N13SB3 | 3 | |
 | LUG6-50/12LVTIN | 3 | |

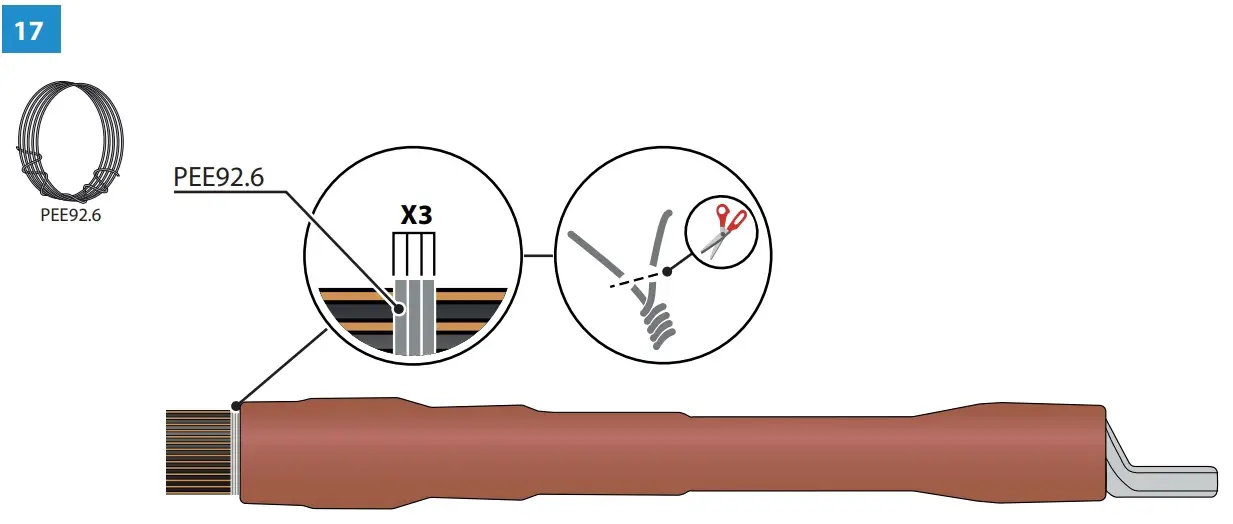

 | PEE92.6 | 600 mm | 3 |

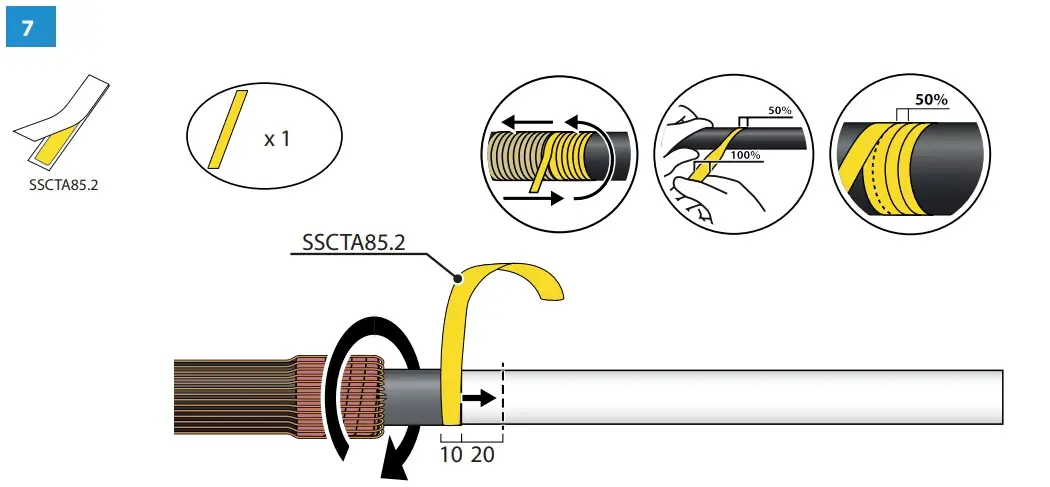

 | SSCTA85.2 | 200 mm | 3 |

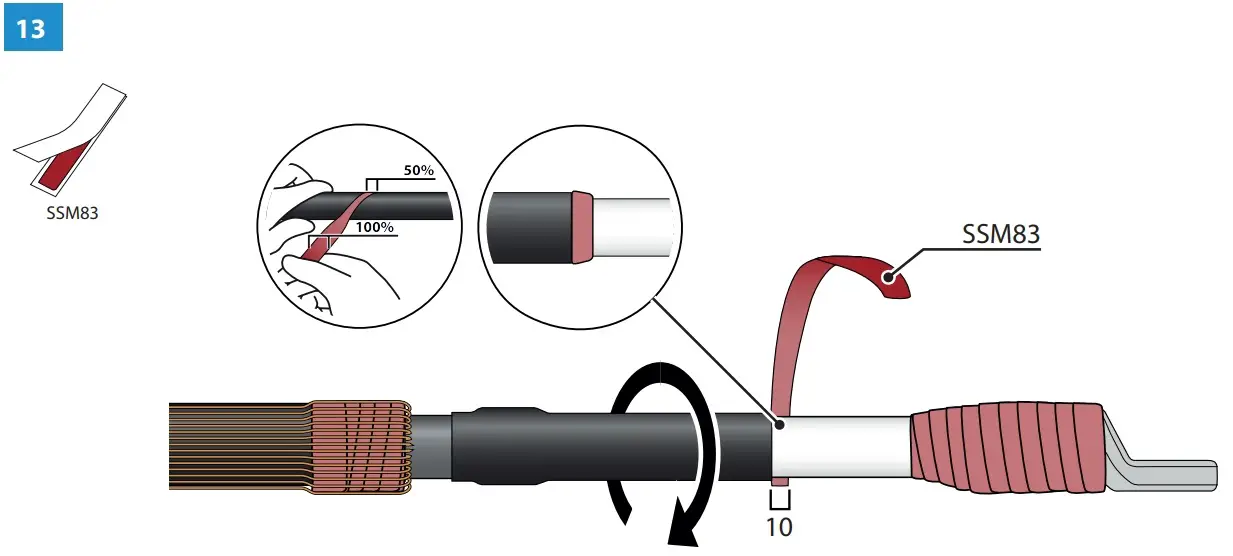

 | SSM83.3 | 1 x 360 mm | 10 |
 | SMG200 | 2 x 100 mm | 5 |

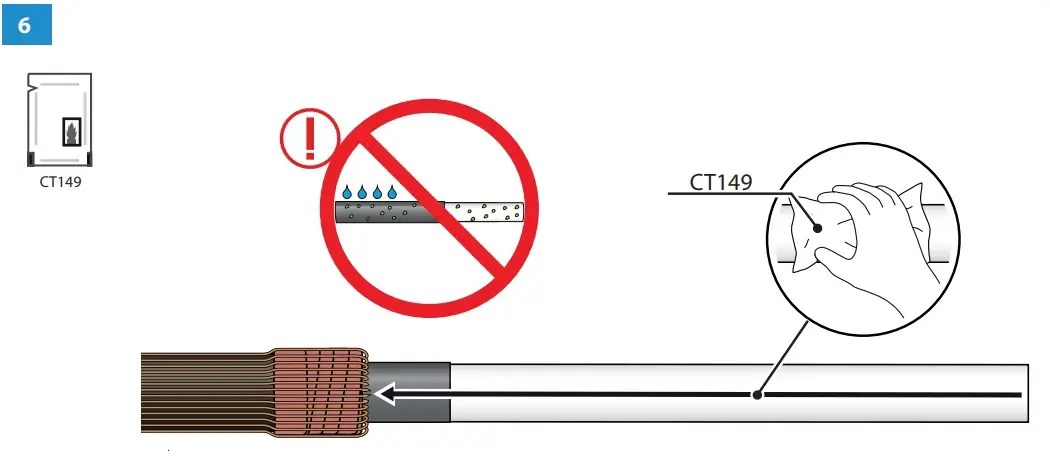

 | CT149 | 3 | |
 | PA23 | 2 | |
 | PEE225W | 1 | |

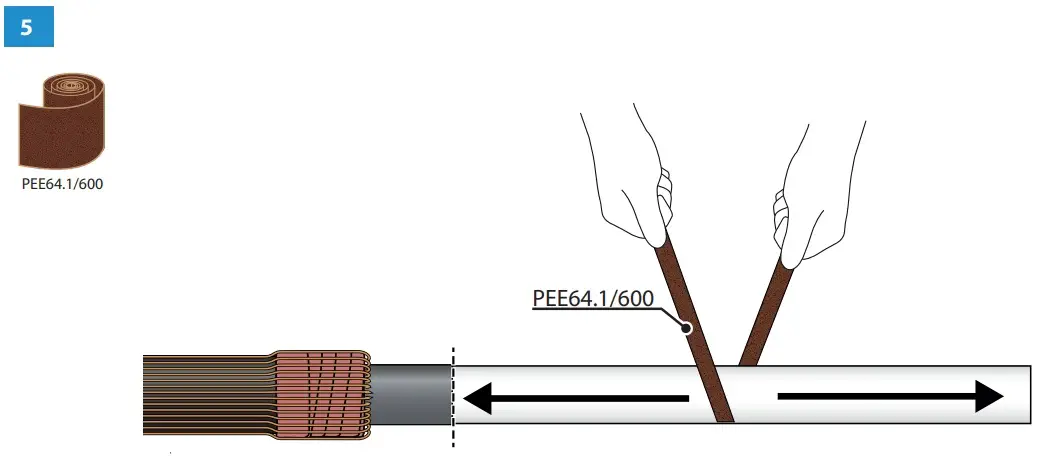

 | PEE64.1/600 | 3 | |
| PEM-HiT1_1205L | 1 |

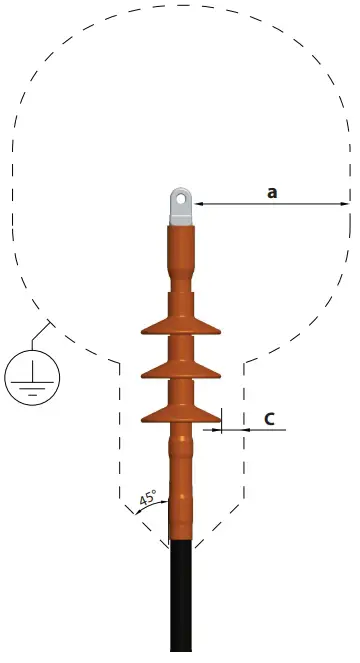

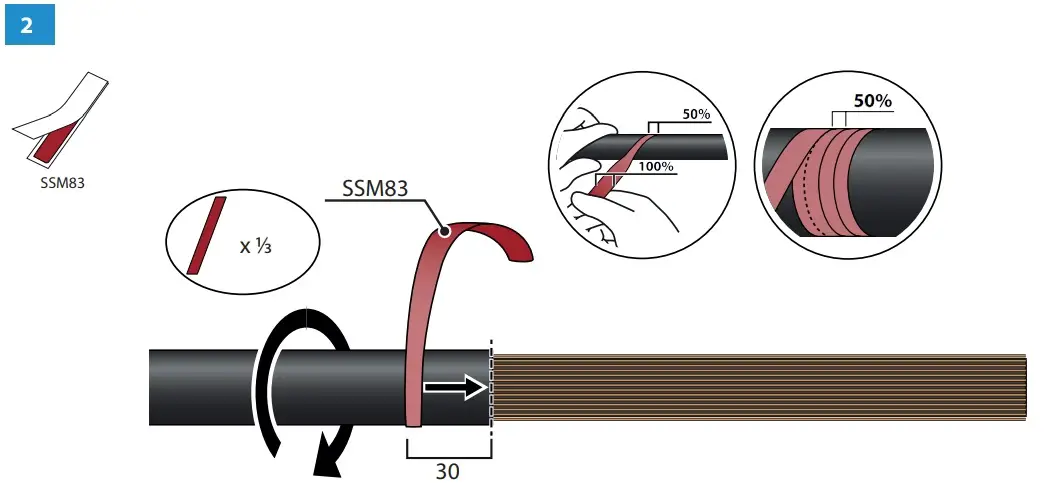

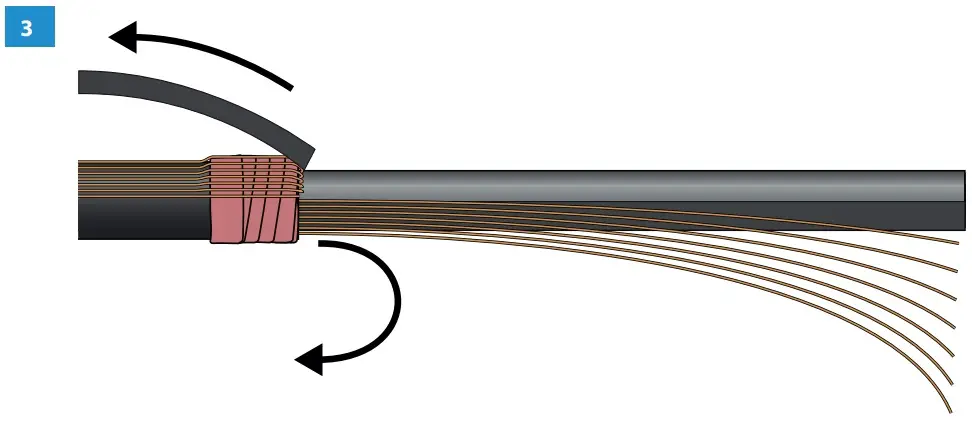

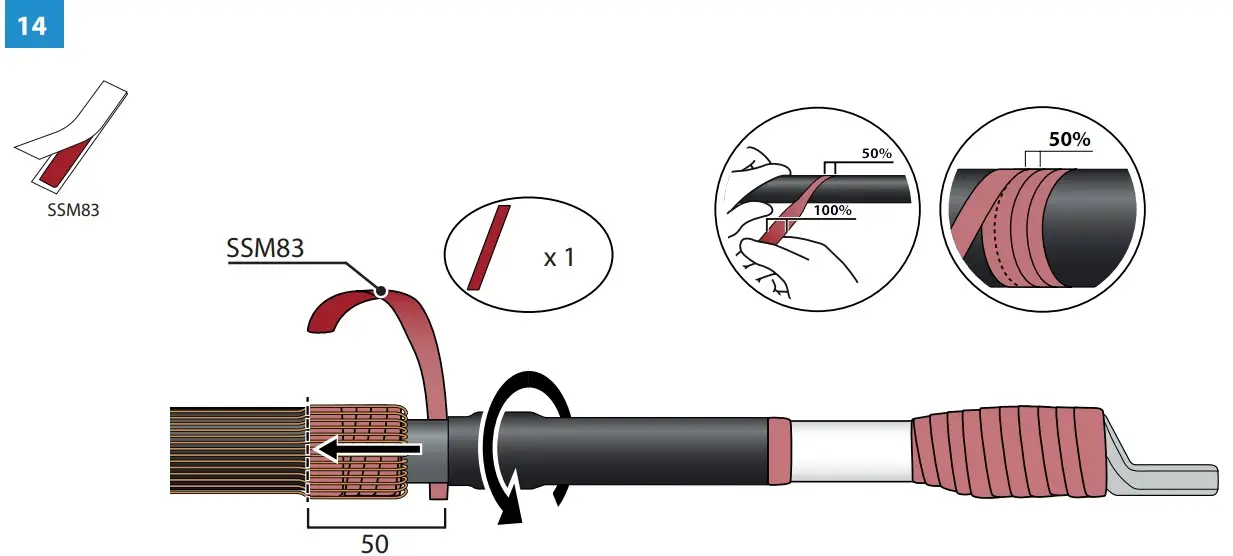

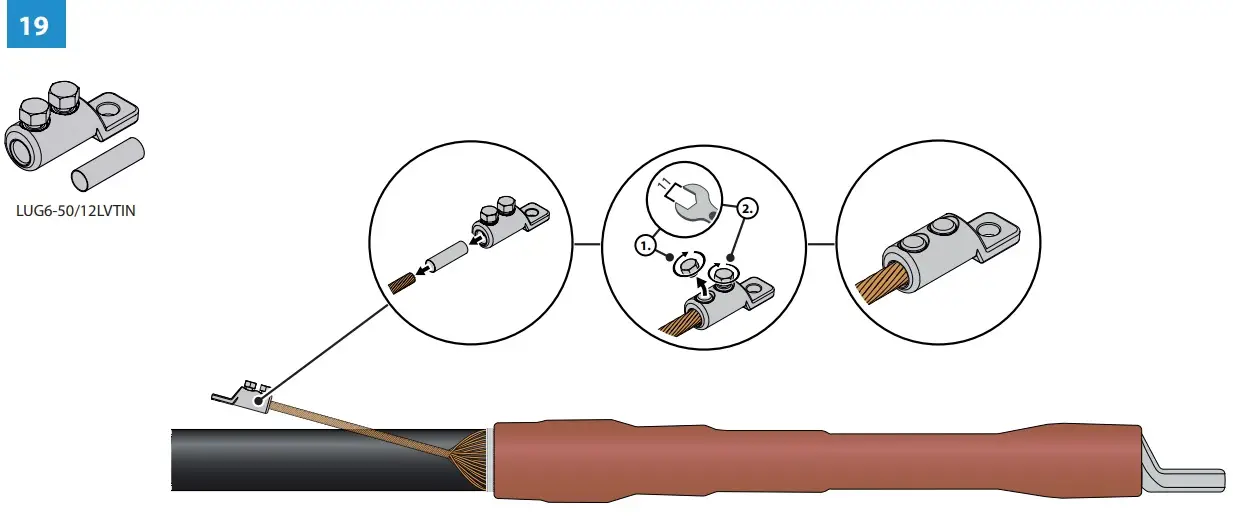

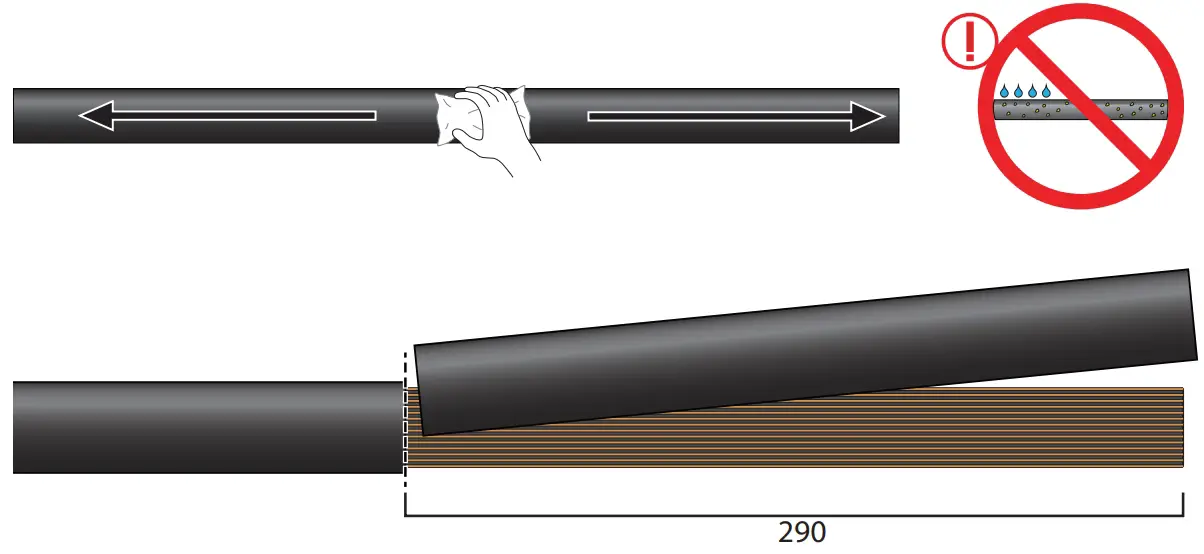

Inductions

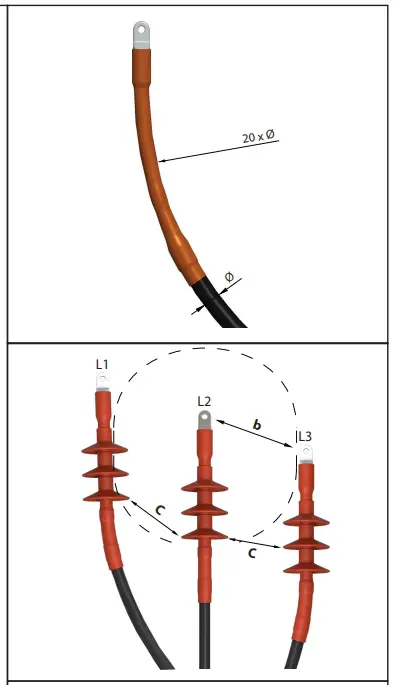

| 12 kV | 24 kV | 36 kV | |
| a | §§§ | §§§ | §§§ |
| b | §§§ | §§§ | §§§ |
| C (mm) | 15 | 25 | 35 |
| d (mm) | 10 | 20 | 25 |
§ § § = according to local requirements
LEGAL NOTICE
- The product must be installed only by a competent person with sufficient training in installation practices and with sufficient knowledge of good safety and installation practices in respect of electrical equipment. If local legislation contains provisions in respect of such training or sufficient knowledge in respect of installation of electrical equipment such provisions shall be fulfilled by the said person.
- Ensto accepts no liability concerning claims resulting from misuse, incorrect installation or ignored national safety regulations or other national provisions.
- WARNING: Failure to follow the installation instructions may result in damage to the product and serious or fatal injury.
