HOT1.1204L Heat
Shrink Outdoor Term
User Guide
HOT1.1204L

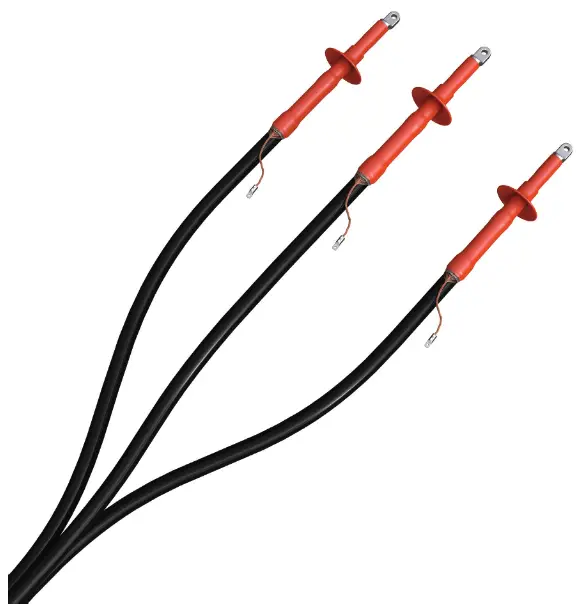

HOT1.1204L Heat Shrink Outdoor Term
| Uo /U (Um ) kV |  |
| 6.35/11 (12) kV | 150-300 |
LEGAL NOTICE
- The product must be installed only by a competent person with sufficient training in installation practices and with sufficient knowledge of good safety and installation practices in respect of electrical equipment. If local legislation contains provisions in respect of such training or sufficient knowledge in respect of the installation of electrical equipment such provisions shall be fulfilled by the said person.
- Ensto accepts no liability concerning claims resulting from misuse, incorrect installation, or ignored national safety regulations or other national provisions.
- WARNING: Failure to follow the installation instructions may result in damage to the product and serious or fatal injury.
PEM-HOT1_1204L

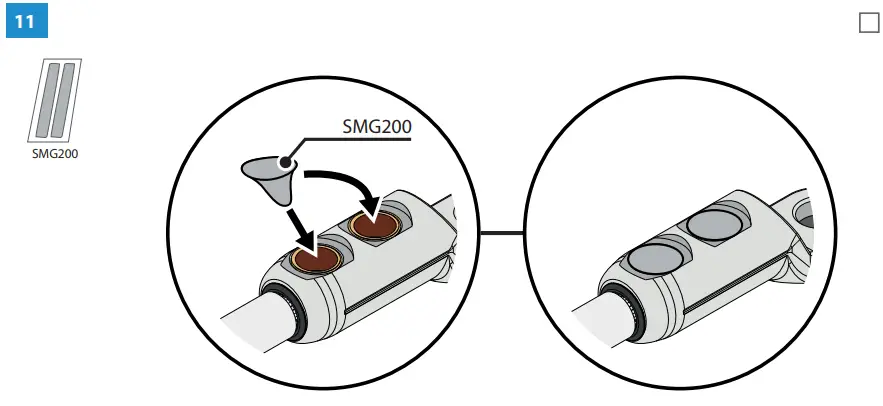

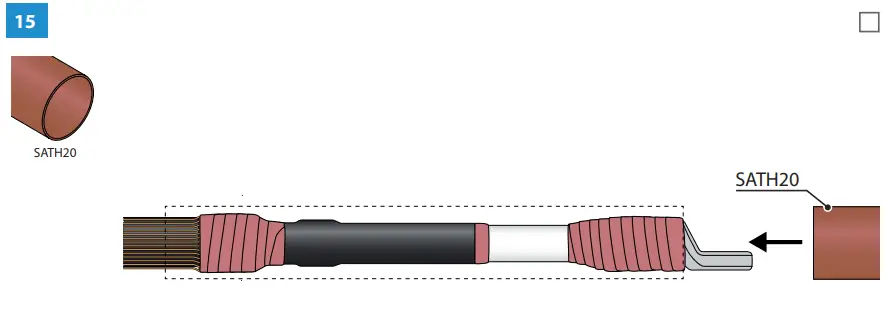

 | SATH20 330 mm |  | SMG200 2 x 100 mm | ||

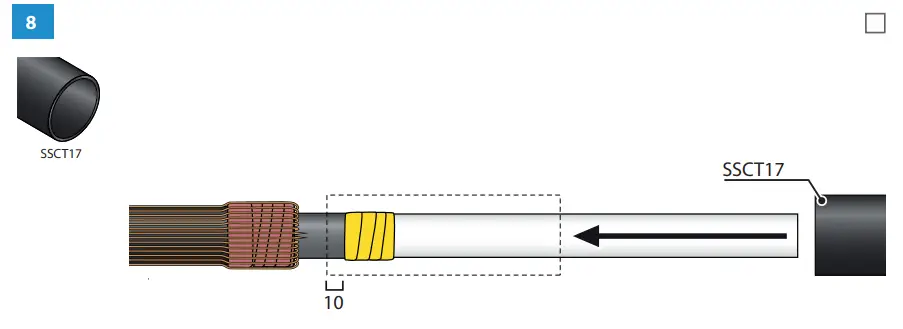

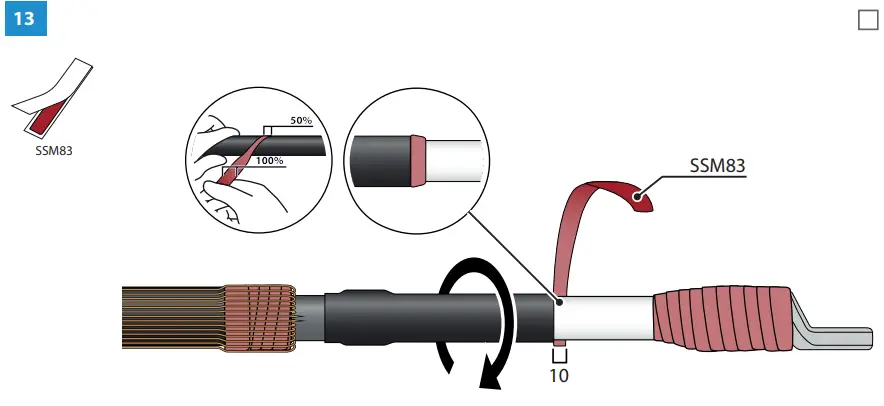

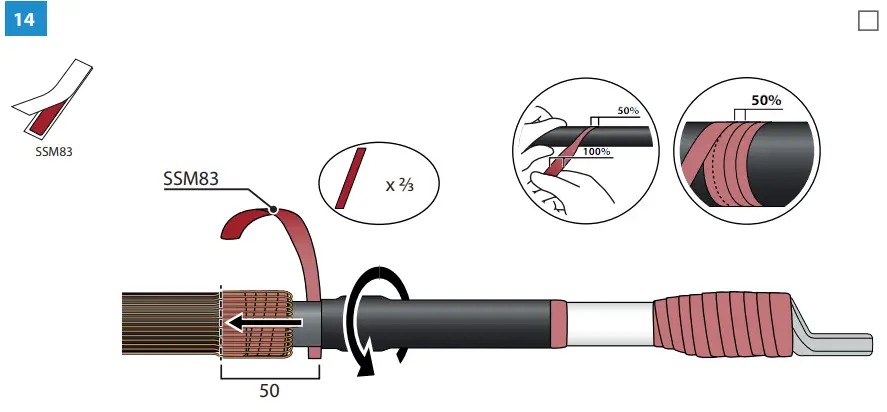

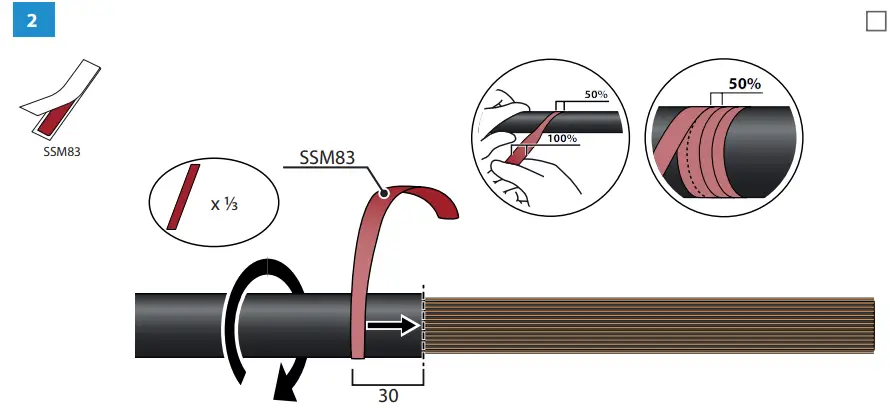

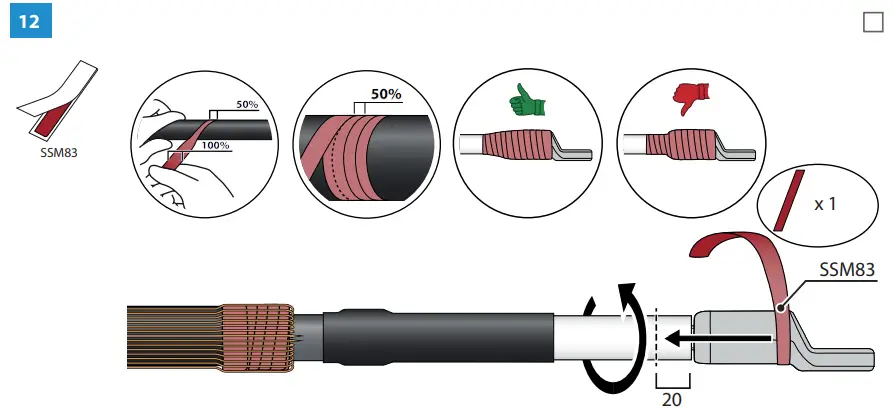

 | SSCT17 90 mm |  | SSM83.3 1 x 360 mm | ||

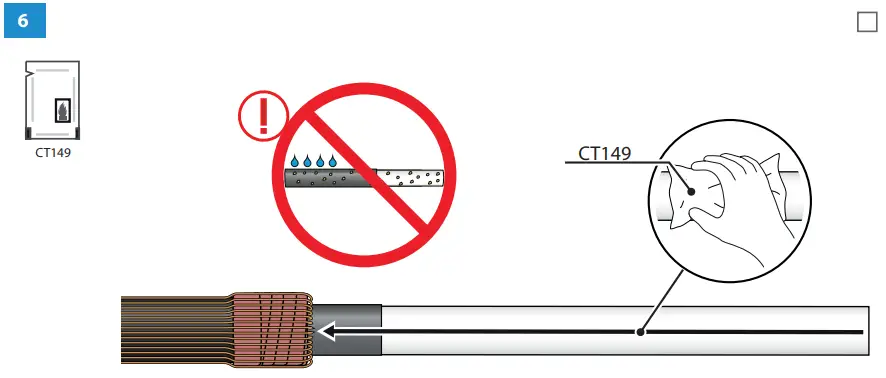

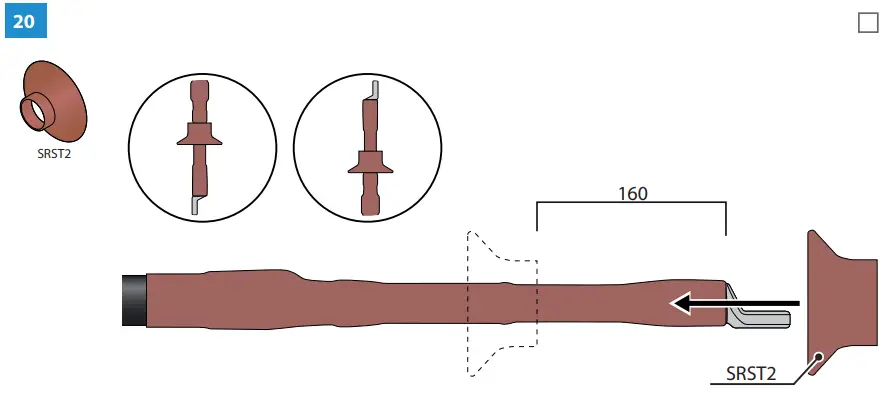

 | SRST2 |  | CT149 | ||

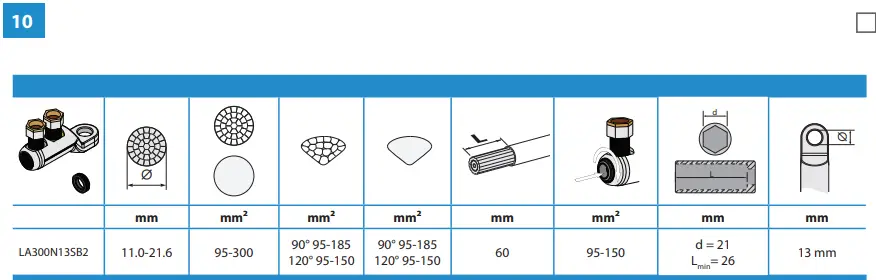

 | LA300N13SB2 |  | PA23 | ||

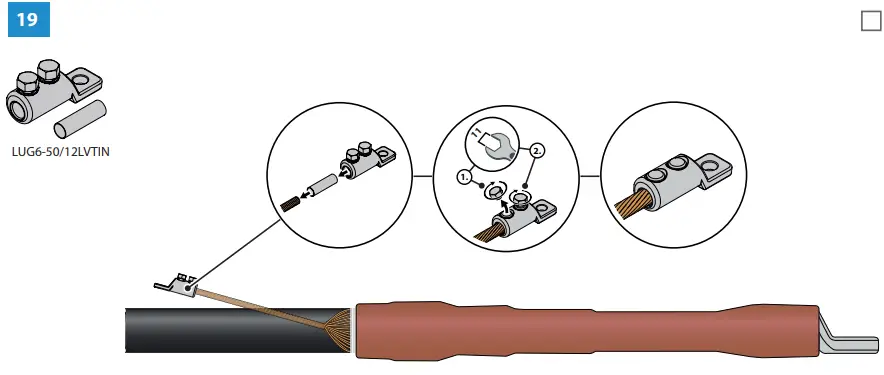

 | LUG6-50/12LVTIN |  | PEE225W | ||

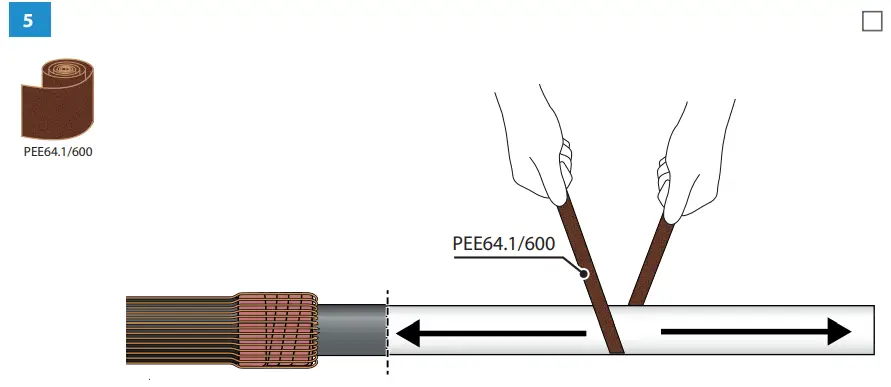

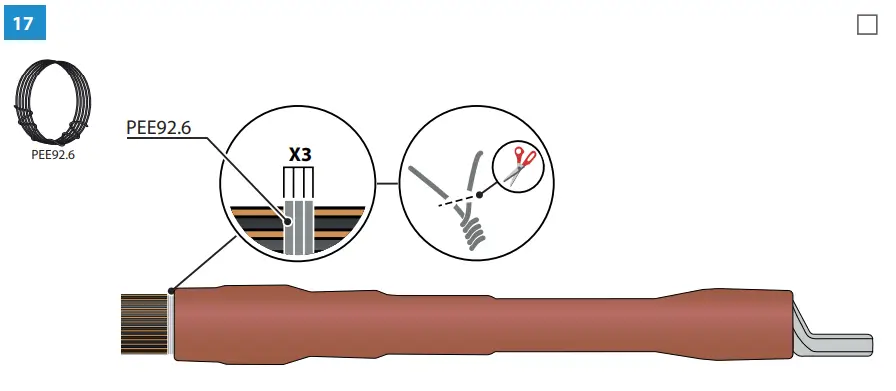

 | PEE92.6 600 mm |  | PEE64.1/600 | ||

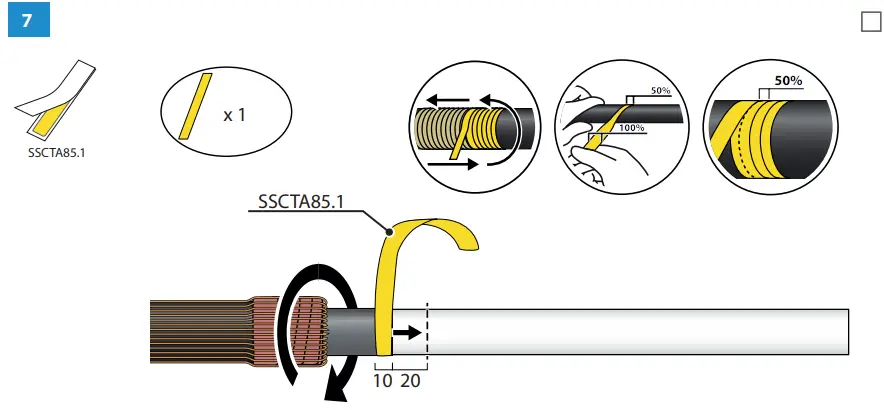

 | SSCTA85.1 100 mm |  | PEM-HOT1_1204L |

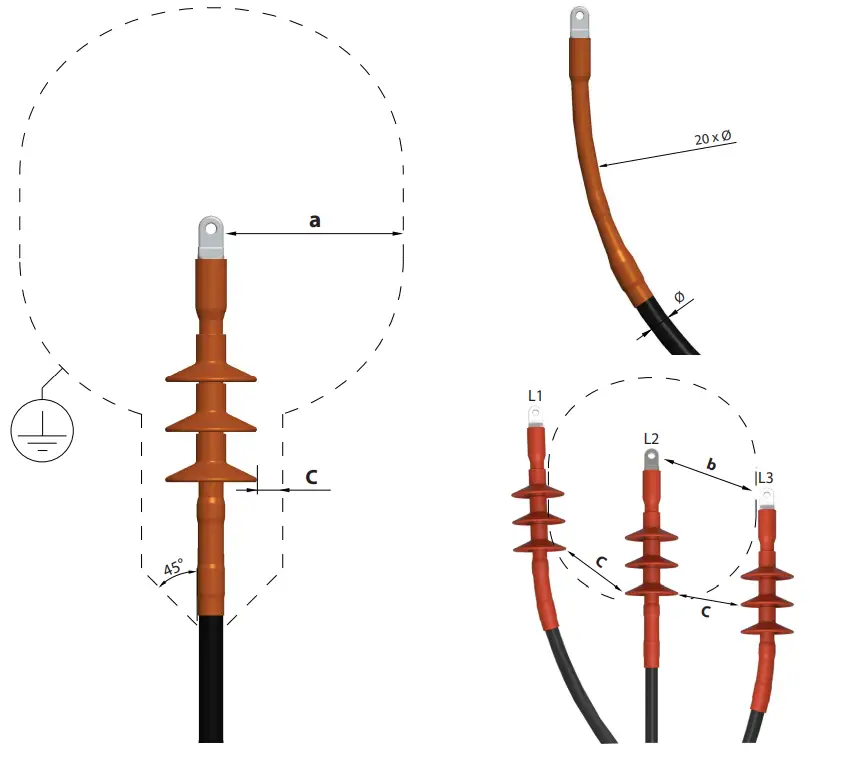

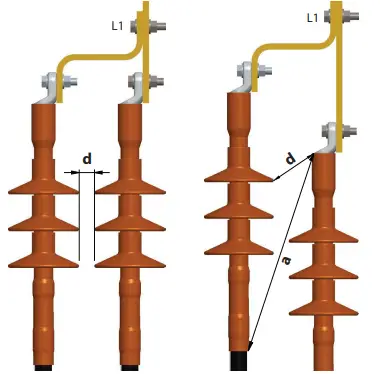

| 12 kV | 24 kV | 36 kV | |
| a | §§§ | §§§ | §§§ |
| b | §§§ | §§§ | §§§ |
| c (mm) | 15 | 25 | 35 |
| d (mm) | 10 | 20 | 25 |
§ § § = according to local requirements
