HOT3.2412L
Revision C 2021-10-29
PEM-HOT3_2412L

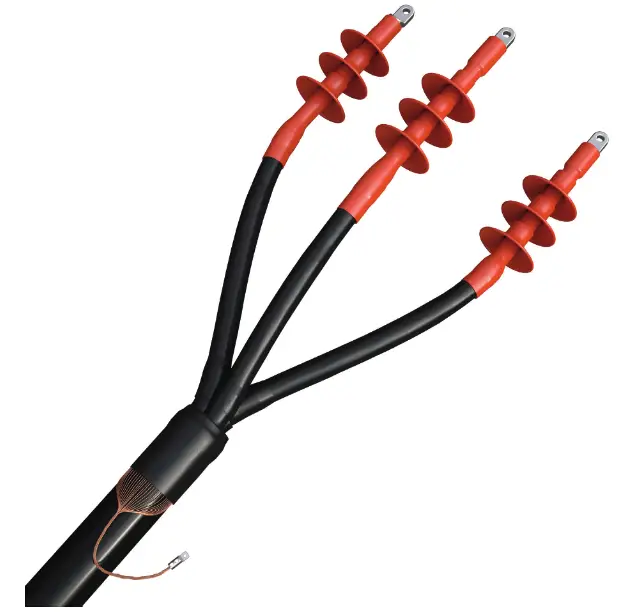

HOT3.2412L Heat Shrink Outdoor Term
| Uo /U (Um ) kV |  mm 2 |  mm 2 |
| 12/20 (24) kV | 25-70 | Oct-95 |
| 6/10 (12) kV | 50-70 | 50-95 |
LEGAL NOTICE
– The product must be installed only by a competent person with sufficient training in installation practices and with sufficient knowledge of good safety and installation practices in respect of electrical equipment. If local legislation contains provisions in respect of such training or sufficient knowledge in respect of installation of electrical equipment such provisions shall be fulfilled by the said person.
– Ensto accepts no liability concerning claims resulting from misuse, incorrect installation or ignored national safety regulations or other national provisions.
– WARNING: Failure to follow the installation instructions may result in damage to the product and serious or fatal injury.
 | SATH12 390 mm | 3 |  | SMG200 | 1 |

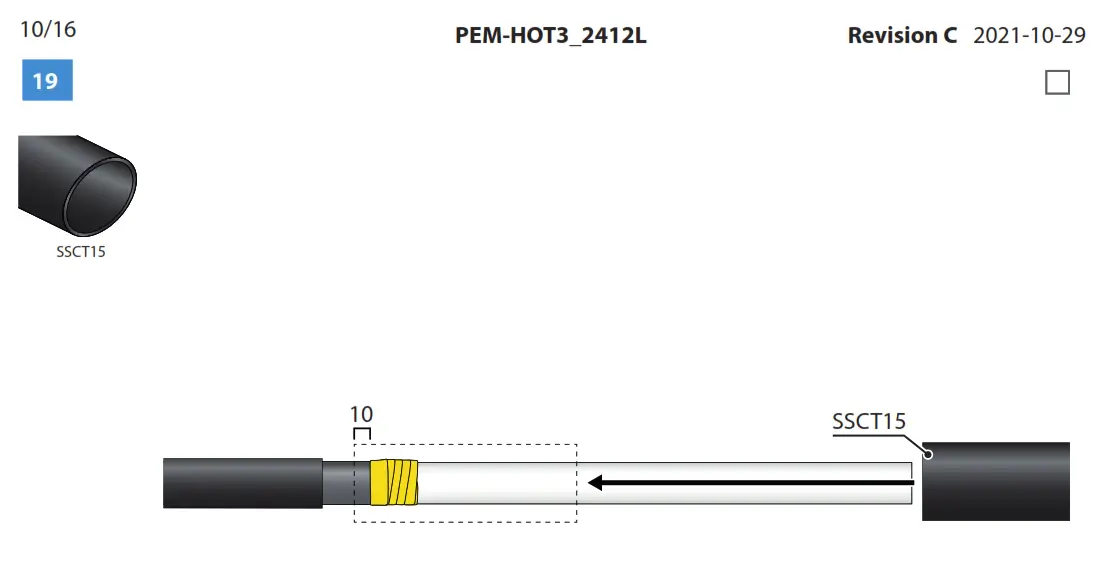

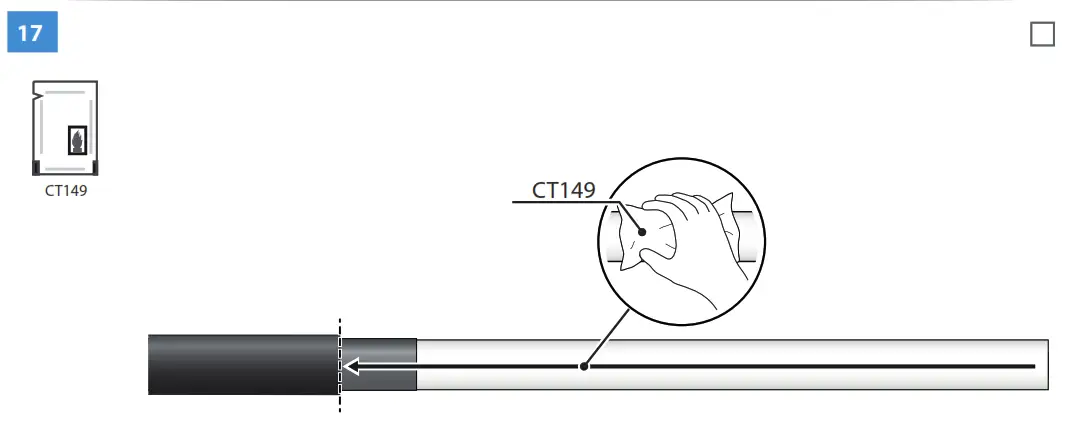

 | SSCT15 140 mm | 3 |  | CT149 | 3 |

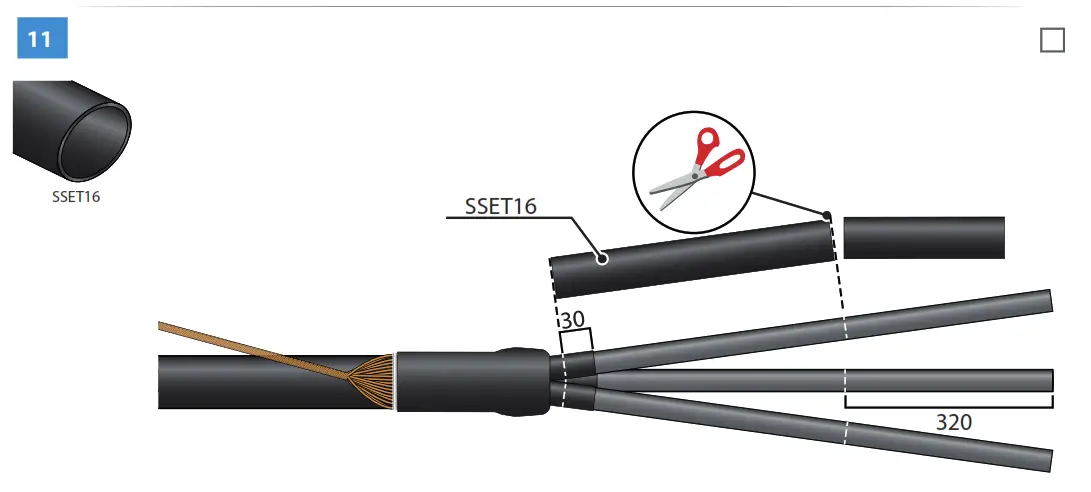

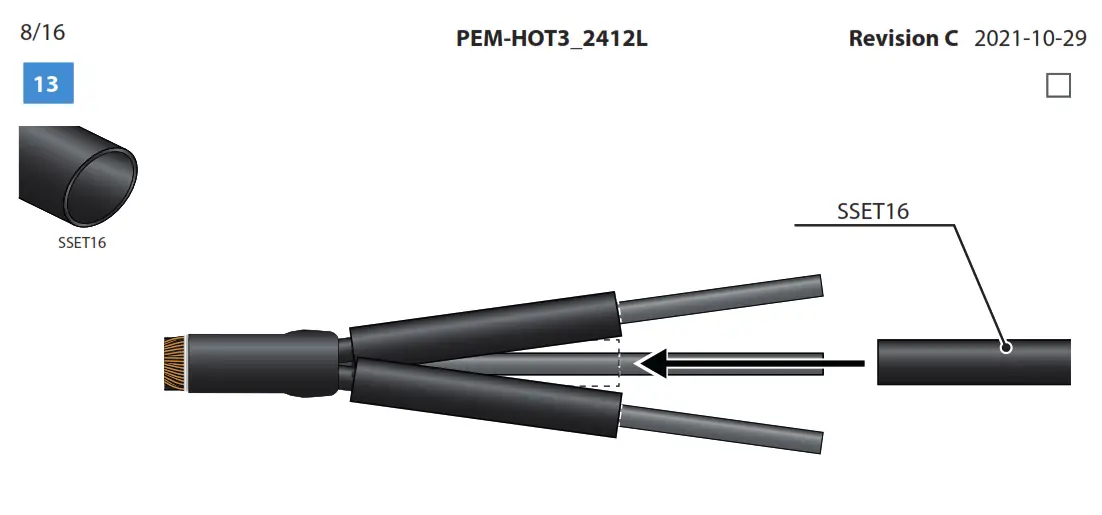

 | SSET16 1100 mm | 3 |  | PA23 | 2 |

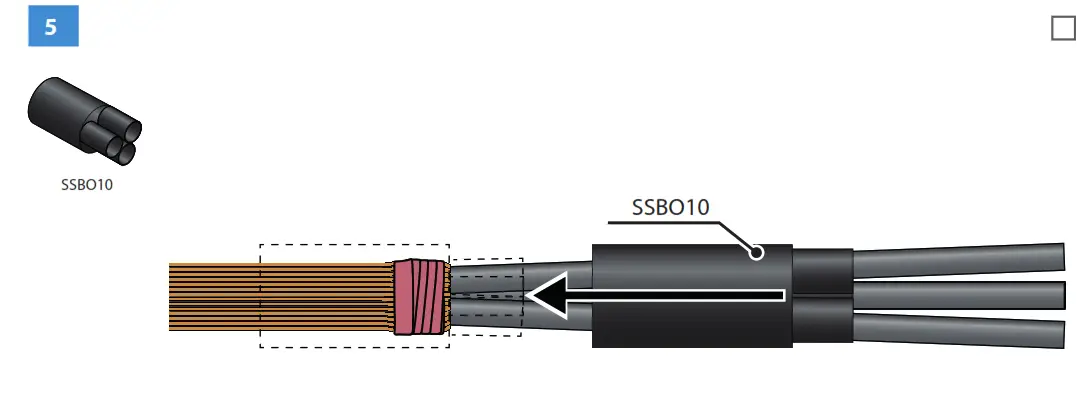

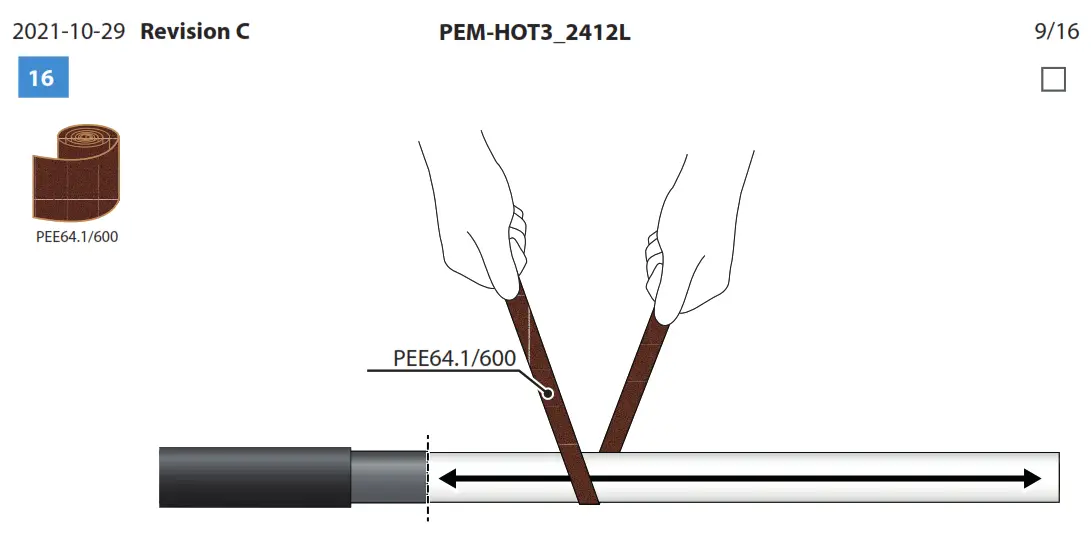

 | SSBO10 | 1 |  | PEE64.1/600 | 1 |

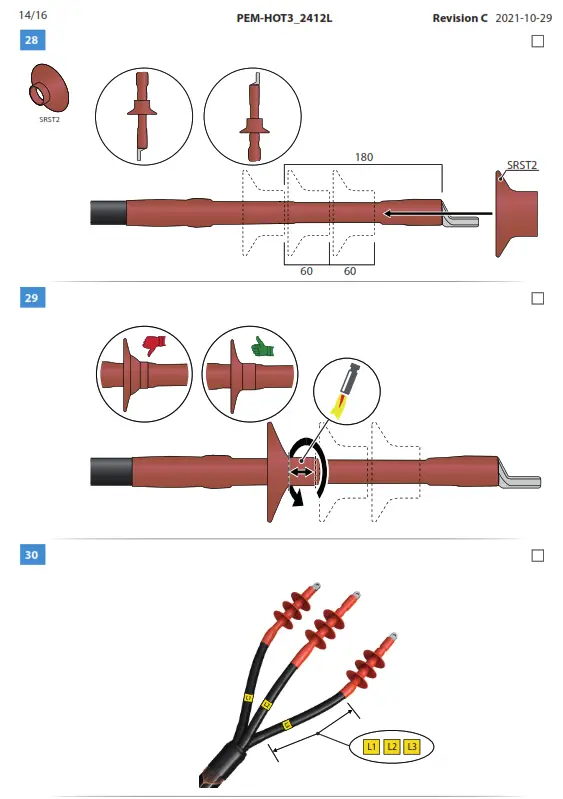

 | SRST2 | 9 |  | PEE225W | 1 |

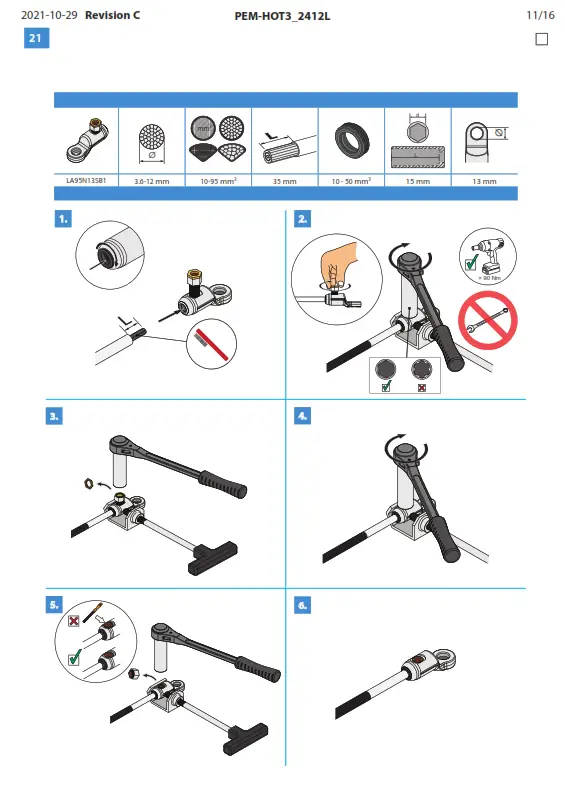

 | LA95N13SB1 | 3 |  | PEM-HOT3_2412L | 1 |

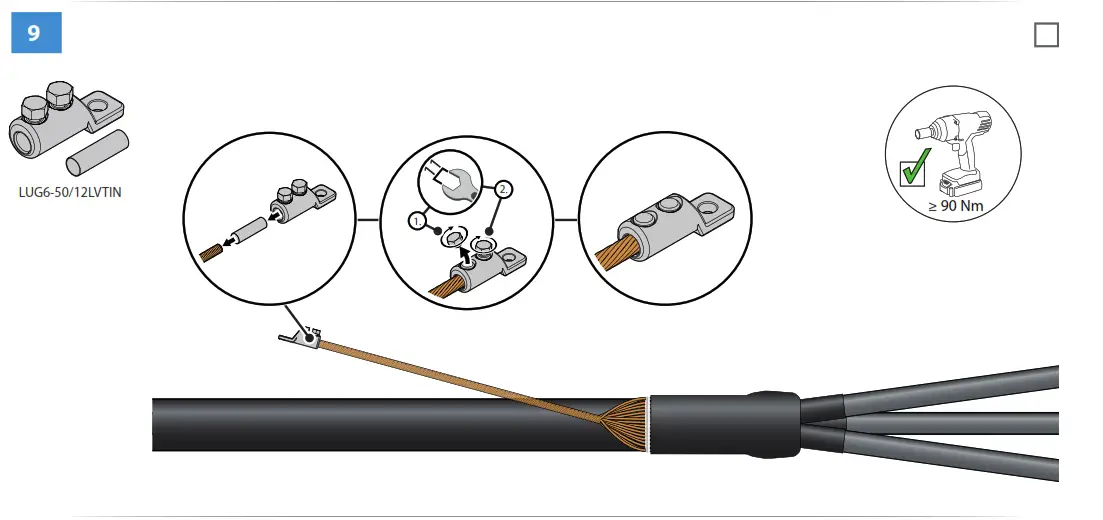

 | LUG6-50/12LVTIN | 1 | |||
 | PEE92.10 | 1 | |||

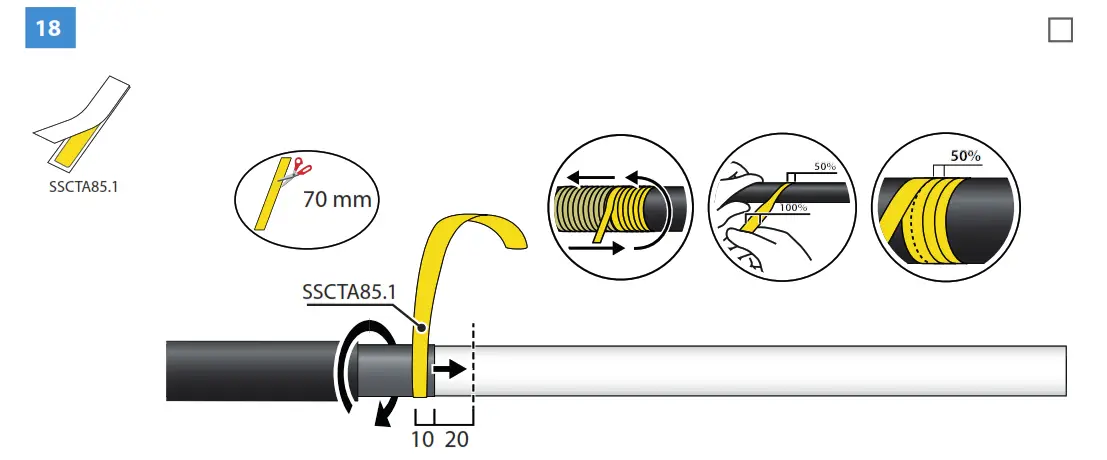

 | SSCTA85.1 | 1 | |||

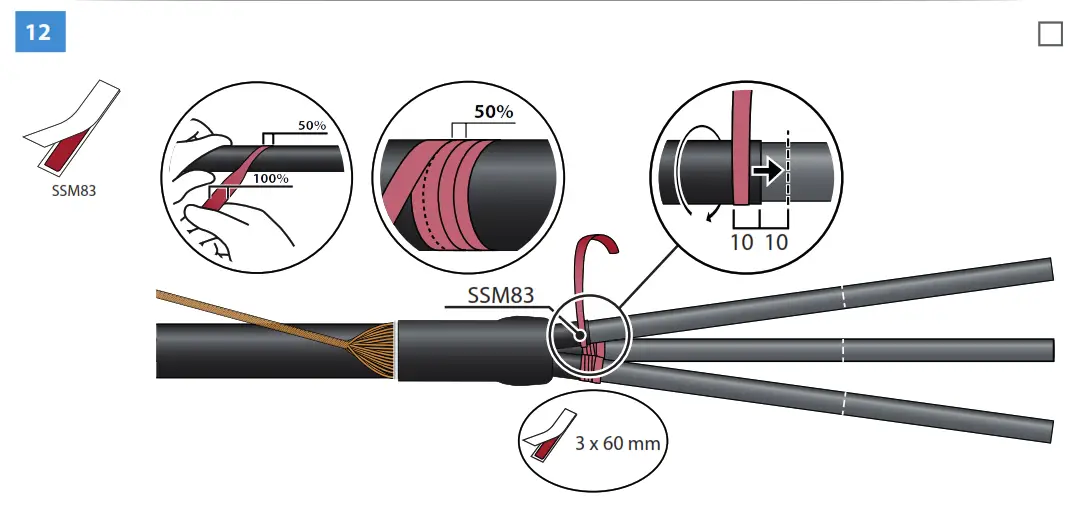

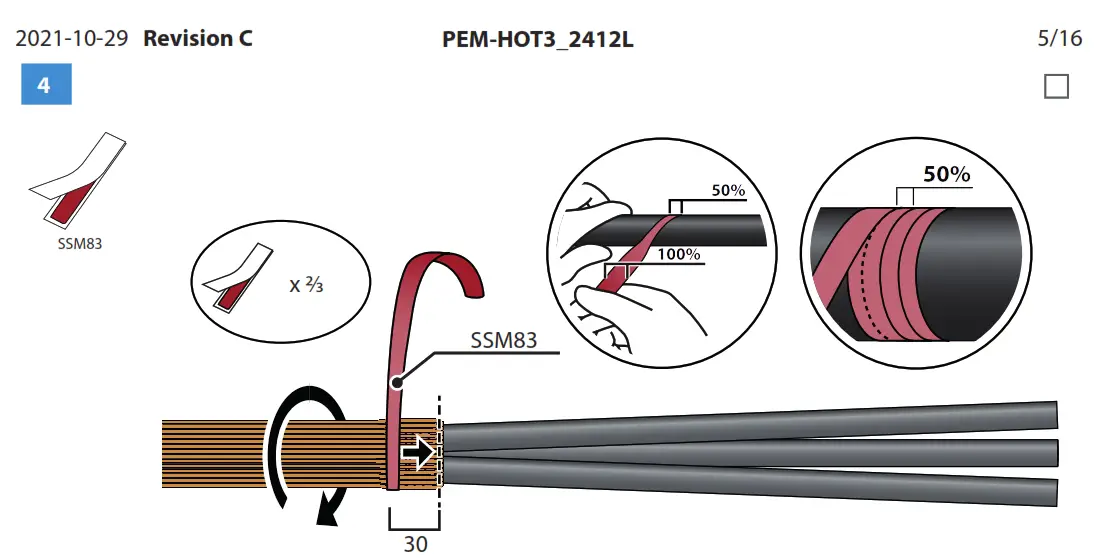

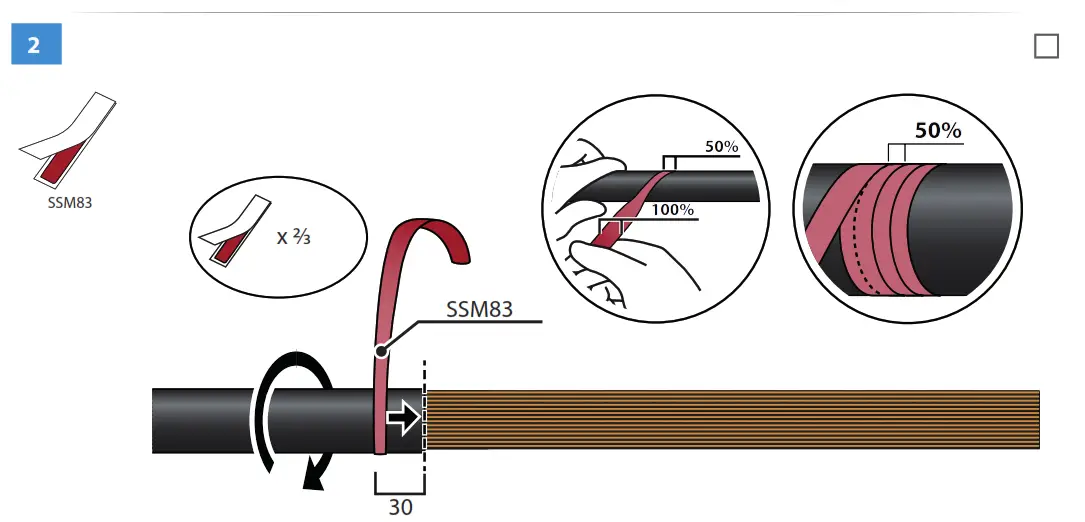

 | SSM83.3 1 x 360 mm | 3 | |||
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
PEM-HOT3_2412L
2021-10-29
Revision C
