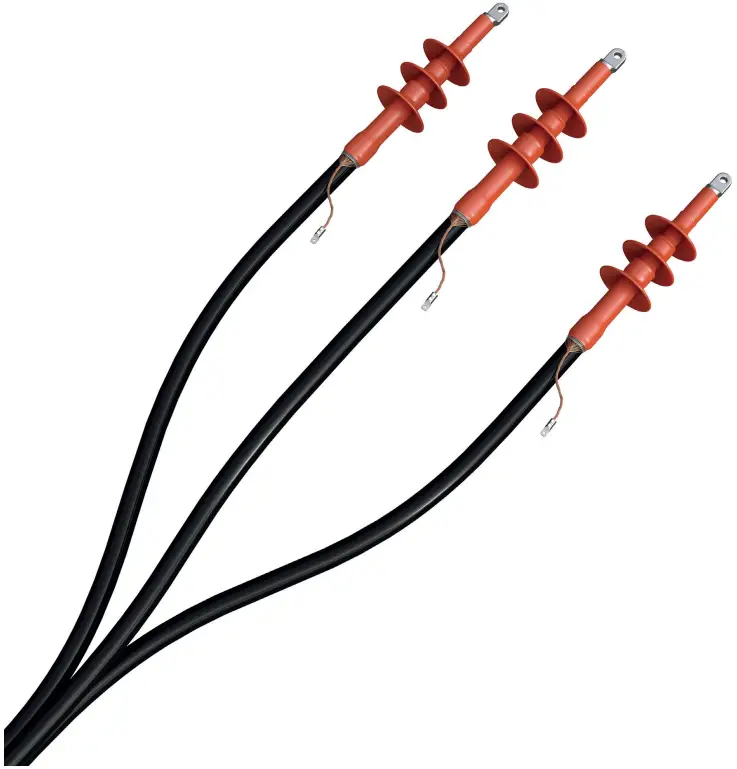

ENSTO HOT1.2405L Heat Shrink Termination Outdoor Instruction Manual
LEGAL NOTICE
- The product must be installed only by a competent person with sufficient training in installation practices and with sufficient knowledge of good safety and installation practices in respect of
electrical equipment. If local legislation contains provisions in respect of such training or sufficient knowledge in respect of installation of electrical equipment such provisions shall be fulfilled by the
said person. - Ensto accepts no liability concerning claims resulting from misuse, incorrect installation or ignored
national safety regulations or other national provisions. - WARNING: Failure to follow the installation instructions may result in damage to the product and serious or fatal injury.

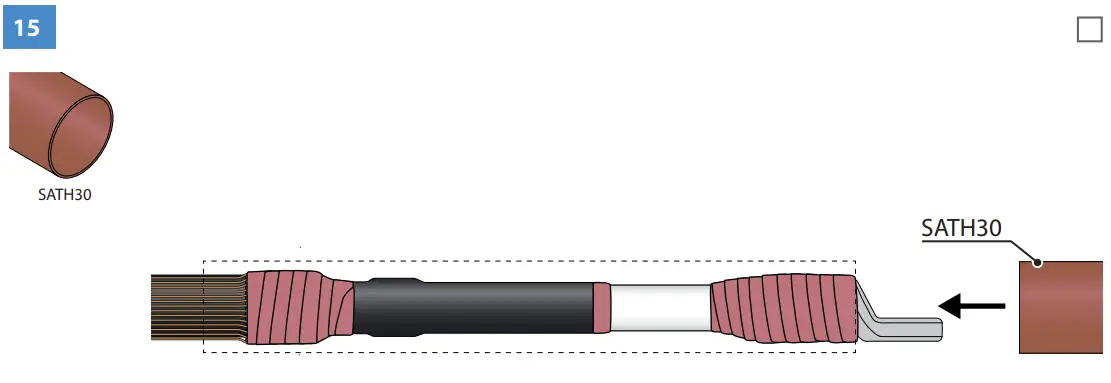

 | SATH30 | 460 mm | 3 |  | PEE225W | 1 | |

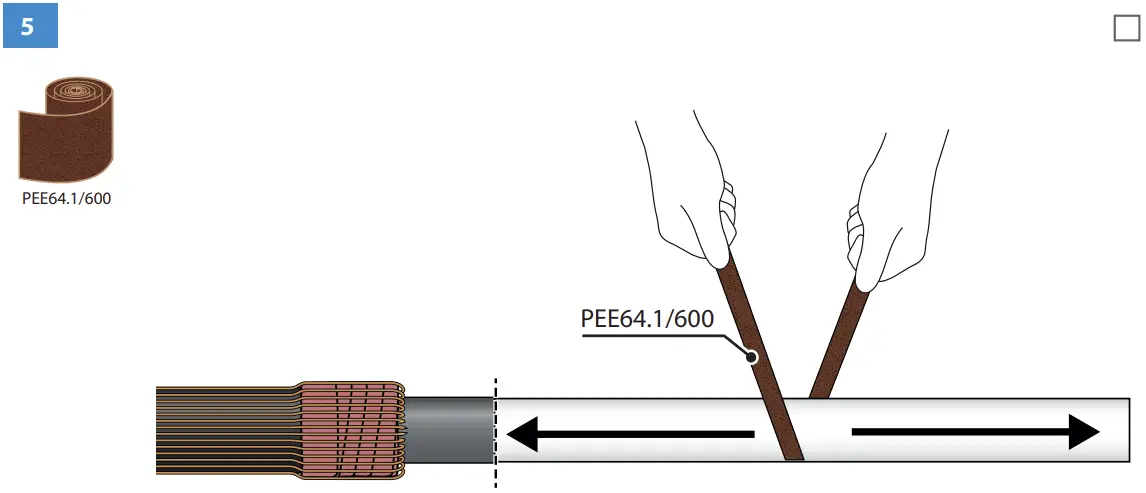

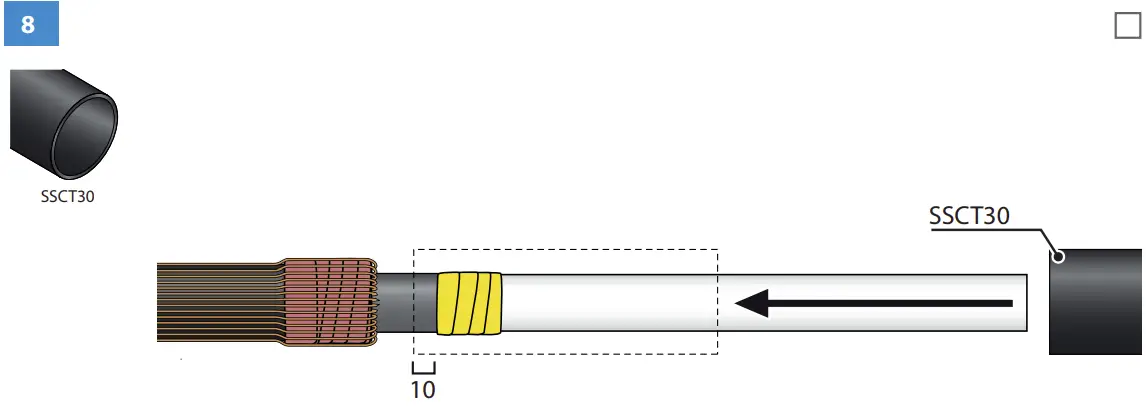

 | SSCT30 | 140 mm | 3 |  | PEE64.1/600 | 3 | |

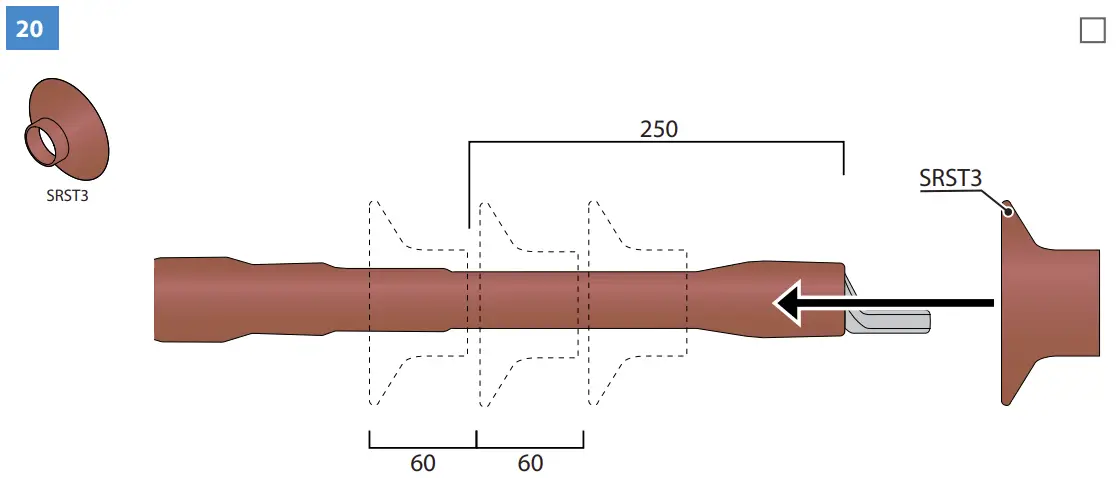

 | SRST3 | 9 |  | PEM-HOT1_2405L | 1 | ||

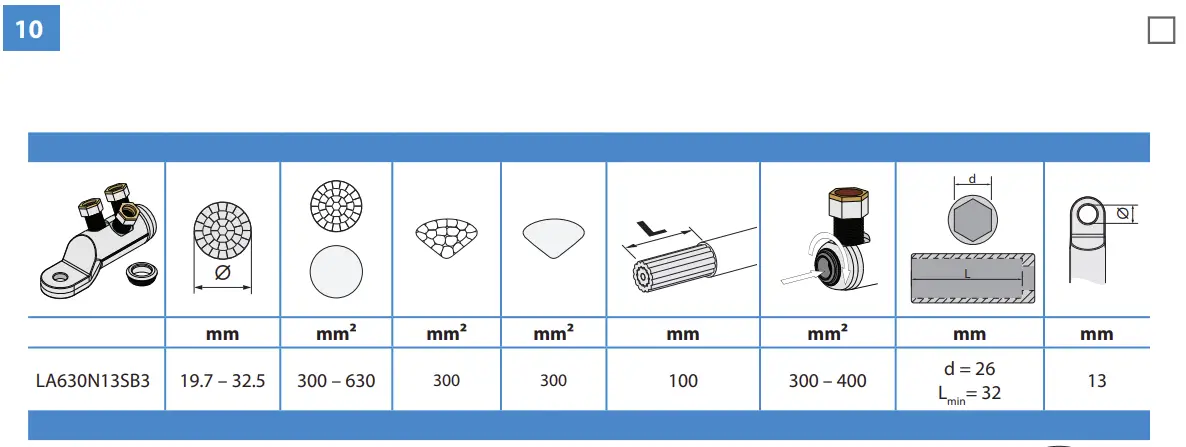

 | LA630N13SB3 | 3 | |||||

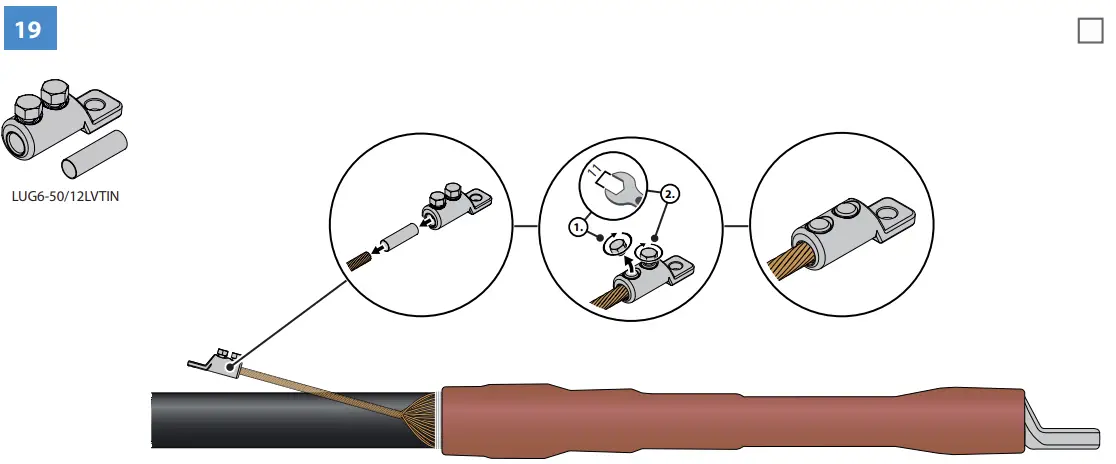

 | LUG6-50/12LVTIN | 3 | |||||

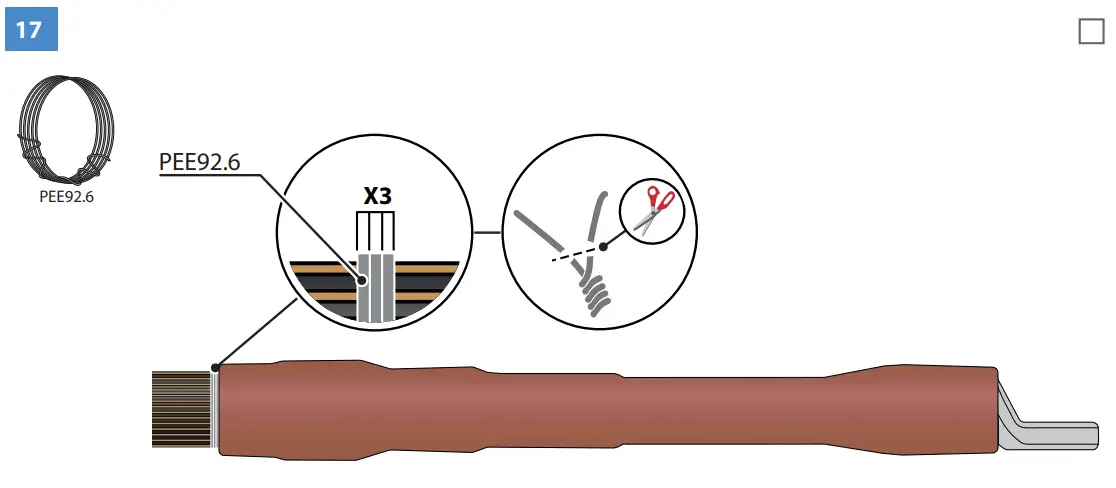

 | PEE92.6 | 600 mm | 3 | ||||

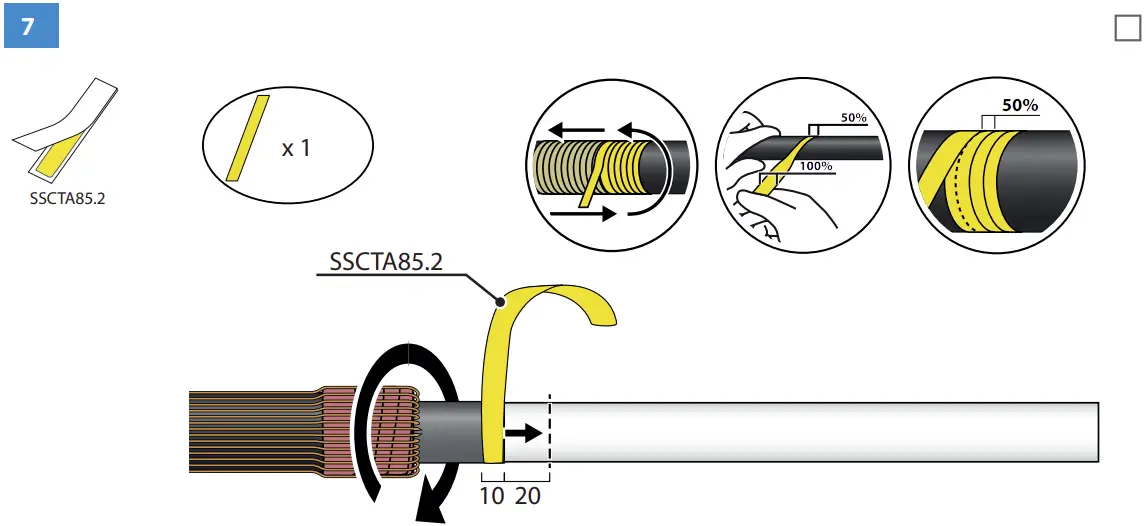

 | SSCTA85.2 | 200 mm | 3 | ||||

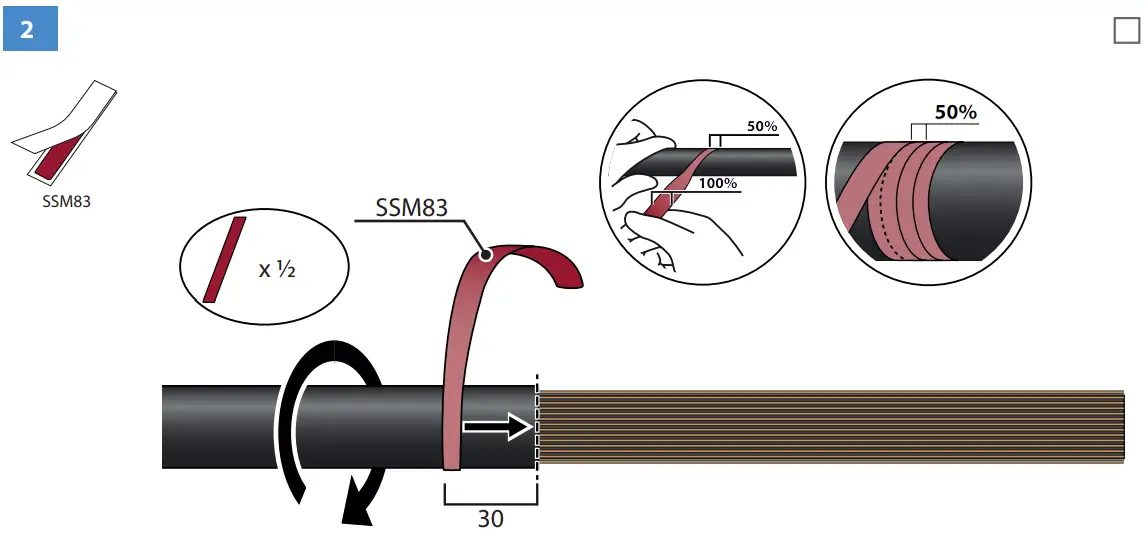

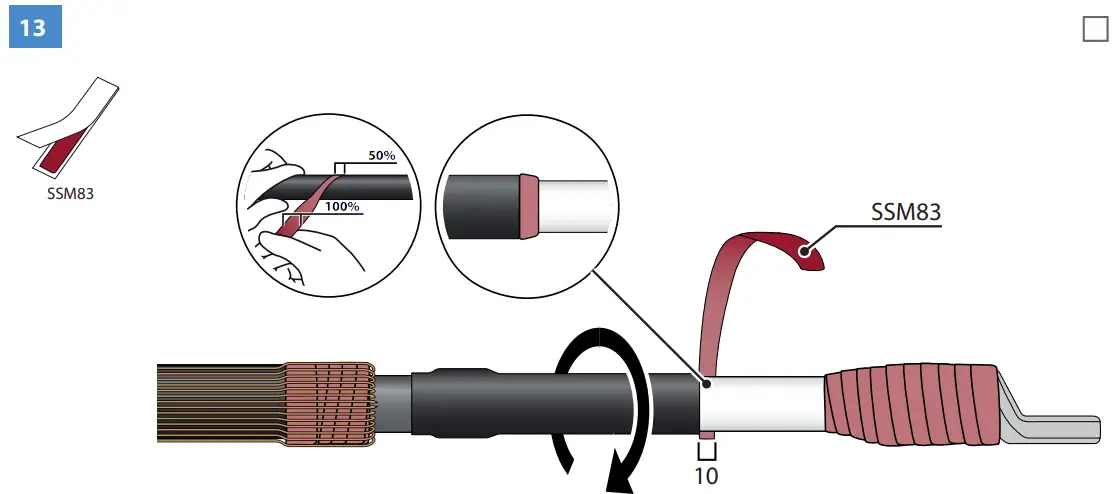

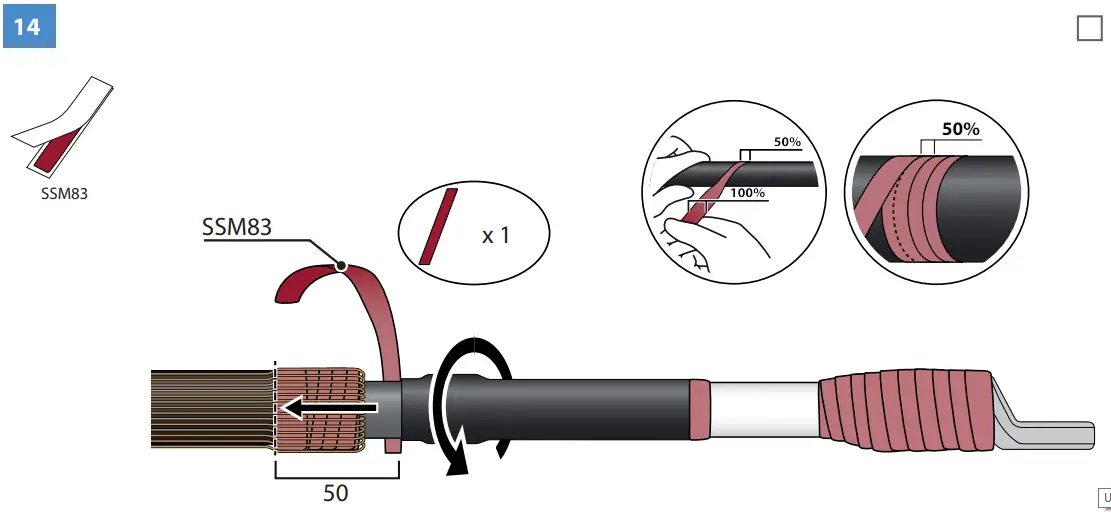

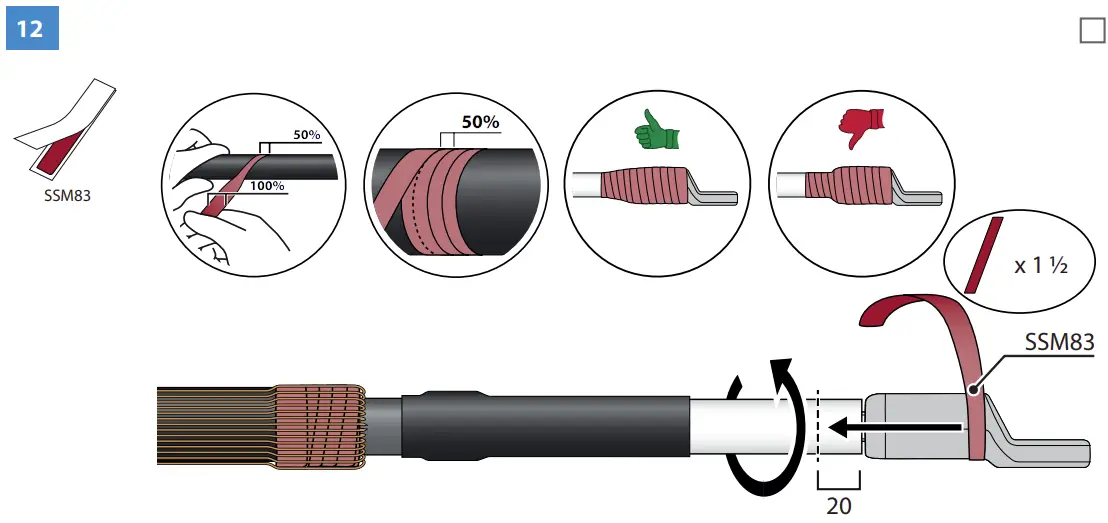

 | SSM83.3 | 1 x 360 mm | 10 | ||||

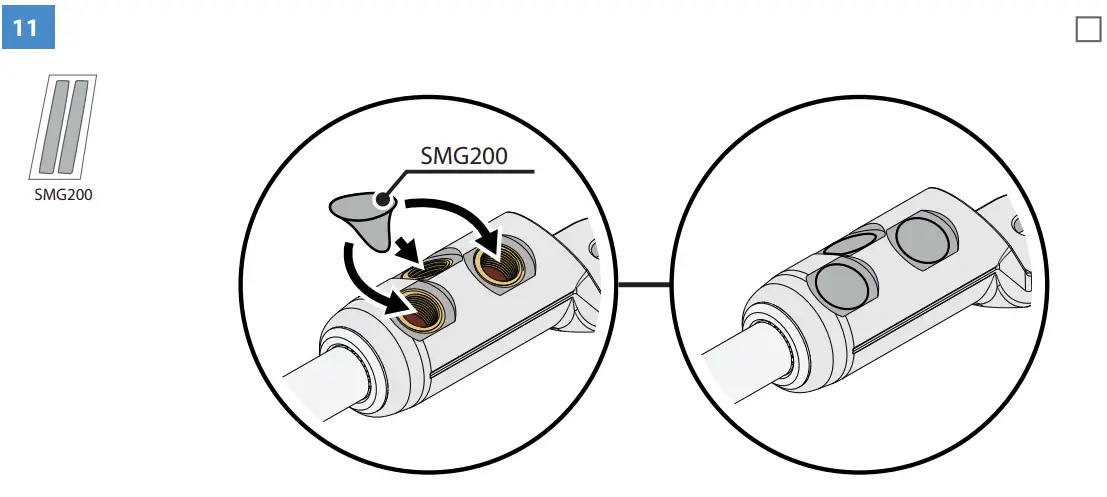

 | SMG200 | 2 x 100 mm | 5 | ||||

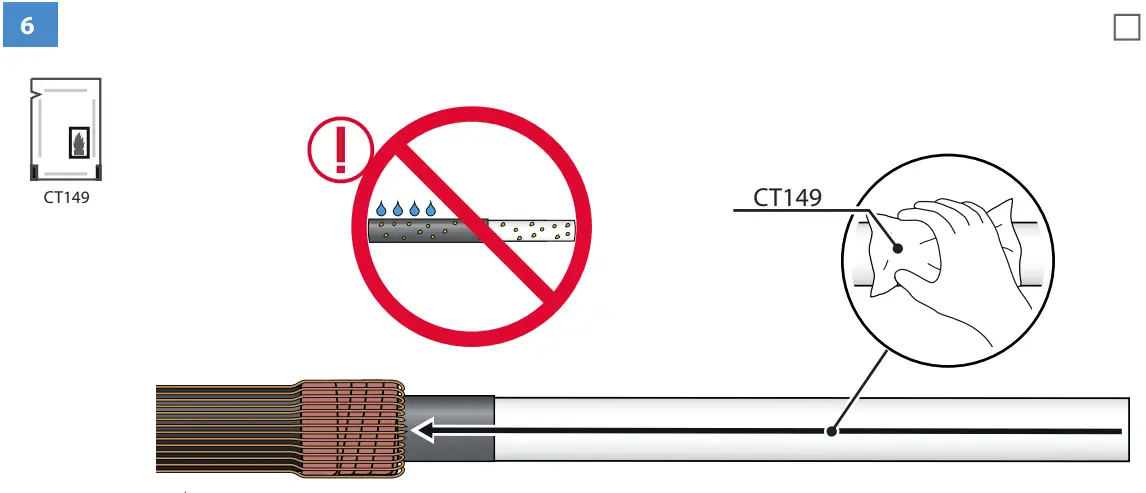

 | CT149 | 3 | |||||
 | PA23 | 2 |
| 12 kV | 24 kV | 36 kV | |
| A | §§§ | §§§ | §§§ |
| B | §§§ | §§§ | §§§ |
| C (mm) | 15 | 25 | 35 |
| D (mm) | 10 | 20 | 25 |
§ § § = according to local requirements
