PEM-COT1_4203L
2022-05-05
Revision D
PEM-COT1_4203L

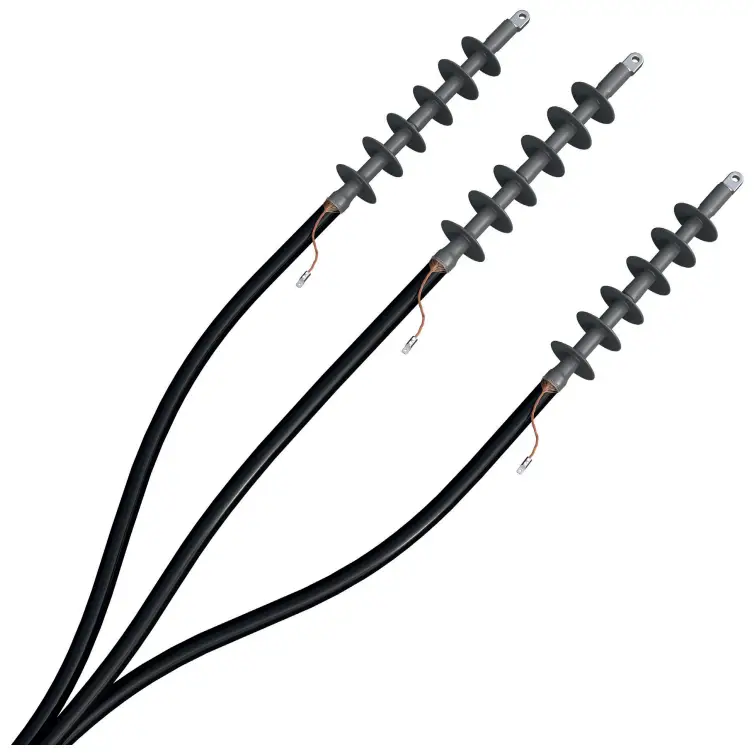

COT1.4203L Outdoor Termination Cold Shrink
COT1.4203L
| Uo/U (Um) kV |  |
| 20.8/36 (42) kV | 95–240 |
| 19/33 (36) kV | 150–240 |
PEM-COT1_4203L
Revision D 2022-05-05
LEGAL NOTICE
- The product must be installed only by a competent person with sufficient training in installation practices and with sufficient knowledge of good safety and installation practices in respect of electrical equipment. If local legislation contains provisions in respect of such training or sufficient knowledge in respect of the installation of electrical equipment such provisions shall be fulfilled by the said person.
- Ensto accepts no liability concerning claims resulting from misuse, incorrect installation, or ignored national safety regulations or other national provisions.
- WARNING: Failure to follow the installation instructions may result in damage to the product and serious or fatal injury.
 | CraGEL22-651 | 3 |  | PEM-COTI 4203L | 1 | |
| CTSCGE22-6SL | 3 | ||||

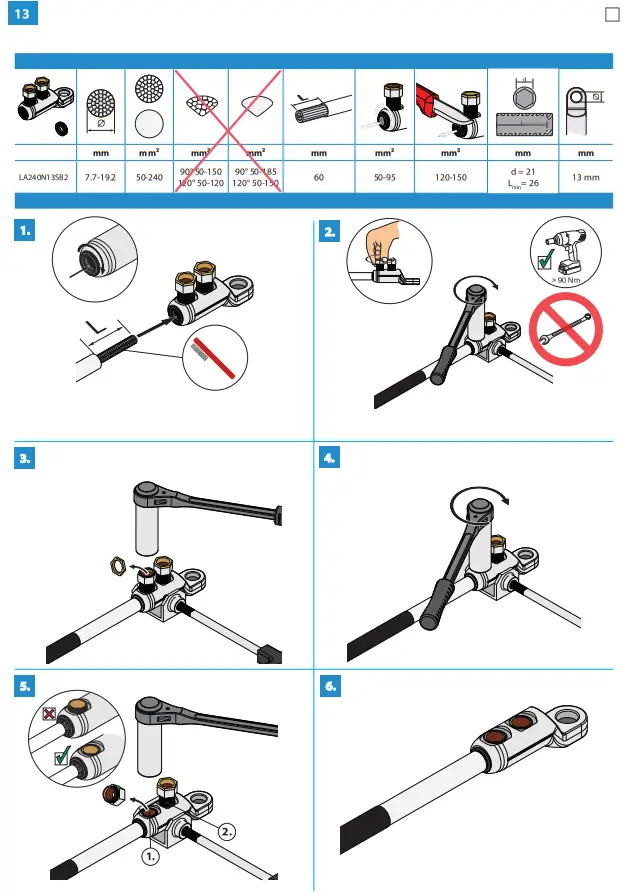

 | LA240NI3SB2 | 3 | ||||
 | LUG6-50/12LVTIN | 3 | ||||
 | SMG200 | 2×100 mm | 6 | |||
 | MPA21 RPM | 6 6 | ||||
 | PEE64.I | 600 mm | 2 | |||
 | RI 49 | 6 | ||||
 | PA23 | 1 | ||||
 | PEE225W | 1 | ||||
 | PEE39/1500 | 1 |

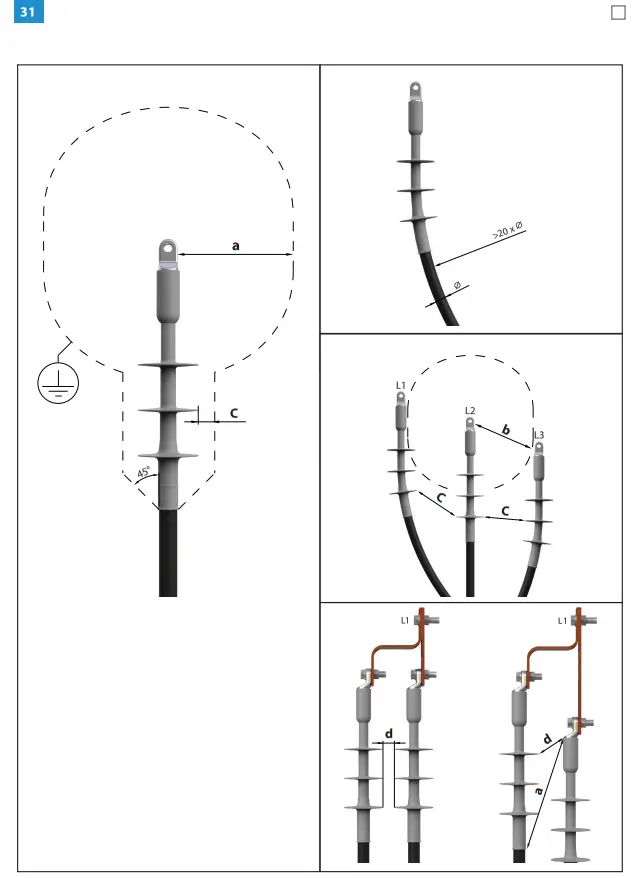

| 12 kV | 24 kV | 36 kV | 42 kV | |
| a | §§§ | §§§ | §§§ | §§§ |
| b | §§§ | §§§ | §§§ | §§§ |
| C (mm) | 15 | 25 | 35 | 45 |
| d (mm) | 10 | 20 | 25 | 35 |
§ § § = according to local requirements
