COT1.2403
Revision C 2022-04-19
PEM-COT1_2403

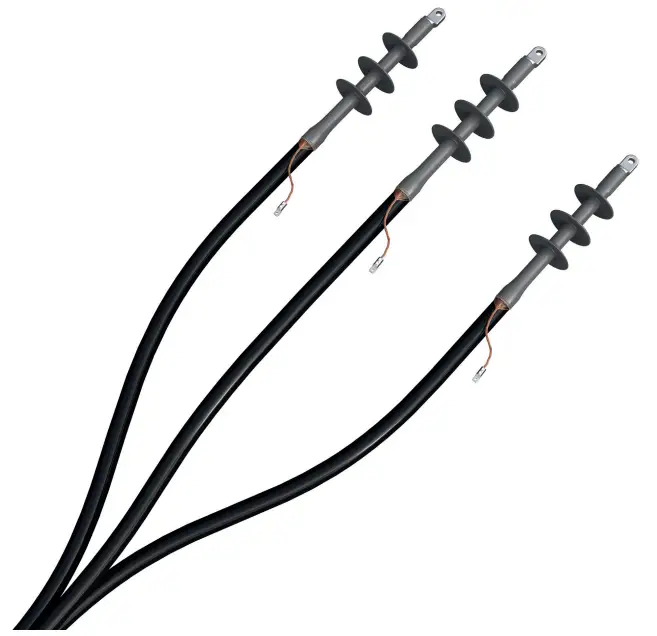

COT1.2403 Cold Shrink Outdoor Term
| Uo /U (Um ) kV |  |
| 12.7/22 (24) kV | 70–240 |
| 6.35/11 (12) kV | 95–240 |
LEGAL NOTICE
- The product must be installed only by a competent person with sufficient training in installation practices and with sufficient knowledge of good safety and installation practices in respect of electrical equipment. If local legislation contains provisions in respect of such training or sufficient knowledge in respect of the installation of electrical equipment such provisions shall be fulfilled by the said person.
- Ensto accepts no liability concerning claims resulting from misuse, incorrect installation or ignored national safety regulations or other national provisions.
- WARNING: Failure to follow the installation instructions may result in damage to the product and serious or fatal injury.

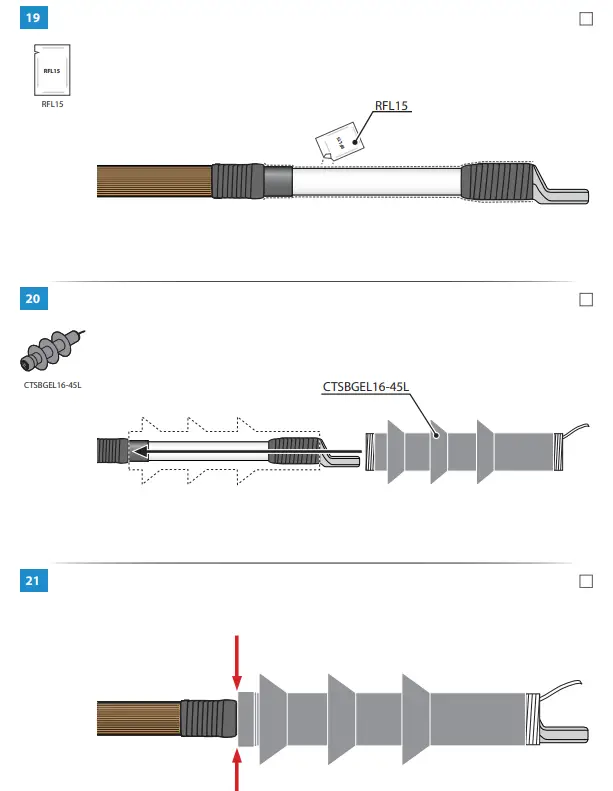

 | CTSBGEL16-45L | 3 |

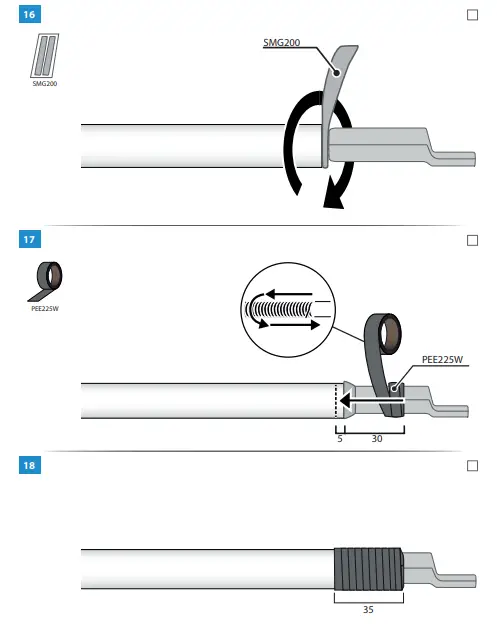

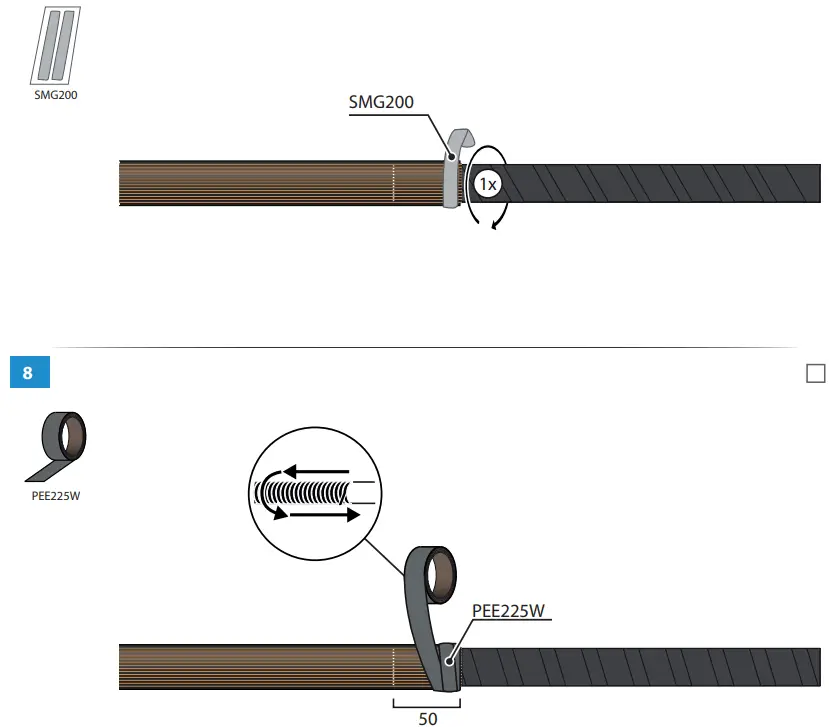

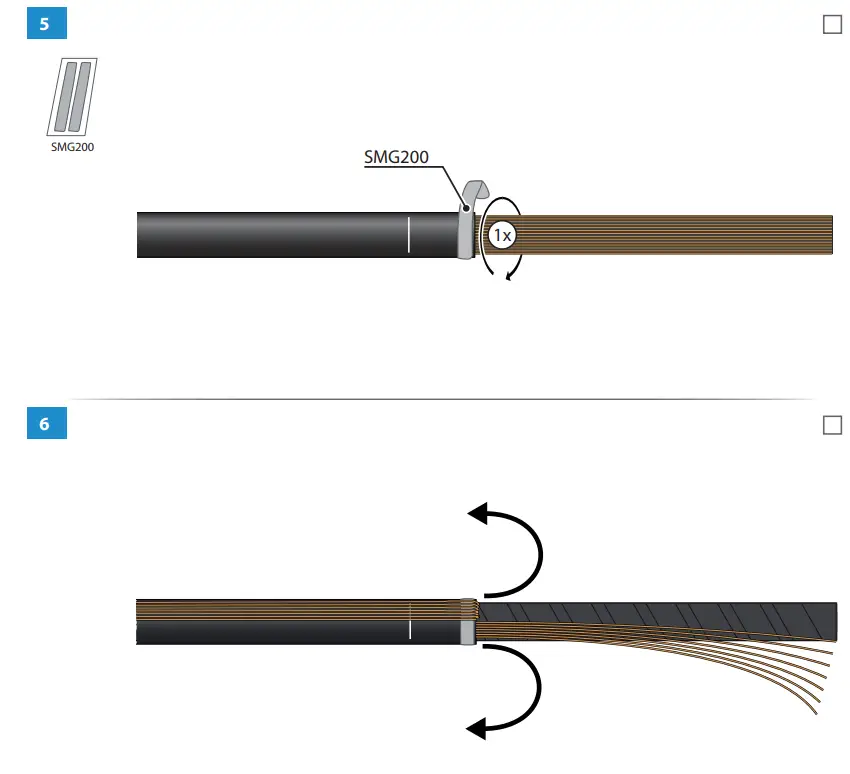

 | SMG200 2×100 mm | 6 |
 | MPA21 RFL15 | 3 3 |

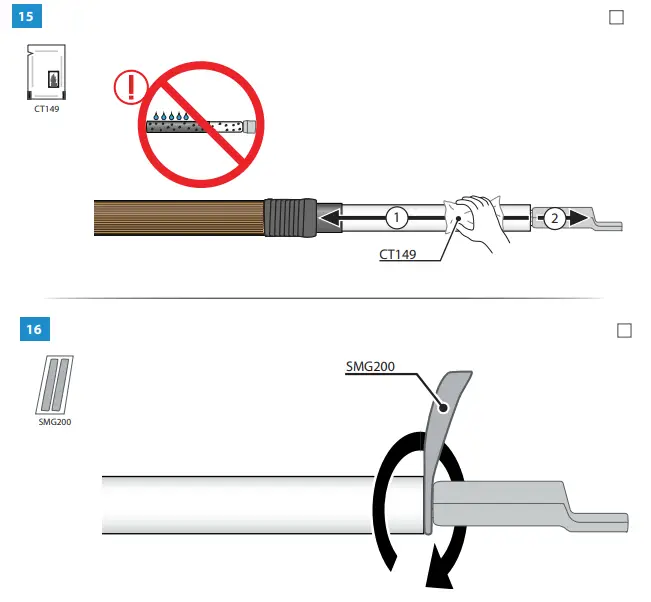

 | CT149 | 3 |
 | PA23 | 1 |

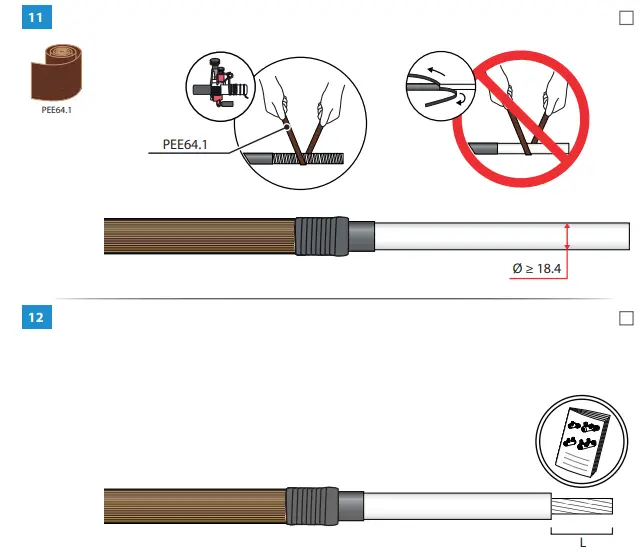

 | PEE64.1 600 mm | 2 |
 | PEE225W | 2 |
 | PEE39/1500 | 1 |
 | PEM-COT1_2403 | 1 |

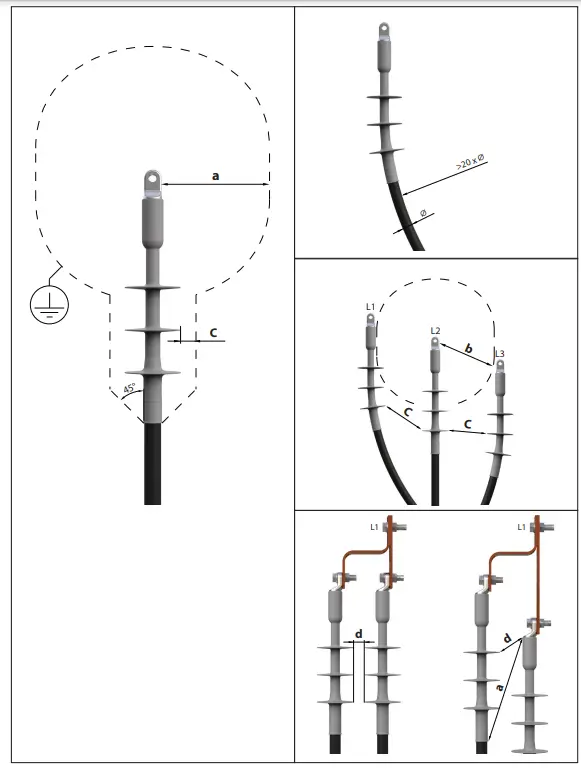

| 12 kV | 24 kV | 36 kV | 42 kV | |
| a | §§§ | §§§ | §§§ | §§§ |
| b | §§§ | §§§ | §§§ | §§§ |
| C (mm) | 15 | 25 | 35 | 45 |
| d (mm) | 10 | 20 | 25 | 35 |
§ § § = according to local requirements
PEM-COT1_2403
2022-04-19
Revision C
Ensto – Leading Expert for Distribution System Operators
