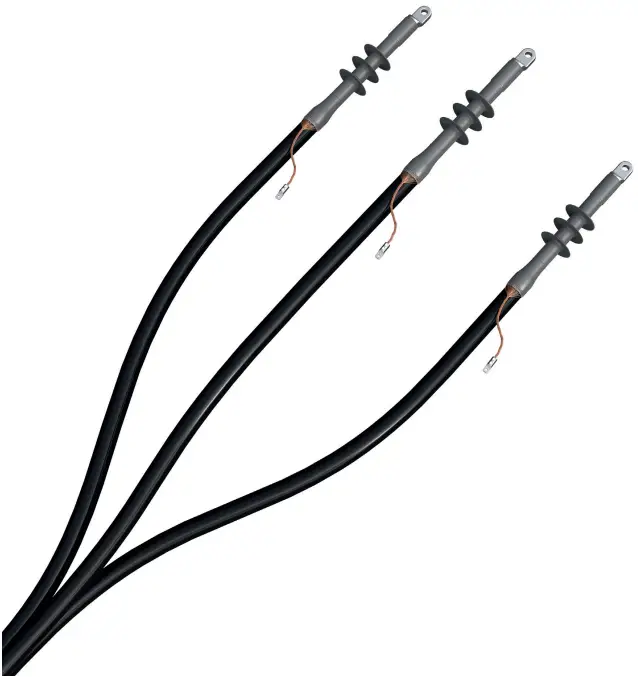

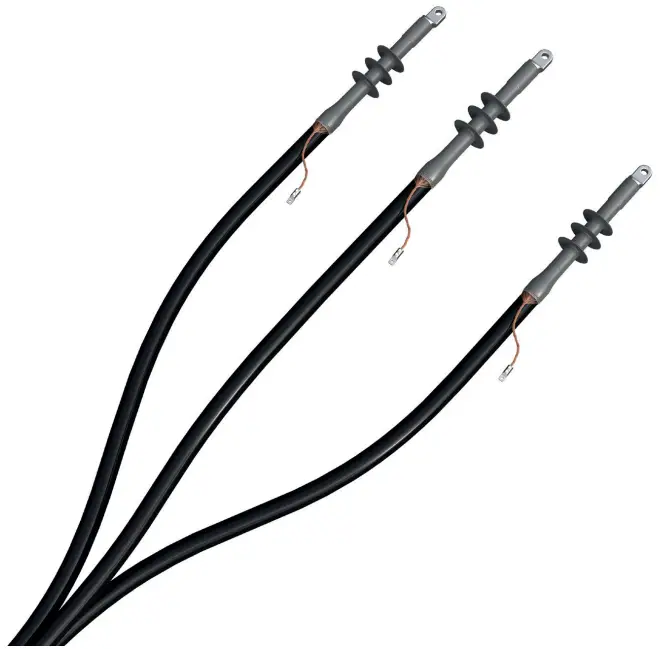

ENSTO CIT1.2403L Cold Shrink Indoor Term Instructions

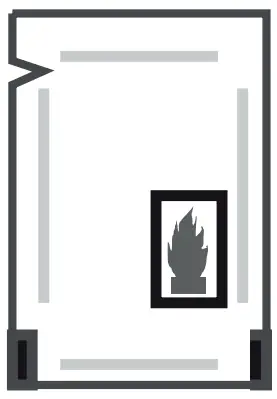

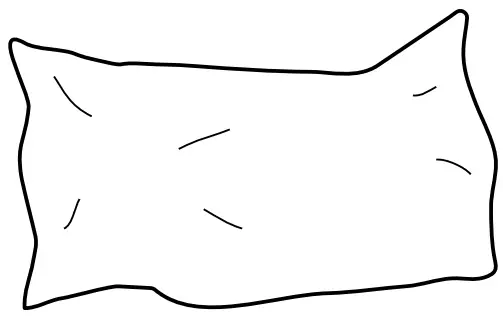

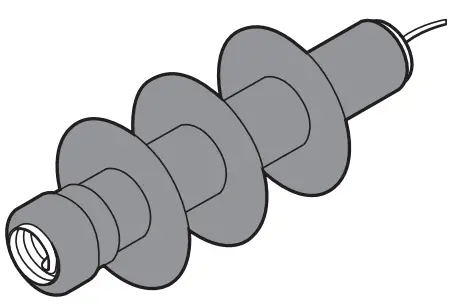

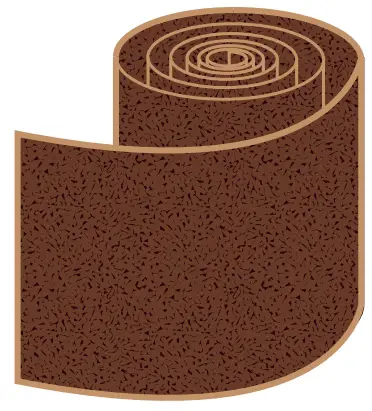

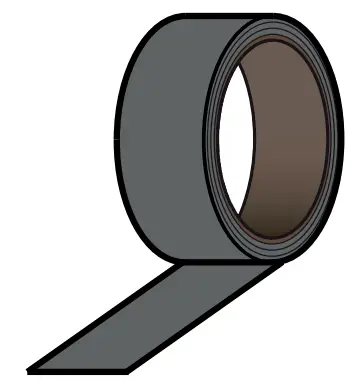

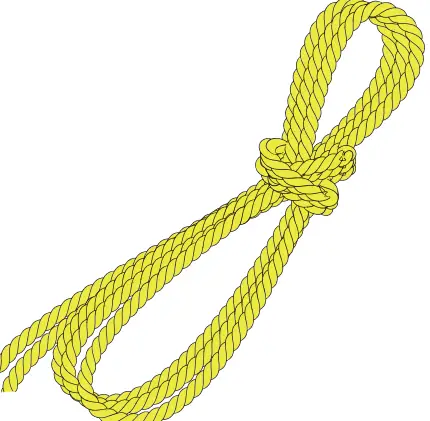

Package Contents

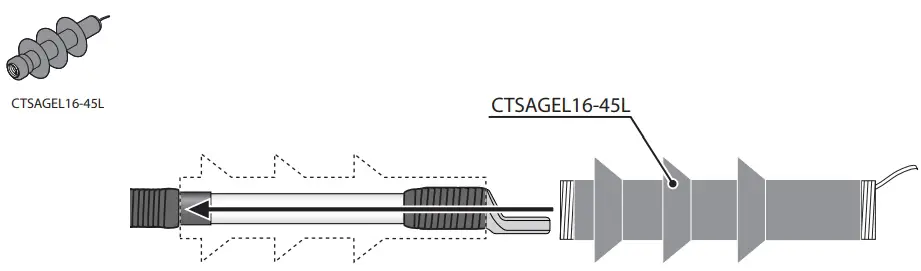

- CTSAGEL16-45L x3

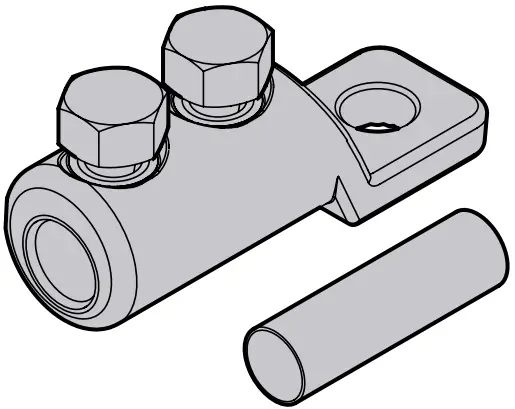

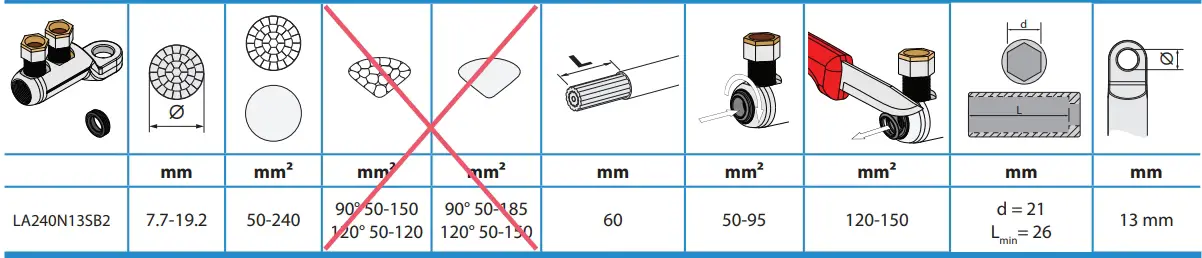

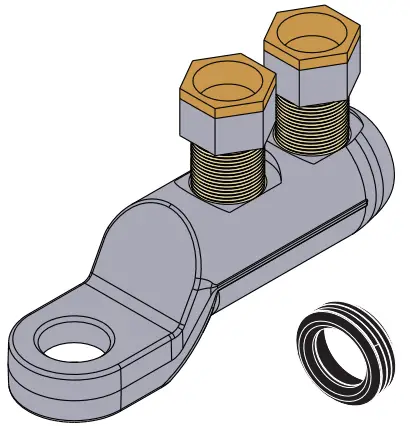

- LA240N13SB2 x3

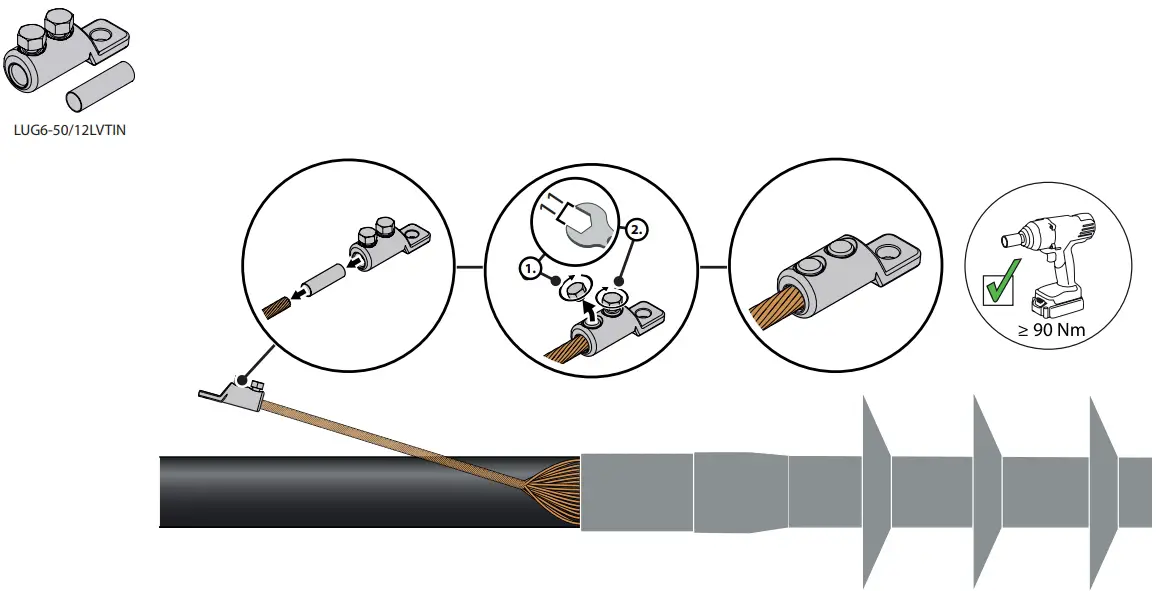

- LUG6-50/12LVTIN x3

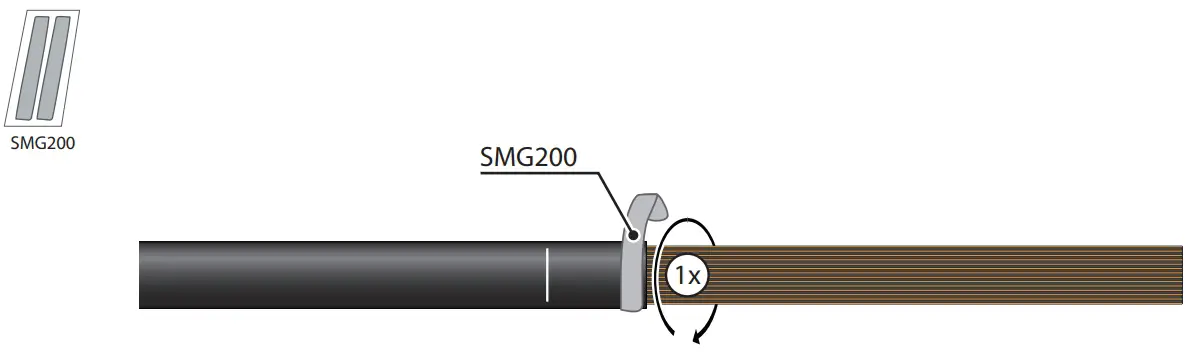

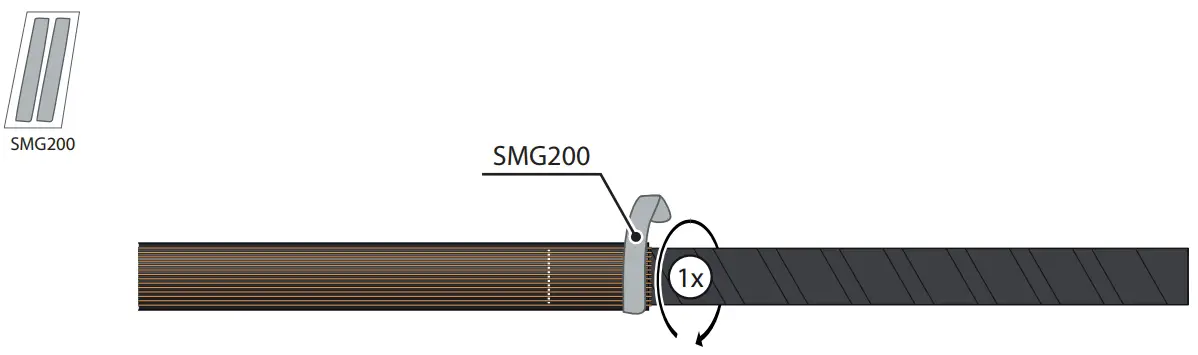

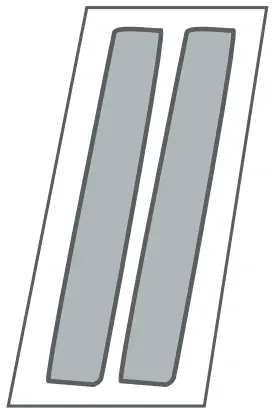

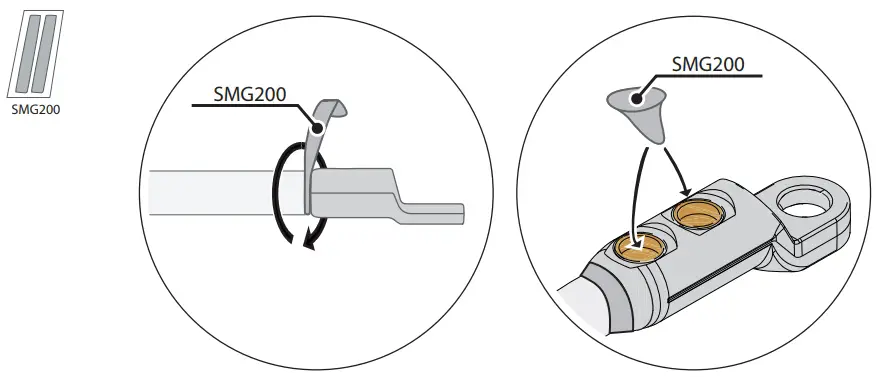

- SMG200 2×100 mm x6
- MPA21 x3

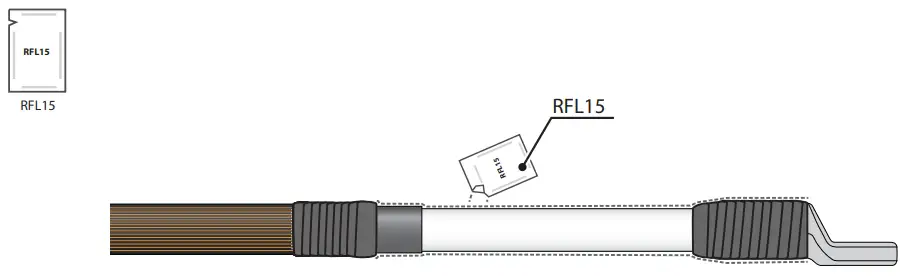

RFL15 x3

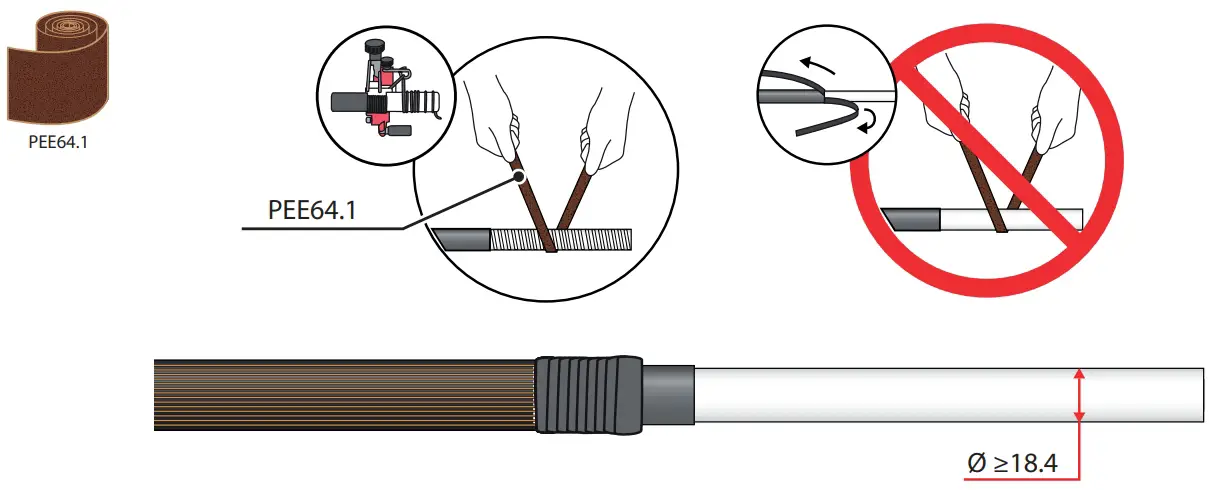

- PEE64.1 600 mm x2

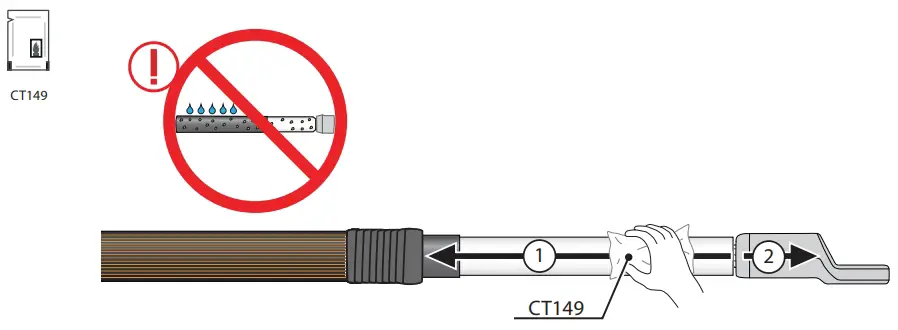

- CT149 x3
- PA23 x1

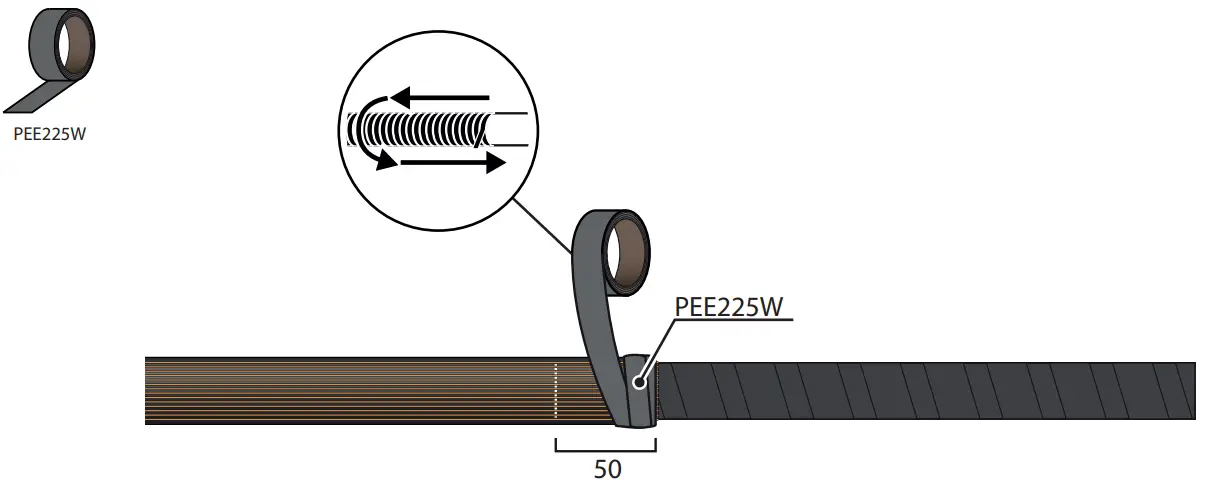

- PEE225W x1
- PEE39/1500 x1

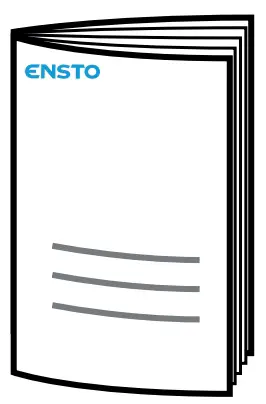

- PEM-CIT1_2403L x1

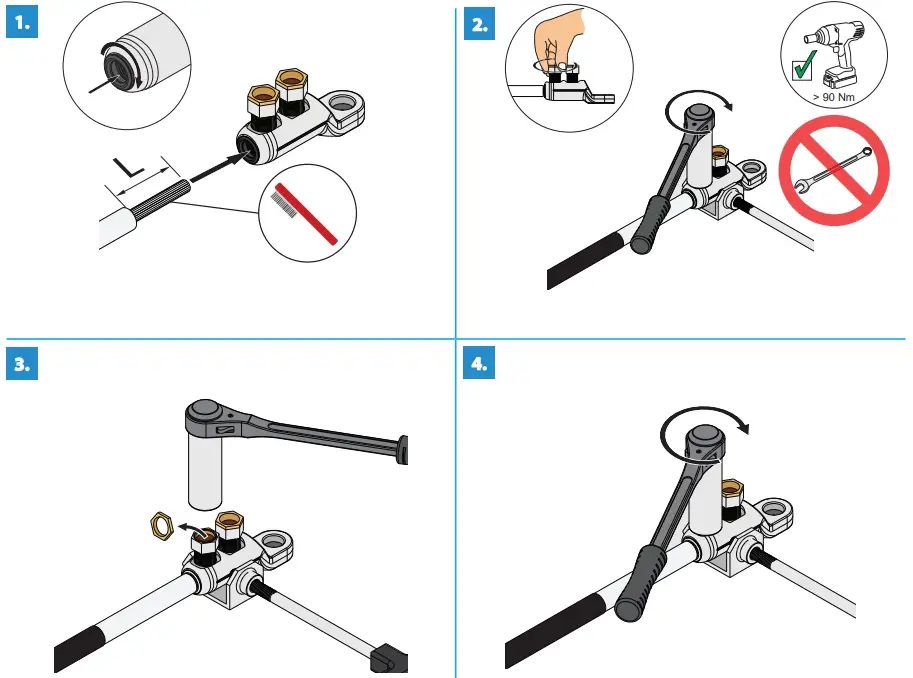

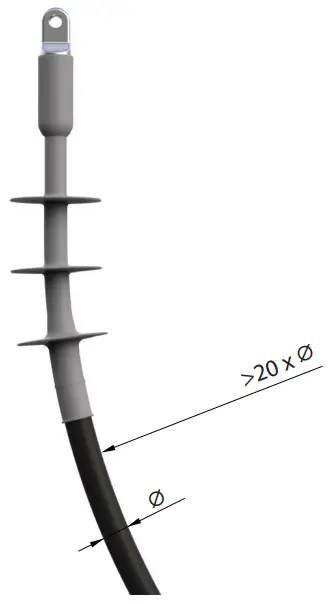

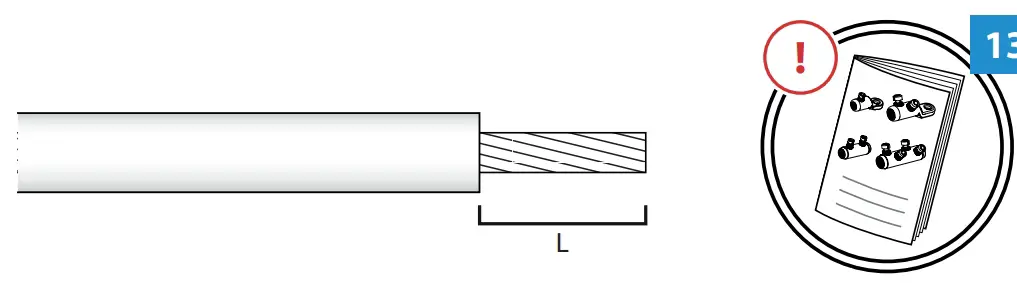

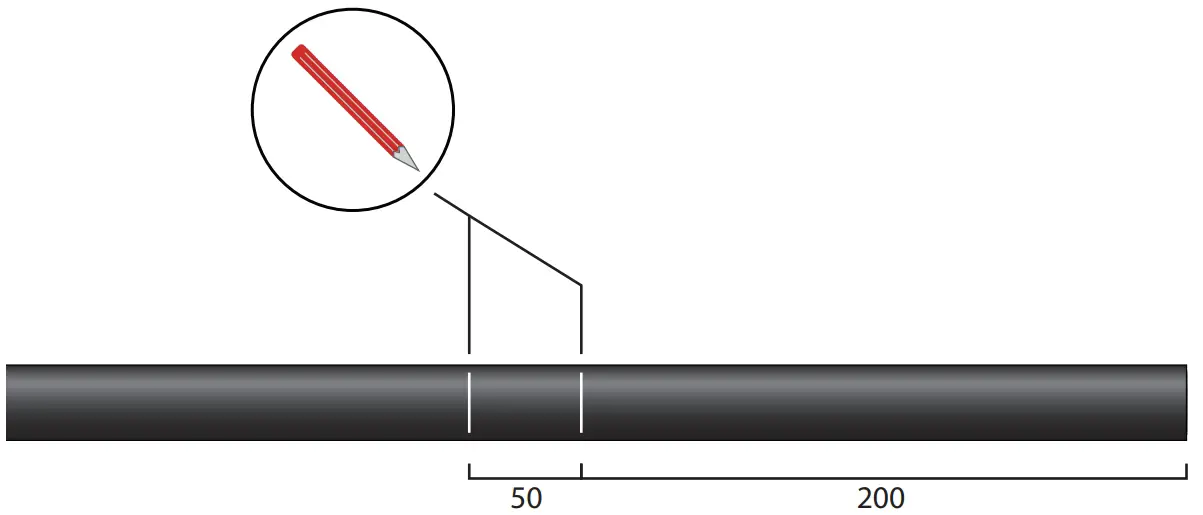

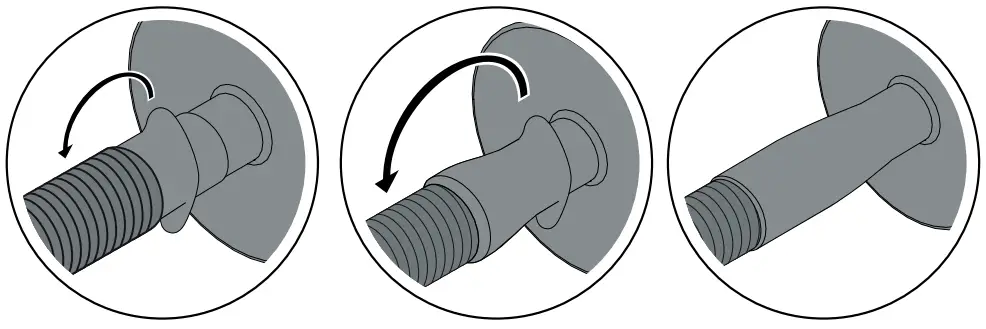

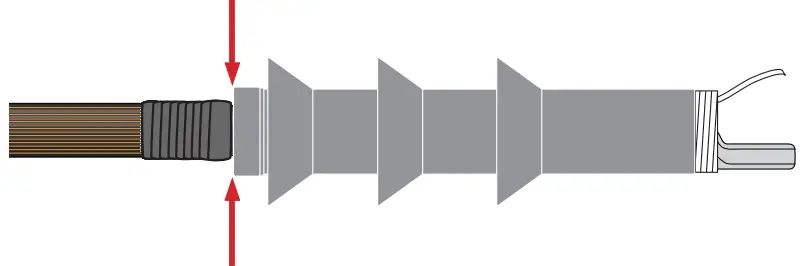

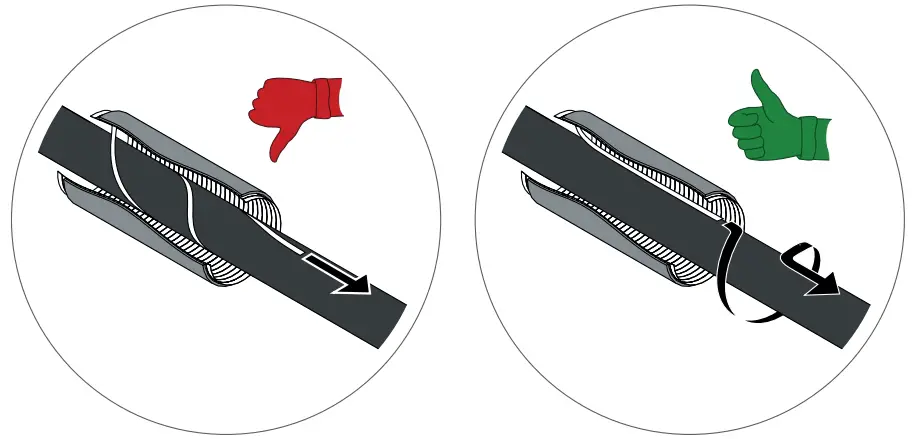

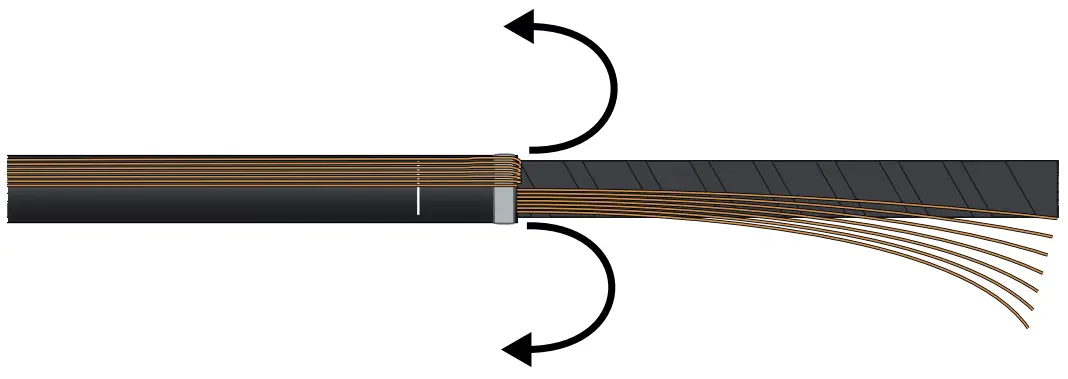

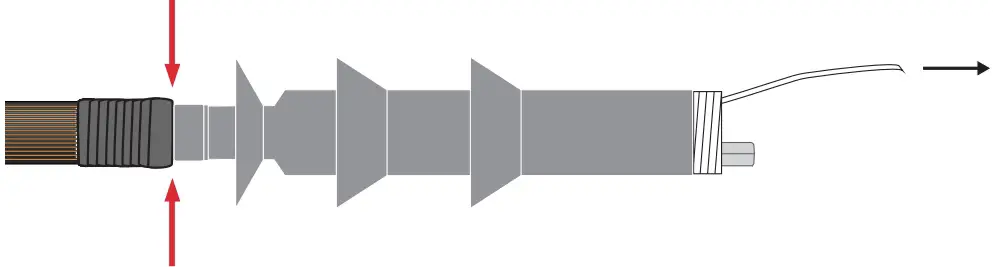

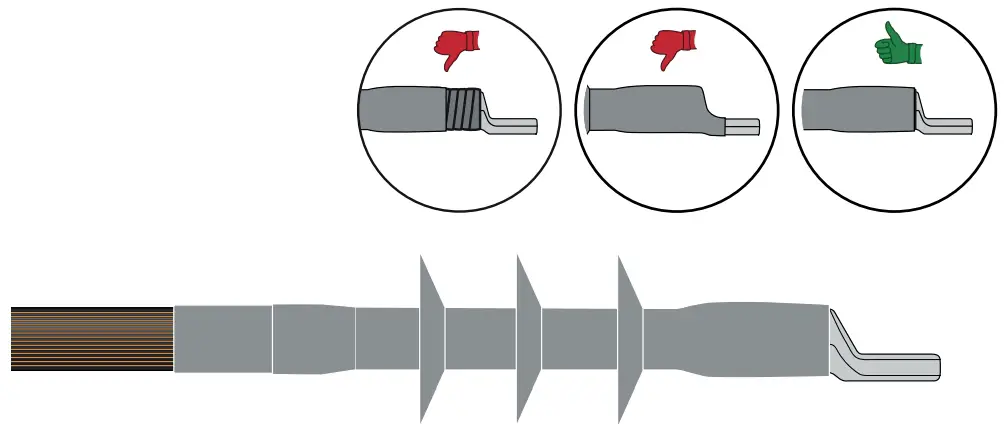

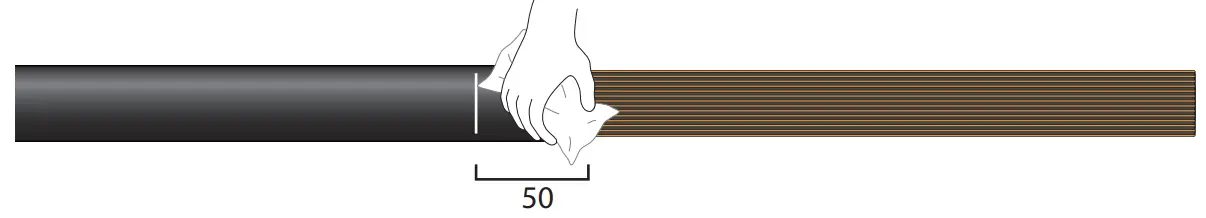

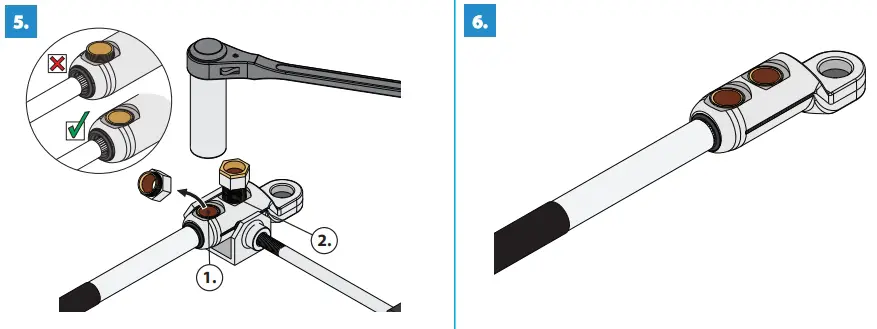

Instructions

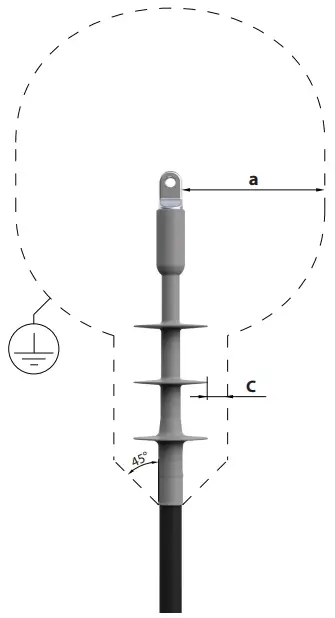

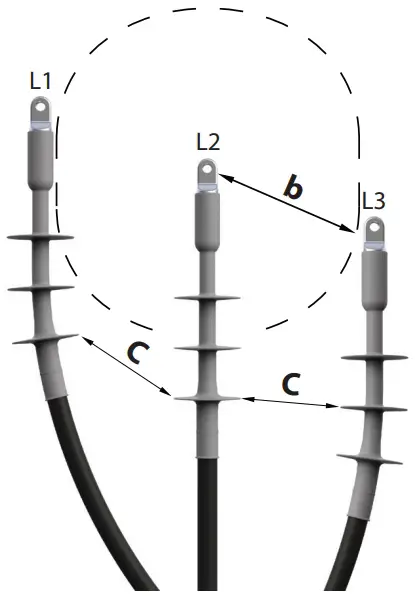

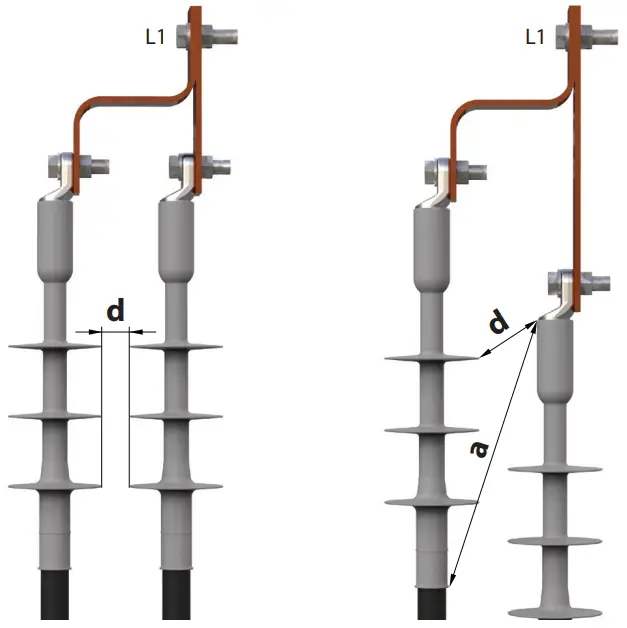

| 12 kV | 24 kV | 36 kV | 42 kV | |
| a | §§§ | §§§ | §§§ | §§§ |
| b | §§§ | §§§ | §§§ | §§§ |
| C (mm) | 15 | 25 | 35 | 45 |
| d (mm) | 10 | 20 | 25 | 35 |
§ § § = according to local requirements
LEGAL NOTICE
- The product must be installed only by a competent person with sufficient training in installation practices and with sufficient knowledge of good safety and installation practices in respect of electrical equipment. If local legislation contains provisions in respect of such training or sufficient knowledge in respect of installation of electrical equipment such provisions shall be fulfilled by the said person.
- Ensto accepts no liability concerning claims resulting from misuse, incorrect installation or ignored national safety regulations or other national provisions.
- WARNING: Failure to follow the installation instructions may result in damage to the product and serious or fatal injury.
