PEM-COT1_2405
2022-04-19
Revision D
PEM-COT1_2405
COT1.2405 Cold Shrink Outdoor Term
COT1.2405
| Uo/Um (U) kV |  mm² |
| 12.7/22 (24) kV | 400–630 |
| 6.35/11 (12) kV | 400–630 |
LEGAL NOTICE
LEGAL NOTICE- The product must be installed only by a competent person with sufficient training in installation practices and with sufficient knowledge of good safety and installation practices in respect of electrical equipment. If local legislation contains provisions in respect of such training or sufficient knowledge in respect of the installation of electrical equipment such provisions shall be fulfilled by the said person.
- Ensto accepts no liability concerning claims resulting from misuse, incorrect installation, or ignored national safety regulations or other national provisions.
- WARNING: Failure to follow the installation instructions may result in damage to the product and serious or fatal injury.
 | CTS8GEL27-70L | 3 | |||

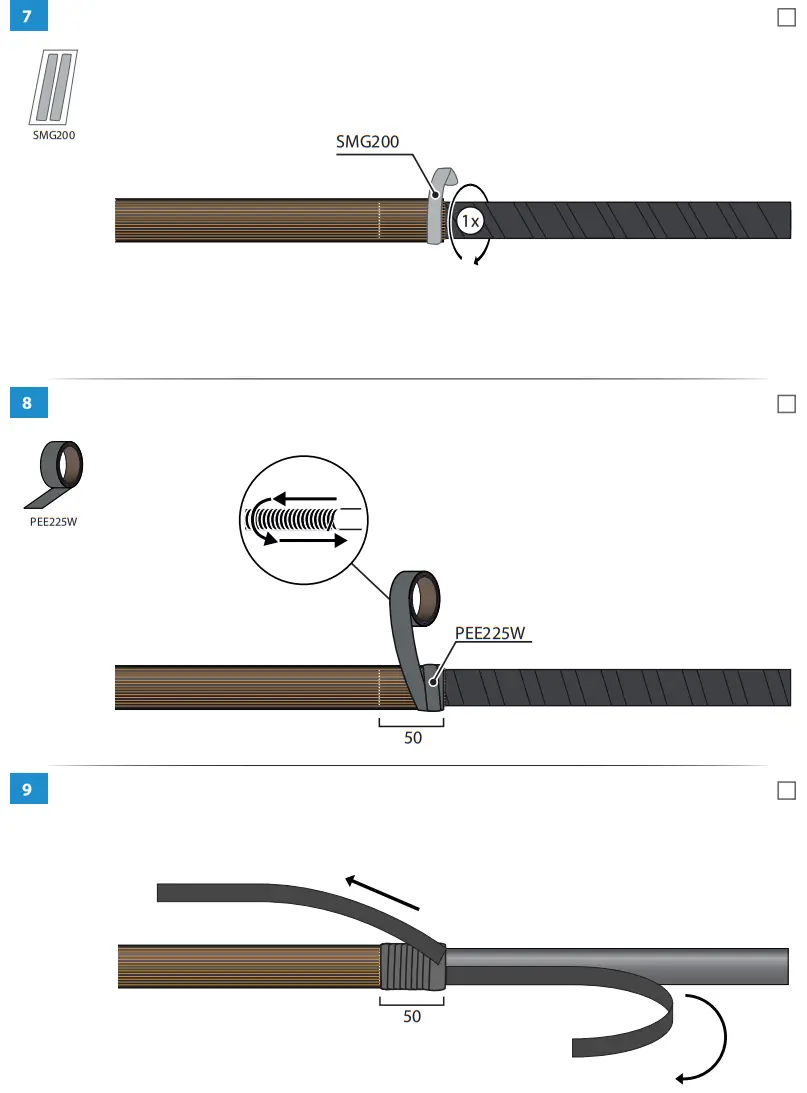

 | SMG200 2×100 mm | 10 | |||
 | MPA2I RFLIS | 3 3 | |||

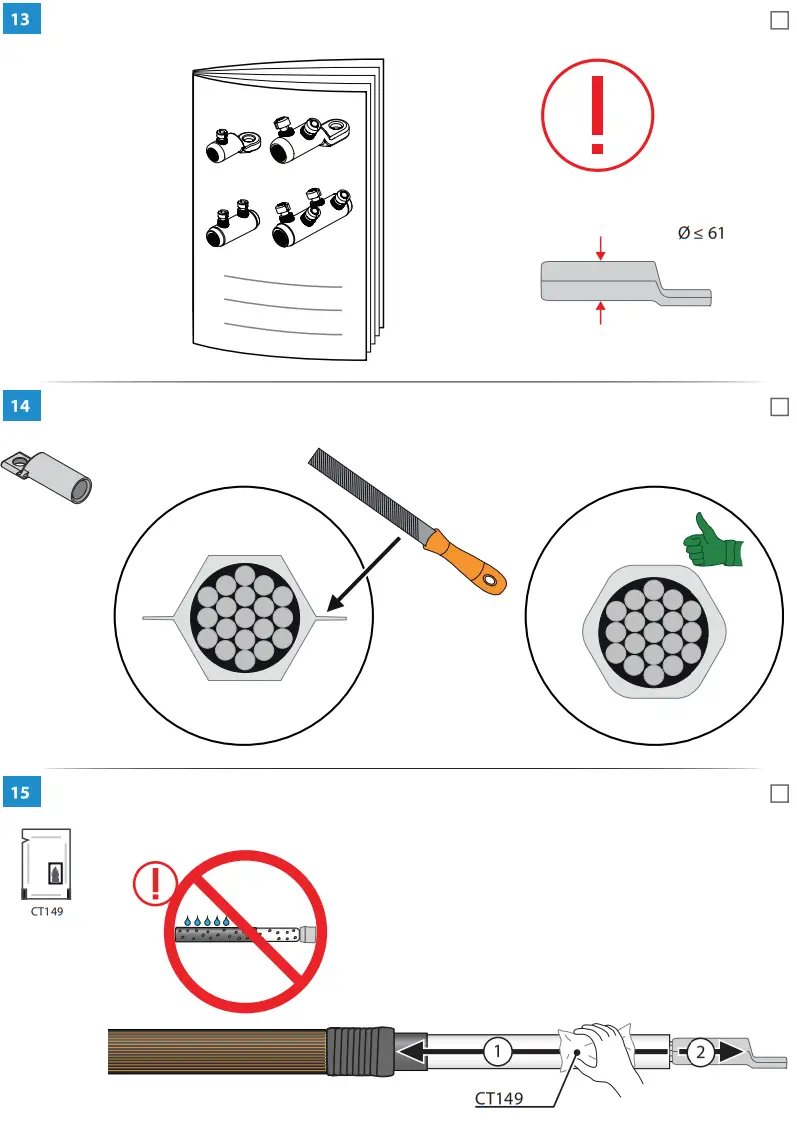

 | R149 | 3 | |||
 | PA23 | 1 | |||
 | PEE64.1 600 mm | 2 | |||
 | PEE22SW | 3 | |||
 | PH3911500 | I | |||
 | PFM-COTI _2404 | I | |||
| 12 kV | 24 kV | 36 kV | 42 kV | |
| a | §§§ | §§§ | §§§ | §§§ |
| b | §§§ | §§§ | §§§ | §§§ |
| C (mm) | 15 | 25 | 35 | 45 |
| d (mm) | 10 | 20 | 25 | 35 |
§ § § = according to local requirements
Revision D 2022-04-19
PEM-COT1_2405
Ensto – Leading Expert for Distribution System Operators
