Instruction Manual

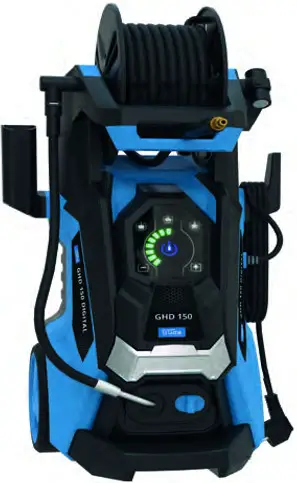

GHD 150 High-Pressure Washer
Please read the instructions carefully before starting the machine.

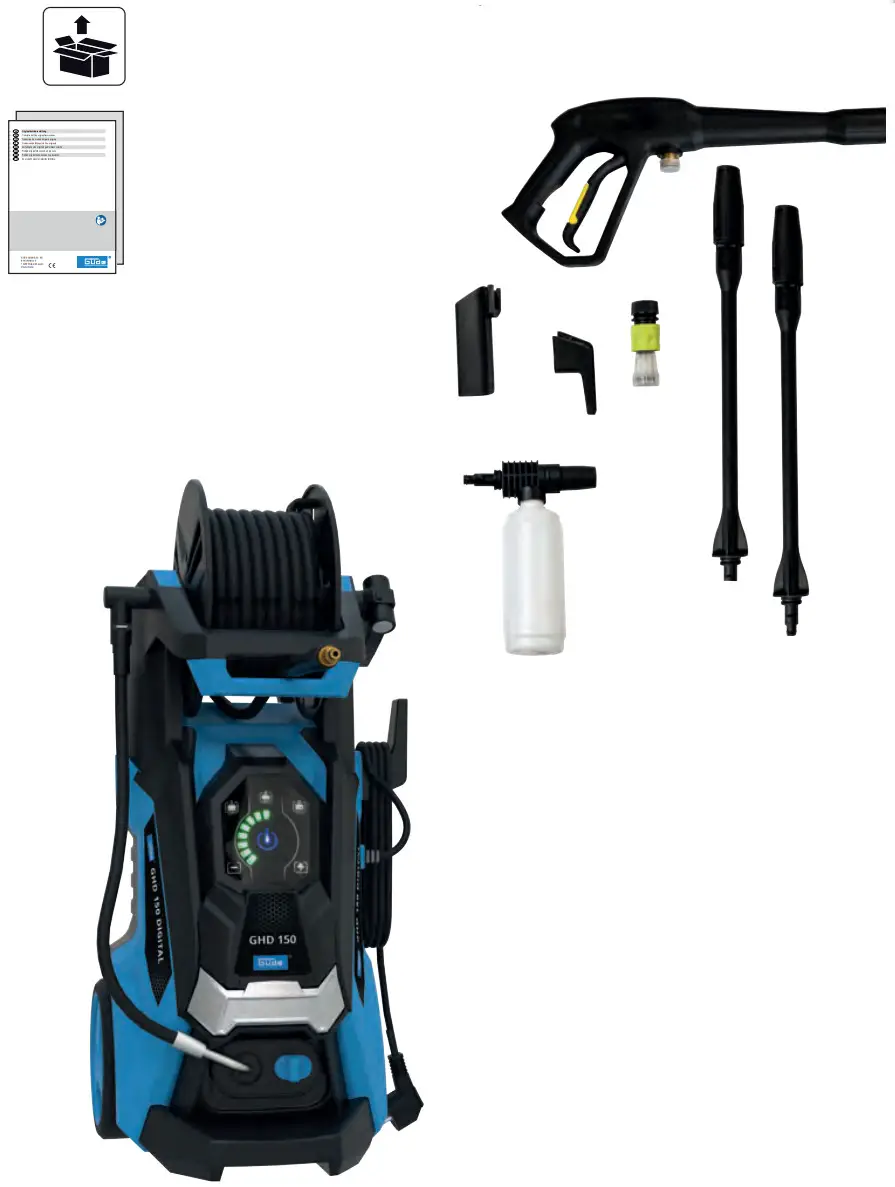

DELIVERY RANGE

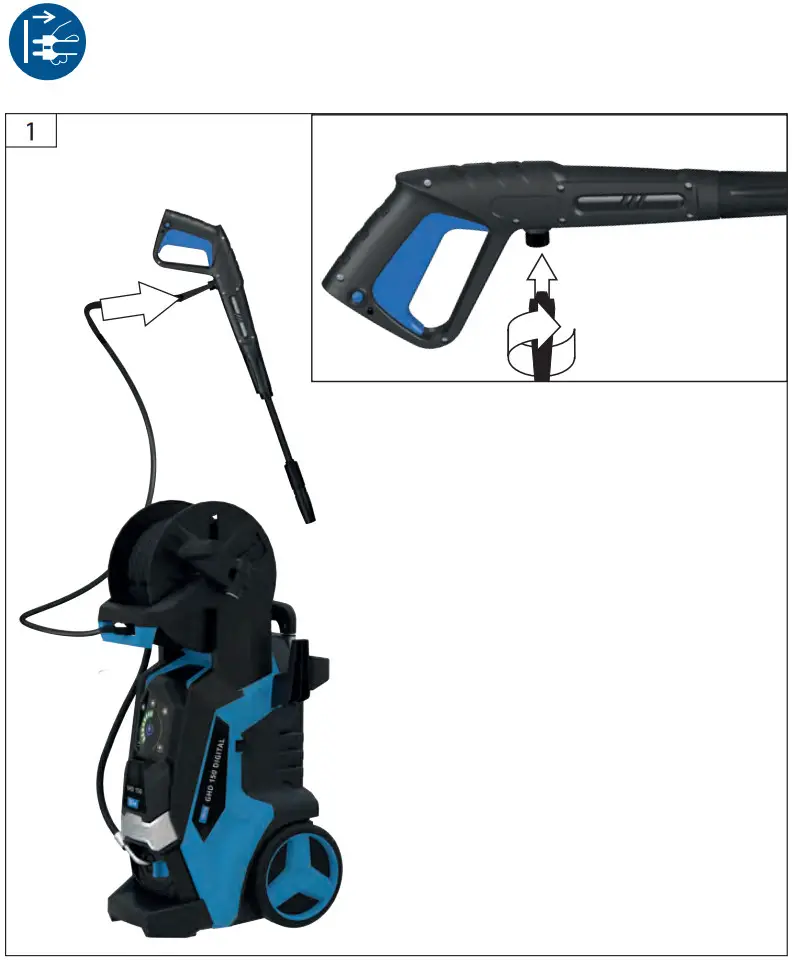

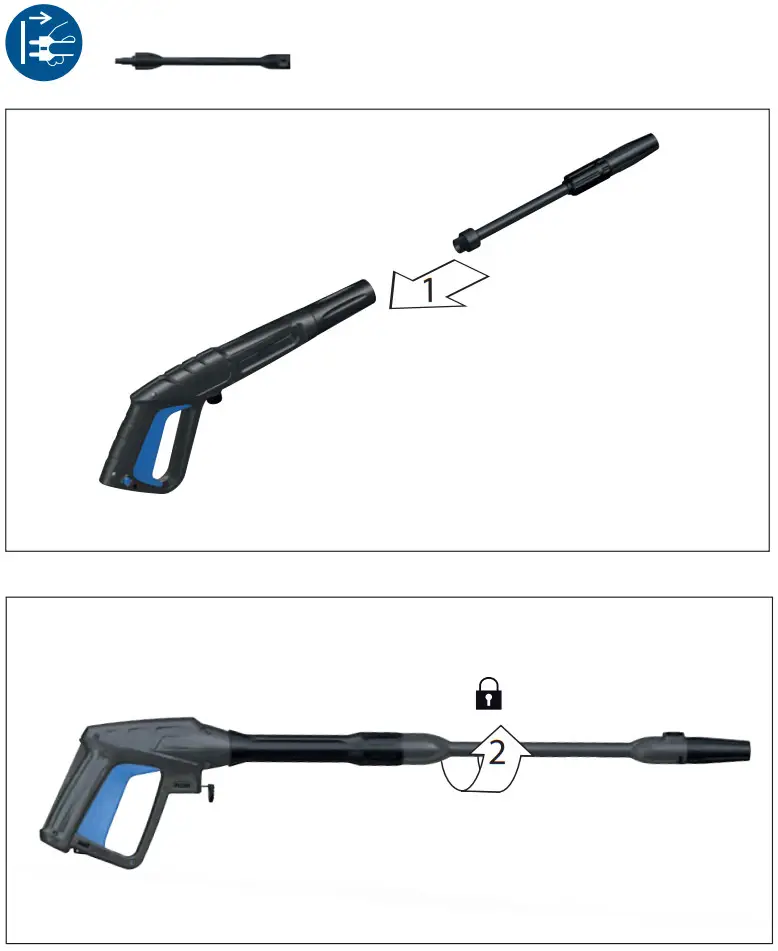

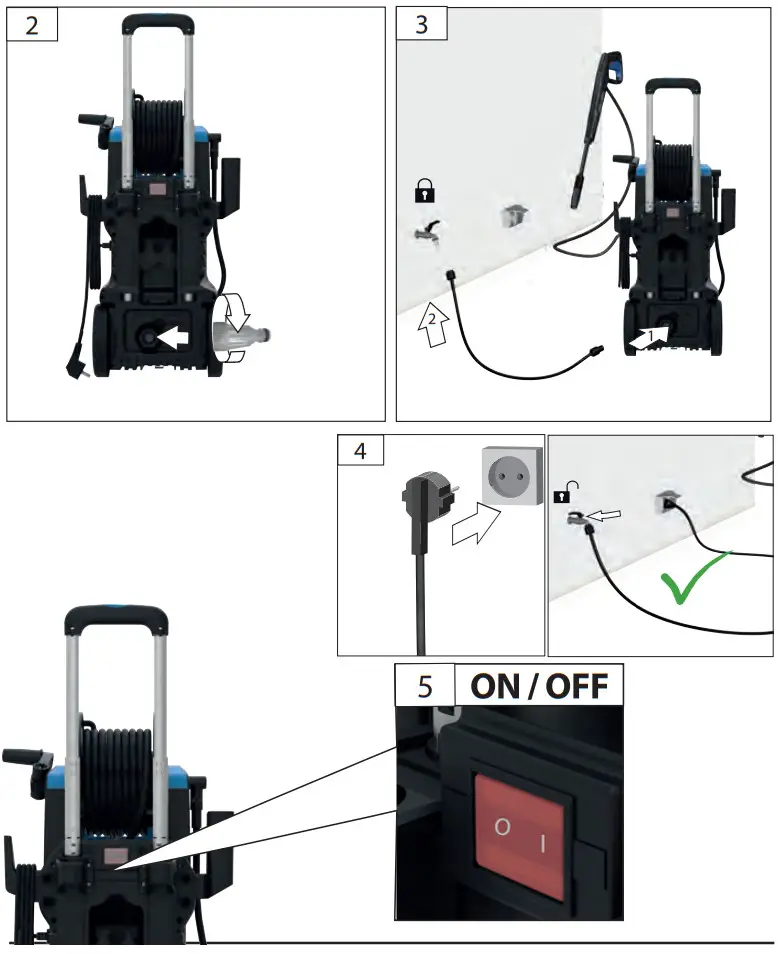

STARTING-UP THE MACHINE

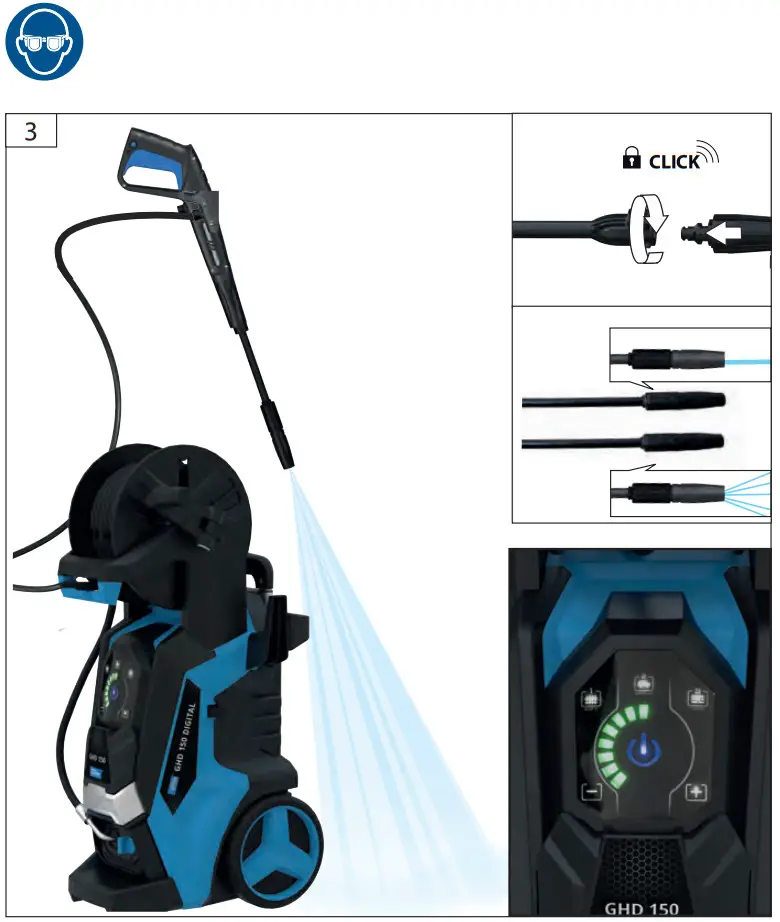

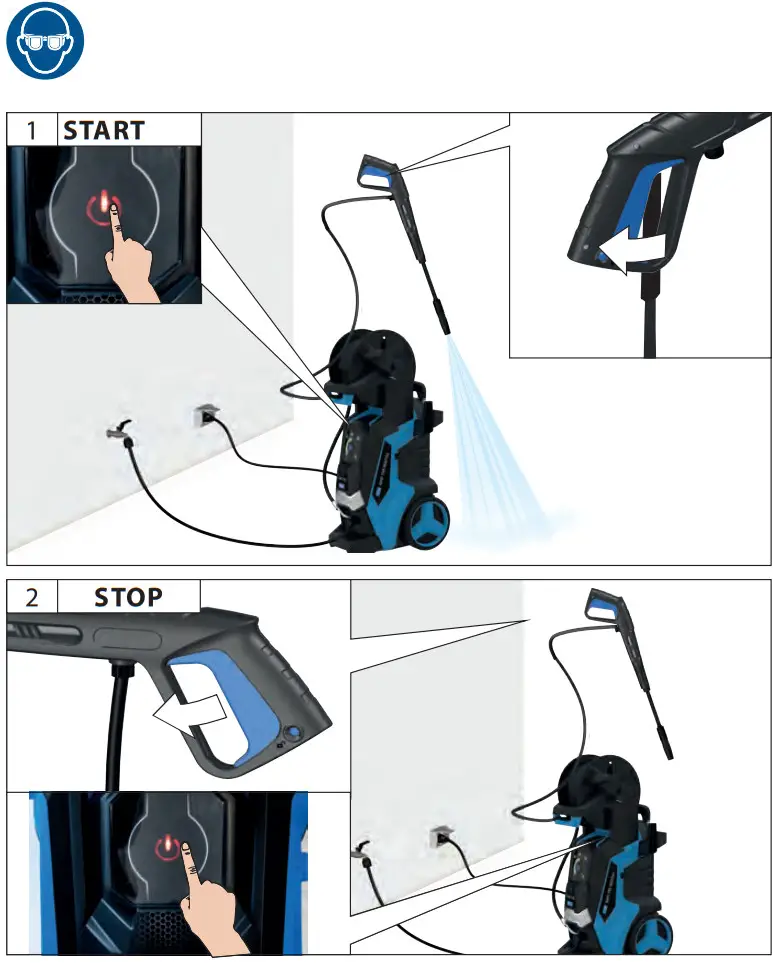

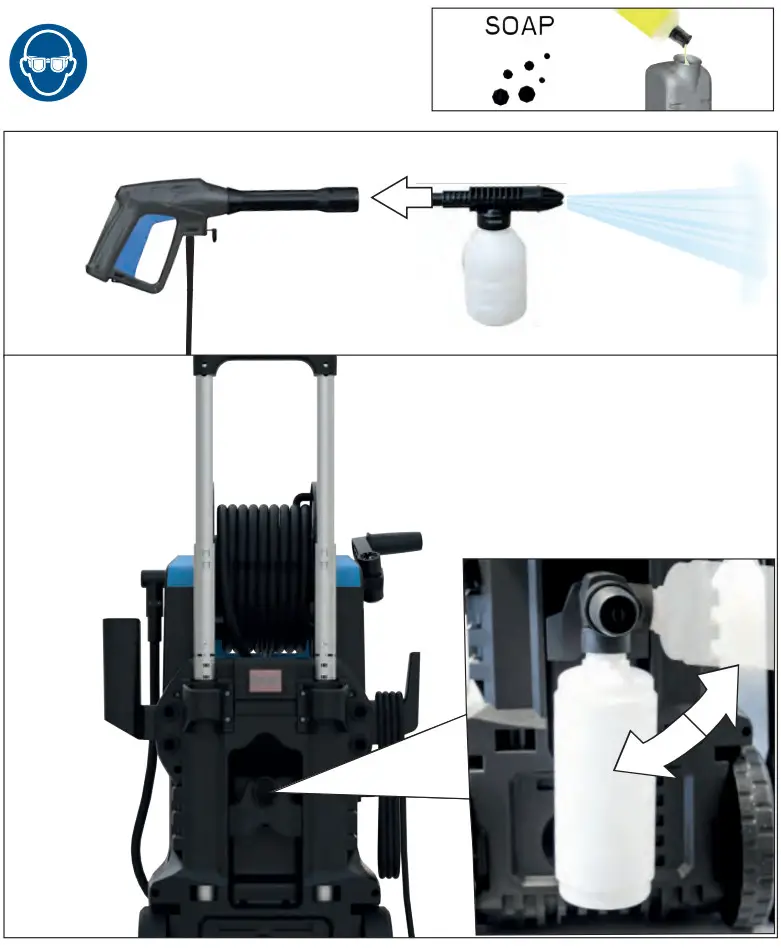

Operation

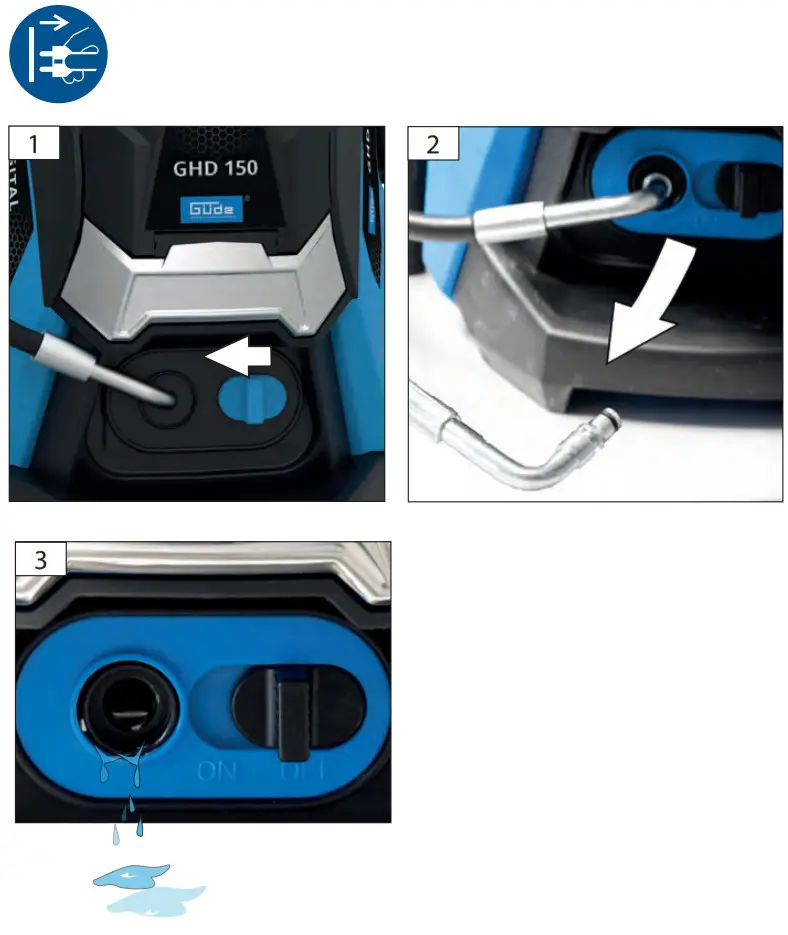

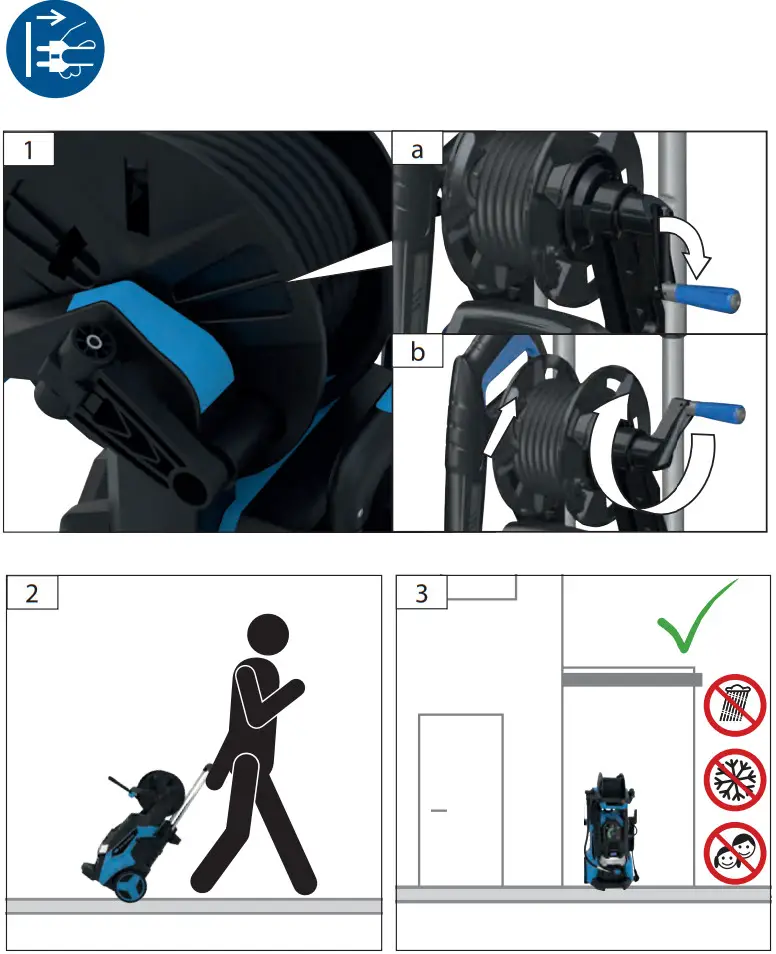

Storage
Technical Data
| High-pressure washer | GHD 150 digital |
| Art. No | 85920 |
| Service connection | 220~240V / 50 Hz |
| Rated input | 2000 W |
| Rated pressure | 100 bar /10 Mpa |
| Permissible pressure max. | 150 bar /15 Mpa |
| Calculating the rate of flow | 6,0 l/min |
| Calculating rate of flow max. | 7,5 l/min |
| Degree of protection | IP X5 |
| Max. Water temperature | 40 °C |
| Weight | 9,5 kg |
| Noise details | |
| Sound pressure level LpA1) | 80 dB (A) |
| Measured sound power level LWA2) | 85 dB (A) |
| Guaranteed sound power level LWA3) | 98 dB (A) |
| Measured according to 1) 3) EN 60335; 2) 3) 2000/14/EG; 1) 2) Uncertainty K= 3 dB (A); Wear ear protectors! | |
| Vibration details | |
| Vibration emission value (triaxial vector sum) determined according to EN 60335, Uncertainty K = 1,5 m/s2 | |
| Vibration emission value ah | ≤ 2,5 m/s2 |
Read and understand the operating instructions before using the appliance. Familiarise yourself with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.
The operator is responsible for accidents or risks to third parties.
In case of any doubts about connection and operation refer please to our customer center.
Safety Instructions
The machine is not to be used by children Children must be supervised in order not to play with the machine. The machine may not be used by persons with reduced physical, sensory or mental capabilities or persons with a lack of knowledge or experience unless they are supervised by a person responsible. WARNING Pressure washer streams can be dangerous if used improperly. The stream should not be directed at people, active electrical equipment, or towards the machine itself. WARNING The machine should not be used if there are people nearby unless these people are wearing protective clothing. WARNING The stream should not be used to clean your clothes or shoes, or those of others. WARNING Explosion hazard – do not use to spray any combustible materials.
WARNING Pressure washers are not to be used by children or untrained persons. WARNING High-pressure hoses, fittings, and couplings are essential to ensure the safety of the machine. Please only use the recommended high-pressure hoses, fittings, and couplings. WARNING In order to ensure the safety of the device, only genuine spare parts from the manufacturer or spare parts that have been approved by the manufacturer should be used. WARNING Water that has flowed through the check valve is considered to be undrinkable. WARNING The power cut-off should always be in the “off” position when the machine is left unattended. Use protective equipment. Always wear safety glasses when working with the machine. The use of protective clothing is recommended, such as a dust mask, protective gloves, sturdy non-slip footwear, helmet, and ear defenders. WARNING The spray gun of the pressure washer recoils as the stream of water shoots out. Ensure that you take a solid stance, and hold the spray gun and jet pipe firmly. The pump must not in any case run without fillings. Check the cable and/or socket for damages before the appliance putting into operation. Do not expose the appliance to rain and do not use it in wet or moisture conditions.
Specified Conditions Of Use
The pressure washer may only be used to clean the following materials:
Vario nozzle: For cleaning light stains and surfaces for instance cars, and garden furniture on.
rotating nozzle: for stubborn stains for instance terraces, tiles, and walls Respecting technical data and safety precautions.
Please note that our equipment has not been designed for commercial, craft, or industrial use. If the equipment is used in commercial, craft, or industrial operations or for similar activities, we cannot assume any liability.
WARNING This machine was developed for use with the detergent that is supplied and recommended by the manufacturer. The use of other detergents or chemicals can negatively impact the safety of the machine. Please only use commercial detergents that (are specially designed for pressure washers.). Please read the warnings associated with these detergents.
Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.
Emergency procedure
Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site, 2. Accident type, 3. A number of injured persons, 4. Injury type(s)
Symbols
 | WARNING/CAUTION! |
| WARNING – Read the operating instructions to reduce the risk of injury. |
 | Wear eye protective goggles! |
 | Unplug the machine before any work on it. |
 | Warning against dangerous electric voltage |
 | The stream should not be directed at people, active electrical equipment, or towards the machine itself. |
 | Any damaged or disposed of electric or electronic devices must be delivered to appropriate collection centers. |
 | CE marking |
 | CE marking |
 | Warning! In accordance with valid regulations, this device must never be operated on the drinking water network without a backflow preventer. A suitable backflow preventer that is compliant with EN 12729 Type BA must be installed. Water that has passed through a backflow preventer is classified as unfit for drinking. |
Mains Connection
Attention!
Through poor conditions of the electrical MAINS, shortly voltage drops can appear when starting the EQUIPMENT. This can influence other equipment (eg. the Blinking of a lamp). If the MAINS-IMPEDANCE Zmax<0.378OHM, such disturbances are not expected. (In case of need, you may contact your local supply authority for further information).
Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA). WARNING! Electric shock! There is a risk of an injury caused by electric shock!
Before putting it into operation, a qualified electrician must check whether the electric safety measures required are in place. Any national regulations in this regard must be complied with.
Electric connection to a socket.
Check the voltage. Technical data given on the type label must correspond with electric network voltage. It is necessary to make sure the connecting socket was not near water and humidity and the plug was protected against humidity.
Only use splash-proof extension cables approved for outdoor purposes.
Protect the feeder cable from excessive temperature soil and sharp edges.
Maintenance
Unplug the machine before any work on it.
Before using the appliance, perform a visual inspection at all times to make sure the power cord and the plug, in particular, are not damaged on the charger.
The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.
Caution! If the power cord of the appliance gets damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person to avoid danger. Repairs and works specified in these Instructions may only be performed by qualified authorized staff. Use only original accessories and original spare parts.
Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.
If necessary, a list of spare parts can be found at www.guede.com.
Guarantee
The warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.
The guarantee solely covers inadequacies caused by a material defect or manufacturing defect. An original payment voucher with the date of the sale needs to be submitted for any claim in the guarantee period.
The guarantee does not cover any unauthorized use such as appliance overloading, use of violence, or damage as a result of any unauthorized interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.
Let us refer to the fact we do not assume any responsibility – according to standards in force – for damage eventually caused by our appliances in the below-mentioned cases:
Important information for the customer
Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.
Service
Do you have any technical questions? Do you have a complaint? Do you require spare parts or an operating manual? You can get quick and unbureaucratic assistance in the Service section on the homepage of our service partner Güde GmbH & Co. KG (www.guede.com). Please help us to help you. In order to be able to identify your device in the case of a complaint, our service partner will require its serial number, article number, and year of manufacture. All this information can be found on the nameplate.
Tel: +49 (0) 79 04 / 700-360
Fax: +49 (0) 79 04 / 700-51999
E-Mail: [email protected]
Failure removal
Failures | Causes | Removal |
| The engine does not start | The plug is not connected | Connect plug |
| Outlet is defective | Use another outlet | |
| Fuse has blown | Change the fuse | |
| An extension cord is damaged | Try it without the extension cord | |
| Motor stops | Fuse has blown | Replace the fuse |
| The mains voltage is wrong | Check the mains voltage; it must be in line with what is on the label | |
| Excessive operating pressure | The nozzle is partly blocked | Clean the nozzle |
| Pulsating pressure | There is air in the water hose or in the pump | Shut off the pressure washer and allow the spray pistol and the tap to run freely until an even operating pressure develops |
| The water supply is wrong | Check if the water supply is in line with the requirements laid out in the technical specifications. | |
| The water filter is blocked | Clean the water filter | |
| The water hose is compressed or kinked | Lay the water hose out flat | |
| The pressure is too low | Nozzle is worn-out | Replace the nozzle |
| The motor is running, but there is no operating pressure | Water is not connected | Connect the water |
| Filter is blocked | Clean the filter | |
| The pressure washer randomly starts up | The pump or spray gun is leaking | Get help from an authorized specialist. |
| Detergent is not drawn in | The device is still working at high pressure | Reduce the pressure, i.e., use a brush, or dial down the pressure at the nozzle |
This table shows possible problems, their possible causes, and options for troubleshooting. Should the problem persist, seek out a specialist’s advice.
Translation of the EC-Declaration of Conformity
We, hereby declare the conception and construction of the below-mentioned appliances correspond – at the type of construction being launched – to the appropriate basic safety and hygienic requirements of EC Directives.
In case of any change to the appliance not discussed with us, the Declaration expires.
