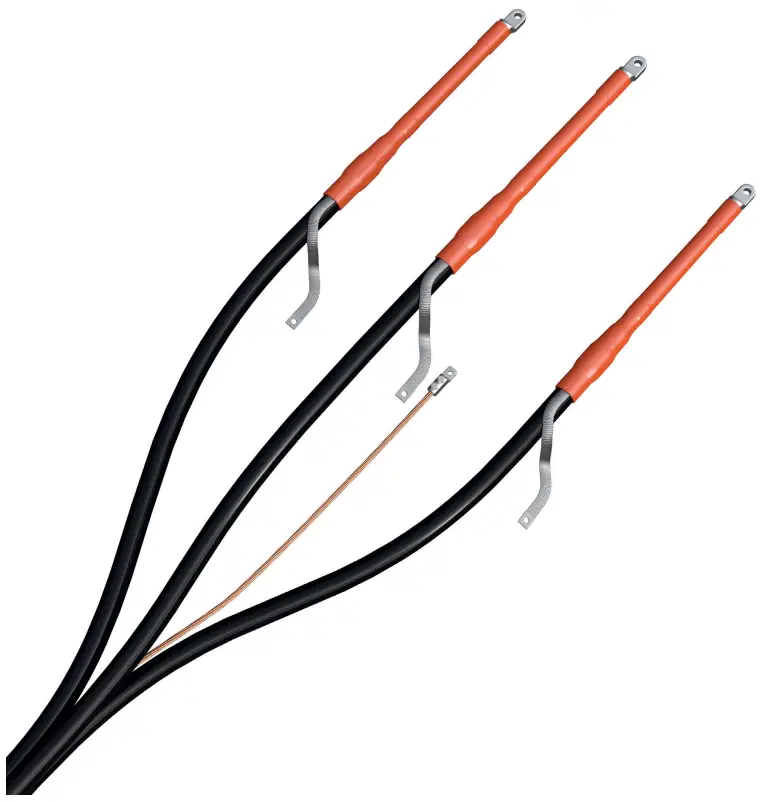

Indoor Finish Heat Shrink
Instruction Manual
HITHW1.2402L
HITHW1.2402L Indoor Finish Heat Shrink
| Uo/U (Um) kV |  mm2 |
| 12/20 (24) kV | 25-95 |
| 6/10 (12) kV | 70-95 |
LEGAL NOTICE
– The product must be installed only by a competent person with sufficient training in installation practices and with sufficient knowledge of good safety and installation practices in respect of electrical equipment. If local legislation contains provisions in respect of such training or sufficient knowledge in respect of installation of electrical equipment such provisions shall be fulfilled by the said person.
– Ensto accepts no liability concerning claims resulting from misuse, incorrect installation or ignored national safety regulations or other national provisions.
– WARNING: Failure to follow the installation instructions may result in damage to the product and serious or fatal injury.
PEM-HITHW1_2402L
 | SATH20 420 mm | 3 |
 | SSCT15 140 mm | 3 |

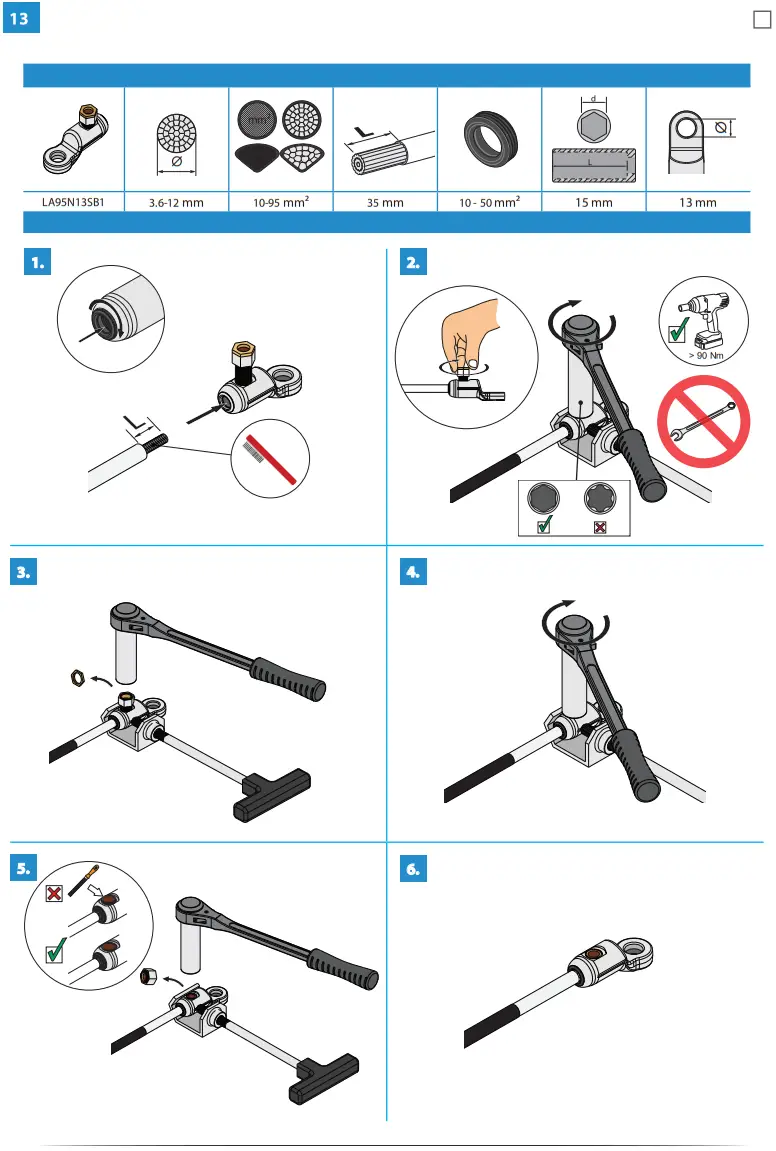

 | LA95N13SB1 | 3 |
 | LUG6-50/12LVTIN | 1 |
 | PEE228.1000 1000 mm | 3 |
 | SF2 | 3 |
 | PEE92.6 600 mm | 3 |

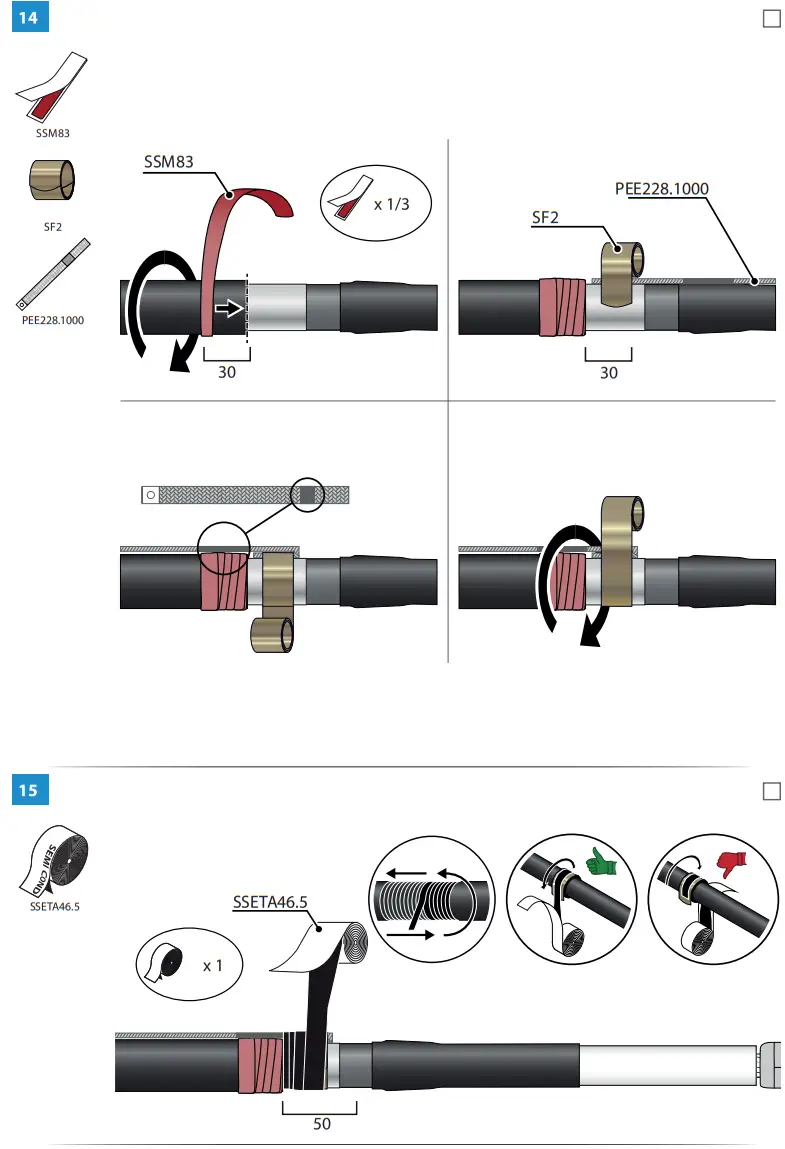

 | SSETA46.5 500 mm | 3 |
 | SSCTA85.1 100 mm | 3 |

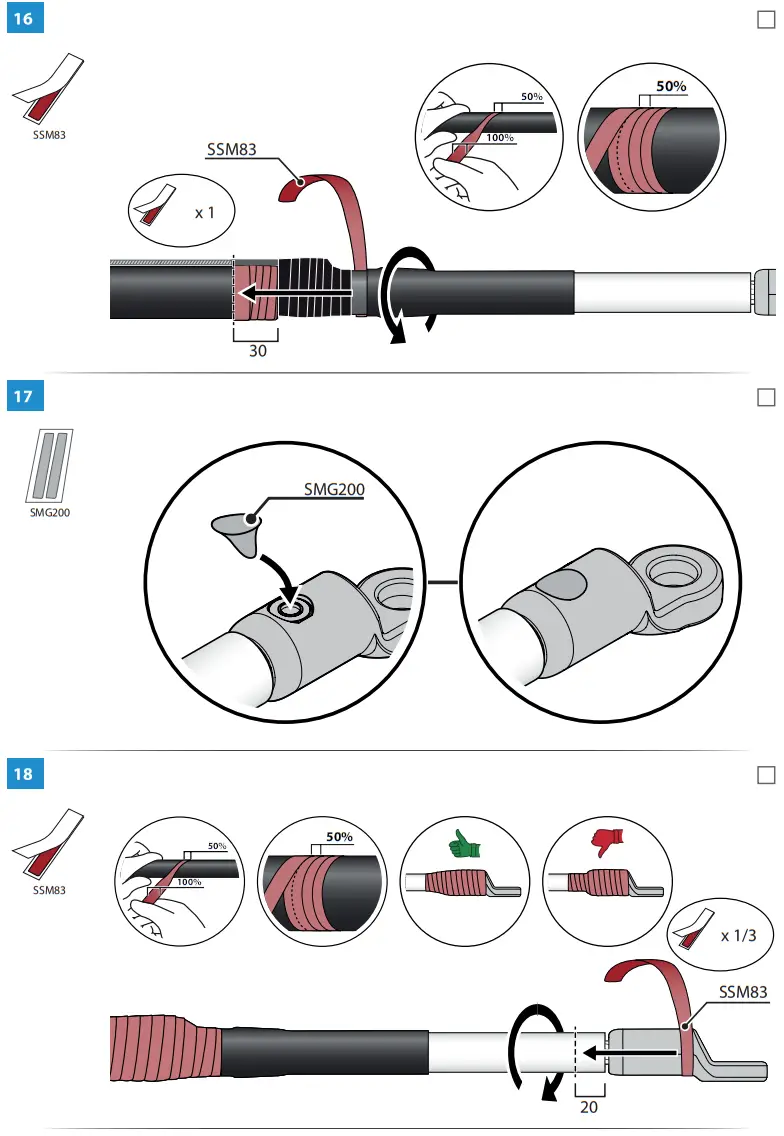

 | SSM83.3 1×360 mm | 6 |
 | SMG200 2×100 mm | 1 |
 | PEE64.1/600 | 2 |
 | CT149 | 6 |
 | PA23 | 2 |

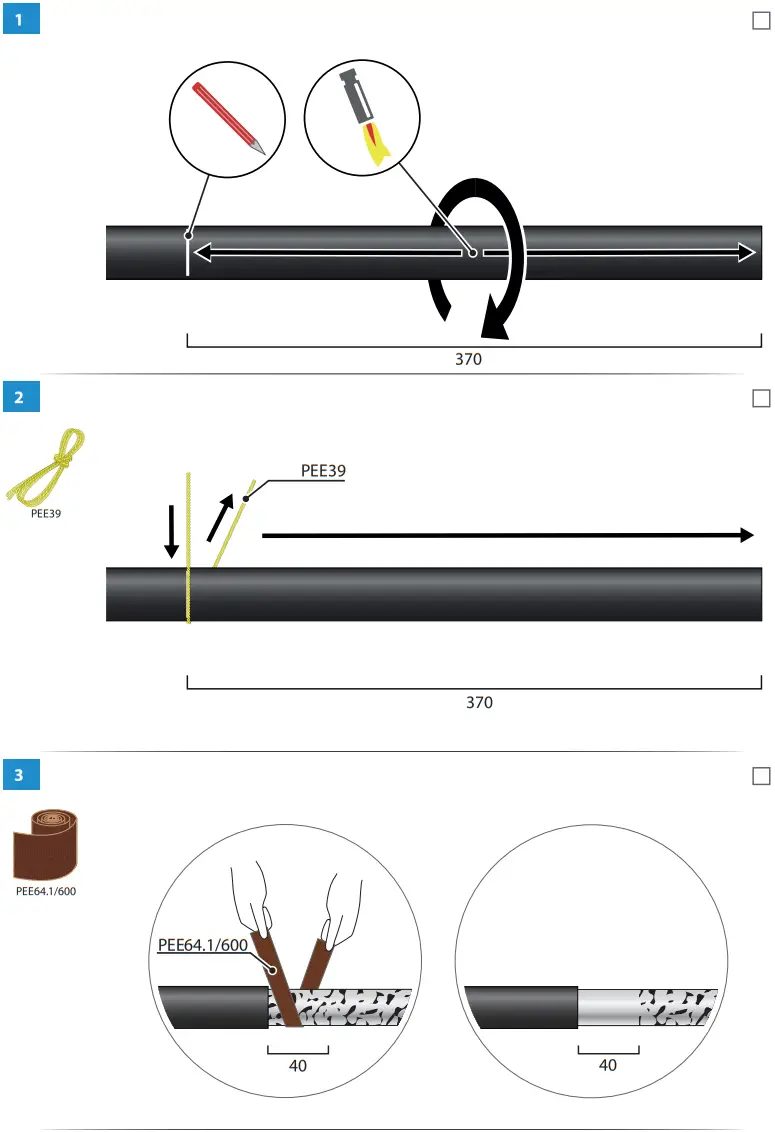

 | PEE39 | 2 |
 | PEE225W | 1 |
 | PEM-HITHW1_2402L | 1 |
PEM-HITHW1_2402L
 |  |
 |  |
 |  |
 |  |
 |  |
PEM-HITHW1_2402L
2021-09-29
Revision B
