HJP33.1202C
Revision C
Instruction Manual

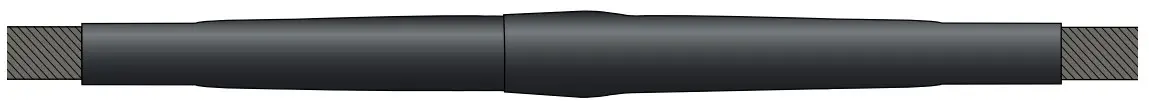

HJP33.1202C Cable Joint Heat Shrink
| Uo/U (Um) kV |  mm² |  mm² |
| 6/10 (12) kV | 50-70 | 35-95 |
LEGAL NOTICE
- The product must be installed only by a competent person with sufficient training in installation practices and with sufficient knowledge of good safety and installation practices in respect of electrical equipment. If local legislation contains provisions in respect of such training or sufficient knowledge in respect of installation of electrical equipment such provisions shall be fulfilled by the said person.
- Ensto accepts no liability concerning claims resulting from misuse, incorrect installation or ignored national safety regulations or other national provisions.
- WARNING: Failure to follow the installation instructions may result in damage to the product and serious or fatal injury.
 | CPEEPL130-36 1100 mm | 1 |  | SBC1.5 5000 mm | 2 |
| CPEEPL105-30 1000 mm | 1 |  | STCTA49.05 500 mm | 4 |
 | SIST16 370 mm | 3 | | STCTA49.11 11000 mm | 1 |
| SSET12 SSET12 190 mm 590 mm | 3 3 |  | SF4 | 2 |
| SSCJ15 330 mm | 3 |  | SSITA42.05M 500 mm | 4 |
 | STT25 STT25 350 mm 780 mm | 3 3 |  | SSCTA85.10 1000 mm | 5 |

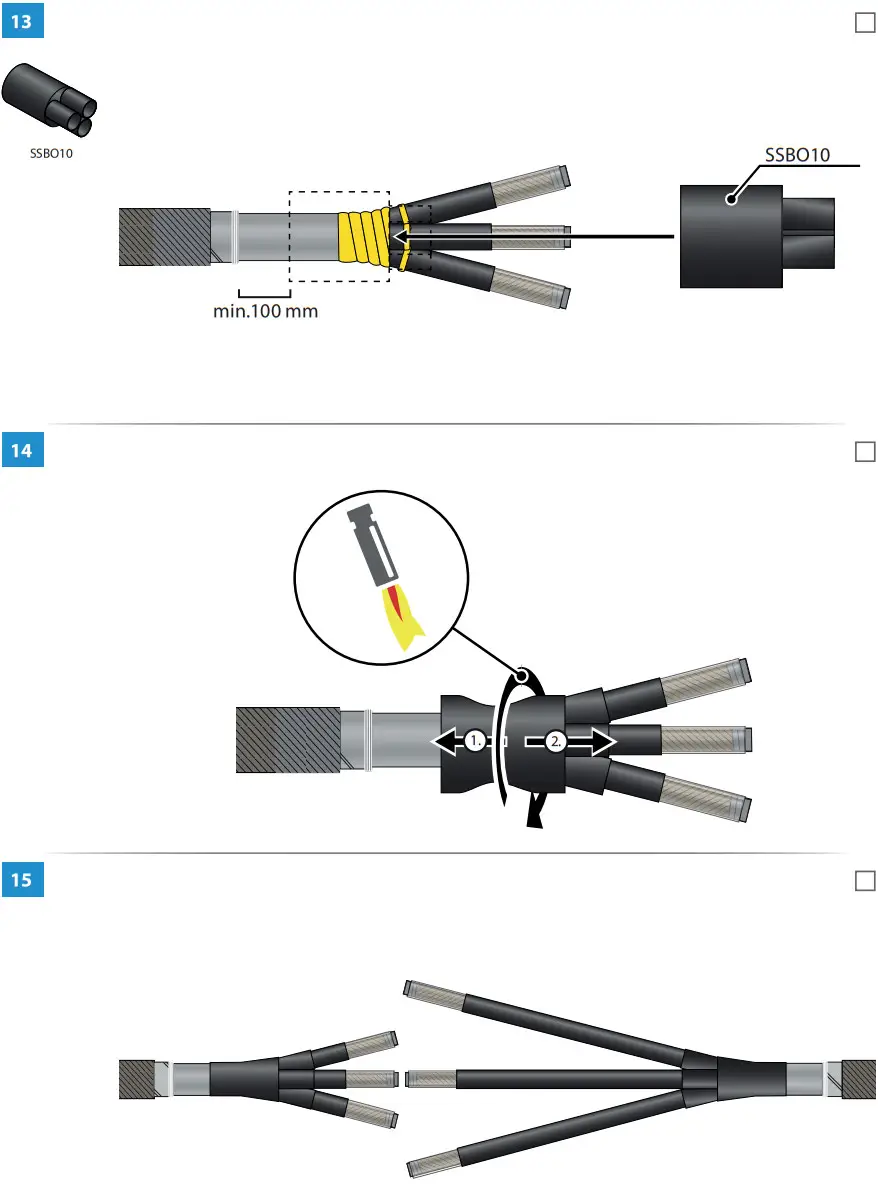

 | SSBO10 | 2 |  | SSCTA85.2 200 mm | 2 |

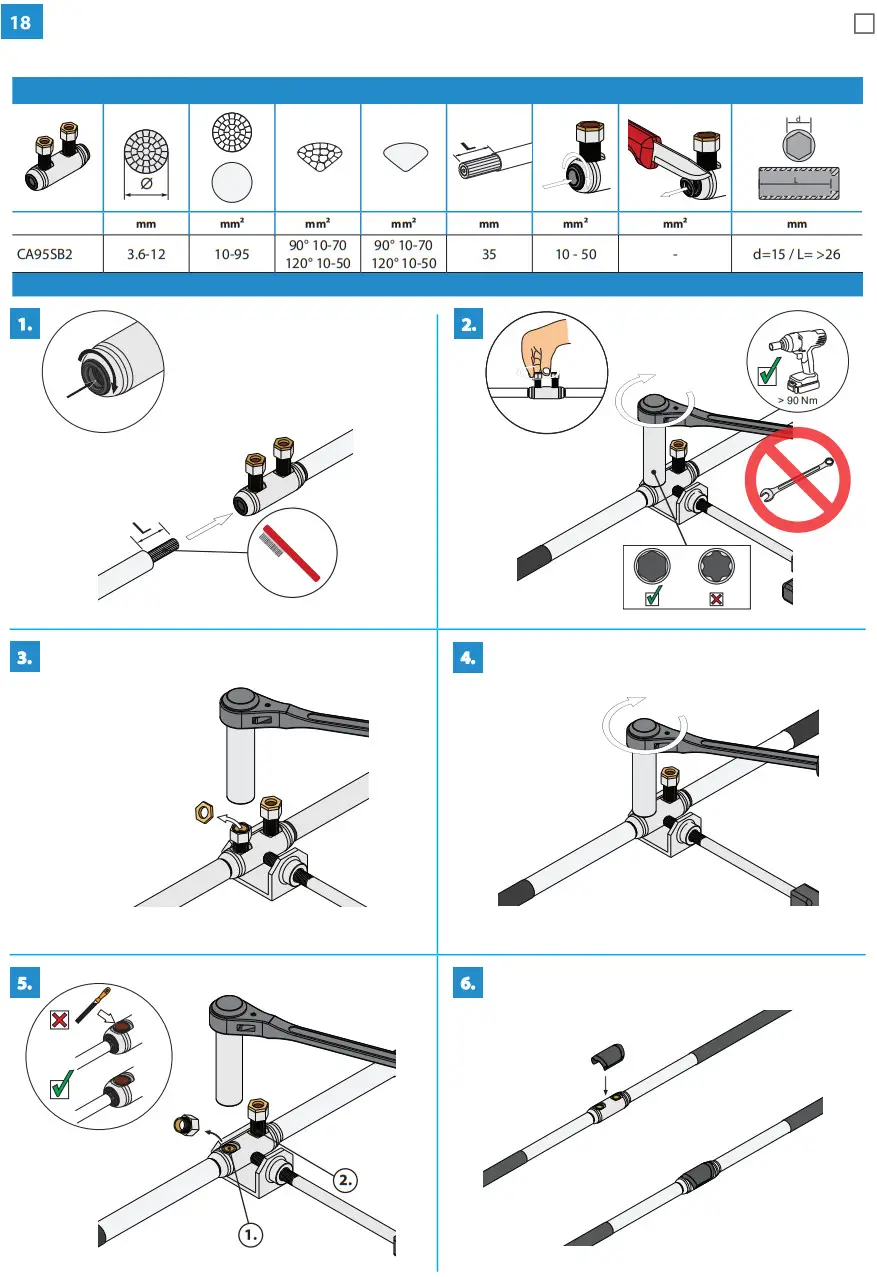

 | CA95SB2 | 3 | | SSCTA85.1 100 mm | 14 |
 | PEE229.1700 1700 mm | 1 |  | PA22.500 500 mm | 6 |
 | PEE92.10 1000 mm | 2 |  | PEE225W | 1 |
 | SSCL60 | 2 |  | PEE39/1500 | 2 |
 | PEE64.1/600 600 mm | 3 |  | PEM-HJP33.1202C | 1 |
 | PEE64/350 350 mm | 2 |  | PA23 | 3 |
 | CT149 | 9 |  | MPA21 | 2 |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
PEM-HJP33_1202C
2021-11-16
Revision C
Ensto – Leading Expert for Distribution System Operators
