PEM-HJP11_2402C
2021-11-16
Revision B
HJP11.2402C
APYAKMM/PYLKVJ – APYAKMM/PYLKVJ

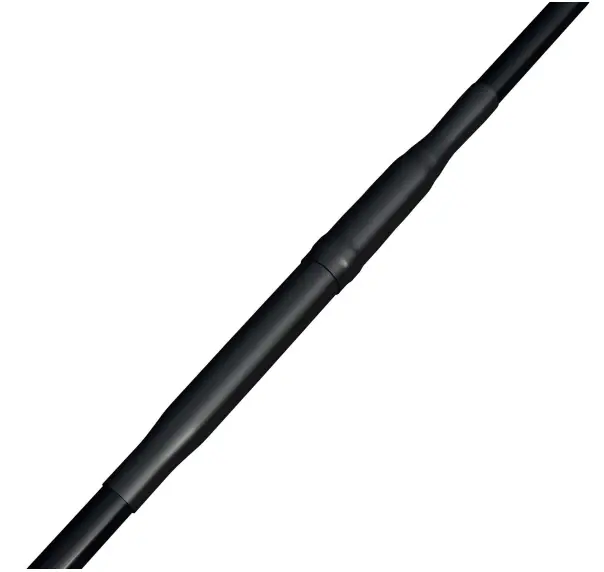

HJP11.2402C Heat Shrink Joint
| Uo /U (Um ) kV |  |
| 12/20 (24) kV | 35-95 |
Revision B 2021-11-16
PEM-HJP11_2402C
LEGAL NOTICE
- The product must be installed only by a competent person with sufficient training in installation practices and with sufficient knowledge of good safety and installation practices in respect of electrical equipment. If local legislation contains provisions in respect of such training or sufficient knowledge in respect of the installation of electrical equipment such provisions shall be fulfilled by the said person.
- Ensto accepts no liability concerning claims resulting from misuse, incorrect installation, or ignored national safety regulations or other national provisions.
- WARNING: Failure to follow the installation instructions may result in damage to the product and serious or fatal injury.
PEM-HJP11_2402C

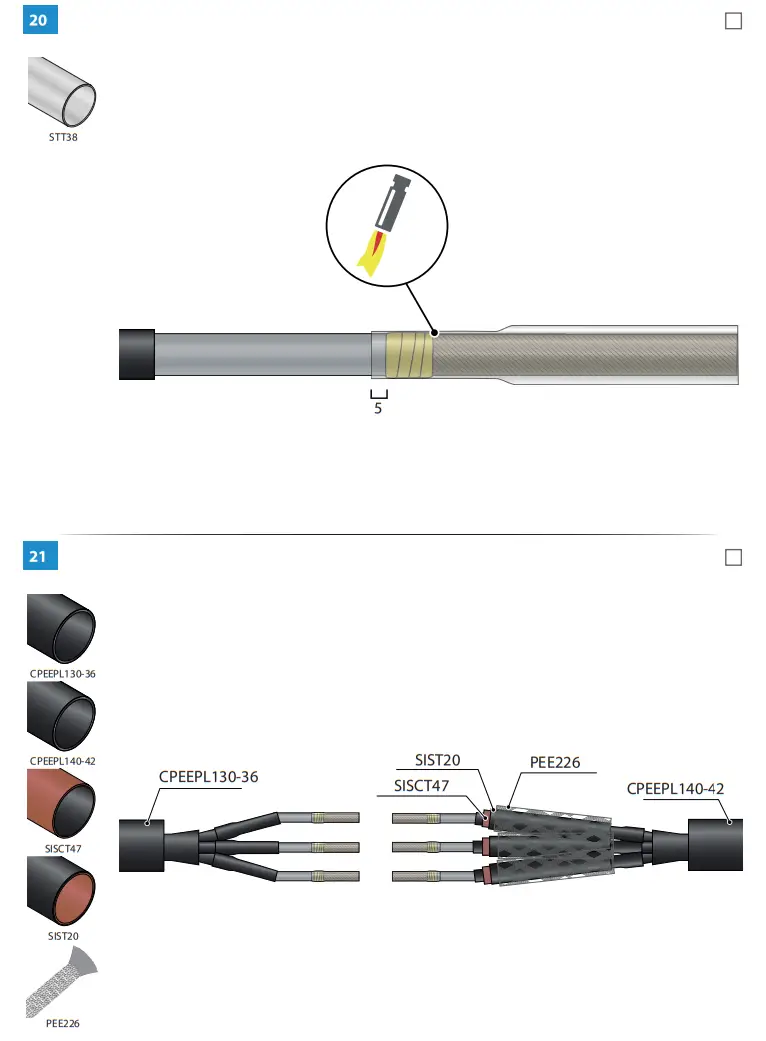

 | CPEEPL14042 | 1000 mm | 1 |  | PEE193 | 200mm | 6 |
 | CPEEPL13036 | 1100 mm | 1 |  | PEE226 | 650 mm | 3 |
 | SI5T20 | 960 mm | 3 |  | SSCL80 | 2 | |
 | SISCT47 | 420 mm | 3 |  | PEE92.10 | 1000 mm | 2 |

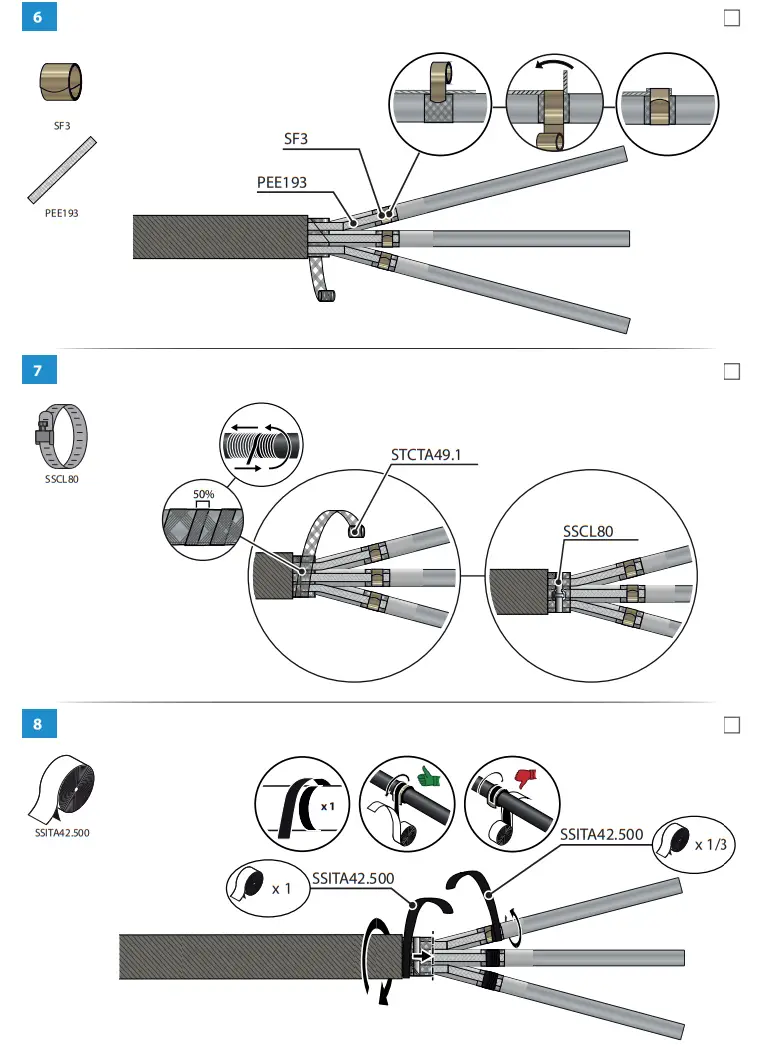

 | 5rr38 | 200mm | 6 |  | SF3 | 12 | |

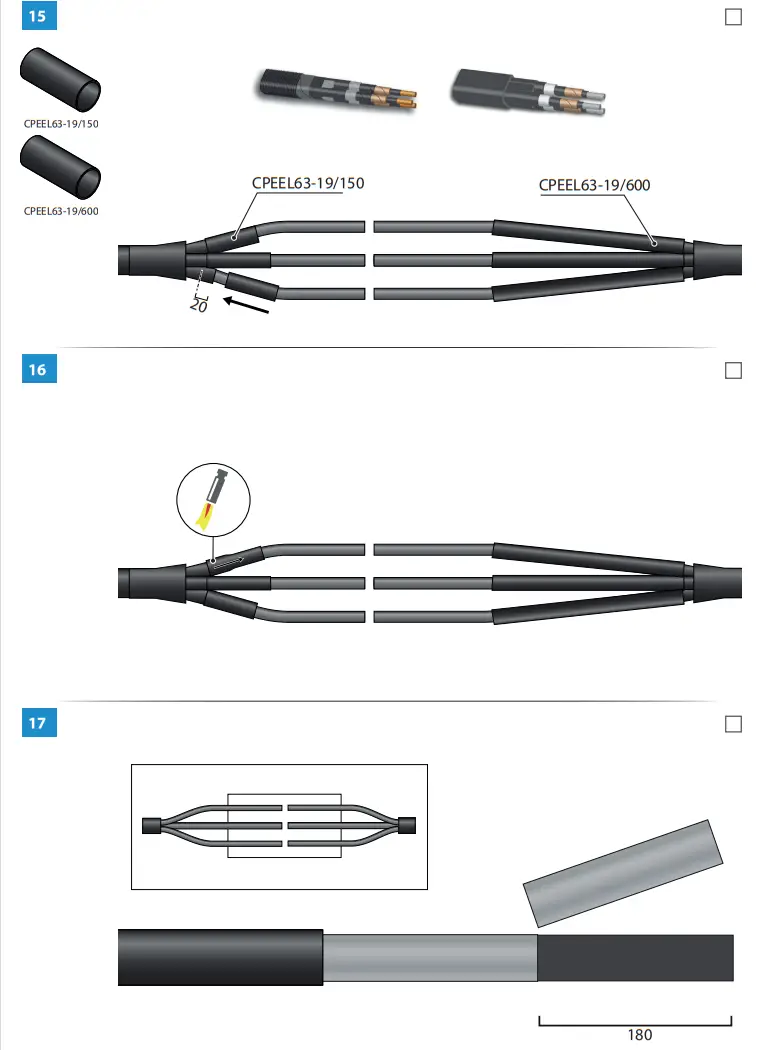

 | CPEEL63.19 | 150 mm | 3 |  | PA22 SOO | SOO mm | 3 |
| CPEEL63-19 | 600 mm | 3 |  | SSM83.3 | 360 mm | 2 |
 | 5804. | 2 |  | SSETA46 700 | 3 x 700 mm | 2 | |
 | CA9SS82 | 3 |  | SSITA42.500 | 3 x SOO | 4 | |
 | STCTA49.1 | 1000 mm | 2 |  | SSCTA8S.6 | 650 mm | 3 |
| STCTA49.05 | S00 mm | 6 |  | SSCTA8S.1 | 100 mm | 6 |

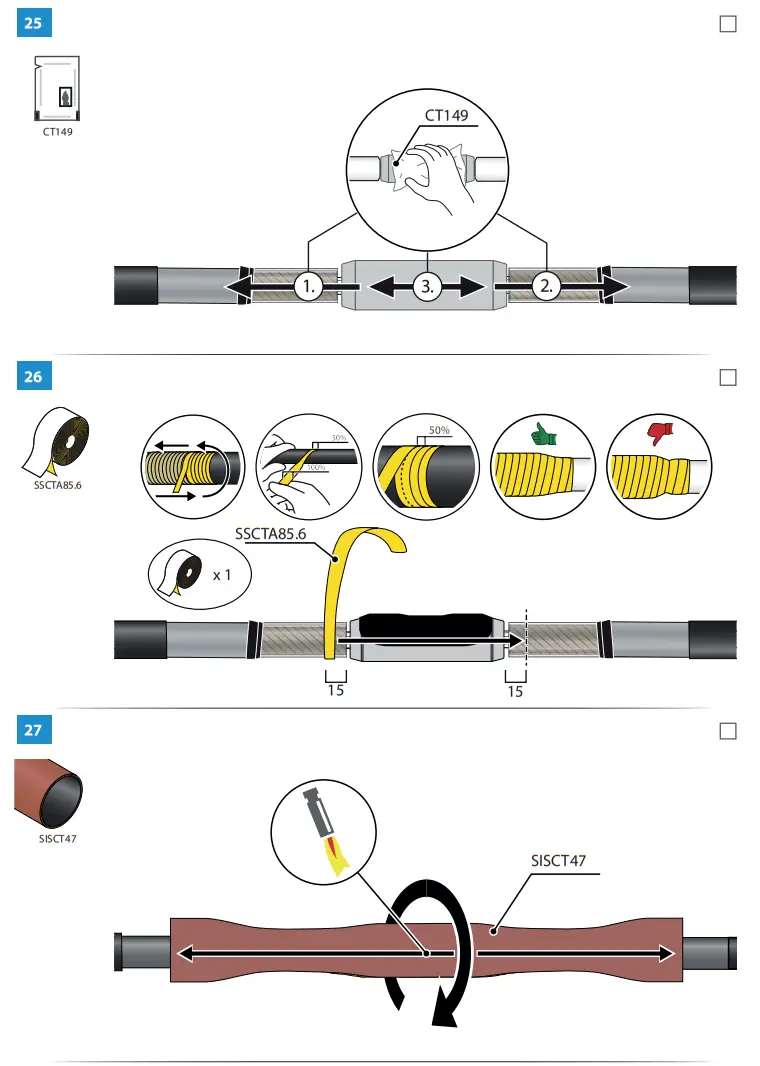

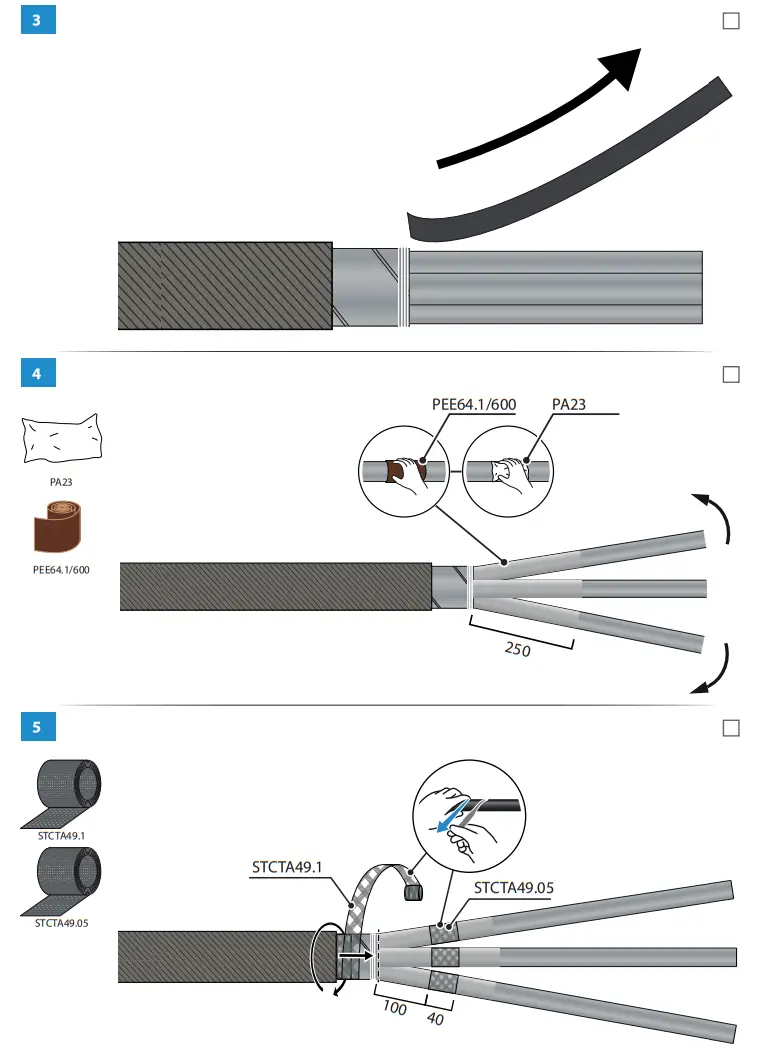

 | CT149 | 9 |  | PEE64.1/600 600 mm | 3 |

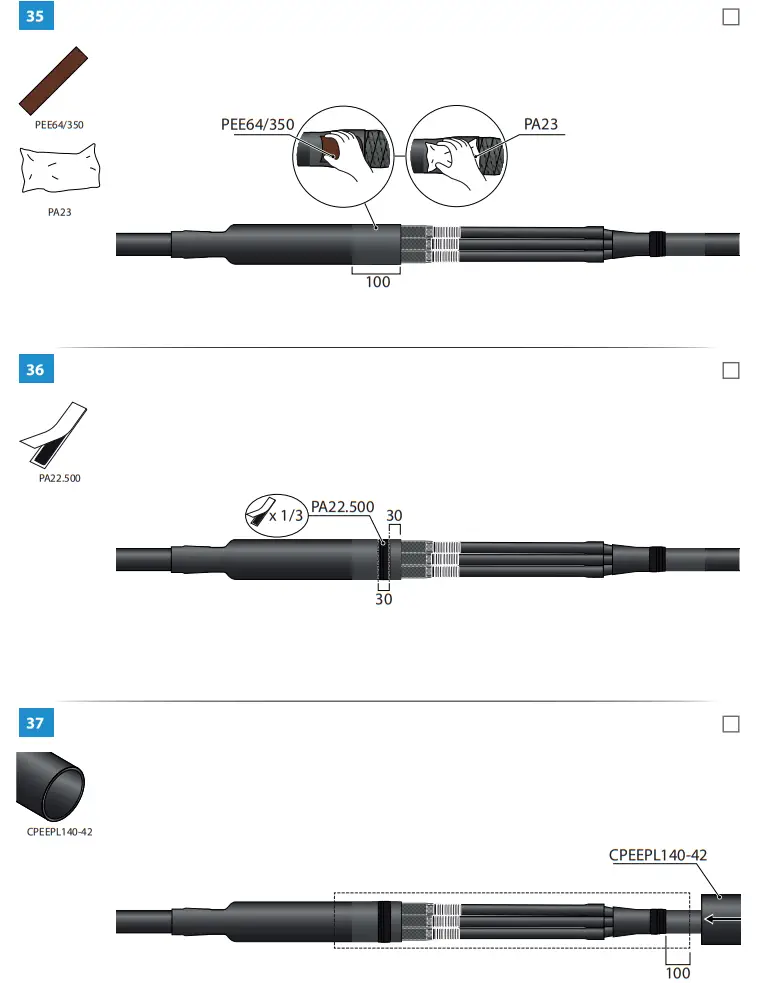

 | MPA21 | 2 |  | PEE64/350 350 mm | 2 |
 | PA23 | 3 |  | PEM-HJP11_2402C | 1 |
 | SBC1.5 500 mm | 3 |
 |  |  |  |  |  |  |  |  |
| mm | mm² | mm² | mm² | mm | mm² | mm² | mm | |

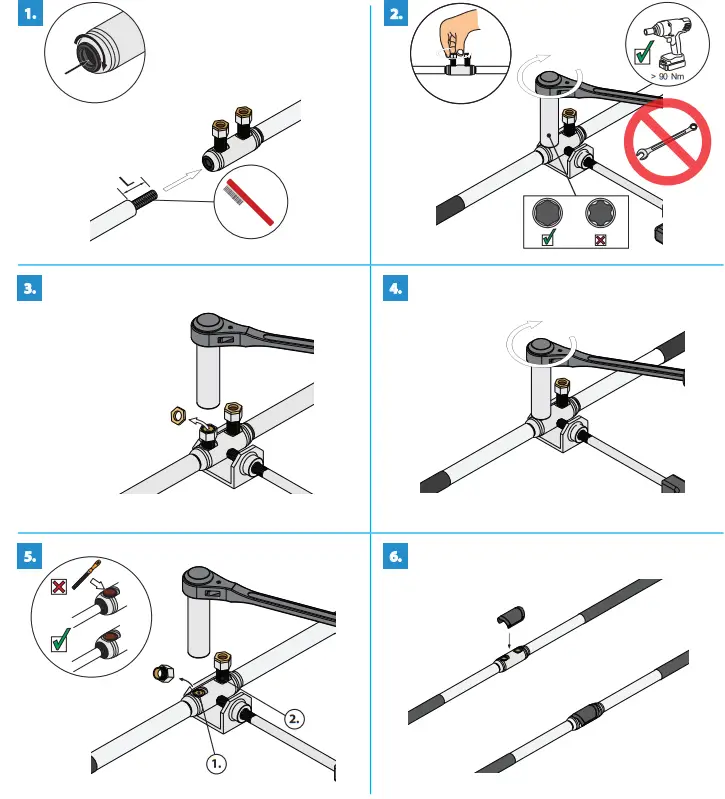

| CA95SB2 | 3.6-12 | 10-95 | 90° 10-70 120° 10-50 | 90° 10-70 120° 10-50 | 35 | 10-50 | d=15 /L=>26 |
PEM-HJP11_2402C
