ENSTO LogoSJKV2C

ENSTO SJKV2C Cable Joint Heat Shrink

SJKV2C Cable Joint Heat Shrink

ENSTO SJKV2C Cable Joint Heat Shrink - IconENSTO SJKV2C Cable Joint Heat Shrink - Icon1ENSTO SJKV2C Cable Joint Heat Shrink - Icon2
0,6/1 (1,2) kV50-9550-95
ENSTO SJKV2C Cable Joint Heat Shrink - Icon3CPEEPL85-25 900 mm1
ENSTO SJKV2C Cable Joint Heat Shrink - Icon4CPEEPL33-8 130 mm4
ENSTO SJKV2C Cable Joint Heat Shrink - Icon5SLJ2.275
ENSTO SJKV2C Cable Joint Heat Shrink - Icon6SLJT22
ENSTO SJKV2C Cable Joint Heat Shrink - Icon7STCTA49.3 3000 mm1
ENSTO SJKV2C Cable Joint Heat Shrink - Icon8SSATA10.21
ENSTO SJKV2C Cable Joint Heat Shrink - Icon9PEE64/1501
ENSTO SJKV2C Cable Joint Heat Shrink - Icon10PA231
ENSTO SJKV2C Cable Joint Heat Shrink - Icon11PEM-SJKV2C1

 LEGAL NOTICE

  • The product must be installed only by a competent person with sufficient training in installation practices and ith sufficient knowledge of good safety and installation practices in respect of electrical equipment. If local legislation contains provisions in respect of such training or sufficient knowledge in respect of installation of electrical equipment such provisions shall be fulfilled by the said person.
  • Ensto accepts no liability concerning claims resulting from misuse, incorrect installation or ignored national safety regulations or other national provisions.
  • WARNING: Failure to follow the installation instructions may result in damage to the product and serious or fatal injury.

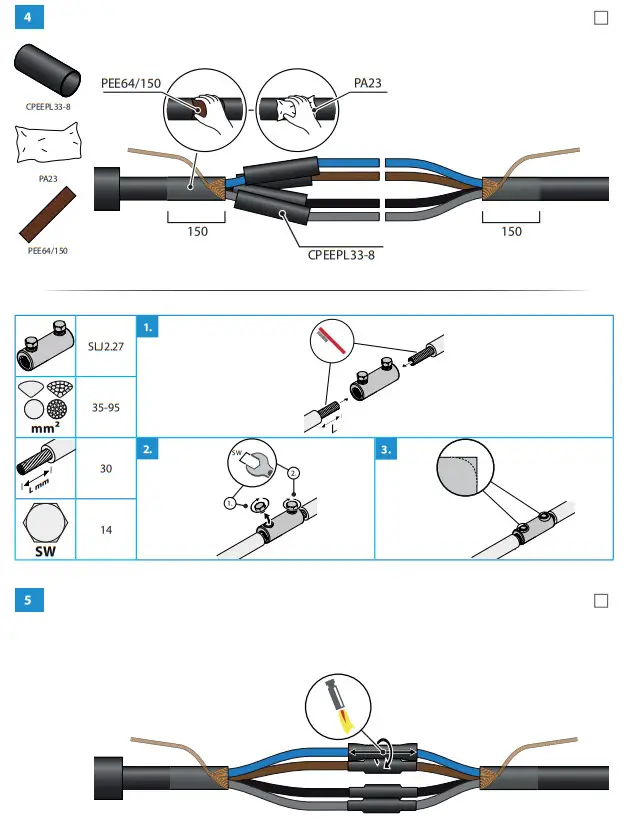

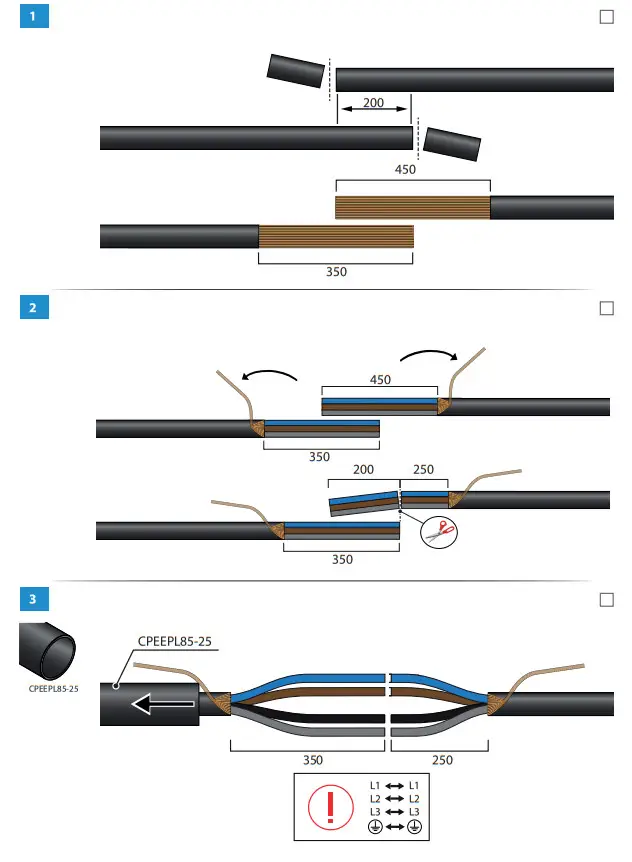

ENSTO SJKV2C Cable Joint Heat Shrink - FigENSTO SJKV2C Cable Joint Heat Shrink - Fig1

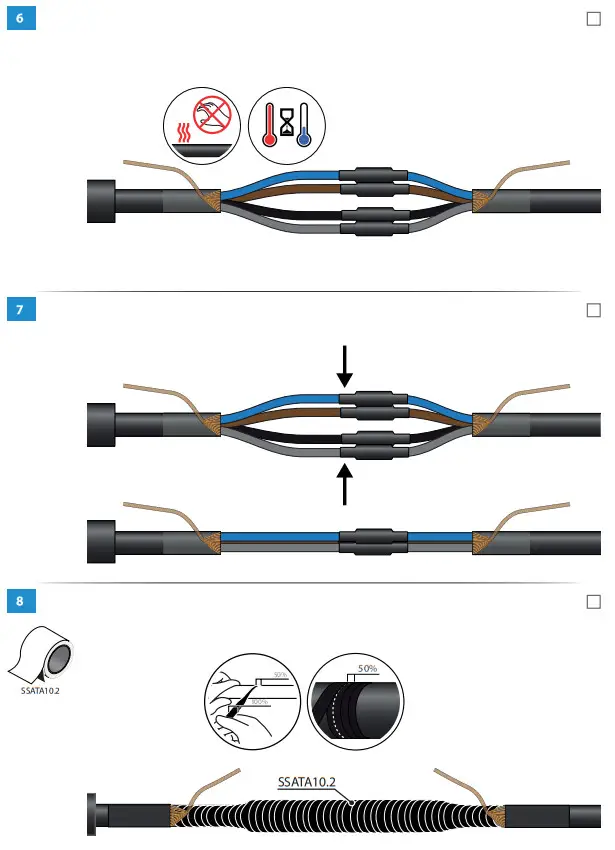

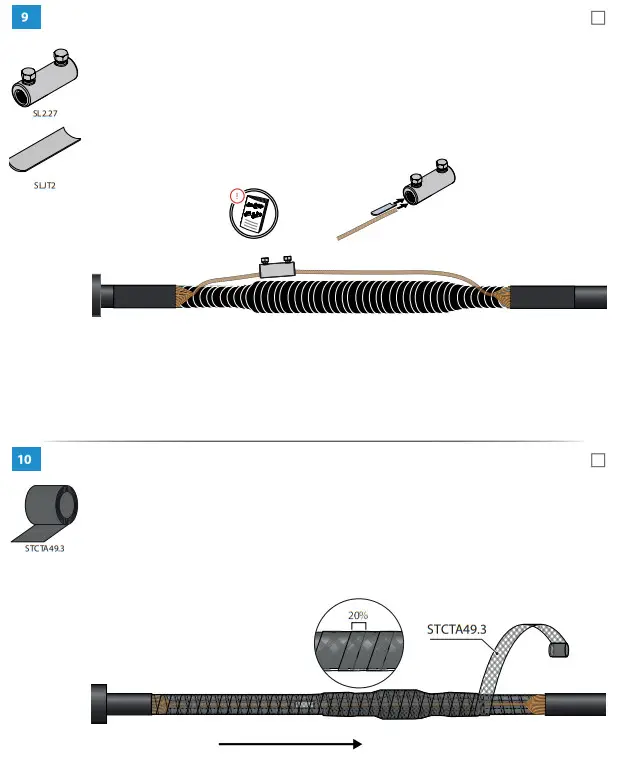

ENSTO SJKV2C Cable Joint Heat Shrink - Fig2ENSTO SJKV2C Cable Joint Heat Shrink - Fig3

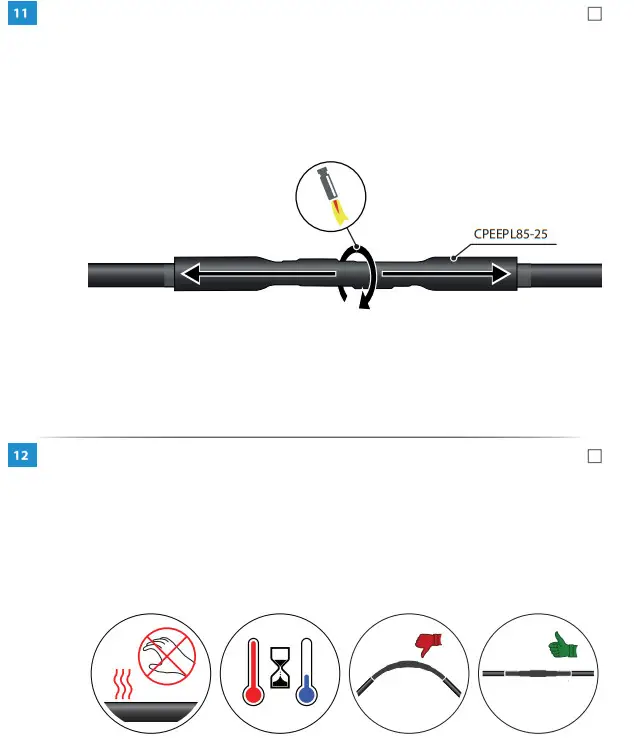

ENSTO SJKV2C Cable Joint Heat Shrink - Fig4

ENSTO LogoPEM-SJKV2C
2020-10-13
Revision CENSTO SJKV2C Cable Joint Heat Shrink - QR CordPEM-SJKV2C
