Acsip Ek-st50h Pcb Connector User Guide

AcSip Technology Corp. www.acsip.com.tw

Doc No : 912-12602
Ver. : B
Date: 2021/01/20

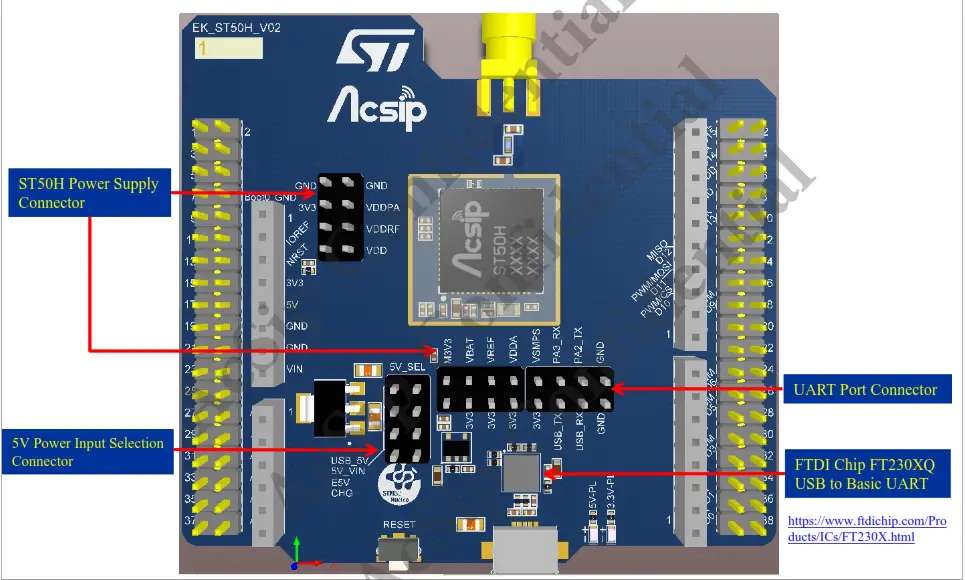

EK-ST5OH PCB Connector Description

https://www.ftdichip.com/Products/lCs/FT230X.html

EK-ST5OH Schematic Diagram

ST5OH Circuit Diagram

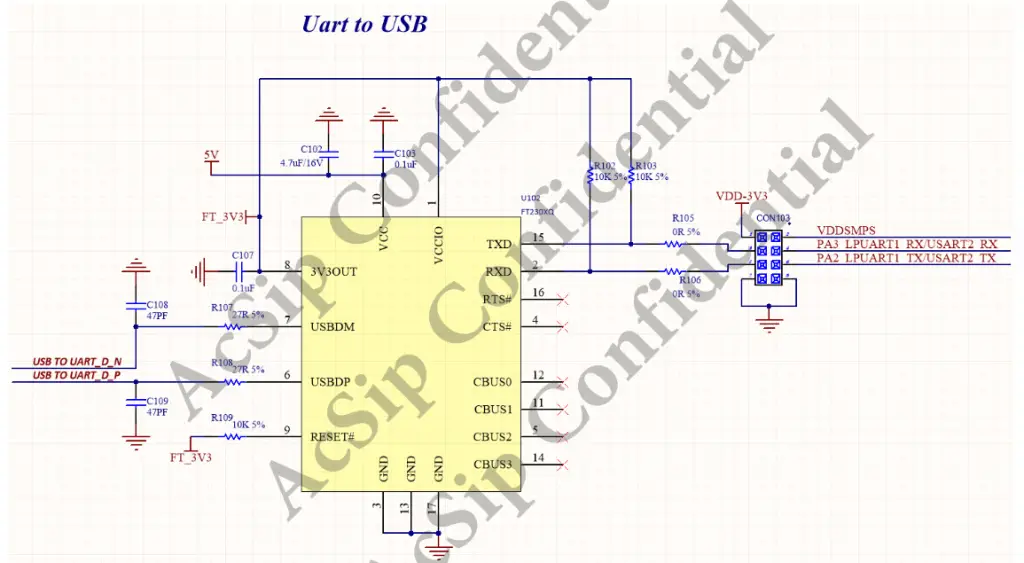

	USB to UART Circuity Diagram

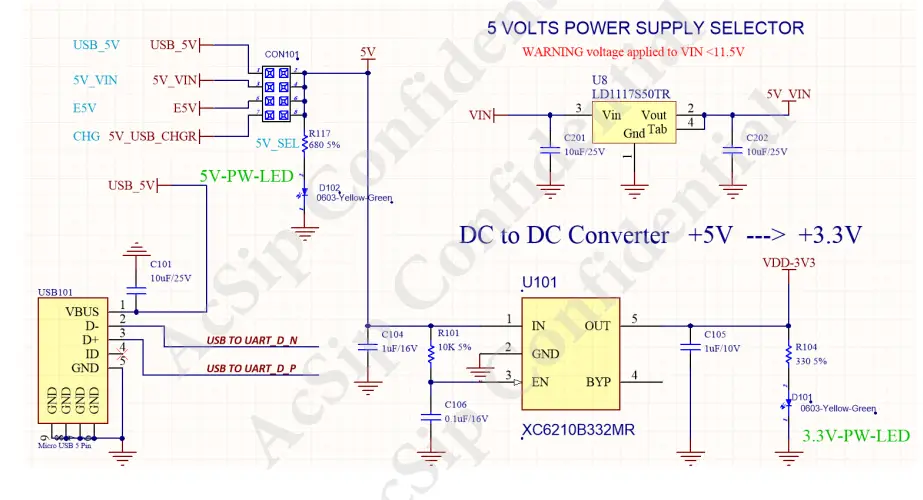

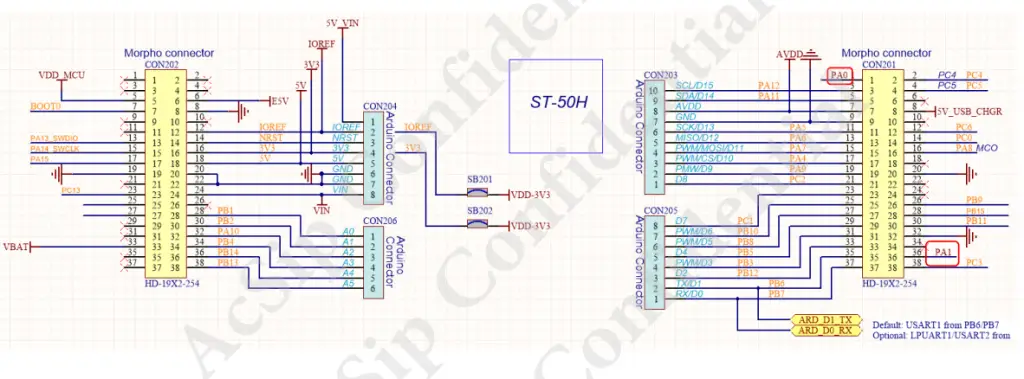

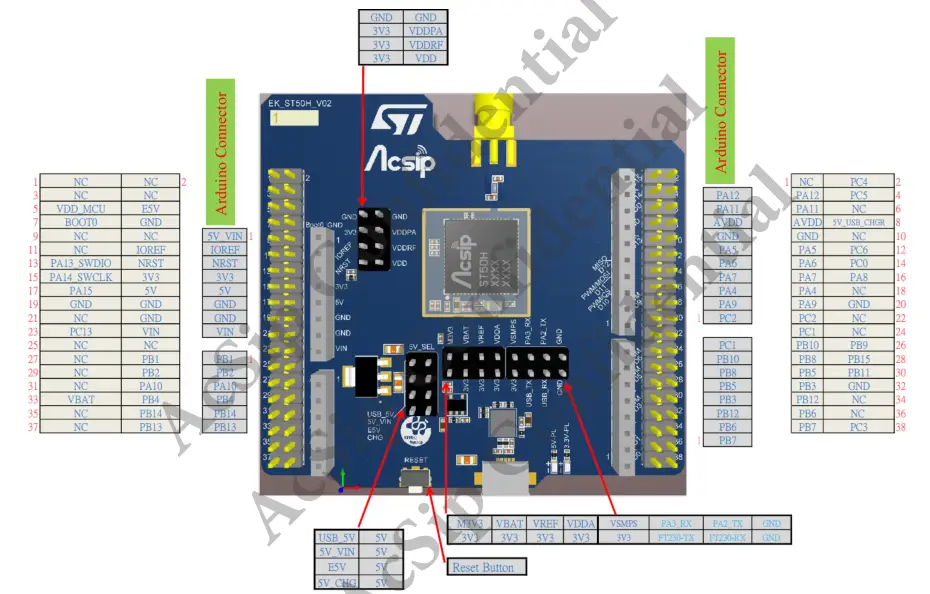

Power supply Circuity Diagram	Pin defination Circuity Diagram

Note The PAO and Pi r in ST5OH an e been controlled by Acsip’s software, So this two piilOrn the PC16; pins.

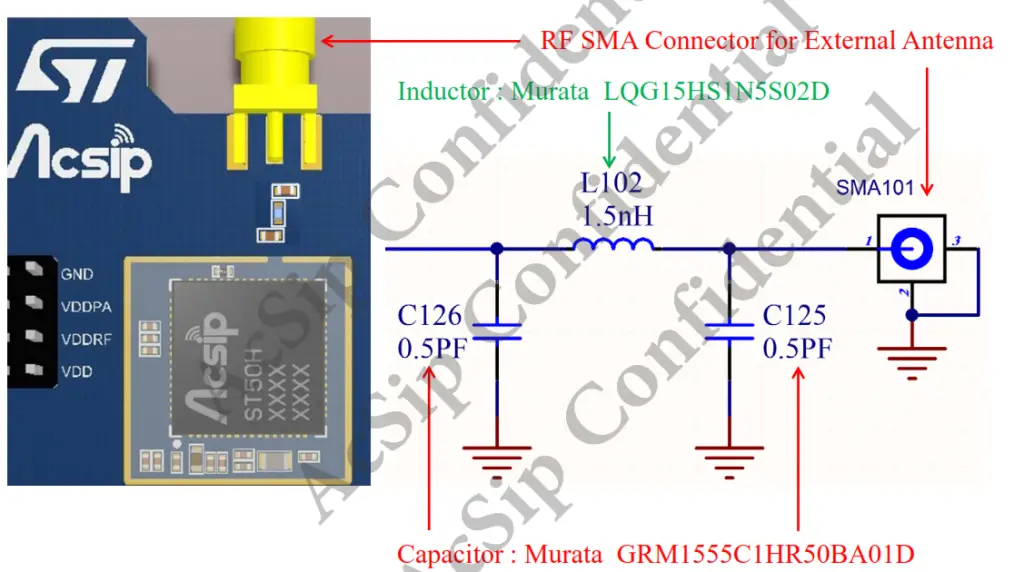

Low-pass filter circuit for EMI test

Acs@ r Low-pass filter circuit for EMI test
accept Technology Corp. www.acsip.com.tw
