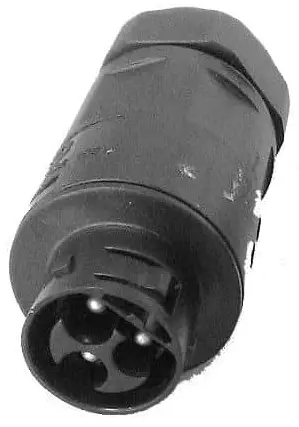

APsystems 4300805302 25A AC Connector
Tools:
Cross screwdriver, wire striper, solid wrench, or monkey wrench.
Verify the AC connector
Type is 25A AC Male Connector (EN,5-wire) or 25A AC Female Connector (EN,5-wire).

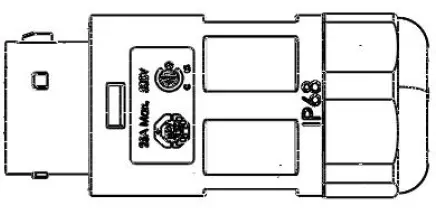

25A AC Male Connector(EN,5-wire)

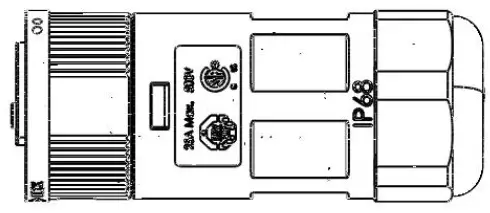

25A AC Female Connector(EN,5-wire)
Wire Stripping
- Wire gauge：5×2.5mm² (14AWG) or 4×2.5mm² (14AWG~12AWG)
- Cable OD：10mm~13mm

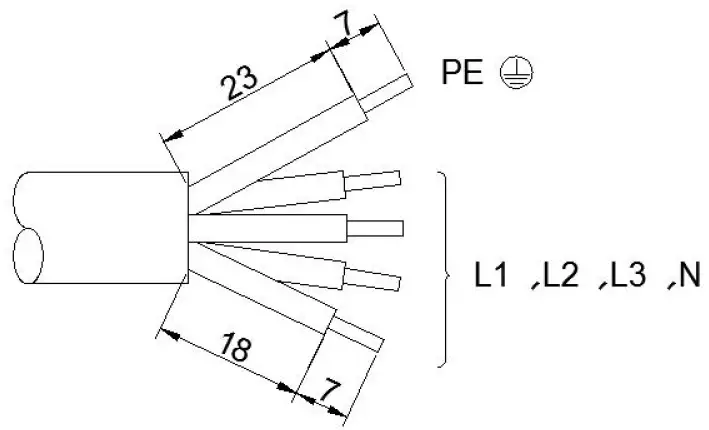

- Wire stripping size (mm ): Earth wire is supposed to be longer than Live wire and Neutral wire.
Wiring cables to the AC connectors

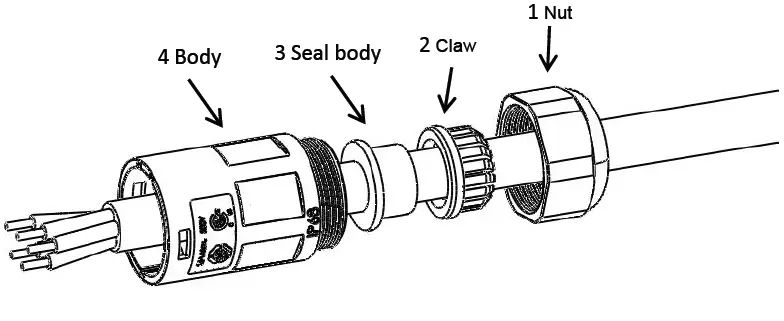

- Set the parts on the cable according to the order of 1→2→3→4.

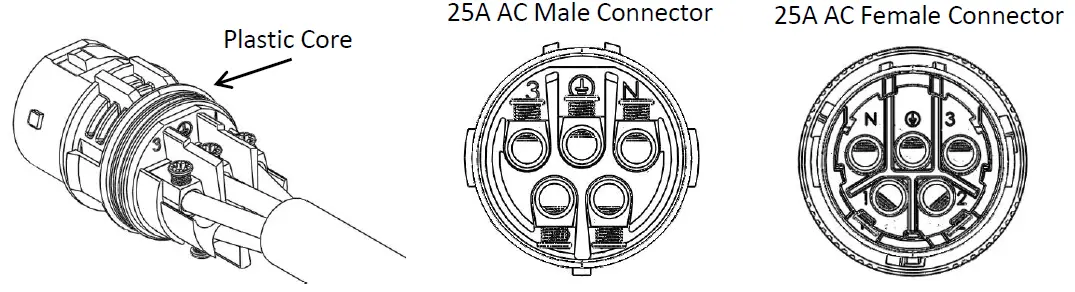

- Crimp wires: the plastic core of the connector is printed, please wire according to the print, ( If the 4-wire cable can be empty), and screw twisting torque 0.8 + / – 0.1N. m.

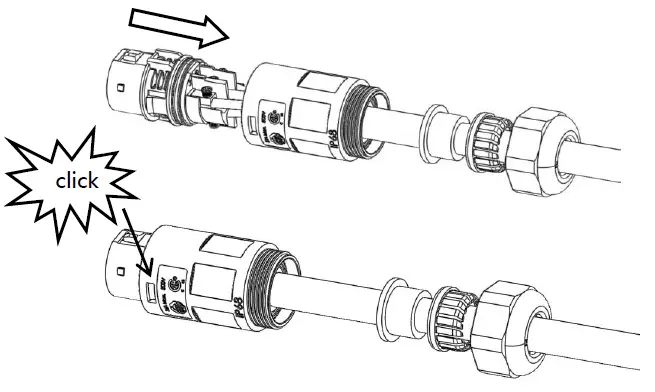

- Push Housing into the Body until hearing the click sound.

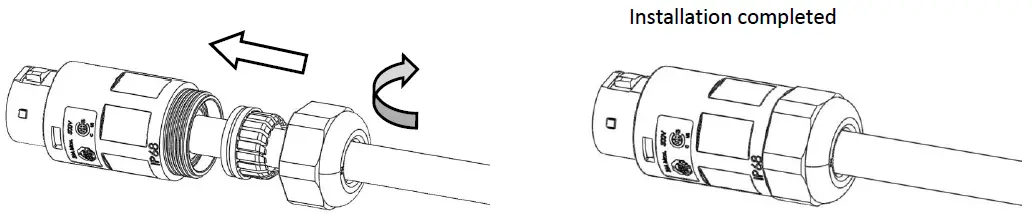

- Insert Seal and Clamp Finger into Body, then tighten the nut, torque m 4.0 +/ – 0.5N .m.
- Installation of cable end female connector is the same as a male connector.
