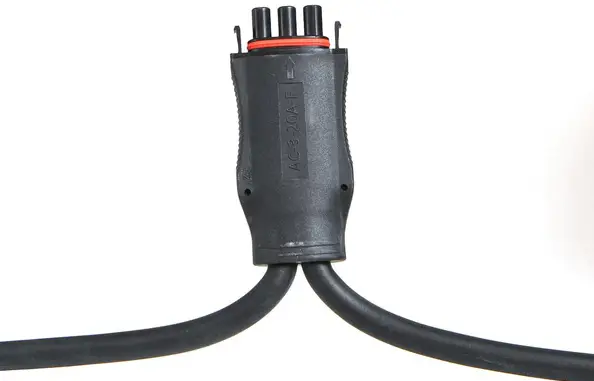

APsystems 2300532 25A AC Connector EN 3-Wire

Tools

Cross screwdriver, wire striper, solid wrench or monkey wrench .

INSTALLATION INSTRUCTIONS

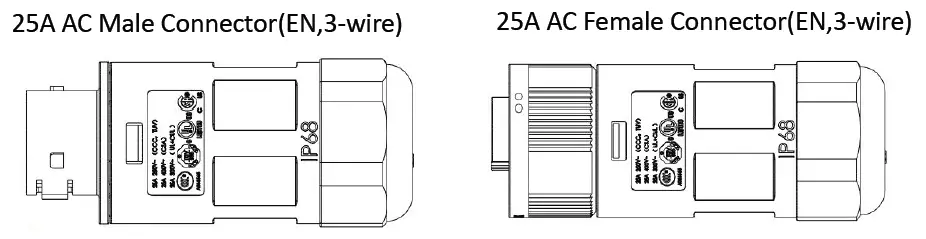

1. Step 1. Verify the AC connector:
   Type is 25A AC Male Connector (EN,3-wire) or 25A AC Female Connector (EN,3-wire).
2. Step 2. Wire Stripping
   1. Wire gauge：3×2.5mm²~4mm² (or 14AWG~12AWG)
   2. Cable OD：10mm~12mm

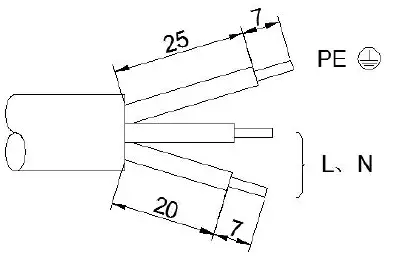

   3. Wire stripping size ( mm ):Earth wire is supposed to be longer than Live wire and Neutral wire
3. Step 3. Install the AC connectors

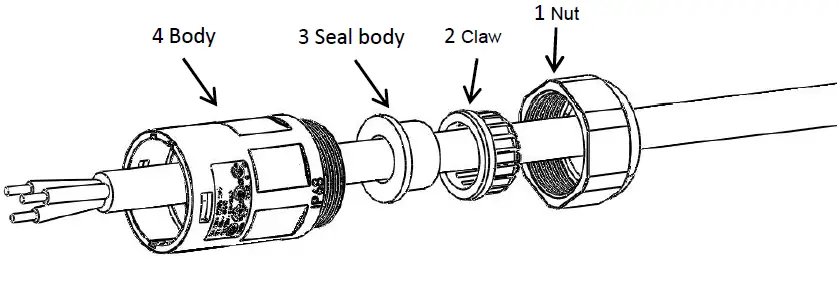

   1. Set the parts on the cable according to the order of 1→2→3→4.

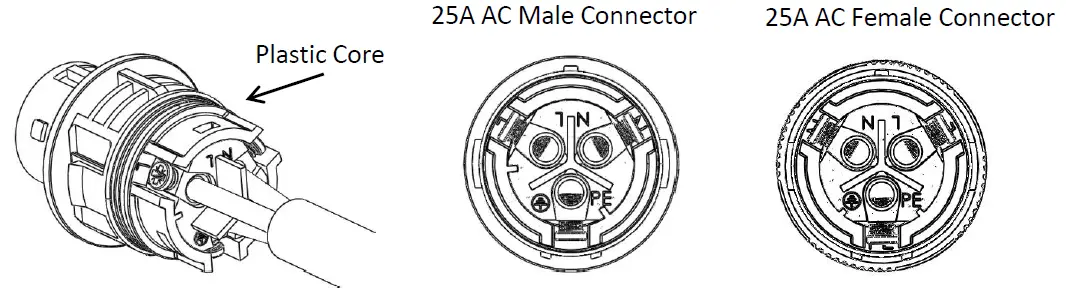

   2. Crimp wires: the plastic core of connector is printed, please wire according to the print, screw twisting torque 0.8 +/_0.1N.m .

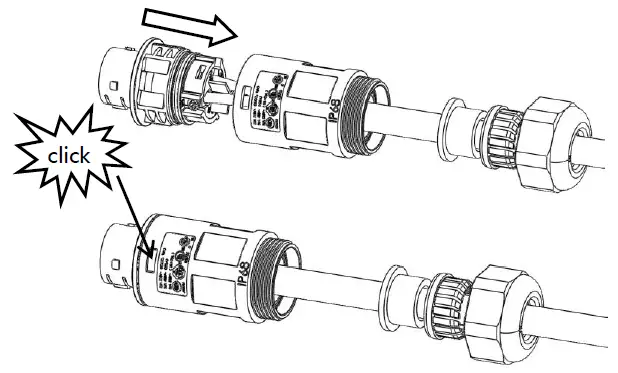

   3. Push Housing into Body until hear the the click sound.

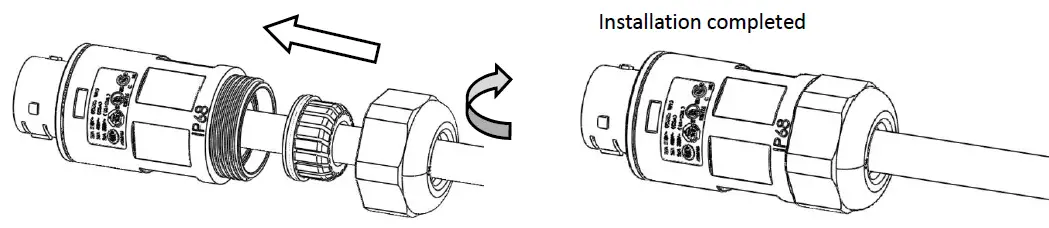

   4. Insert Seal and Clamp Finger into Body, then tighten the nut, torque
   5. Installation of cable end female connector is the same as male connector

NOTE:

1. If the microinverter’s output is L,N,PE, the wiring method is:
   1. Connector Power Grid
   2. L L
   3. N N
   4. PE PE
2. If the microinverter’s output is L,L,N, the wiring method is:
   1. Connector Power Grid
   2. L L
   3. N L
   4. PE N

APsystems
8701 N. Mopac Expy, Ste 160, Austin, TX 78759 Tel : 844-666-7035 apsystems.com
