LED STRIP & TILBEHØR
Instruction Manual

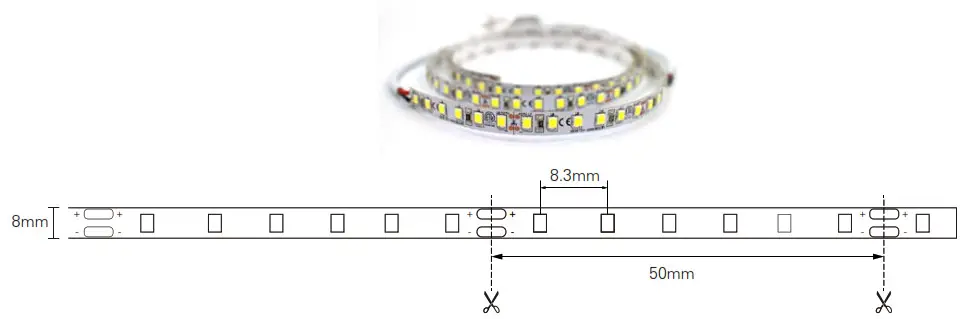

LED STRIP 24V 5m 2700K IP20
Art nr.: 3234680
| Voltage: | 24V |
| Power: | 13.96W/m |
| Total LED per meter: | 140 |
| Lumen: | 1570lm/m |
| IP: | IP20 |
| CRI: | 80 |
| Color temperature: | 2700K |
| Beam angle: | 120° |
| Cut length: | 50mm |
| Max. length: | 7m |
| Dimmable: | Yes |
| Lifetime: | 50.000timer L80 |
LED Strip 24V 5m
Art nr.: 3234680

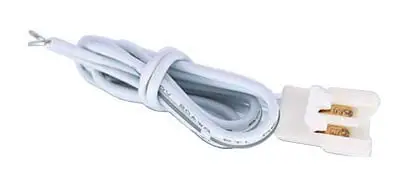

Accessory Included in the package, may purchase separately also.
Art nr.: 3234679

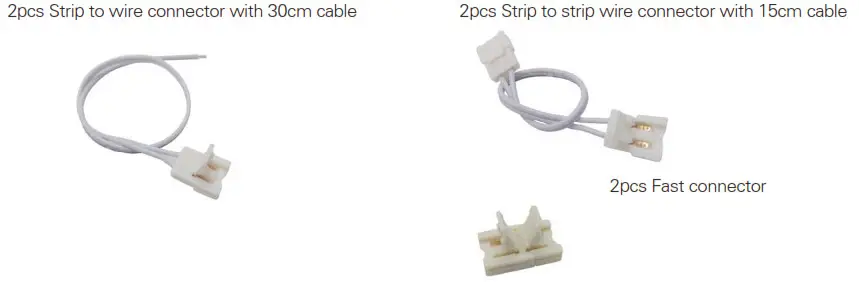

| 2pcs Strip to wire connector with 30cm cable | 2pcs Strip to strip connector with 15cm cable | 2pcs Fast connector |
 |  |  |

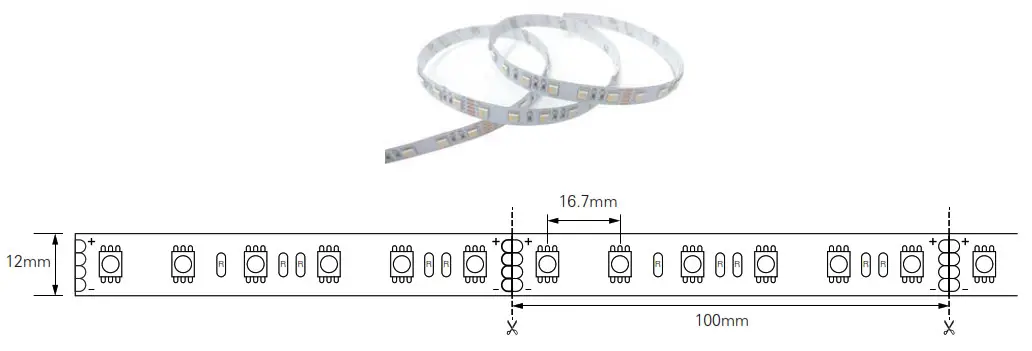

LED STRIP 24V 5m RGBW IP20
Art nr.: 3234681
| Voltage: | 24V |
| Power: | 16.32 W/m |
| Total LED per meter: | 60 |
| Lumen: | 570lm/m |
| IP: | IP20 |
| CRI: | 80 |
| Color temperature: | RGBW |
| Beam angle: | 120° |
| Cut length: | 100mm |
| Max. length: | 6m |
| Lifetime: | 50,000hours L80 |
LED Strip 24V 5m
Art nr.: 3234681

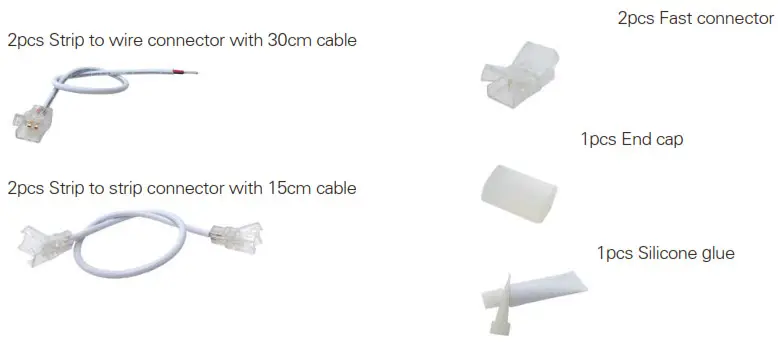

Accessory included in the package may be purchased separately also.
Art nr.: 3234695
| 2pcs Strip to wire connector with 30cm cable | 2pcs Strip to strip wire connector with 15cm cable | 2pcs Fast connector |
 |  |  |

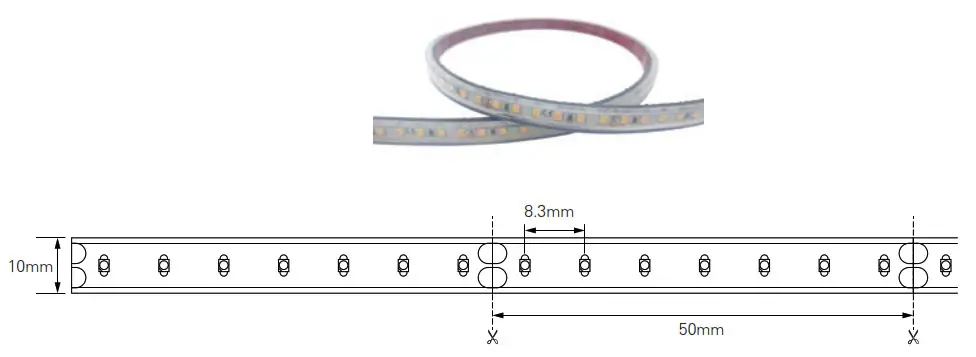

LED STRIP 24V 5m 2700K IP67
Art nr.: 3234682
| Voltage: | 24V |
| Power: | 14.66 W/m |
| Total LED per meter: | 140 |
| Lumen: | 1478lm/m |
| IP: | IP67 |
| CRI: | 80 |
| Color temperature: | 2700K |
| Beam angle: | 120° |
| Cut length: | 50mm |
| Max. length: | 7m |
| Dimmable: | Yes |
| Lifetime: | 50,000hours L80 |
LED Strip 24V 5m
Art nr.: 3234682
Accessory Included in the package, may purchase separately also.
Art nr.: 3234696

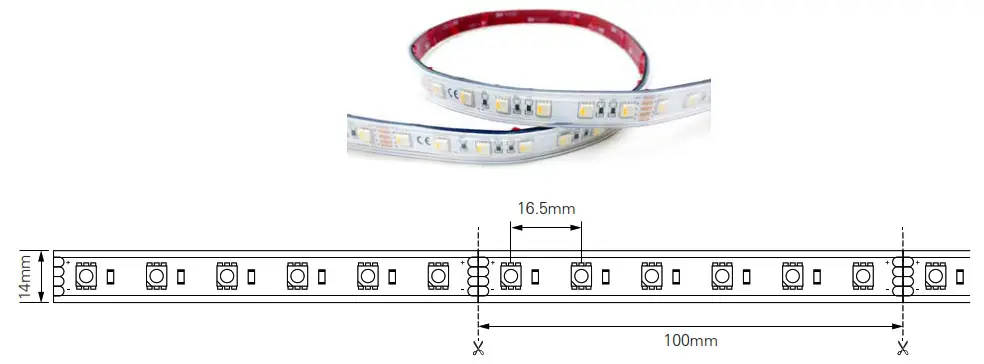

LED STRIP 24V 5m RGBW IP65
Art nr.: 3234683
| Voltage: | 24V |
| Power: | 16.32 W/m |
| Total LED per meter: | 60 |
| Lumen: | 542lm/m |
| IP: | IP65 |
| CRI: | 80 |
| Color temperature: | RGBW |
| Beam angle: | 120° |
| Cut length: | 100mm |
| Max. length: | 6m |
| Lifetime: | 50,000hours L80 |
LED Strip 24V 5m
Art nr.: 3234683

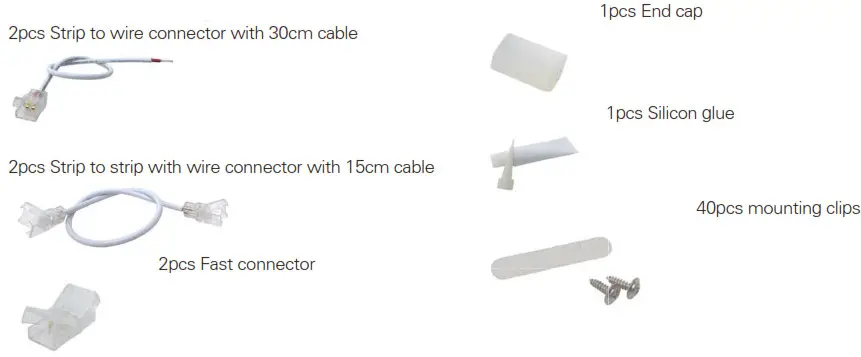

Accessory included in the package.

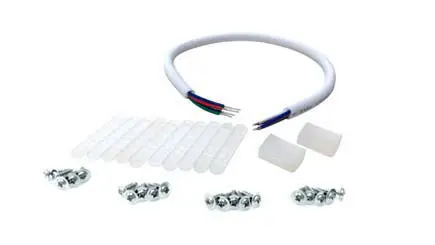

10pcs Mounting clip and screw
20pcs Screw
2pcs Endcap
1pcs Cable 30cm

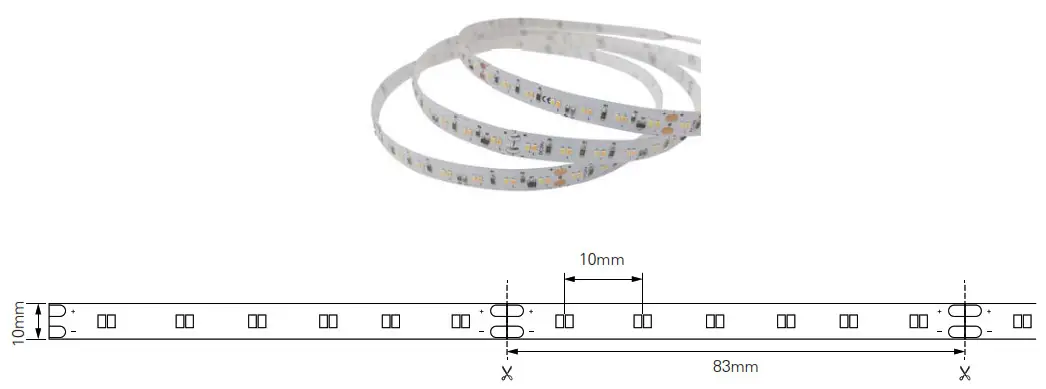

LED STRIP 24V 5m WARMDIM 1800-3000K
Art nr.: 3222240
| Voltage: | 24V |
| Power: | 9.16 W/m |
| Total LED per meter: | 120 |
| Lumen: | 720lm/m |
| IP: | IP20 |
| CRI: | 90 |
| Color temperature: | 1800-3000K |
| Beam angle: | 120° |
| Cut length: | 83mm |
| Max. length: | 5m |
| Dimmable: | Yes |
| Lifetime: | 50,000 hours L80 |
LED Strip 24V 5m warmdim
Art nr.: 3222240
Accessory Included in the package, may purchase separately also.
Art nr.: 3222239

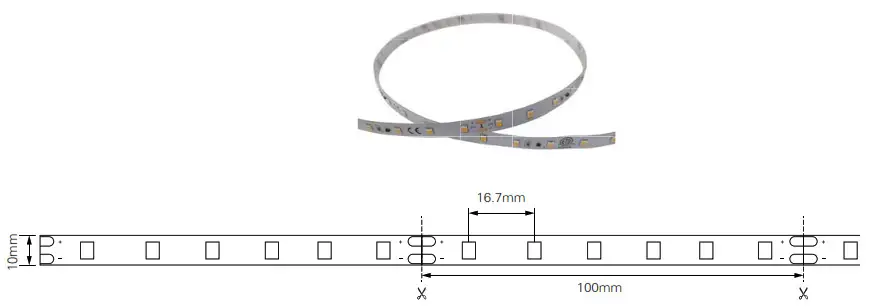

LED STRIP 24V 20m 2700K IP20
Art nr.: 3222241
| Voltage: | 24V |
| Power: | 4.48W/m |
| Total LED per meter: | 60 |
| Lumen: | 356lm/m |
| IP: | IP20 |
| CRI: | 90 |
| Color temperature: | 2700K |
| Beam angle: | 120° |
| Cut length: | 100mm |
| Max. length: | 25m |
| Dimmable: | Yes |
| Lifetime: | 50,000hours L80 |
LED Strip 24V 20m
Art nr.: 3222241
Accessory included in the package may be purchased separately also.

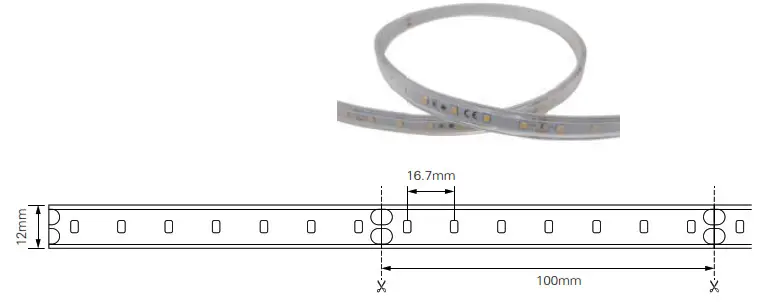

LED STRIP 24V 20m 2700K IP67
Art nr.: 3222242
| Voltage: | 24V |
| Power: | 4.48W/m |
| Total LED per meter: | 60 |
| Lumen: | 438lm/m |
| IP: | IP67 |
| CRI: | 80 |
| Color temperature: | 2700K |
| Beam angle: | 120° |
| Cut length: | 100mm |
| Max. length: | 25m |
| Dimmable: | Yes |
| Lifetime: | 50,000hours L80 |
LED Strip 24V 20m
Art nr.: 3222242
Accessory included in the package may purchased separately also.
Art nr.: 3222238
ALUMINIUM PROFIL
* Recommended LED strip
3234685/3220204/3220205
*3234680/3234681/3234682/
3234583/3222240/3222241/3222242/

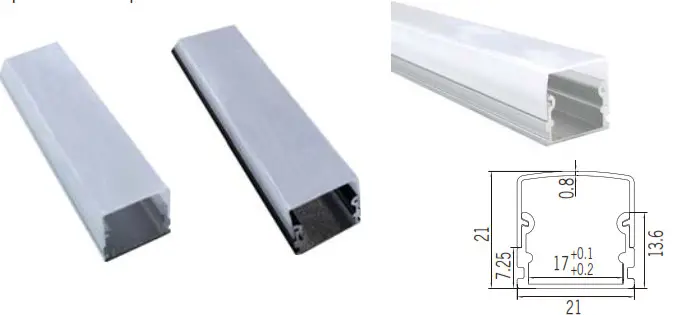

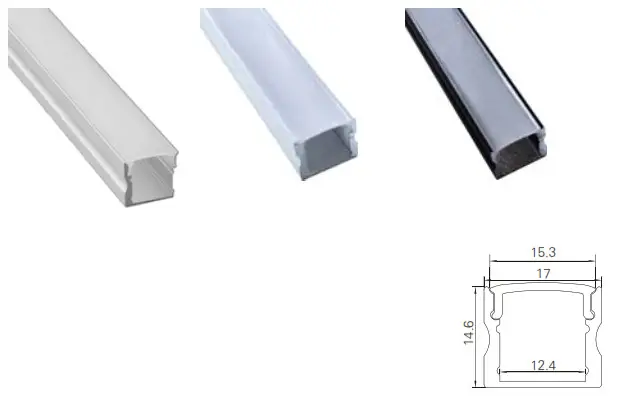

Aluminum profile with opal cover surface mounted 2m 2114
3234686/3220206/3220207
*3234680/3234682/3222240/ 3222241
Aluminum profile with opal cover surface mounted 2m 1612
3234687/3220208/3220209
*3234680/3234681/3234682/3222240/ 3222241/3222242
Aluminum profile with opal cover surface mounted 2m 1714
3234688
*3234680/3222240/ 3222241

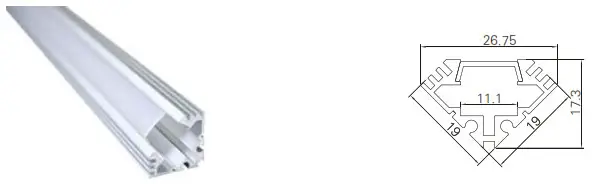

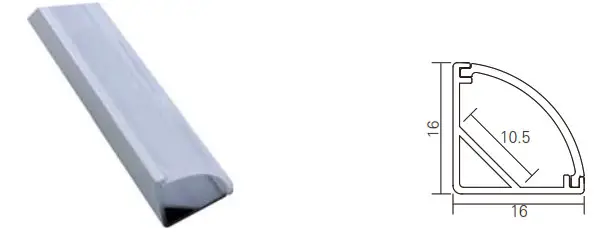

Aluminum profile with opal cover corner 2m 1919
3220210
*3234680/3222240/3222241
Aluminum profile corner 2m 1616
3234689/3220211
*3234680/3234681/3234682/3222240/ 3222241/3222242

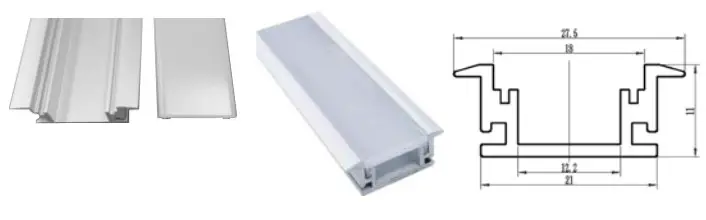

Aluminum profile with opal cover recessed 2m 2811
3234698/3220212
*3234680 / 3222240

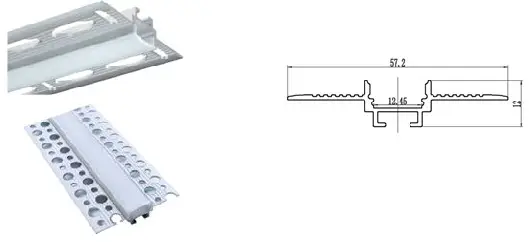

Aluminum profile recessed for plastering 2m 5712
3220213
*3234680/3234681/3234682/3222240/3222241/3222242
DRIVER & CONTROLLER
* Recommended LED strip
6603260
*3222240/3222241/3234680/3234681

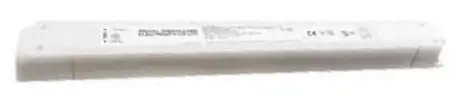

Driver dimbar LED strip 24V 100W IP20
6603261
*3222242/3234682/3234683/3234684

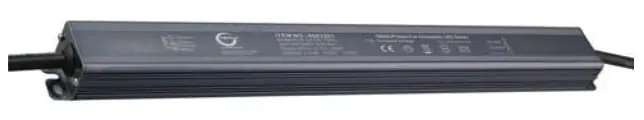

Driver dimbar LED strip 24V 100W IP66
6603265
*3234681 / 3234683

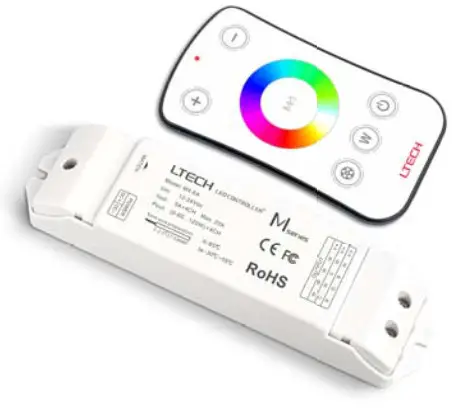

RGBW controller 480W 24V
SMART HAS TILBEHØR
* Recommended LED strip
4512701
*3234681 / 3234683

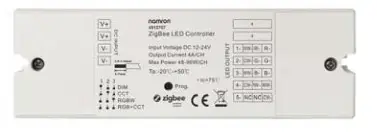

Zigbee 5 channel LED controller
4512708
*3222240/3222241/3222242/ 3234680/3234682

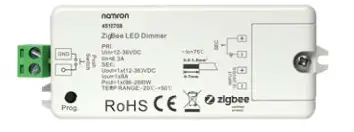

Zigbee 1 channel LED controller
4512743
*3222240/3222241/3222242/ 3234680/3234682
Z-wave 1 channel LED controller
4512706
*3234681 / 3234683

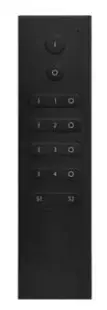

Zigbee RGB remote control
4512705
*3222240/3222241/3222242/ 3234680/3234682
4512711
*3222240/3222241/3222242/ 3234680/3234682
