anslut 019921 LED Strip
Important!
Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions
SAFETY INSTRUCTIONS
Carefully read the instructions before use!
- Save these instructions for future reference.
- Check that all connections are properly made before switching on the product.
- If the product does not work, check that the circuit is supplied with voltage.
- Keep children at a safe distance from the product when it is in use.
- If the permitted maximum voltage is exceeded this can damage the product, or reduce its useful life.
- If the permitted maximum temperature is exceeded this can damage the product, or reduce its useful life.
TECHNICAL DATA
- Rated voltage, transformer in 230 V ~ 50 Hz
- Rated voltage, transformer out 12 VDC
- Output 1.3 W
- No. of LEDs 18
- Colour temperature 3500 K
- Luminous flux 120 lm
- LED strip, size 300 x 10.5 x 2.5 mm
- Operating temperature -20 to 40°C
- Storage temperature -20 to 45°C
USE
- Check that all connections are properly made before switching on the product.
- If the product does not work, check that the circuit is supplied with voltage.
- Make sure that the arrow on the contact (magnified in figure) is turned to the plus side (+) on the LED strip.
REMOVAL

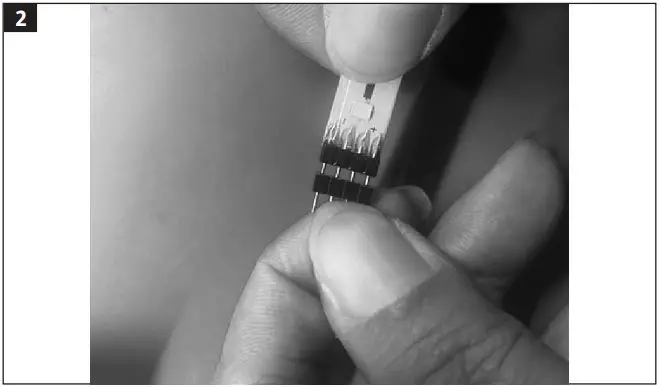

- Plug in the black plug with 4 pins.
- Test the light source by connecting to 12 VDC.
