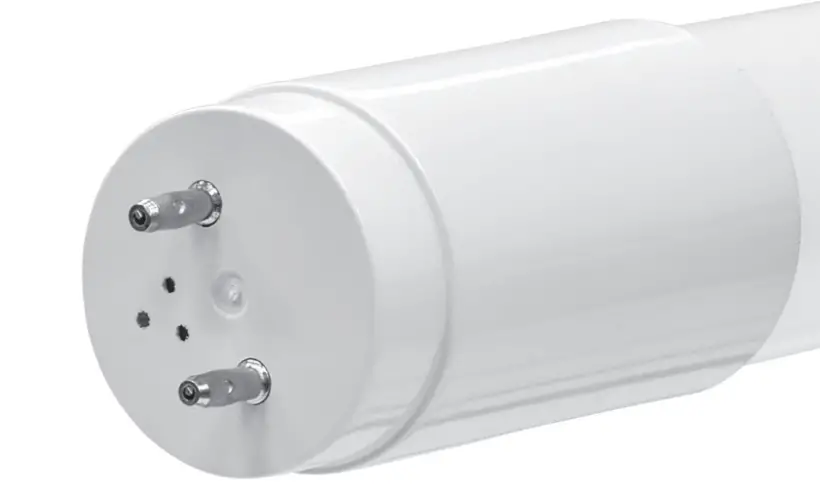

anslut 019935 LED Strip Light
SAFETY INSTRUCTIONS
- Read these instructions carefully before installation and use, and save them for future reference.
- The product is not dimmable.
- Disconnect the power supply before installation.
- The product is only intended for indoor use in dry areas. Damp areas and outdoor environments require products with a higher protection rating.
- Never modify the product or any of its parts in any way – risk of personal injury or material damage.
- The product is intended for lights with 2- pin IEC approved G13 standard sockets.
- The product must be installed by an authorised electrician in accordance with the relevant electrical safety regulations.
ELECTRICAL SAFETY
New installations and extensions to existing systems should always be carried out by an authorised electrician. If you have the necessary experience and knowledge
(otherwise contact an electrician), you can replace power switches and wall sockets, fit plugs, extension cords and light sockets. Incorrect installation can result in fatal injury and the risk of fire.
SYMBOLS

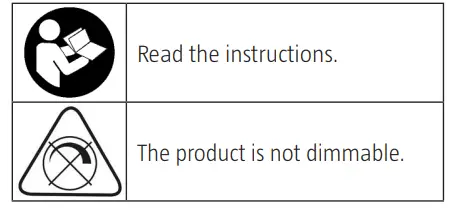

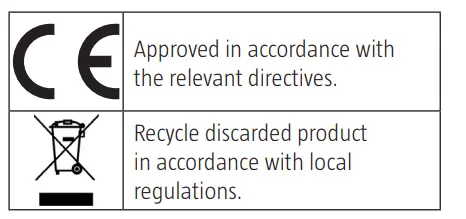

TECHNICAL DATA
| Rated voltage | 230 V ~ 50 Hz |
| Output | 18 W |
| Socket | G13 |
| Tube type | T8 |
| Energy class | A++ |
| Colour temperature | 4000 K |
| Luminous flux | 2160 lm |
| Power factor | 0.9 |
| Colour rendering index | 80 |
| Life span | 25000 h |
| On/Off | 12500 times |

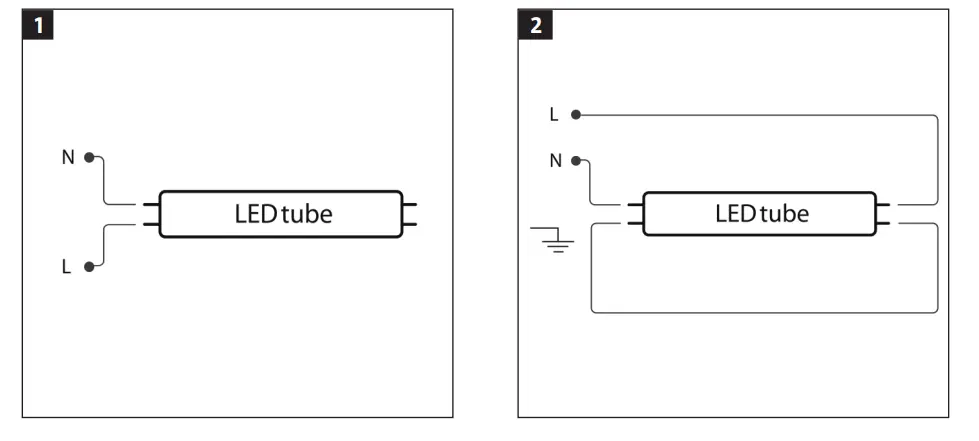

INSTALLATION
NEW INSTALLATION

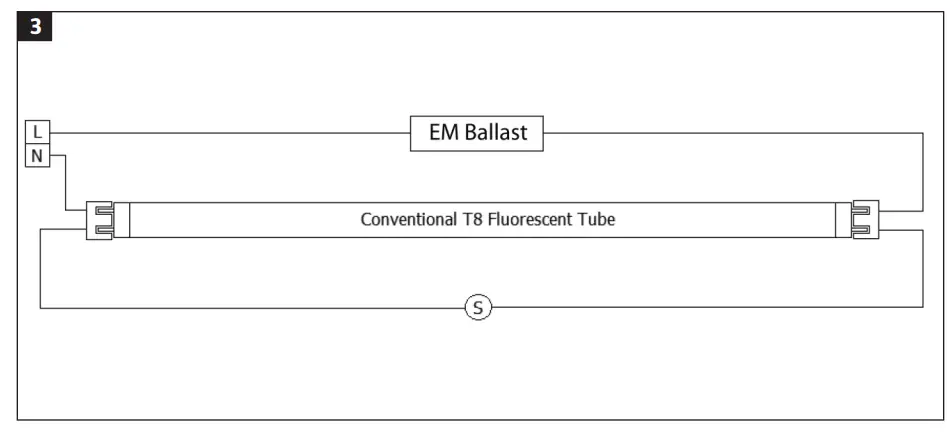

AFTER INSTALLATION IN LIGHTS WITH CHOCK COIL CONVENTIONAL T8 strip light
S = Starter.

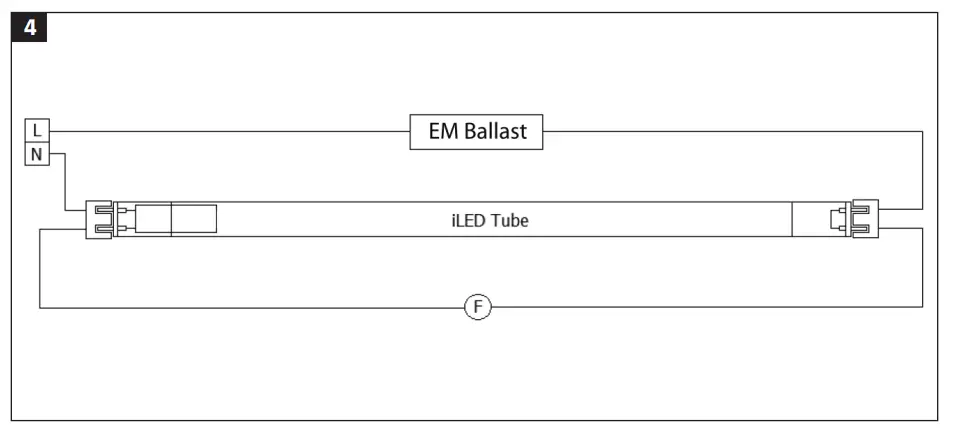

LED strip light
Replace the starter with the LED fuse.
F = LED fuse.

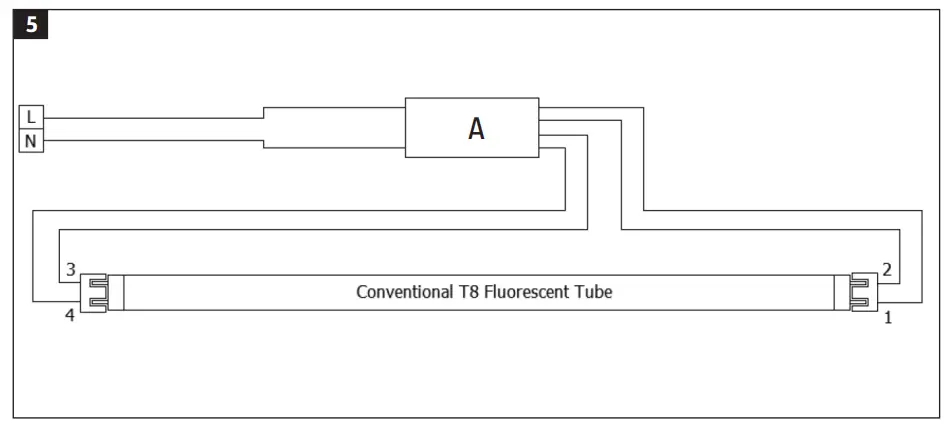

AFTER INSTALLATION IN LIGHTS WITH ELECTRONIC ACTUATOR Conventional T8 strip light
A = Electronic actuator.
LED strip light

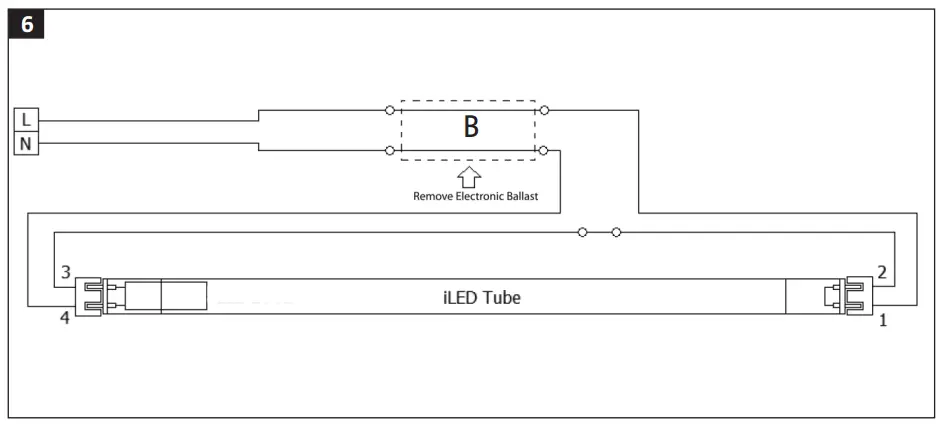

- Remove the electronic actuator (B) as shown in the diagram.
- Connect a direct wire between pin 2 and 3 on the light.
- Connect pin 1 to the mains phase (L) and pin 4 to neutral (N).
B = Electronic actuator.
